WEST BIKING Cycling Bike Backlight Computer 20 Functions MTB Bike Speedometer Odometer Wired Wireless Bicycle Stopwatch Computer

instructions:

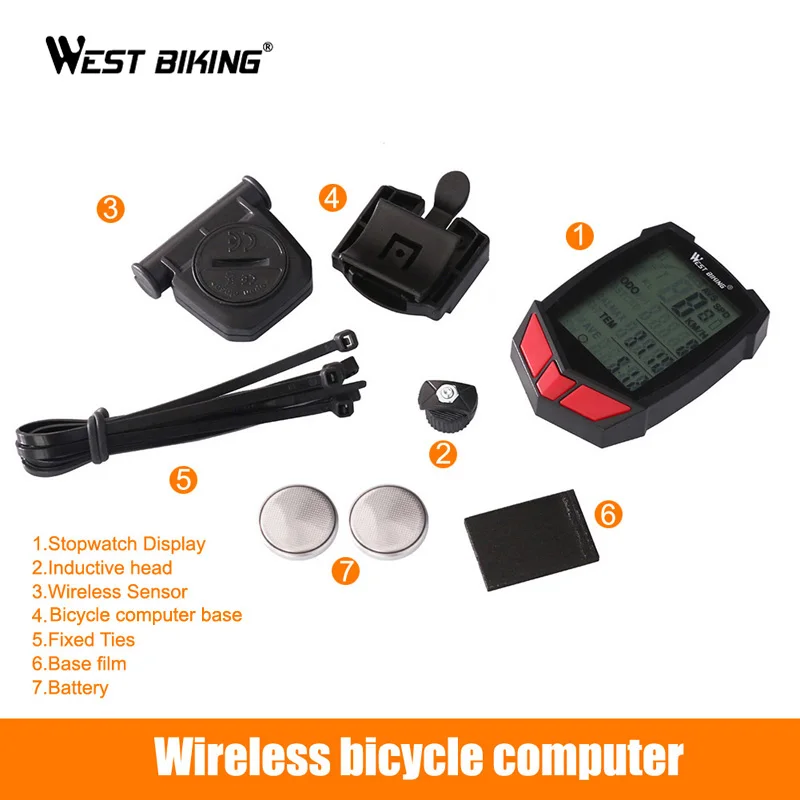

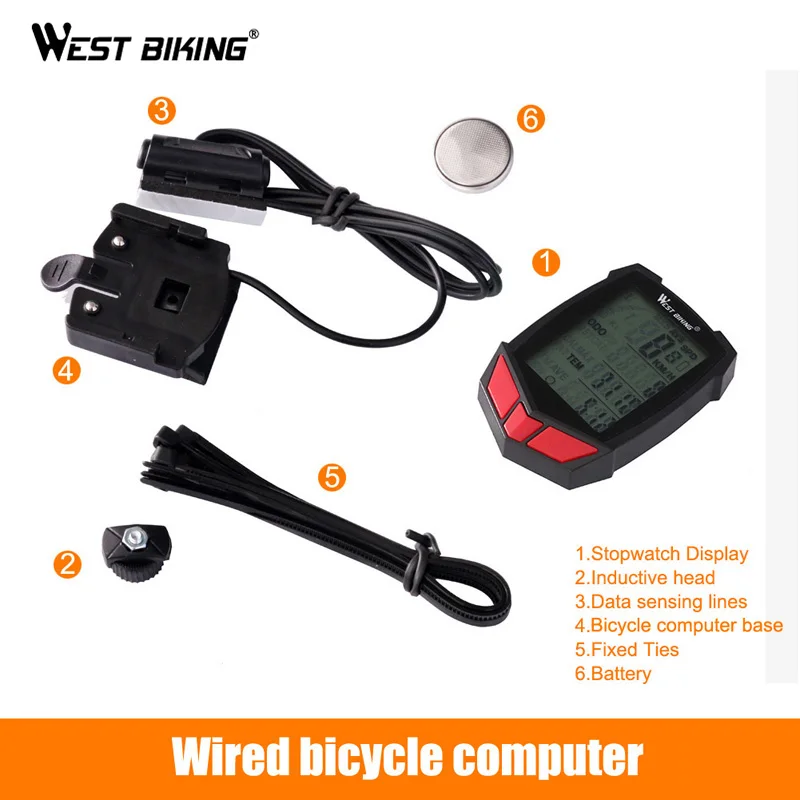

This computer bike has 2 types. wired and wireless. Please guarantee the type you want and choose correctly before giving an order. Thanks!

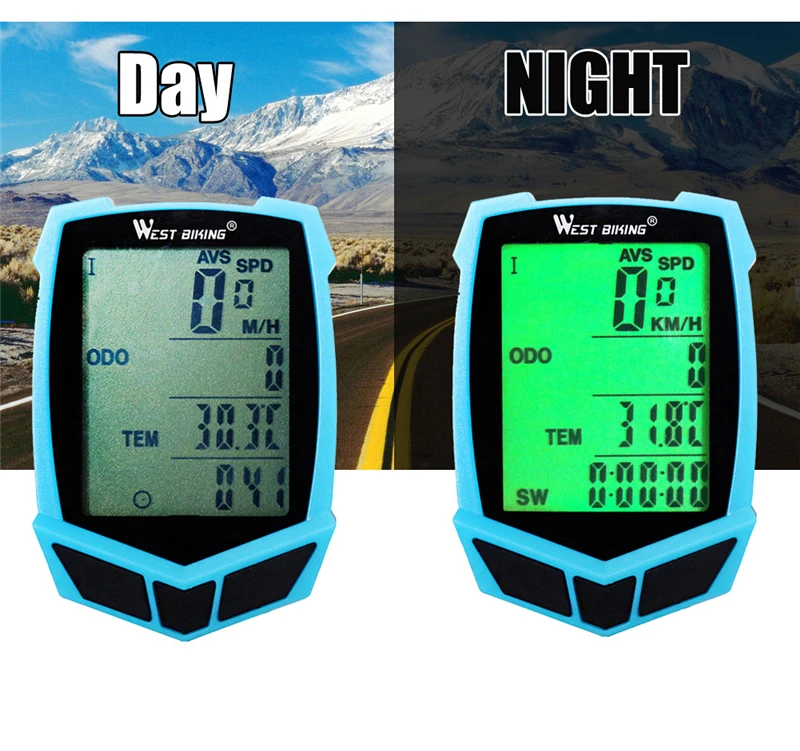

1 , about backlighting: during 17: 00-7: 00, screen will be lit for 4 seconds when you press any key, but if you want the screen always on, press both media and right button for 1 seconds to keep the always lit screen.Press the center and right key for 1 second to cancel it.

2. Memory function

3. Speed ​​the trend

4. SPD Current Speed

5. ODO Odometer

6. DST Unique travel distance

7. MXS Maximum speed

8. AVS average speed

9. TM Time to ride

10. CLK (12h | 24 h) \ Clock

11. CAL Calories Level

12. GREASE burn fat measureement

13. TEM Temperature

14. SW Time (seconds clock)

15. indication of low power

16. maintenance and recalling

17. adaptable for KM \ hr or M \ hr

18. BICYCLE WHEEL SET (0mm-99999mm)

19. Odometer value Default setting

20. Auto is \ off

buyer's notice

the distance between the bicycle computer and the magnetic head should be within 60 cm

Battery installation

remove the battery cover and put a piece of CR2032 battery in the case. Notice: Positive pole (+) must be set up. then cover the battery cover and screw it on.

sensor and Magnet  installation

install the sensor on the front fork of the bicycle, and the Magnet is installed on the steel wire on the same side of the wheel. sensor can be underlaid with back-up plate and use the strap to fix on the front fork. it needs to be installed 60 cm away from the computer.adjust the position of the Sensor and Comparative Magnet. the plane must face for the inductor, keep the space to be 1.5mm. magnet can not be set to the center of the face-to-face sensor, it is best with the head or tail of the sensor.

Pedestal of Installation

in the packaging accessories there has a strap that can be used to fix the Seat on the handlebars, as well we can use the back-up plate to fix it.

Installation Computer

push the computer along the slide, the stand button fix the computer and hold. removal only needs to pull it out in the opposite direction along the chute. check the installation: Turn the front wheel to run, look at the screen to confirm whether signal is obtained. if it has no signal or the reaction is not sensitive please adjust the relative position of the Sensor and Magnet slightly.

KM / h / ( M / hr ) select

press the right button to choose KM / hr or M / hr mode.

press the center button to confirm.

then enter the Perimeter Setup mode.

Perimeter wheel Setting

the screen shows 2060, select the cycle of your exact motion according to the following list.press the right button to change the flash number, then press the center button to confirm it. Set number from left to right the number. it goes from 0mm to 9999mm. then it comes to setting the bike "II", the screen shows 1860. the same setting operation as bicycle "I".

press the center button to enter the weight setting mode.

weight setting

press the right button to change Kilogram K for Pound L.

press the center button to confirm.

Weight default value is 065 kg, press the right button to change the number, press the center button to confirm.

press the central button to access the Maintenance Maintenance mode.

maintenance alert

maintenance default value is: 0200, press the right key change the number, press the center button to confirm.

then, it's about setting the "II" Bicycle Reminder Maintenance. the default value is 0800. the same setting operation as "I" bicycle.

function: when the value distance reaches the maintenance setting value, the icon key will be beat in the screen, press the center button for 6 seconds to cancel it.

two Bicycle I / II using

press the center button for 6 seconds to change the I / II bicycle.

stopwatch function

under the (ODO-TE-CLK) main mode, press the center button to change to (ODO-TE-SW) mode. In this mode, press the left button to start the stopwatch, press again to stop it, press the right button to cancel the value. it goes from 0: 00: 00-9: 59: 59.

ODO & Clock Setting

under the ODO mode Main Clock temperature, press the left button, you will see the ODO blink of an eye, press the left button again - TE blink of an eye, press the SHINY button-icon of the SHINY again.

1. When ODO blink of an eye, press the left button again for 3 seconds to

1. set ODO value. press the right button to change the number, press the center button to confirm, set number from right to left.

2.

2. When YOU blink, press the left button again for 3 seconds per set

the unit of temperature. press the right button to change ℃ / ℉, press the center button to confirm.

3. When clock icon blink of an eye, press the left button again for 3

seconds to set the 12/24 clock. press the right button to change 12 H / 24 H, press the center button to confirm.

then press the right button to change the number time, press the center button to confirm it.

press the right button to enter the DST-FAT-TM mode.

clear value

press the right button to enter the DST-FAT-TM mode.

in this mode, press the center button to check the fat and calorie value.

press the left button for 3 seconds, DST, TM, MXS, AVS, FATS and Calories value comes to '0'.

Auto off

After 300 seconds no signal inputs the odometer, the screen will turn into OFF state with only clock display. It will be restart only when you press the key again.

Current Speed

Current speed will be showed when you are on riding.

Precision at 0.1KM/h. It ranges from 0~99.9 KM/h(M/h).

Low power indicator

Once the battery voltage decreases to 2.5 V, the blank battery icon will be twinkling on screen, that reminds you to change a new battery.

Resetting

Press both middle and right key for 3 seconds to reset KM /h

M/hr, wheel Perimeter/ ODO /weight/ Maintenance alert.

Memory function

All cycling and setting data will be kept after changing battery.
