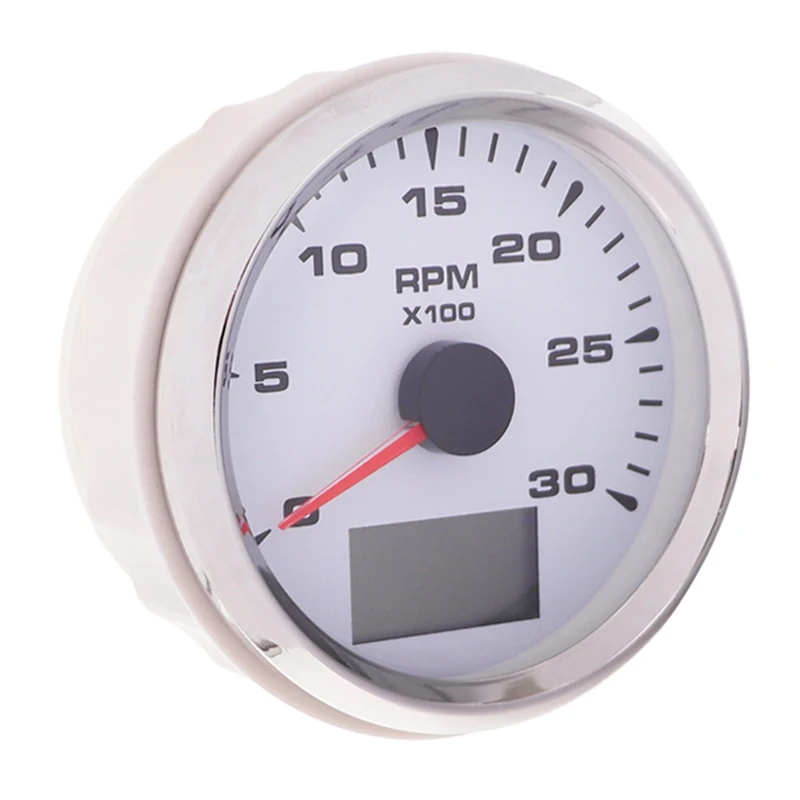

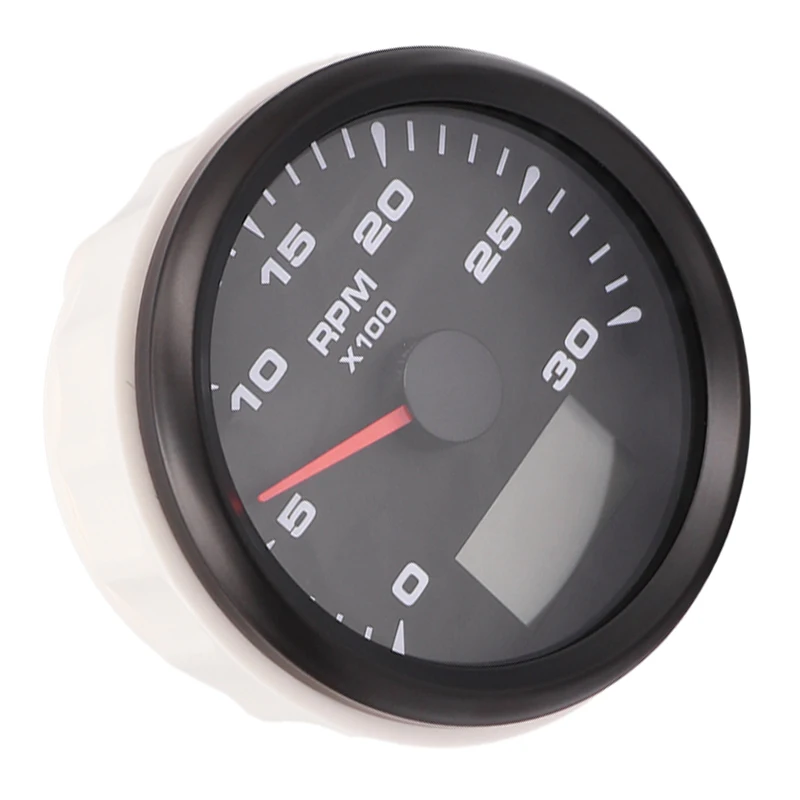

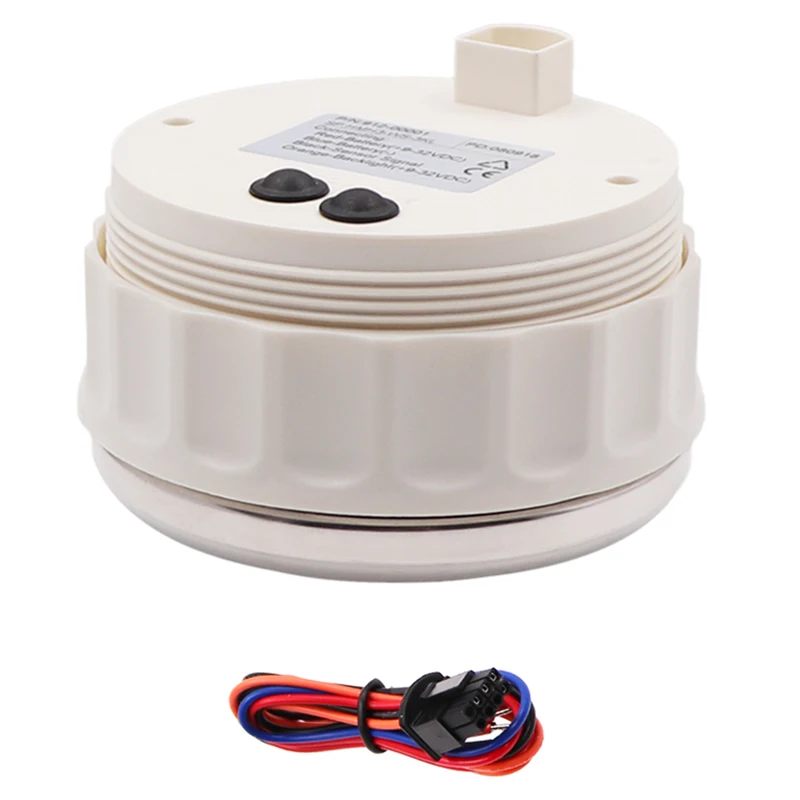

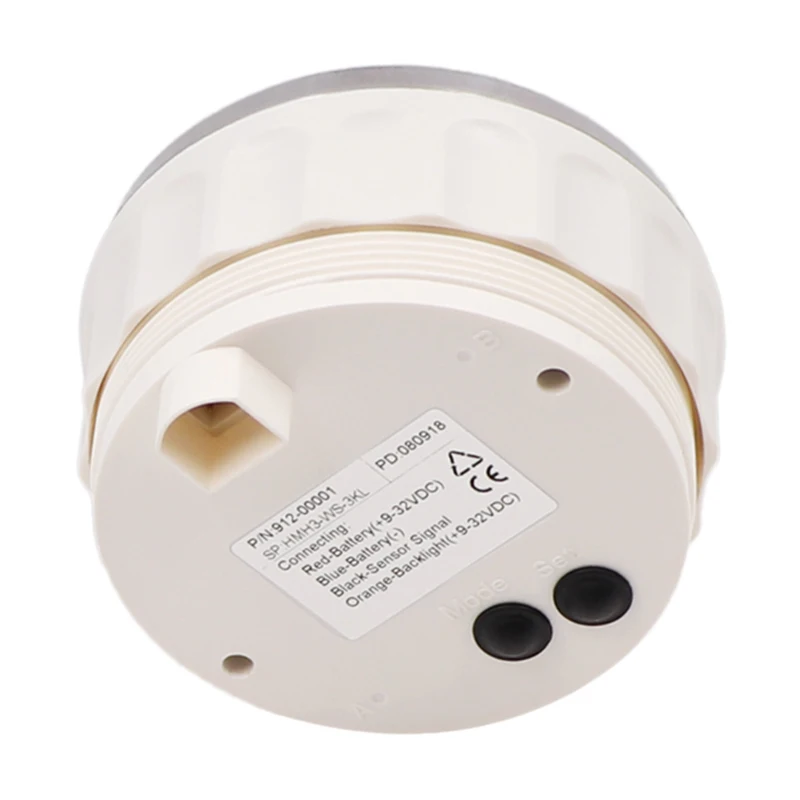

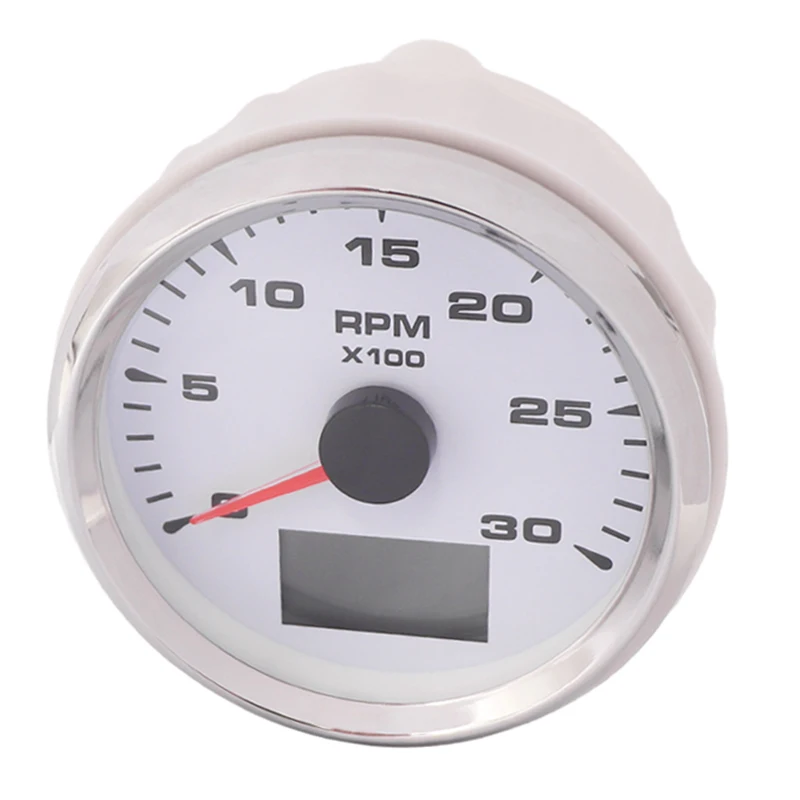

Auto Car Tachometer Gauge 85mm 3K 3000RPM LCD Waterproof Rev Counters 9-32V Meters with Backlight for Auto Boat





Specification:  Backlight color:red.green.blue.white.yellow.olivine.orange.purple, can choose what you need color by pressing the gauge back button Fantastic Waterproof Function: can work in the water. Material:stainless steel 316L+anti-fog glass Install diameter:Φ85mm or 3-3/8'' Indication range:0~3000RPM Connection method:row insert Working voltage:9~32VDC Input signal:pulse Working current::≤100mA Operating temperature:-30℃~+75℃ Storage temperature:-40℃~+85℃ Grade of protection:IP67 Item condition:new Place of origin:China Features: Competitive price,screw thread structure Gauges front cover use stainless steel 316L for long-term use even in acid-base and humid environment IP67 waterproof and dustproof grade Stepper motors used for full range of stepping gauges,great feature with its less power consumption,longer life,higher precision etc. With curved glass (with anti-fog function) With ultra-wide working voltage design (long-term operating voltage:9-32v,maximum up to:36v) Gauges have many kinds backlight color (red.yellow.orange.green.blue.purple.white),customers can adjust any color that you like Customized color for stainless steel is provided Fast delivery time,better for releasing your pressure of stockage and liquidity There is a snap together with the harness connector,for best and firmly connected,in order that the gauges could work even in strong viberation,products can be used for the engines/generating units,ships,construction machinery,agricultural machinery,automotive modification etc.  ​Install Instruction: 1)Opening a hole in the panel (your cabin board and dashboard) with a diameter of 85mm,insert meter into the hole,the panel corresponding to the instrument panel is marked with a convex table,and open a small notch in this location,to ensure that there is at least 85mm (3 3/8'') of the instrument panel at the back of the instrument 2)After the instrument is mounted in the panel,screw down with a fixed ring 3)Connect the wire,the instrument housing is directly connected to the 12/24v power supply 4)Insert wire harness,firmly locked in the table Package include 1 x Tachometer 1 x Wiring harness​​ 1 x Instruction manual Backlight Color Adjustment: 1)Press the Set button (less than 1 second) to change the backlight color: Backlight changed in sequence: red (default) →green → blue → white → yellow → yellow green （olive）→ orange → Purple → (automatic). 2) Automatic: As the gauges was set with the automatic, the backlight will be off for 2 seconds then lighten up, and will switch the backlight color as above sequence.       ​
