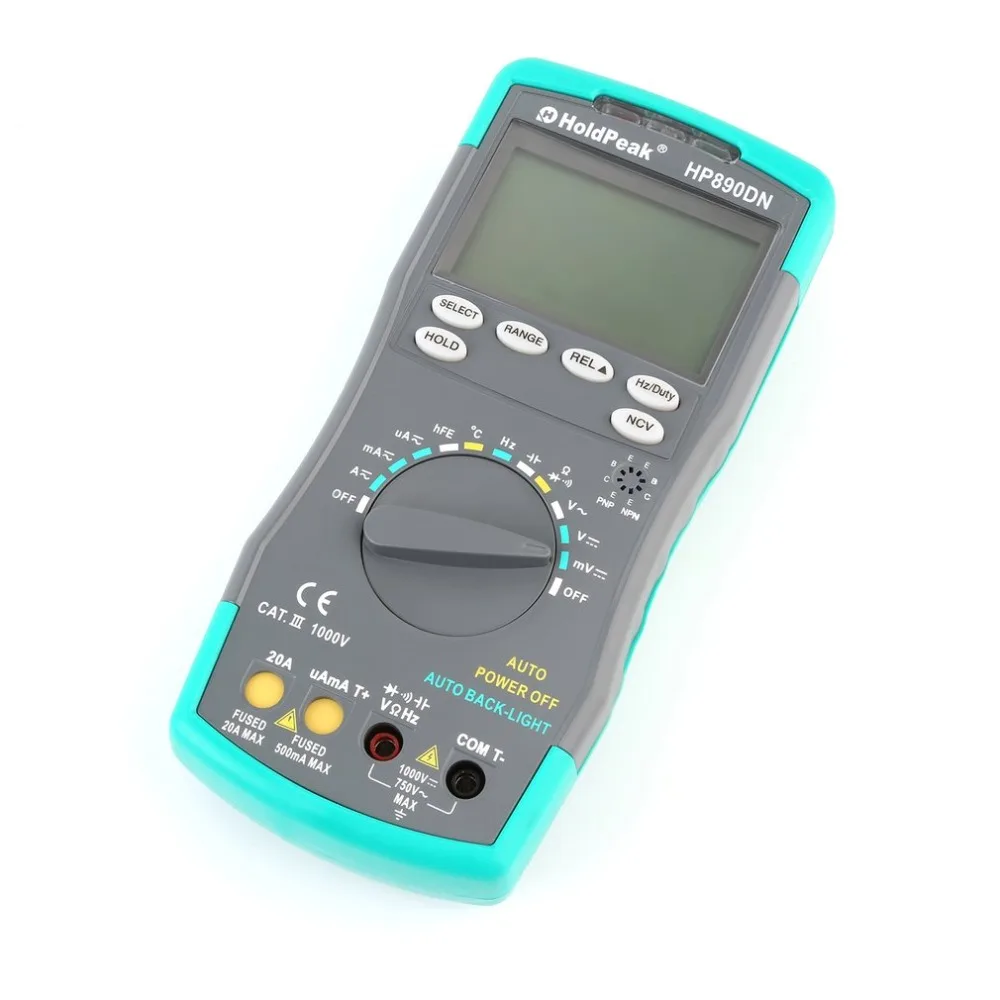

HoldPeak HP890DN LED Digital Multimeter DMM with NCV Detector Voltage Current Meter Capacitance Tester | Инструменты

---

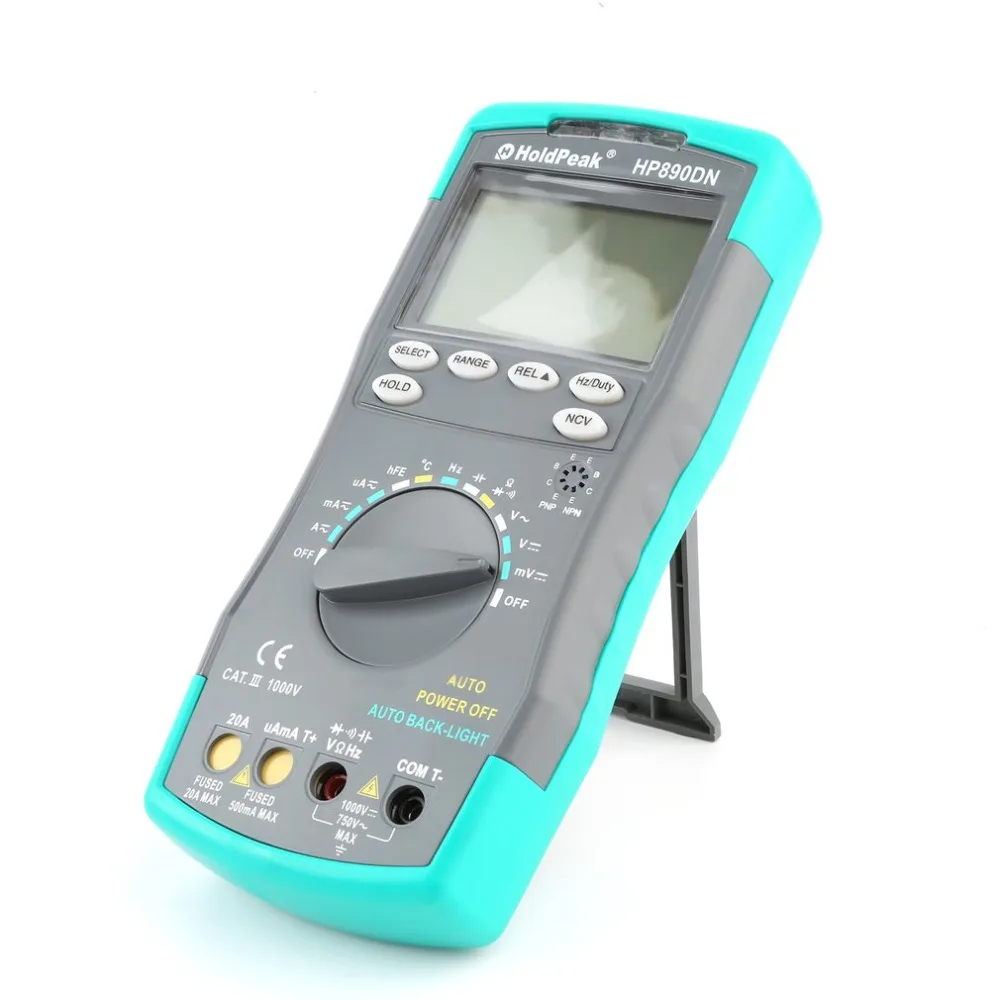

Features: Large LCD display of 25mm character height for clear reading, smart backlight, very convenient for use.  Max. display value: 4000.  Measure AC/DC voltage/current, diode, resistance, capacitance, frequency, duty cycle, temperature and hFE test.  Non-contacted voltage(NCV) detector function.  Relative value testing, data hold and auto power off function.  With unique mechanical protection function, preventing user from inserting the wrong jack.  Function Switch indicator for user so that he can switch to the correct position in the darkness.  The holder at the back can be rotated in 180 degrees, can be hung as well.    Specifications:  Color: Grey&green  Material: Plastic  Maximum Display: 4000  Range Control: Auto Range  Screen Size: 60 * 35mm  DC Voltage: 400mV/4V/40V/400V/1000V  AC Voltage: 400mV/4V/40V/400V/750V  DC Current: 400μA/4000μA/40mA/400mA/4A/20A  AC Current: 400μA/4000μA/40mA/400mA/4A/20A  Resistance: 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ  Capacitance: 51.2nF/512nF/5.12μF/51.2μF/100μF  Frequency: 5.12Hz/51.2Hz/512Hz/5.12KHz/51.2KHz/512KHz/5.12MHz  Duty Cycle: 0.1% to 99.9%  Temperature: -20~1000°C  Diode Test: Yes  Continuity Buzzer: Yes  Transistor hFE Test: 0-1000  NCV Detection: 90V~1000V AC rms  Power Supply: 2 * 1.5V AA Batteries (NOT Included)  Operating Environment: 0-40°C(32-104°F)  Storage Environment: -20-60°C(-4-140°F) Item Size: 85*35*190mm Item Color: Black Item Weight: 300g Package Size: 130*55*215mm/5.11*2.16*8.46in Package Weight: 460g/16.22oz Nylon Bag Package   package included: 1x HoldPeak HP-890DN Digital Multimeters  1x Test Lead  1x user manual  1x Bag
