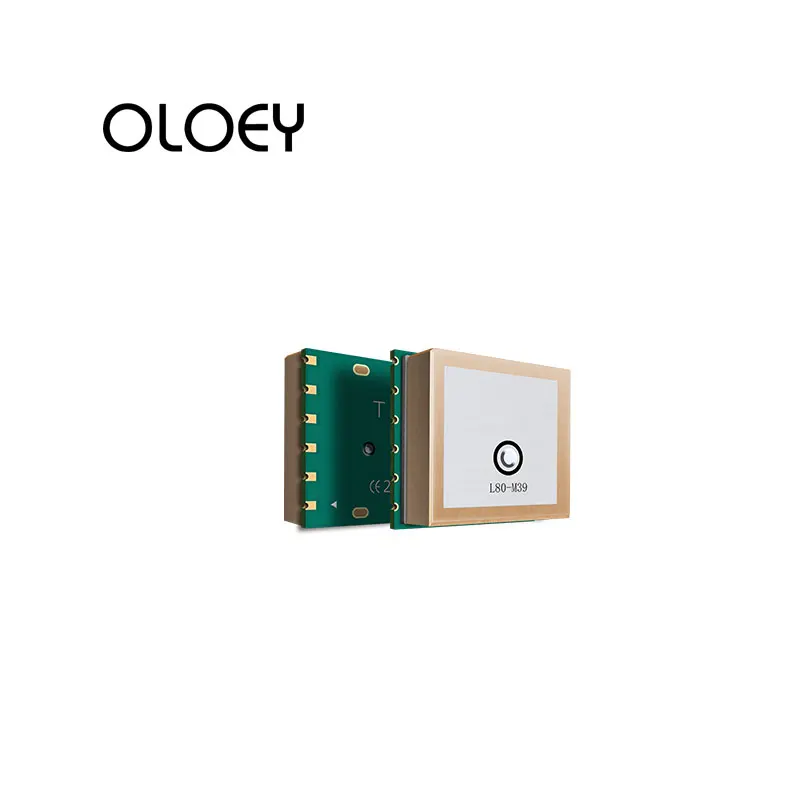

L80 L80-M39 Ultra Compact GPS Module integrated antenna 100% brand new original |

L80 L80-M39 Ultra Compact GPS Module integrated antenna 100% brand new original |

L80 is an ultra compact GPS POT (Patch on Top) module with an embedded 15.0mm × 15.0mm × 4.0mm patch antenna. This space-saving design makes L80 the perfect module for the miniature devices. Adopted by LCC package and integrated with patch antenna, L80 has exceptional performance both in acquisition and tracking.

Combining advanced AGPS called EASY™ (Embedded Assist System) and proven AlwaysLocate™ technology, L80 achieves the highest performance and fully meets the industrial standard. EASY™ technology ensures L80 can calculate and predict orbits automatically using the ephemeris data (up to 3 days) stored in internal RAM memory, so L80 can fix position quickly even at indoor signal levels with low power consumption. With AlwaysLocate™ technology, L80 can adaptively adjust the on/off time to achieve balance between positioning accuracy and power consumption according to the environmental and motion conditions.

L80 supports automatic antenna switching function. It can achieve the switching between internal patch antenna and external active antenna. Moreover, it keeps positioning during the switching process.

The Fitness Low Power (FLP) feature provides low power GPS solution for fitness application. It is an optimized solution for wearable, fitness and tracking devices and only costs about 50% power consumption of normal mode.

With its compact design, high precision and sensitivity, L80 is perfectly suitable for a broad range of M2M applications such as portable device, automotive, personal tracking, security and industrial PDA, especially suitable for special applications, like GPS mouse and OBD.

Key Benefits

●   Embedded patch antenna: 15.0mm × 15.0mm × 4.0mm

●   Extremely compact size: 16.0mm × 16.0mm × 6.45mm

●   Automatic antenna switching function

●   Support short circuit protection and antenna detection

●   Built-in LNA for better sensitivity

●   EASY™, an advanced AGPS technology without external memory

●   Ultra low power consumption in tracking mode, 20mA

●   AlwaysLocate™, an intelligent controller of periodic mode

●   LOCUS, an embedded logger solution with no need of host and external flash

●   High sensitivity, -165dBm @Tracking, -148dBm @Acquisition

●   66 acquisition channels, 22 tracking channels

●   FLP mode, about 50% power consumption of normal mode

●   Balloon mode, for high altitude up to 80km

●   Support DGPS, SBAS (WAAS/EGNOS/MSAS/GAGAN)

●   Anti-Jamming, Multi-tone Active Interference Canceller

●   PPS VS. NMEA can be used for time service

●   Support SDK command developed by Quectel

Please feel free to contact us if you need more support!

1) Payment terms: We can accept all payment by Escrow.

2) Shipping Details: UPS、DHL、FedEx、TNT、EMS

1. We can ship to all over the world. Items will be shipped within 1-3 business days after we verify your payment.

2. Please tell me your current address after your payment within 1-2 days; otherwise, we will ship your item based on your Escrow address, so make sure it is correct.

3. Before ordering please contact us to confirm your preferred shipment method. Normally, it takes 7-30 business days for arrival by Air Mail, and takes 3-10 business days by Express such as DHL UPS FedEx EMS TNT and so on.

4. Sometimes it would be longer because of the bad weather, a waste of time in customs clearance. Thus please wait patiently when you do not receive your item on time. If you don’t receive your item on within 30 days, please contact us, and then I will help you track it.

3) Feedback:

1. Please confirms the receipt of the products after you get them.

2. If you have any question for the products you received, please contact us in time and we will try our best to solve the problems and make you satisfied.

3. Please kindly not forget to give us the positive feedback for 5 stars.

4)  About Us:

WindLink is a leading wireless module and solution resource integration company located in Shenzhen. Since established WindLink has focus on wireless module product and committed to provide a variety professional technical support. For the rich experience in wireless communication field, WindLink has play an important role in resource integration on Power, Industry, Home Appliance, Medical Electronics, IoT and Car industry field. For easy reach and better support we have set branch in Shenzhen, Beijing, HK, Shanghai and Taiwan.

13) Packaging Details

1. Unit Types: pieces

2. Package Weight: 0.05kg

3. Package Size: 11cm x 13cm x 4cm (4.33in x 5.12in x 1.58in)
