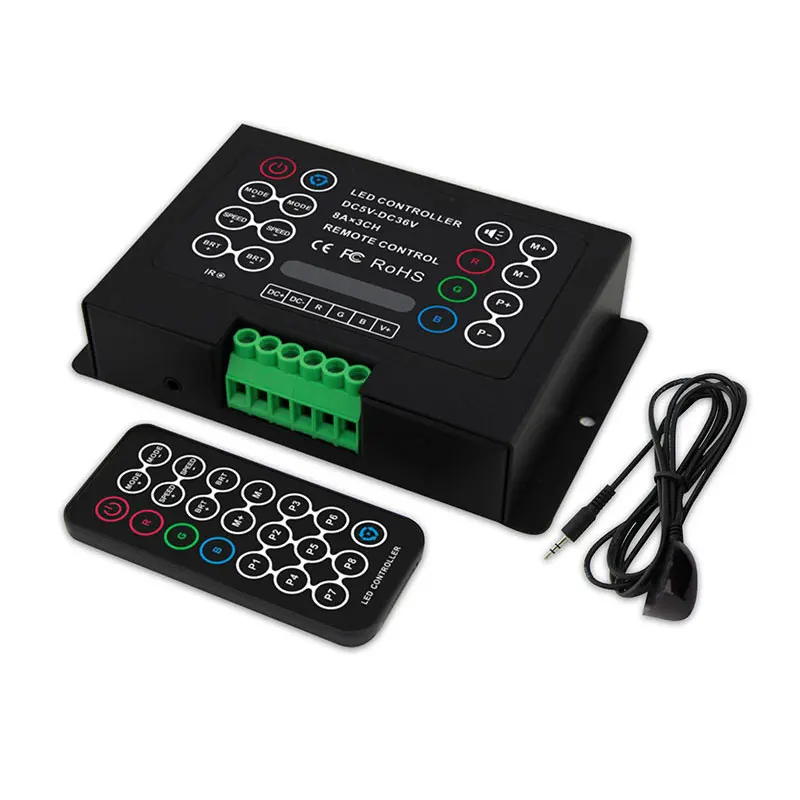

DC5V-36V 3 Channles 8A/CH Wireless Multifunctional Full Color Constant Voltage LED IR Remote RGB Controller for LED Strip Light

Multifunctional LED RGB controller is an upgraded DIY LED controller, it added customize programming function, you can program your favorite color change modes within a few seconds. it can control color changes of LED lights with 4-pin 3-channels (Common anode),It has 12 kinds of built-in modes, 6 kinds of customize modes, which can be change to any of the color skipping, color smooth and color flicker, makes your LED light changes more rich and colorful.

Features:

1. Automatic switch from DC5V-DC36V.

2. With 21 Buttons IR Wireless remote control, reliable control distance can reach as far as 10m.

3. 12 built-in changing modes, 6 DIY modes, and each mode can be change to any of the color skipping, color smooth and color flicker, 54 changing modes in all.

4. 0-100% dimming and 16 levels of static brightness per RGB can mix 4096 colors; 16 speed levels in each mode.

5. 3-Channel RGB full color control, maximum outputs 8A per Channel.

6. 4096 Grey scales per RGB, color-smooth effect is gentle and accurate.

7. Power loss memory function. Over current protection, short circuit protection.

8. Equipped with infrared receiver, more convenient to receive the infrared signal.

Product parameter:

 Input voltage: DC5V-DC36V

 Max load current: 8A/CHx3

 Max load power: 120W(5V)290W(12V)580W(24V)865W(36V)

 Changing mode: 12 built-in modes, 6 customize modes

 Scale level: 4096 steps per RGB

 Static dimming: Mixing up 4096 colors

 Remote Control Distance: 10m without obstacle

 Dimension: L142xW73xH30(mm)

 Weight (G.W): 415g

 Control type: Common Anode

Conjunction Diagram:

Operating instructions:

Safety Warnings:

Please don’t install this controller in lightening, intense magnetic and high-voltage fields.

1.To reduce the risk of component damage and fire caused by short circuit, make sure correct

connection

2.Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting

temperature.

3.Check if the voltage and power adapter suit the controller

(please select DC5-36V power supply with constant voltage)

4.Don’t connect cables with power on; make sure a correct connection and no short circuit checked

with instrument before power on.

5.Please don’t open controller cover and operate if problems occur.

The manual is only suitable for this model; any update is subject to change without prior notice.
