Portable wire edm machine spark erode M2-M36 broken tap remover out | Инструменты

1 Set Portable wire edm machine spark erode machine M2-M36 broken tap remover tap out machine

Product discription

SFX-4000B can fast remove broken taps, drill, drift, screw, plug gauge, etc., without damagingto the work piece,

easily process on work pieces at any size, especially effective for large machine tools.Broken bolt drills remover

machine tap burner without damage threads.

Technical Paratement

Input Voltage:     AC220V/110V 50/60Hz

Input Power:       3000W

Output Current；0-50A

Uitable for Broken Tap (Bolt)Size:     M2-M36mm

Working Liquid:      Tap Water

Electrode Diameter:     2-13

Max Travel of Work Head:   70mm

Max Processing Speed:    2mm/min

Package Size (L*W*H MM):     528*325*460mm

Net Weight:     22Kg

Gross Weight:     26Kg

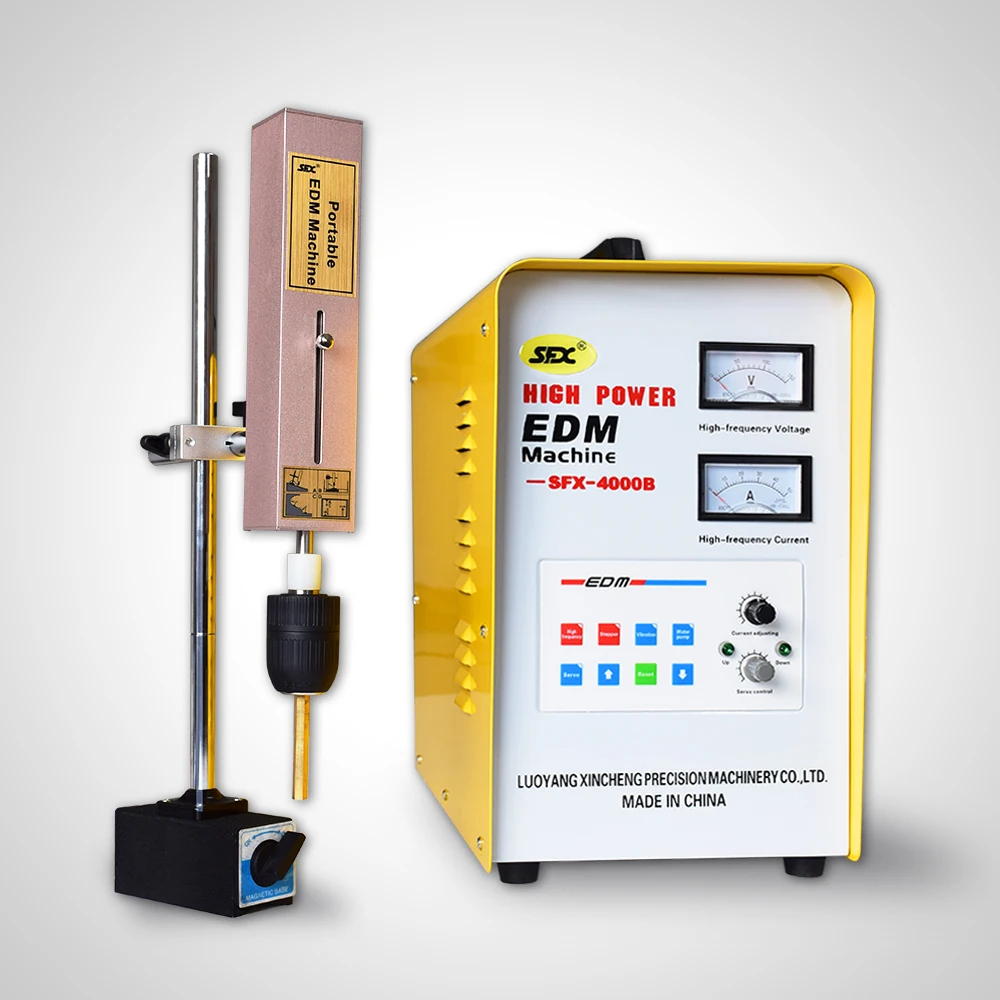

Detailed Image

Functions and Features

1.Broken bolt drills remover machine tap burner abide by the principle of
Electrolytic Corrosion to remove broken tools, no direct contact, no external force
and damage to the work piece.

2. Portability: Light weight. Small Size. Carrying handle on the top of the power case.

3. Convenient Operation: The magnetic base could be absorbed on work piece to finish peocessing easily.

4. Economical and Convenient: The working liquid is ordinary tap water. Powerconsumption is moderate. The inlet pipe is detachable.

5. Wide Processing Range: Broken taps and drills (conductive material )above diameter 2mm (2mm is included)

6. Long Working Hours: A cooling fan installed ensures the ventilation, which keeps the machine working continuously.

Using Skill

Packing & Shipping

Every machine must be packed specially before leave factory.
    Two layer of thick carton packaged, surrounded by foam to protect the machine.

Our Service

Warranty:
l First of all, Broken bolt drills remover machine tap burner will have to go through a thorough quality exam process

to ensure that our devices won’t have any glitch before delivery.

l Secondly, the warranty period is usually around one year and within this time frame, if there are
any technical problems, we would repair them for free including the new parts that needed for the repair.

l PS: we would offer free repair only when the damages are caused by technical deficiencies of the product itself,

not man made errors, namely, the damages were done by mishandling the machine.

About Us

Luoyang Xincheng Precision Machinery Co., Ltd. was established in February, 2004 and has more than100 staff members. Our company has more than 100 sets of machinery, including CNC equipment, various types of machining equipment, heat treatment equipment and testing equipment. Furthermore, our company is engaged in processing aerospace field precision parts and military products. In 2005, our company passed ISO9001:2000 Quality System management certification. In addition, our company got independent import & export rights in 2009.

Alex Wang

FAQ

1.Will your machine could operate on 110V/60HZ input voltage?
Answer: Sure,  the standard equipment is for 220VC+/-10%, 1 phase,  50/60HZ input voltage,
but we also have machine with 110/60HZ, you can choose the machine base on your actual demand.
2. Do you offer a pump for through the electrode flushing?
Answer: Yes, a water pump is included in the parts,and you need to buy nothing else to start operating.
3. If the chucks rotate when they are machining?
Answer: The chuck won't rotate while machine operating.
4. What's your delivery method?
Answer: The machine will be delivered by internation express such as TNT, Fedex, DHL, etc.
5. What about the delivery time and shipping time?
Answer: The machine will be delivered from our factory within 72 hours after the 100% deposit checked,
it will be generally shipped to your hand in about 2 weeks.
6. What's the payment terms?
Answer: We accept T/T, Western Union, Paypal, etc payment terms.
