SONY CMOS 20X ZOOM HD 1080P 2.0MP Outdoor PTZ IP Speed Dome Camera 150M IR Audio

This is SONY CMOS 20X ZOOM , High Speed Dome Pan Tilt Zoom, HD 1080P 2.0MP Outdoor with 150M IR Night Vision. Come with 32G TF Card and Audio Pickup.

SONY CMOS 20X ZOOM HD 1080P 2.0MP Outdoor PTZ IP Speed Dome Camera 150M IR Audio

SONY CMOS 20X ZOOM HD 1080P 2.0MP Outdoor PTZ IP Speed Dome Camera 150M IR Audio

Model: SP406M-NHP-BGX20



• Support automatic calibration function
• 1080P HD Resolution 30FPS
• SuperArray IR LED up to 150M ( Great night vision)
• Support most Onvif Recorder /or can use PC to record
• Remote view support Android & IOS & Computer
• Simple remote access no more difficult DDNS/Portfoward
• Weather Proof for outdoor/indoor
• Come with 32g TF card(up to 64g TF card) and audio pickup

Features

1. 1. 4.5 inch metal structures, all-weather environmental design, IP66 waterproof
2. 2. The third generation light components, low energy, infrared distance greater than 150 meters
3. 3. Original infrared light PWM control technology. No "flashlight" phenomenon
4. 4. Built-in surge and lightning protection device, effectively prevent 4000V transient current
5. 5. Support 3D functions and given them intelligence rocker function, precise positioning can effectively track a moving target
6. 6. High-precision 0.9 degree stepper motor, responsive, smooth operation, preset position accuracy of less than 1.0 degree difference cumulative series
7. 7. Support automatic calibration function
8. 8. Progressive scan CMOS, high speed capture moving images without jagged
9. 9 support phone monitoring, P2P remote network penetration, easy access step
10. 10. The use of ultra-low-light CMOS image sensor, low-light 0.01lux
11. 11. H.264 video compression algorithm for compression, support dual stream, high compression ratio, high-definition
12. 12. The low power consumption, heat a small stable and reliable

Parameters

1. Image Sensor: 1/3" progressive scan CMOS
2. Effective Pixels: 1920(H)x1080(V)
3. Signal System: PAL/NTSC
4. Minimum Illumination: 0 lux with IR
5. White Balance: Auto/manual/ATW/Indoor/outdoor/daylight lamp/sodium lamp
6. AGC: Auto/manual
7. BLC: ON/OFF
8. HLC: Support
9. WDR: Digital WDR
10. Day& Night: ICR
11. Digital Zoom: 20X
12. Privacy Masking: 4 privacy masks programmable
13. Auto Focus: Auto / semi-automatic/manual
14. Lens
15. Focal Length: 4.7-94mm, 20x
16. oom Speed: Approx.3s(optical wide-tele)
17. Minimum Working Distance: 10-1000mm(wide-tele)
18. Pan & Tilt
19. Pan Range: 360°endless
20. Pan Speed: Pan manual speed: 0.1°-160°/s,
21. Pan preset speed: 240°/s"
22. Tilt Range: -15°-90° (auto flip )
23. Tilt Speed: Tilt manual speed: 0.1°-120°/s,
24. Tilt Preset Speed: 200°/s"
25. Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
26. Number of Preet: 256
27. Patrol: 8 patrols, up to 32 presets per patrol
28. Power Loss Recovery: Support
29. PTZ Position Display: ON/OFF
30. Freeze Frame: Support
31. Park Action: Preset/patrol/pattern/pan scan/tilt scan/random scan/frame scan/panorama scan
32. Infrared
33. IR Irradiation Distance: 80m
34. IR Irradiation Angle: Adjustable by zoom

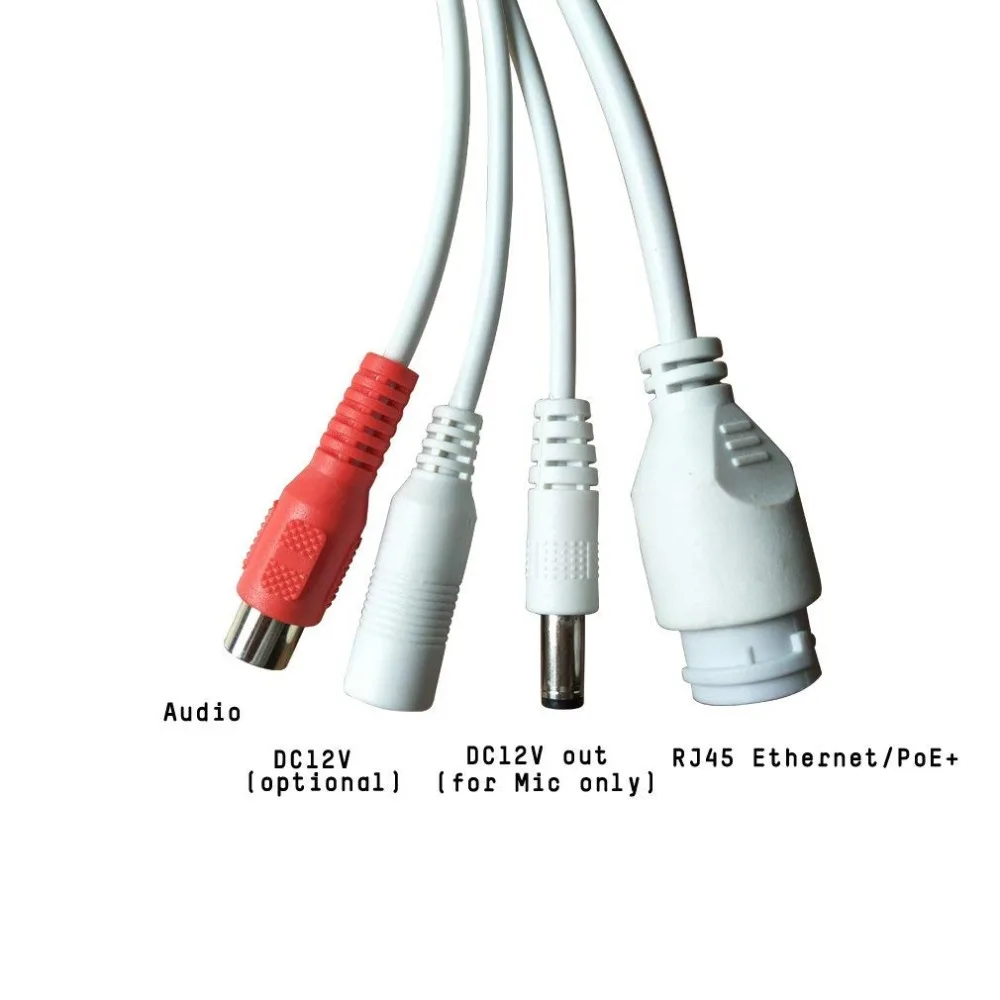

35. Input & Output
36. Audio Input: 1 mic in/Line in interface
37. Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%"
38. Network
39. Ethernet: 10Base -T/100Base-TX, RJ45 connector
40. Max.Image Resolution: 1280×720
41. Frame Rate: 50Hz: 25 fps (1920×1080), 25 fps (1280×960), 25 fps (1280×720)
42. 60Hz: 30 fps (1920×1080), 30 fps (1280×960), 30 fps (1280×720)
43. Image Compression: H.264 / MJPEG
44. Audio Compression: G.711ulaw/G.711alaw/G.726/MP2L2
45. Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QOS, FTP, SMTP, UPNP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPOE
46. No. of Simultaneous Users: up to 5 users
47. Dual Stream: Support
48. Mini SD Card: built-in 32G TF Card .Support up to 64GB TF card
49. User/Host Level: Up to 20 users,3 levels: administrator, operator and user
50. General
51. Power Supply: DC12V 2A
52. Working Temperature/Humidity: -30 ℃-65℃(-22℉-149℉)(outdoor) 90% or less
53. Protection Level: IP66 standard (outdoor), TVS 3,000V lightning protection, surge protection and voltage transient protection
54. Mounting: Various mounting modes optional
55. Dimensions: Φ150×245mm
56. Weight (approx.): 3kg(9.92Ibs)

Package

1. 1 x PTZ Camera
2. 1 x CD ROM
3. 1 x Sound Pick-up Wire
4. 1 x Sound Pick-up
