Описание товара

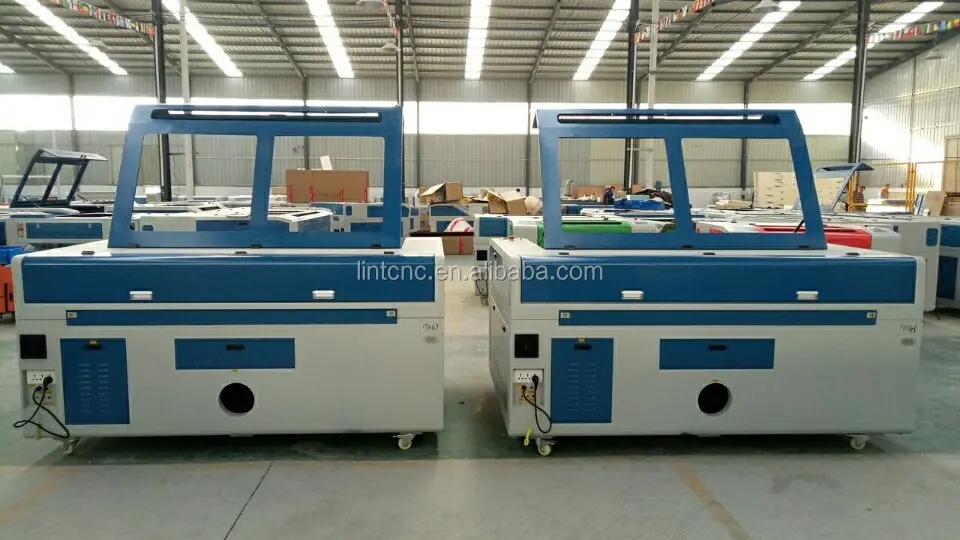

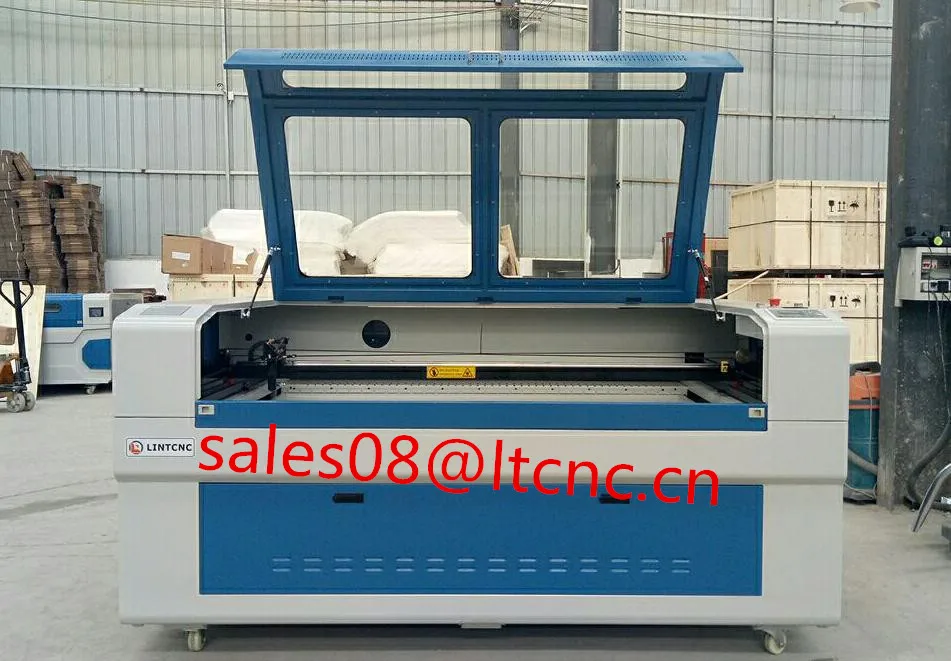

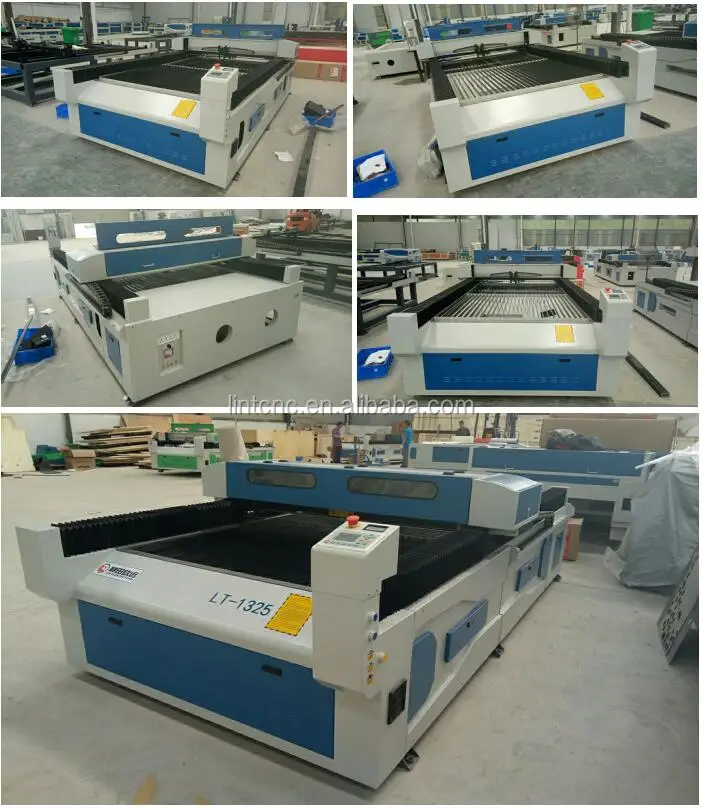

1600*1000mm cheap co2 laser cutting engraving machine for plastic,acrylic,wood,mdf high quality
1.Machine Introduction:
a. Can be installed with laser tube with different laser power, such as 60w, 80w,90w,100w,150w
b. Multi-function; engraving and cutting non-metals with high precision
c. Laser head, high speed, more precision, it is metal, not consumable
d. Fireproof window, more security
e. Laser tube is separated with the working table, this makes sure laser tube safety and laser parts clean
f. Lens and mirrors imported form Singapore with high quality
g. Stable stepper motor improves the cutting precision and speed
2.Applicable Material:
For engraving:All non-metals
For cutting:Most non-metals,such as Acrylic,PVC,rubber sheet,palstic,crystal,glass,bamboo,plywood,
oxhorn,figuline,leathe,cloth,etc.

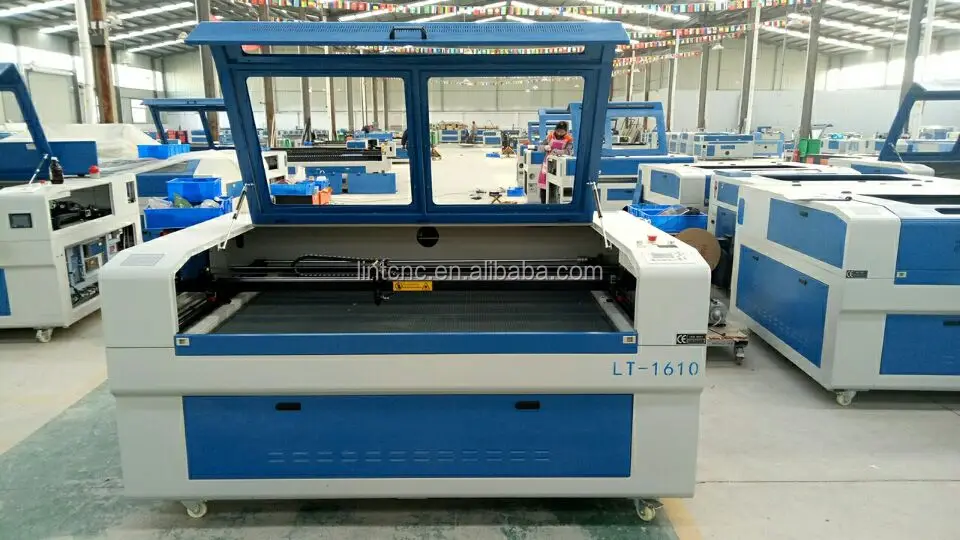

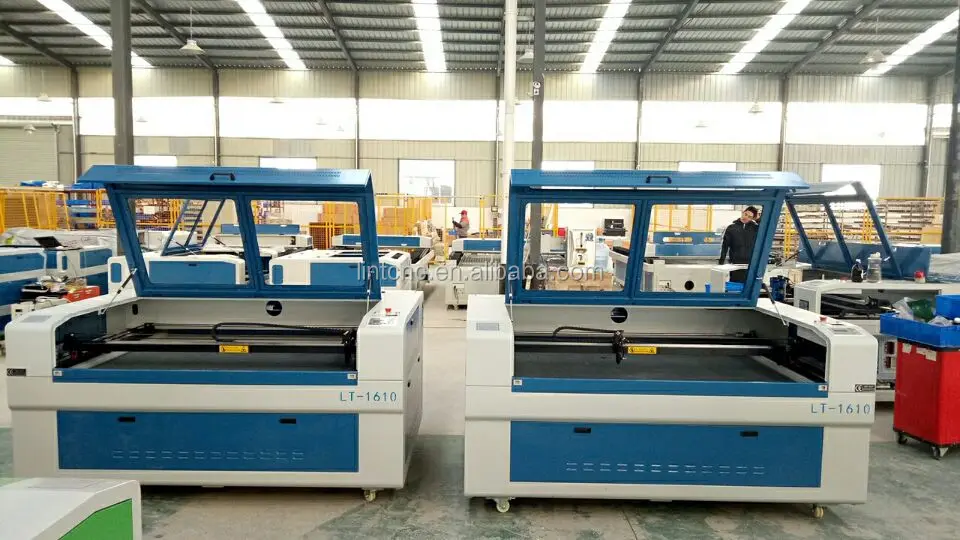

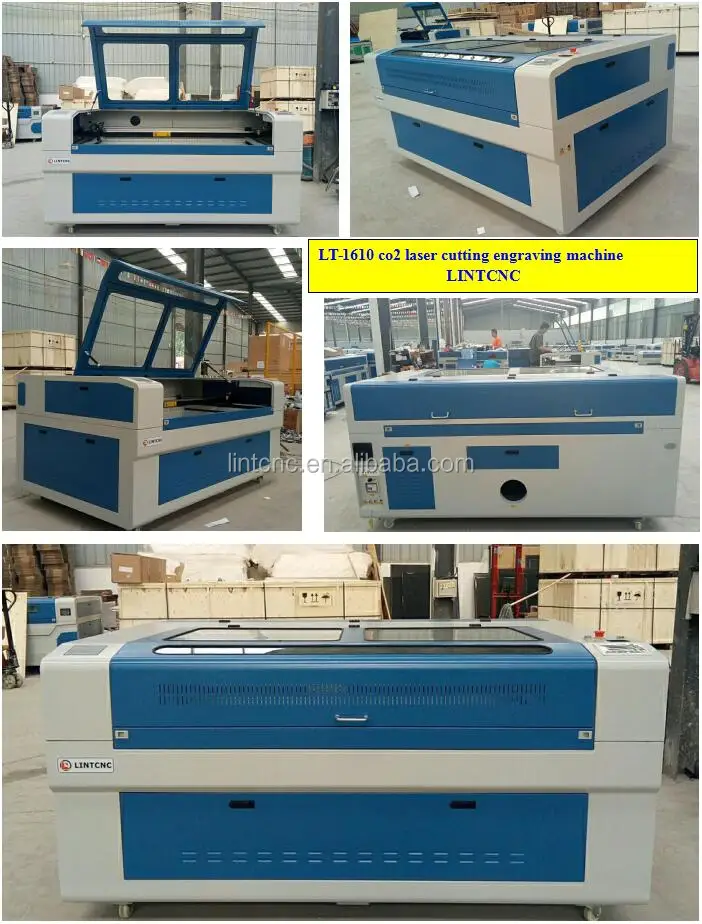

Technical parameters of 1610 co2 laser cutting engraving machine with two laser heads
| |||
Description | LT-1610 laser machine | Laser tube cooling | Water cooling |
Working area | 1600*1000mm | Drivers | Leadshine driversM583 |
Laser power | 60w/80w/90w | Motors | Stepper motors |
Working table | Honeycomb table | Transmission system | Taiwan Hiwin square rails |
Laser type | Co2 laser tube | Control system | Ruida RDC6442S |
Life of laser tube | 8000-10000 hours | Software | Rdworks V8 |
Engraving speed | 0-1000mm/s | Design software | CorelDraw/AutoCAD |
Cutting speed | 0-700mm/s | Picture format | PLT,DXF,BMP |
Cutting ability of different laser power | |||
Acrylic(mm) | Wood(mm) | MDF(mm) | |
60W | 8 | 5 | 4 |
80W/90W | 12 | 8 | 7 |
100W | 15 | 10 | 9 |
130W | 20 | 15 | 13 |
150W | 30 | 20 | 20 |
Application | |||
Application materials | Cut | Engrave | |
Acrylic/Plexiglass/PMMA/Perspex/Organic board/Double color plate | √ | √ | |
Wood/Plywood/Veneer/MDF/Blasa wood/Bamboo | √ | √ | |
Plastic/PP/PET/PC/PS/PS/PES/PA/Plastic films&foils | √ | √ | |
Leather/PU/Shoe materials/Synthetic leather/Genuine leather | √ | √ | |
Fabric/Cloth/Textile | √ | √ | |
Carpet/MAt/Rug/Wool felt | √ | √ | |
Paper/Cardboard/Chipboard/Press board | √ | √ | |
Foam&Filter/Mats polyester(PES)/Polyethylene(PE) | √ | √ | |
Stone/Ceramic/Granite/Marble/Natural stone/Pebble stone/Slate | √ | ||
Rubber stamps/Natural rubber | √ | √ | |
Glass/Pressed glass/Float glass/Crystal glass/Mirror glass | √ |
More machine models
Packaging & Shipping
Packing size: 2280*1540*1220mm;
Packing weight: 550kg
