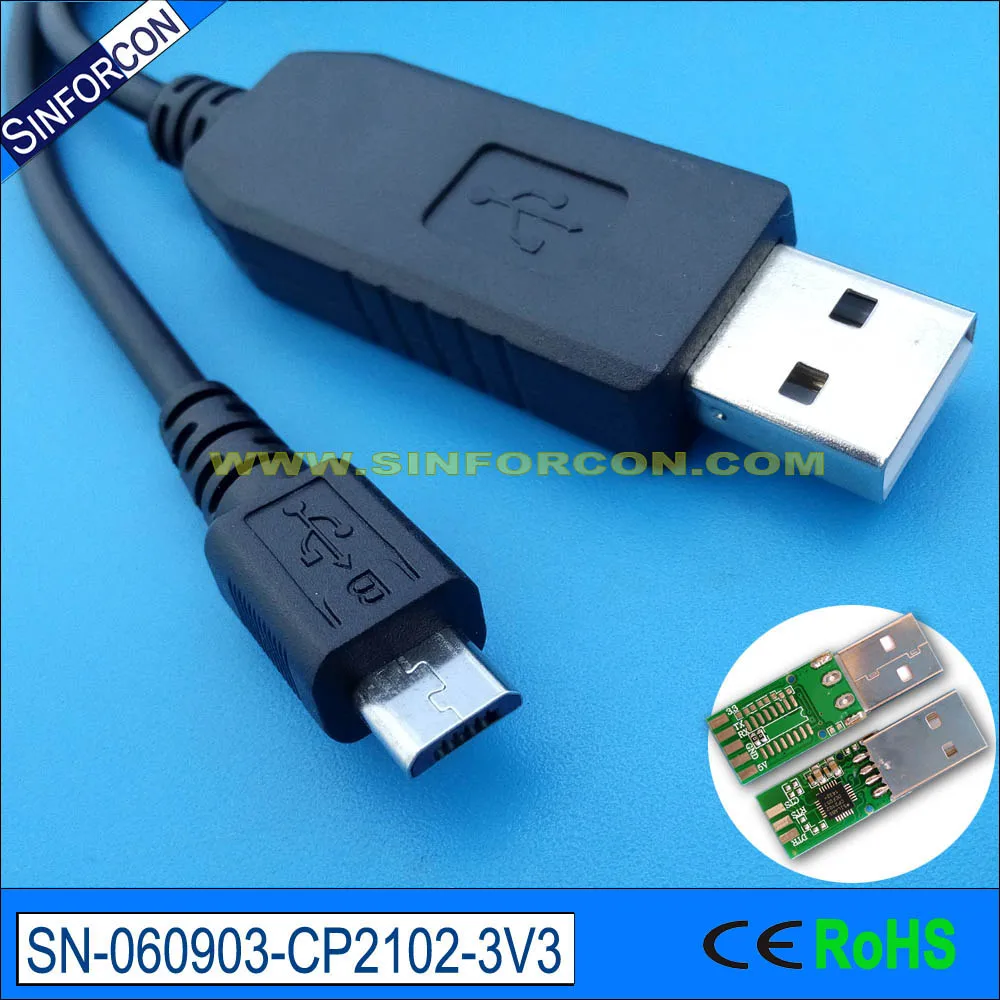

usa silicon cp2102 usb uart ttl cable with micro usb for mobile phone download cable upgrade cable flash cable
For different smart phone or mobile phone, the pinout is also different. Please make clear the pinout of your mobile then order the cable accordingly. Or you can buy this cable for your testing.
Onboard there is VCC 5V or VCC3.3V for your selection. It can do as your message. We will connect pin1 to VCC 5V for the orders without message.

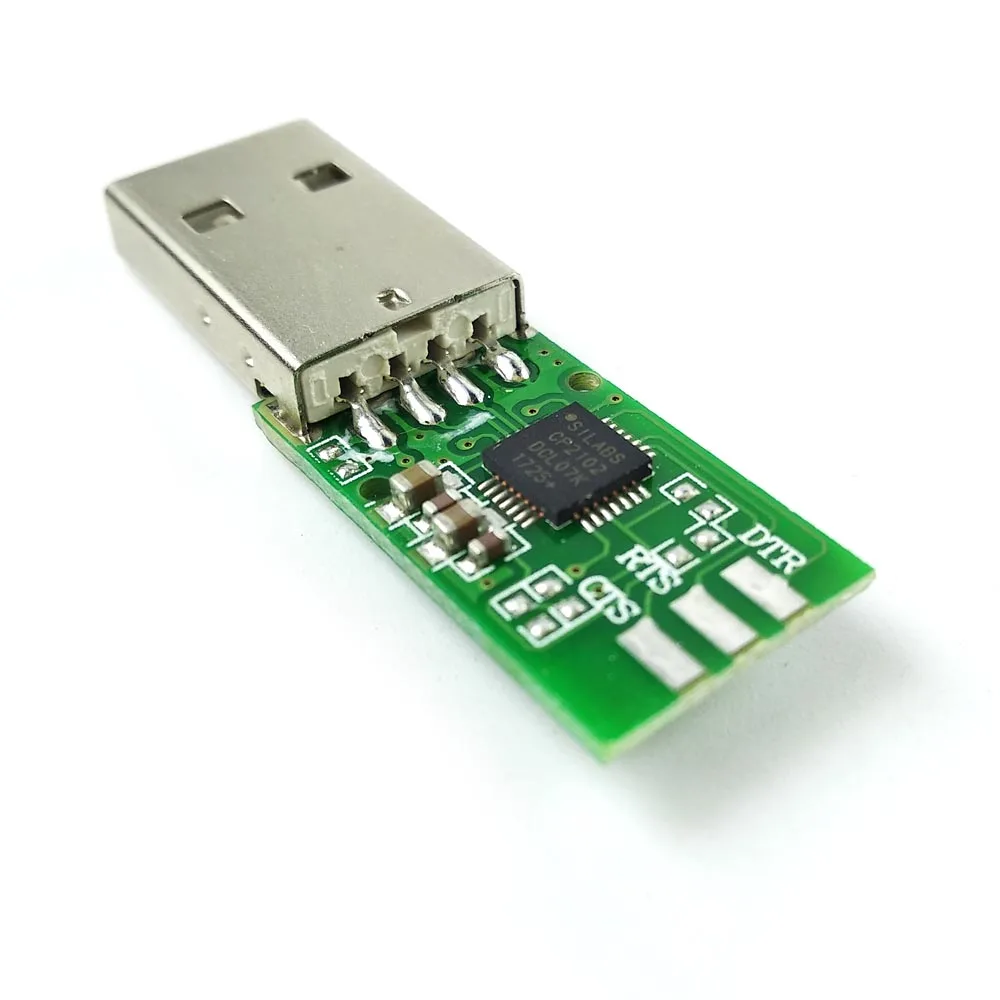

The USB housing can be openable for your testing.
![]()
![]()
![]()
About CP2102 Single-Chip USB to UART Data Transfer-Integrated USB transceiver; no external resistors required-Integrated clock; no external crystal required-Internal 1024-byte programmable ROM for vendor ID, product ID, serial number, power descriptor, release number, and product description strings- EEPROM (CP2102)- EPROM (One-time programmable) (CP2109)-On-chip power-on reset circuit-On-chip voltage regulator- 3.3 V output (CP2102)- 3.45 V output (CP2109)-100% pin and software compatible with CP2101 USB Function Controller-USB Specification 2.0 compliant; full-speed (12 Mbps)-USB suspend states supported via SUSPEND pins Asynchronous Serial Data BUS (UART)-All handshaking and modem interface signals-Data formats supported:- Data bits: 5, 6, 7, and 8- Stop bits: 1, 1.5, and 2- Parity: odd, even, mark, space, no parity-Baud rates: 300 bps to 1 Mbps-576 Byte receive buffer; 640 byte transmit buffer-Hardware or X-On/X-Off handshaking supported-Event character support-Line break transmission Virtual COM Port Device Drivers-Works with existing COM port PC Applications-Royalty-free distribution license-Windows 10/8/7/Vista/Server 2003/XP/2000-Mac OS-X/OS-9-Linux USBXpress? Direct Driver Support-Royalty-Free Distribution License-Windows 7/Vista/XP/Server 2003/2000-Windows CE Example Applications-Upgrade of RS-232 legacy devices to USB-Cellular phone USB interface cable-USB interface cable-USB to RS-232 serial adapterSupply Voltage-Self-powered: 3.0 to 3.6 V-USB bus powered: 4.0 to 5.25 VCP2102 USB to UART Bridge VCP Drivers The CP210x USB to UART Bridge Virtual COM Port (VCP) drivers are required for device operation as a Virtual COM Port to facilitate host communication with CP210x products. These devices can also interface to a host using the direct access driver. These drivers are static examples detailed in application note 197: The Serial Communications Guide for the CP210x, download an example below:AN197: The Serial Communications Guide for the CP210xDownload Software The CP210x Manufacturing DLL and Runtime DLL have been updated and must be used with v6.0 and later of the CP210x Windows VCP Driver. Application Note Software downloads affected are AN144SW.zip, AN205SW.zip and AN223SW.zip. If you are using a 5.x driver and need support you can download archived Application Note Software. Windows 7/8/8.1/10 (v6.7.3)Windows XP/Server 2003/Vista/7/8/8.1 (v6.7)Windows 2K (v6.3a)WinCEMacintosh OSX (v4)LinuxAndroid Download for Windows 7/8/8.1/10 (v6.7.3)PlatformSoftwareRelease NotesWindows 7/8/8.1/10Download VCP (5.3 MB) (Default)Download VCP Revision HistoryWindows 7/8/8.1/10Download VCP with Serial Enumeration (5.3 MB)Learn More Download VCP Revision History Download for Windows XP/Server 2003/Vista/7/8/8.1 (v6.7)PlatformSoftwareRelease NotesWindows XP/Server 2003/Vista/7/8/8.1Download VCP (3.66 MB)Download VCP Revision History Download for Windows 2K (v6.3a)PlatformSoftwareRelease NotesWindows 2KDownload VCP (4.79 MB)Download Win2K VCP Revision History Download for WinCEPlatformSoftwareRelease NotesWinCE 6.0 (2.1)Download VCP (276 KB)Download WinCE 6.0 Revision HistoryWinCE 5.0 (2.1)Download VCP (271 KB)Download WinCE 5.0 Revision History Download for Macintosh OSX (v4)PlatformSoftwareRelease NotesMac OSXDownload VCP (832 KB)Download Mac VCP Revision History Download for LinuxPlatformSoftwareRelease NotesLinux 3.x.xDownload VCP (10.0 KB)Download Linux 3.x.x VCP Revision HistoryLinux 2.6.xDownload VCP (10.2 KB)Download Linux 2.6.x VCP Revision History*Note: The Linux 3.x.x version of the driver is maintained in the current Linux 3.x.x tree at www.kernel.org. Download for AndroidPlatformApplication NoteAndroid 4.2AN809: Integrating the CP210x Virtual COM Port Driver into the Android Platform
