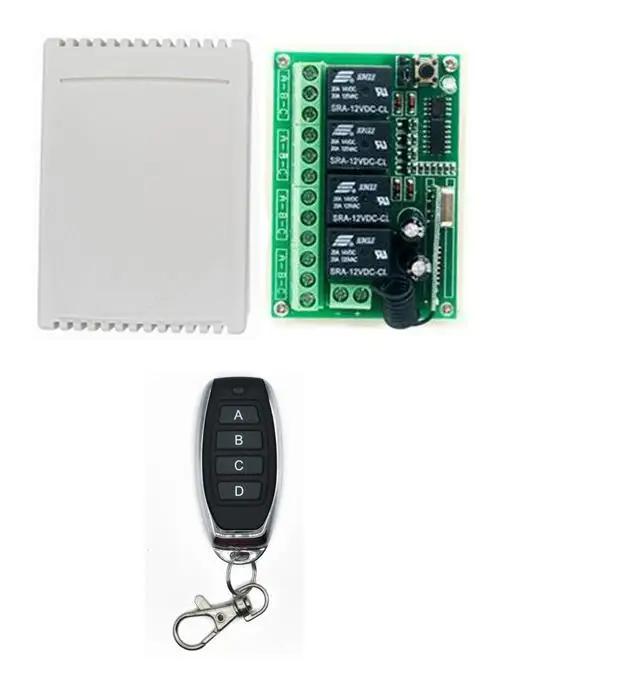

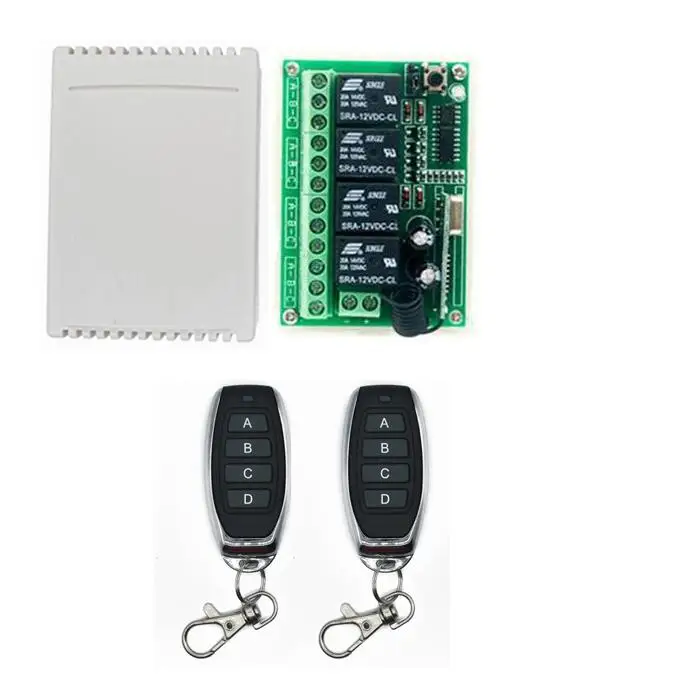

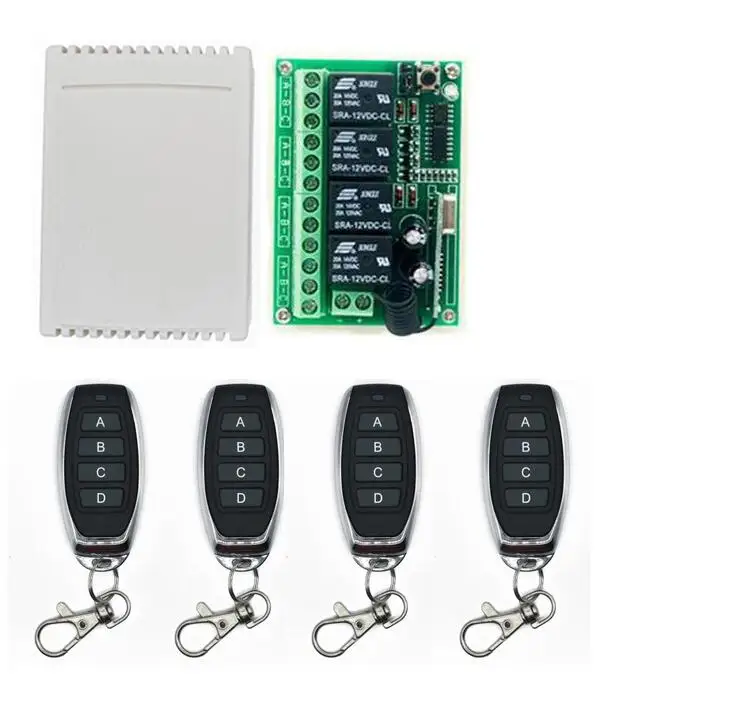

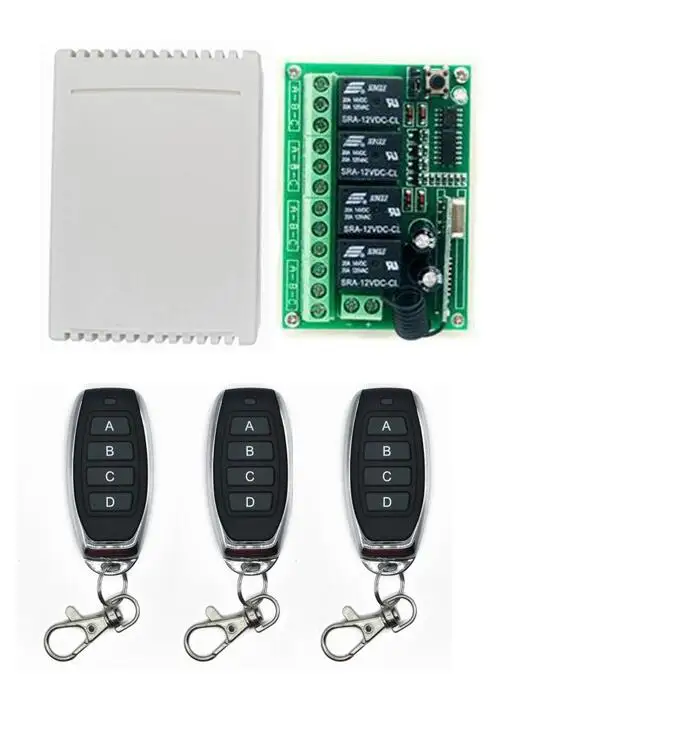

433 mhz DC 12V 4CH Radio Controller RF Wireless Relay Remote Control Switch 315MHZ 433MHZ Transmitter Receiver lamp window | Электроника

433 mhz DC 12V 4CH Radio Controller RF Wireless Relay Remote Control Switch 315MHZ 433MHZ Transmitter Receiver lamp window | Электроника

Feature:
· Wireless control, easy to install
· Control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with AC220V,AC85V-260V OR DC12V..
· You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
· This switch can learn different coding remote controls (such as 2262,1527 ect.)
· One/several transmitters can control one/several receivers simultaneously.
· If you use two or more receivers in the same place, you can set them with different codes. If you use multi-button transmitter, you can control the controller with different buttons, it wont affect each other.
· Operating Frequency: 315MHz / 433MHz
· The wireless receiving controller, with high confidentiality, stable performance, low power consumption characteristic, jump line or dial the code switch coding.

 Output working way:

Output Working way for learning code switch-Jog, Self-Lock, interlock, changed by soldering or jump cap.

Momentary/ Jog--Press and hold -> On; Release -> Off.

Toggle/ Self-lock--Press -> On; Press again -> Off·

Latched/ Interlock--Press -> On; Press other button -> Off.

 Technique Data:

1.working voltage :DC12V
2.quiescent condition :less than 6mA
3.working temperature :-40'c+80'c
4.receiver sensitivity : more than -105dBm
5.working frequency :315/433MHz can be choose, if is has been make work together you do not have to care about the frequency.
6.output voltage:DC and AC is optional
7.output current : less than 3A
8.max load current:10A
9.68mm*48mm*16mm

Learning and delete methods
 1.According to the learning code.Lights flashing, loosen the fingers, press the remote control, indicator light flashes 2 times and close any buttons.It means you learn successfully.
2.It can learn more than 12, 2262 or 1527 chips of different code of the wireless remote control
3.Delete/cleaning: press learn about eight seconds, indicator is closed, it means that you maintain information has been deleted successfully.

 Note: 433mhz and 315 mhz are available ,315mhz will be sent out if there is no demand on frequency

packet inclued:

 1 x Receiver
