Double Chuck Rotary CNC Lathe Machine Price/4 Axis China 3d Router For Wood machine/Mach3/wood cutting machine/wood router | Инструменты
История изменения цены
*Текущая стоимость US $1,290.00 - 5,500.00 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Aug-16-2025 | 1.2 руб. | 1.60 руб. | 1 руб. |
| Jul-16-2025 | 1.85 руб. | 1.14 руб. | 1 руб. |
| Jun-16-2025 | 1.81 руб. | 1.80 руб. | 1 руб. |
| May-16-2025 | 1.24 руб. | 1.11 руб. | 1 руб. |
| Apr-16-2025 | 1.34 руб. | 1.28 руб. | 1 руб. |
| Mar-16-2025 | 1.19 руб. | 1.75 руб. | 1 руб. |
| Feb-16-2025 | 1.79 руб. | 1.42 руб. | 1 руб. |
| Jan-16-2025 | 1.25 руб. | 1.58 руб. | 1 руб. |
Описание товара
Double Chuck Rotary CNC Lathe Machine Price 4 Axis China CNC Router For Wood DSP/Mach3 Controller Vacuum Table CNC Machine
Main features:
For both flat and round material work 1300x2500x200 effective flat working size(all size can be customized) Rotary 200x2500mm size, double chuck(all size can be customized) Seamless steel pipe welding structure 3.0kw water cooled spindle with Fuling Inverter(4.5kw 5.5kw optional) 86BYG stepper motor and Leadshine driver(Delta or Yaskawa servo motor optional) Taiwan Hiwin square rail and helical rack pinion or ball screw drive Vacuum with T-slot table(Vacuum pump optional) Dust collector optional Manual lubrication system DSP controller/Mach3/NCstudio optional Auto Z tool sensor probe|
Model |
RTM-1325BR 3d wood cutting cnc machine |
|
Working area (X*Y*Z) |
1300*2500*200mm |
|
Rotary axis |

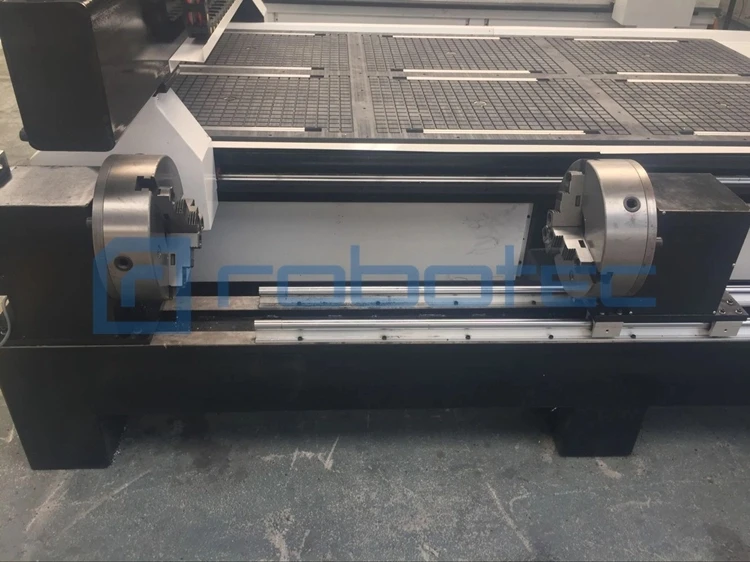

200*2500mm, double chuck |
|
Body structure |
Thicken steel made |
|
X, Y Structure |
Rack and pinion |
|
rails |
Taiwan 25 size hiwin square rails |
|
Z Structure |
Taiwan TBI ball screw |
|
X, Y Resolution |
<0.01mm |
|
Max Moving Speed |
60000mm/min |
|
Max Engraving Speed |
30000mm/min |
|
X,Y,Z traveling positioning accuracy |
±0.01mm |
|
X,Y,Z repositioning accuracy |
±0.01mm |
|
Spindle power |
3.0kw water cooling spindle |
|
Spindle Speed |
0-24,000rpm |
|
Voltage |
380v/3phase or as customer needed |
|
Drive type |
Big stepper motors and drivers |
|
Working Dictate |
G Code |
|
Operating system |
DSP control system(Option Mach3 or Ncstudio) |
|
Tool sensor |
Yes |
|
Auto oil lubricator |
Yes,included |
|
Wire protect |
Yes,included |
|
Running Environment |
Temperature: 0℃~45℃ |
|
package |
Export wooden box |
|
After packed size |
3300*2250*1750mm |
|
G.W |
1200kgs |

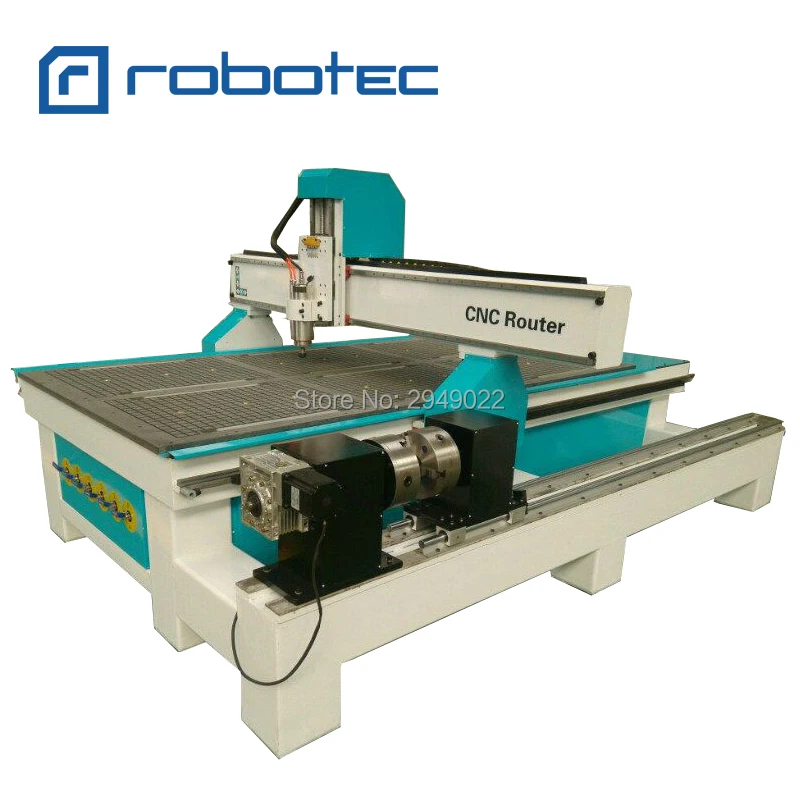

rotary china cnc router
>>3d wood cutting cnc machine Standard Configuration:
1) DSP control system: Popular and easy operation, with USB port to transfer program;
2) Italian HSD Air-cooling Spindle: Long working life, easy maintenance;
3) Big Stepper Driving Moto: With highly control precision and high speed, reliable and stable;
4) Taiwan Hiwin Guide and Block: Guaranteed genuine rail with good quality, realizing smooth movement;
5) Taiwan TBI ball screw: linear motion with high precision and and in high speed
6) Helical rack and pinion: quiet running, greater accuracy, smoother cutting and allows greater acceleration and feeding rates, longer lifetime because of smaller wearing force.
7) Taiwan Delta Inverter: Guarantee the variety working speed and protect the spindle very well;
>>3d wood cutting cnc machine Applicable Material: Acrylics, artificial stones, artificial marble, woods, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.
>>3d wood cutting cnc machine Applicable Industry: Woodworking industry, stone industry, advertising industry, artwork or decoration industry, electronica industry, mold industry and music industry etc.

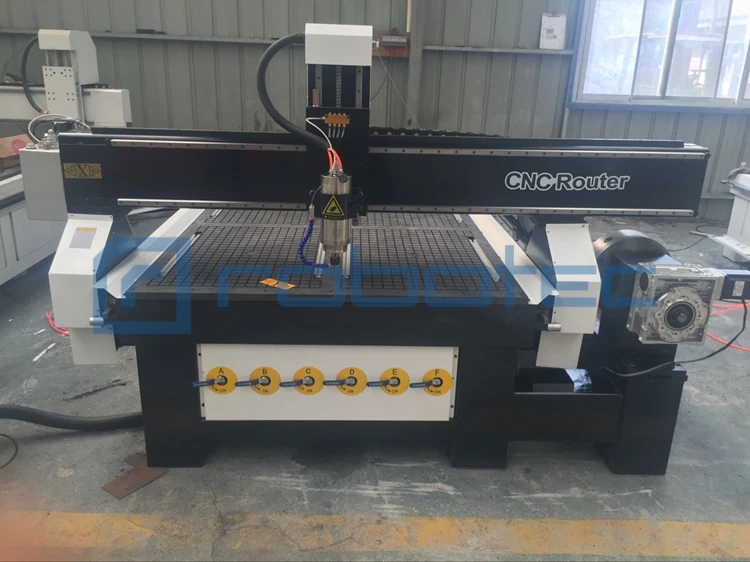

rotary china cnc router

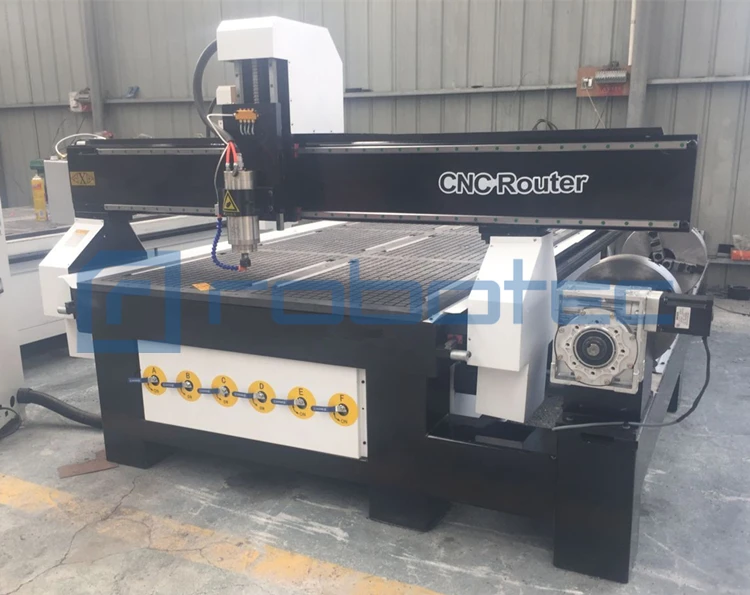

rotary china cnc router
1. Service before order: our salesman will try to know more about your demands , including the max working size, main processing materials and the thickness , so we will offer you suit machine.
2.Service during production : we will send the production the machine pictures for customer in time , customer can know more the detailed machine parts.
3.Service before shipping : the machine parts will be installed and tested by our professional.
technician, send the test video according to customer’s processing materials for customer confirmations.
4.Service after shipping : we will check when the machine arrive your sea port or the approximate arrival date, so that the customer can know the arrival date and to prepare to pick the machine up
5.Service of training : the English manual and operating video will be sent to customers with the machine together, it will help customer how to operate the machine , it there is any question about the operation , we will have the professional technician to help them how to operate by online ,until the customer can use it freely.
6.Service of warranty : we guarantee the machine for Two Years, some machine parts ( quality problems ) can be free charge to replace it within warranty.
