We are FYSCOPE, and we are professional microscope supplier, we have our own factory and also have several co-operative enterprises, so we have multiple microscope part, in future, there will be more items listed in our store, we have our own technicians to check all the items before sent out, and also have professional workers to pack packing, so there is no extra worries. Welcome bid, if you have any more question please feel free to contact us first, thank you.

Welcome wholesaler!!You will get what you want!!

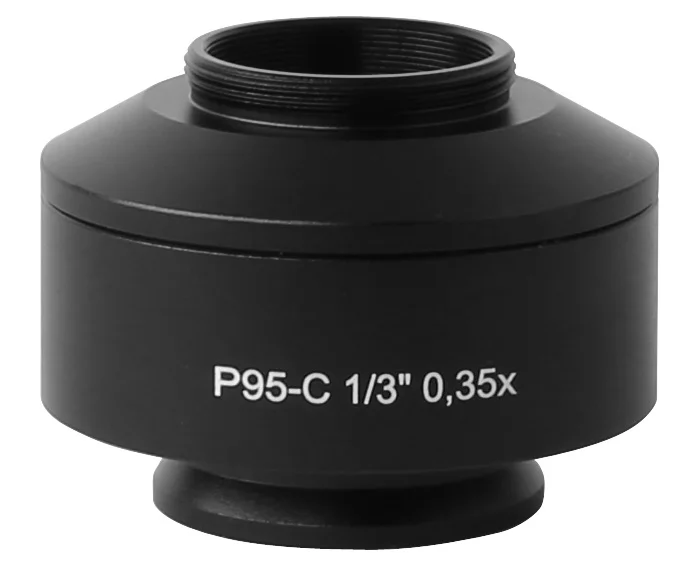

Zeiss Primo Star series Microscope TV Adaptor

1. Convert the Zeiss trinocular microscope phototube/head/port (have standard ISO 30 mm(1.18 inch)outer diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch);

2. With different built-in reduction lens (1.2X,1X, 0.8x 0.65X,0.5X,0.35X) for achieving better field of view from microscope trinocular head(suitable for 4/3",1”, 2/3”,1/1.8”, 1/2”, 1/2.5”,1/3” or 1/4” inch CCD or CMOS sensor chips);

3. Can be installed in Zeiss UIS trinocular tube such as:Zeiss Axiolab series,Zeiss Axioscope series,Zeiss PrimoStar series,Zeiss Axiovert series,Zeiss Stemi series,Axiophot-2 Axioplan-2 Axioskop-2 Axiostar Axiotech Series microscope

4. Build of material: anodized aluminum;

5. Telecentric optics with low light deficiency;

6. Parfocal with different microscope objective lenses;

7. Diffraction limited MTF;

8. Aperture totally coupled with UIS microscope objective’s exit pupil;

Packing List:

1. one pcs Zeiss  0.35X adaptor
