Note: We have different models machines, to help you choose the suitable model, before place order, please contact us to confirm the details.

Beck Guo

Email: export at acctekcnc.com

Skype: acctek.beck

Mob, whatsapp: +86-15098848753

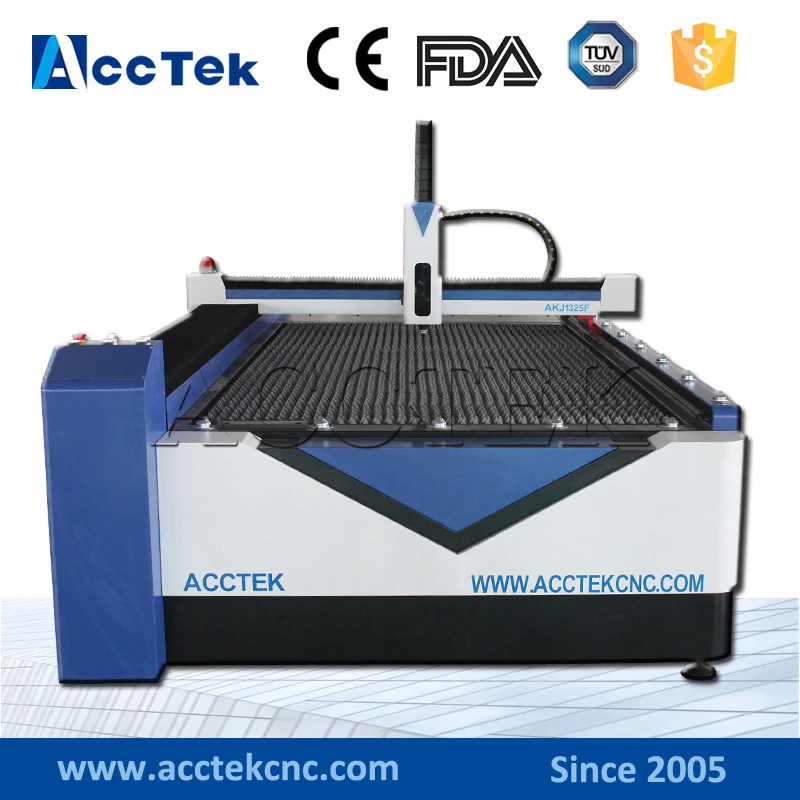

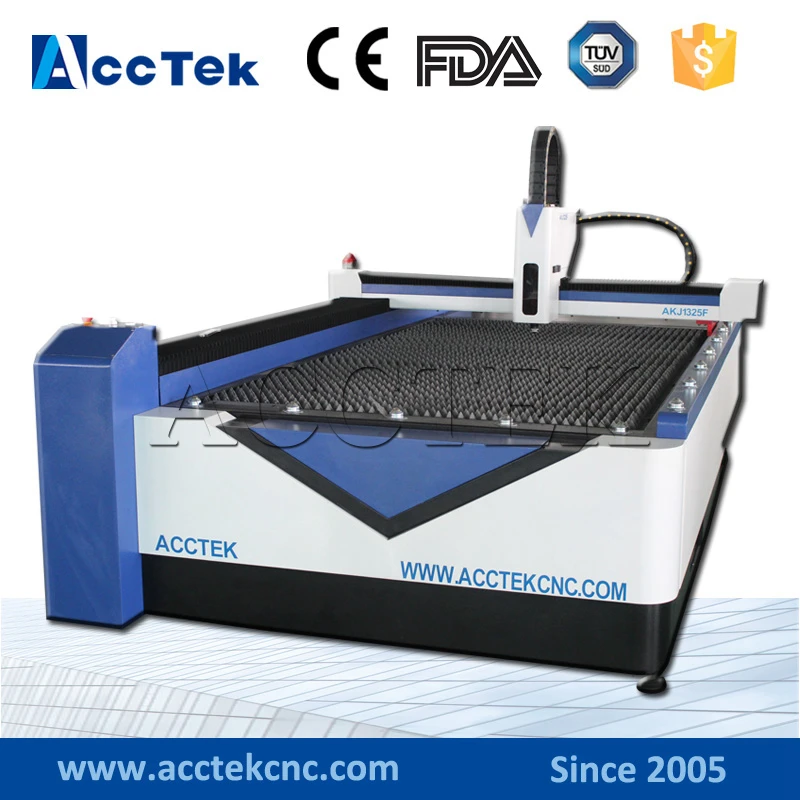

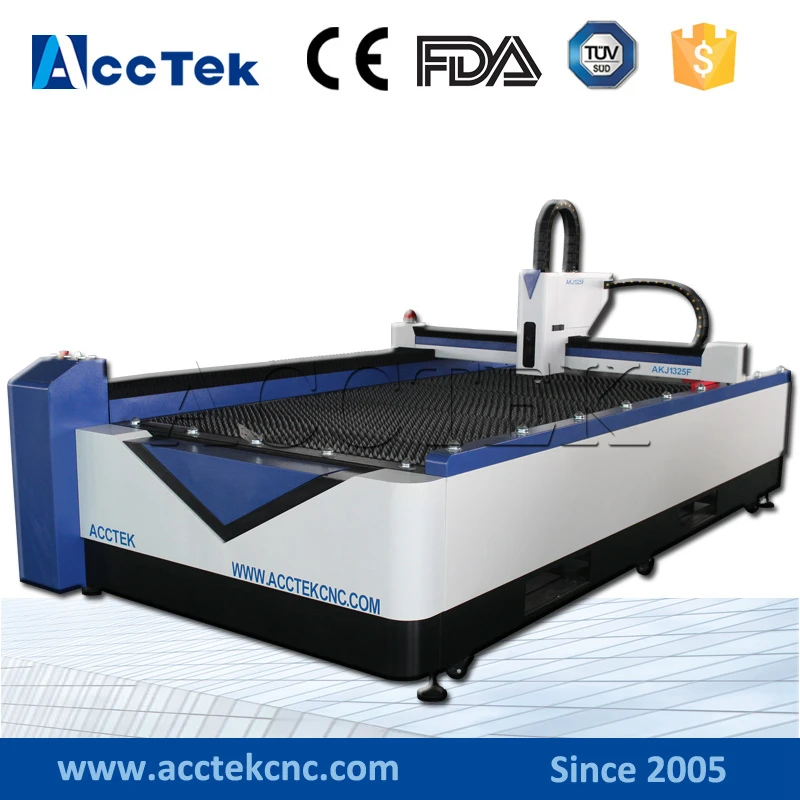

  4 by 8 feet size 1325 fiber laser cutting machine with 300W 500W Raycus laser source

1325 fiber laser cutting machine features and advantages:

1. Moved crossbeam with imported high precision ball screw and rail guide transmission makes the stable driving and high precision work.

2. Machine frame, crossbeam and worktable adopt integral welding, in accordance with the standard large machine, to stress annealing after rough machining, and then vibration aging treatment, can completely eliminate the welding stress and processing.

    Can also keep high strength, high precision, and also keep the 20 years of normal use of deformation

3. X and Y axis equip with Japan servo motor, high precision, high speed, large torque, large inertiafor a steady and durable work.

4. Use MPC6595 based on Windows operating system can perfect match the Laser cut 6.1, collect he function of read file, simple design, output, and processing control, a set of software which can complete the layout to the machining process, integrated with laser

cutting control special function module which is powerful with a good man-machine interface and easy to operate.

1325 fiber laser cutting machine technical parameters

Working size: (L*W)2500mm×1300mm

Laser power: 300W 500W Raycus

X,Y,Z axis range: 2525mm/1325mm/100mm

The thickness of the material: 0.1-6mm(Depending on the material)

Maximum cutting thickness: 6mm

Position accuracy: 0.03mm

Maximum moving speed: 20m/min

Net weight: 1000kg

Operating temperature: 0℃-40℃

Control system: Au3tech;Cypcut

Workbench maximum load: 100kg

Drive type of X, Y axis: imported servo drive( Panasonic, Japan)

Moving mode: imported TBI rolling ball screw

Machine size(L*W*H): 3800*1850*1300mm

Machine details about the 1325 fiber laser cutting machine

1. Support different images format as Al, DXF, PLT, Gerber, can read standard ISO G codes from MaterCam, Type3 such nesting software.

  2.  Automatically optimization when open or lead in DXF file, like delete repeated line, merge connected lines, recognize  in/out cutting file and file sorting out.User can decide to manually do above work, or let controller do it automatically.

  3.  Support conventional picture edit functions

  4.  Following what you see is what you get, to set lead in/out, kerf compensation, merge, bridge, over burning, save gap

  5.  Unique function of Preview of cutting work flow.

  6.  Support segmental pierce, Progressive pierce, Pre-pierce, support separately setting laser watt, frequency, laser type,air type, pressure, auto cutting height during pierce and cutting.

  7.  Support to set separate lead in/out speed according to adjustment of laser power.

  8.  Big storage, allowing user to save all cutting parameters to use it again on same material.

  9.  Breakpoint recovery, CNC can return to the point where the cutting stopped, allowing partial file cutting.

       It can go to any point to start there after stop or pause.

Some samples shows by AccTek fiber laser cutting machine:

Jinan Acctek Machinery Company specializes in manufacturing CNC Router and Laser machines.

Since 2005 we have been based in the Industrial Zone of Jinan City, Shandong Province south of Beijing.

Our main products are Acctek CNC Rooters and Laser engraving and cutting machines. Stock or custom configurations are specially. Components for our machines are sourced from world class suppliers and innovators in machine control.

These machines are used in many industries, crafts and arts businesses around the world. These include woodwork, metaL and stone work, aluminum fabrication, boat building, shop fitting and mold making etc.

We welcome customers and potential business associates from around the world. We can work together cooperatively for mutual benefit.

“Our business is to improve your business”

After-sale service:

1).24 hours technical support by Email or Calling.

(Skype: cnc.help)

 2). English manual and CD video for machine using and maintaining.

 3).  Hardware: 2 years on all parts (without person damaged).

                       Software: Whole life on update for free.

                     Maintenance and technological support: Whole life.

 4).Engineers available to service machinery overseas.

A  This is the first time I use this kind of machine, is it easy to operate?

There are english manual and CD to show you how to use machine. If there is still any question. please contract us by e-mail/skype /phone/Trade manager online service at any time.

B  If machine have any problem after I receive it ,how can I do?

Free parts send to you in machine warranty period machine have any problem.

C MOQ?

The minimum order is 1set machine , if you order more one ,the price will be better.

D How can I buy this machine from you ?

1. Consult us about this product on line by e-mail.

2.Negotiate and confirm the final price, shipping, payment methods and other terms.

3.Send you the proforma invoice and confirm your order.

4.Make the payment according to the method put on proforma invoice.

5.We prepare for your order in terms of the proforma invoice after confirm in your full payment. And 100% quality check before shipping.

6.Send your order by air or by sea.

E Good reasons why you buy from us?

1. We are a real factory offering products.

2.Company in business for many years.Over 50 countries customers served!

3. Cheap machine save your money!Fast delivery,save your time.

4.All machine with CE, ISO and FDA certificate.

5.Our engineer can go to your country to provide technical guidance

6.We have phone support in English,if you have any questions,you can call it,

we can give you a best solution within 24 hours

We are the manufacturer ,so we can accept OEM design ,any requirement ,just feel free to contact me ,you will get professional service .
