Описание товара

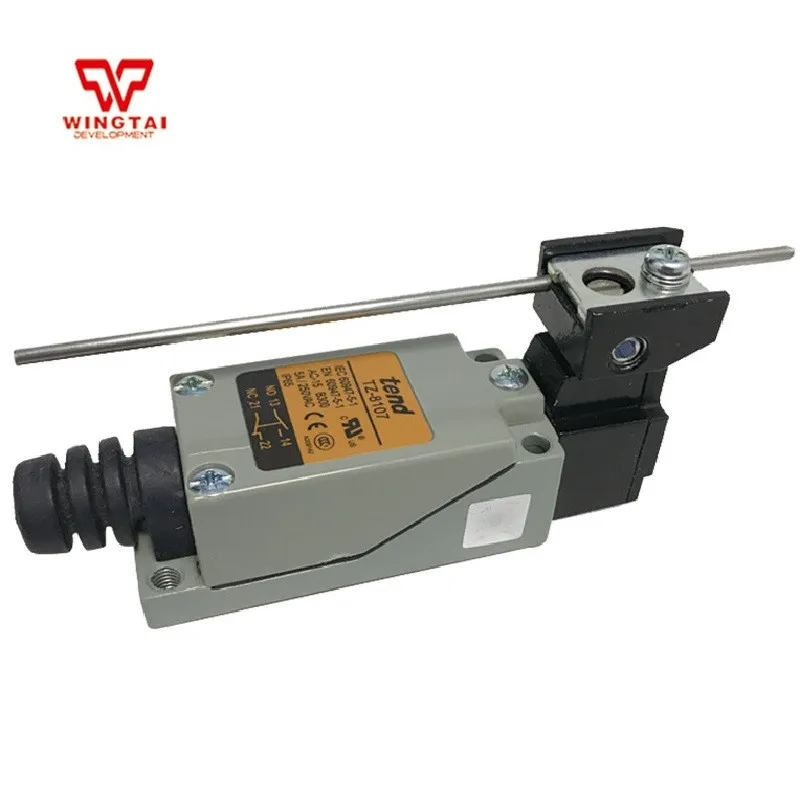

5A Original Taiwan TEND Limit Switch/ limited switch TZ-8107
Technical Data:
Structure type: direct motion.
Switch type: normally open.
Scope of application: In a wide range
Product certification :CCC
Contact resistance :0.015.
Insulation resistance :250
Life expectancy: 750000
Temperature range :60
3C certificate no. :2003010305069240.
3C rated voltage range :37V- ac 1000V.
Description:
The tz-8 series double - loop limit switch.
The double - loop limit switch.
The structure is sturdy and consists of zinc alloy and reinforced plastic.
Small size, waterproof, oil proof.
The micro - action switch has double reed mechanism, and the mechanical life is longer.
There is a large OT action.
It is easy to wire the designs of dringe-tube and variety of actuators.
UL certification.
| model | TZ-8104 | TZ-8108 | TZ-8107 | TZ-8111 | TZ-8112 | TZ-8166 |
| TZ-8167 | ||||||
| TZ-8168 | ||||||
| TZ-8169 | ||||||
|
OF MAX | 750g | 750g | 750g | 900g | 900g | 150g |
| RF MIN | 100g | 100g | 100g | 150g | 150g | — |
| PT MAX | 20 | 20 | 20 | 1.5mm | 1.5mm | 30mm |
| OT MIN | 50 | 50 | 50 | 4mm | 4mm | — |
| Md MAX | 12 | 12 | 12 | 1mm | 1mm | — |
| OP | — | — | — | 26±0.8mm | 37±0.8mm | — |
Rated value:
| nominal voltage | Non-inductive load(A) | inductive load(A) | ||||||
|
| bulb load | inductive load | motor load | |||||
| N.C | N.O | N.C | N.O | N.C | N.O | N.C | N.O | |
| 125 VAC | 5 | 5 | 1.5 | 0.7 | 3 | 3 | 2 | 1 |
| 250 VAC | 5 | 5 | 1 | 0.5 | 3 | 3 | 1.5 | 0.8 |
| 8 VDC | 5 | 5 | 3 | 3 | 5 | 4 | 3 | 3 |
| 14 VDC | 5 | 5 | 3 | 3 | 4 | 4 | 3 | 3 |
| 30 VDC | 5 | 5 | 3 | 3 | 4 | 4 | 3 | 3 |
| 125 VDC | 0.4 | 0.4 | — | — | — | — | — | — |
| 250 VDC | 0.2 | 0.2 | — | — | — | — | — | — |
Note:
1. The power factor of the inductive load is 0.4 (AC), and the time constant is below 1msec (DC).
2. The inrush current of the bulb load is 10 times more than the steady state current, and the input current of the motor load is 6 times more than the steady state current.
