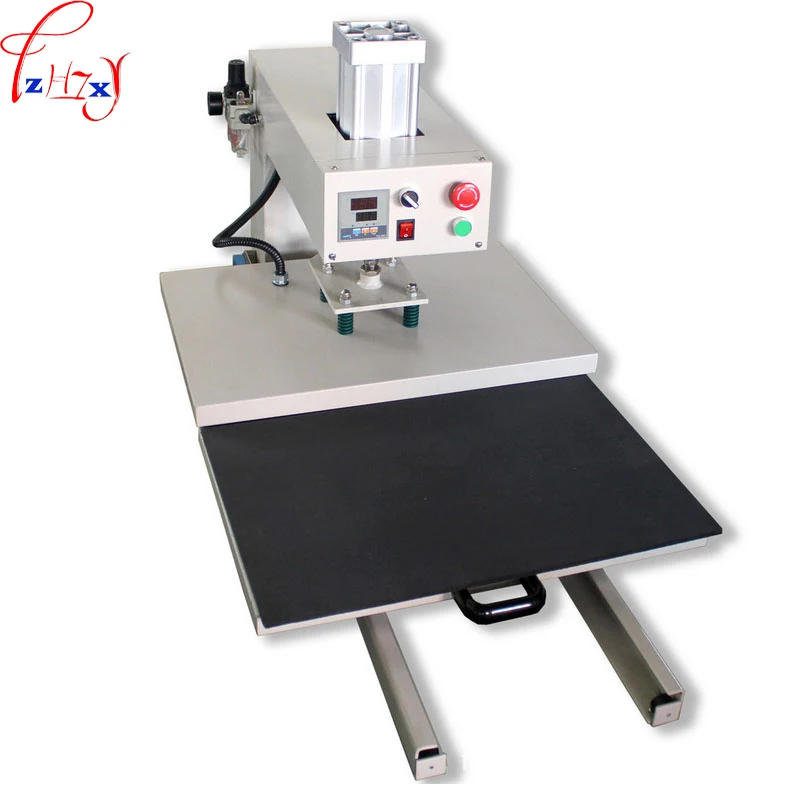

110/220V Push-pull type hot stamping machine 38*38cm t-shirt clothing

pyrograph pneumatic push-pull sublimation transfer machine

Picture showing:

Note: Color random delivery!

Description:

Temperature range: 0-399 °

Time Range: 0-999sec

Printing area: 38 * 38cm

Scope: Culture / T-shirt / couple / Guanggu Shan

Voltage: 220V / 110V

Frequency: 50Hz / 60Hz

Power: 500W-1.2KW

Features:

1.Hot plate surface Teflon paint, dust, you can not high temperature cloth

2. Using intelligent digital display thermostat controller, accurate temperature control (± 10 °)

3. Pre-pressure adjustment method, the pressure is free to adjust, convenient and flexible.

Digital display electronic timing, the process automatically issued a warning tone. Aluminum

heating plate, electric pipe and plate casting as one, heat evenly, durable

4. Heating surface coated with high temperature anti-sticking layer for easy cleaning,

anti-oxidation table laying high temperature flexible foam silicone, 400 ° constant type

5. The machine can be any color or black and white images, text transfer to: ceramics, metals,

glass, clothing and other substances, are widely used in personal items transfer, garment

heat transfer purposes

Instructions:

1. Lift the handle to open the machine. Put on the work platform to be hot stamping objects,

test the pressure is appropriate, if not appropriate, need to adjust the pressure knob (clockwise

rotation knob to increase the pressure, counterclockwise rotation to reduce pressure) Open

the machine, ready Hot stamps. (Please do not heat the process to be placed on the table to be

hot, so as not to bake bad)

2. Open the power switch, the temperature controller began self-test, about 10 seconds after

the self-test is completed and into working condition, then set the working parameters, the first

time use to set the required: temperature, time

3. Set the required temperature, time, the machine began to heat up (the temperature rose to

200 ° takes about 15 minutes), until the machine reaches the desired temperature, the need

to transfer the items on the table tiled placed pressure Start, the machine began automatically

timing

4. After reaching the set time. Machine sounds a warning tone, lift the handle to complete an operation

5. Temperature Settings: Press the up or down button to adjust the temperature (usually

170-220 °, according to the material set) until the temperature flashes for 8 seconds, the

machine records the temperature

6. Time setting: press the + or - key to adjust the time

Precautions:

1. Temperature control instrument more complex functions, in addition to setting the

temperature value without the need for additional adjustment operation, otherwise likely

to cause confusion instrument program does not work

2. If the tearing of the tearing paper, after the stamping, please wait 10-20 seconds before

the tearing paper tear. If it is hot torn heat transfer paper, please immediately turn off the

heat transfer paper (along the lines of clothing diagonal tear), the success of the hot

stamping need the right time, temperature and pressure with each other

3. The effect of hot stamping depends on the thickness of the material being stamped and

the type of material and the type of heat transfer paper

4. Different types of hot stamping test sample in advance to determine the required hot

stamping time and temperature before mass production

Note:

For safety reasons, the power supply must comply with a single-phase 3-wire power

supply with protective earth
