2600W Digital display Reflow Oven welding machine BGA SMD SMT Rework Station 220V | Инструменты

2600W Digital display Reflow Oven welding machine BGA SMD SMT Rework Station 220V | Инструменты

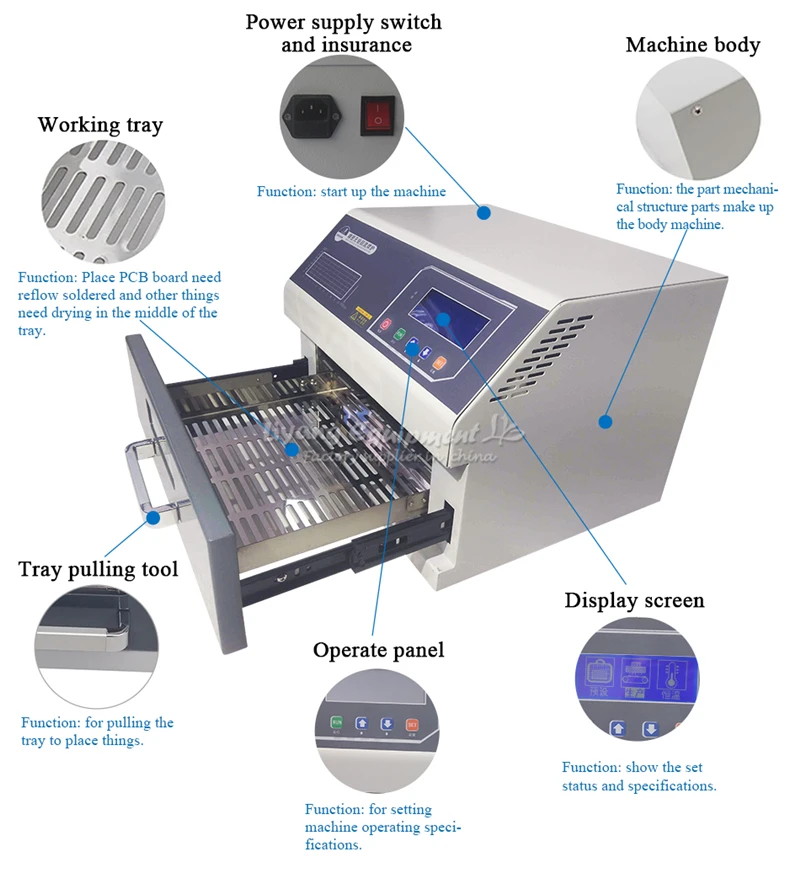

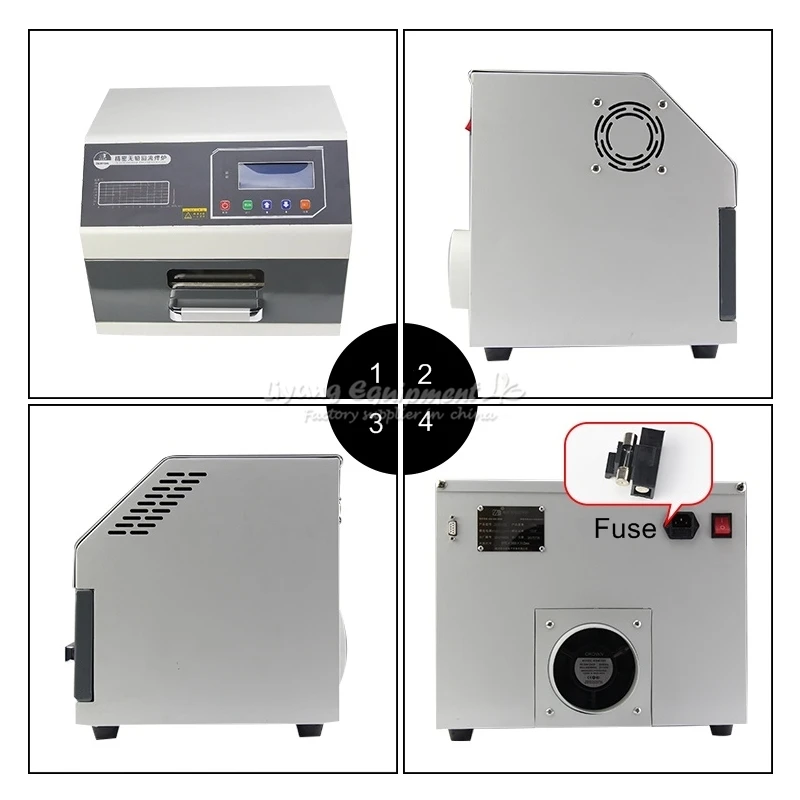

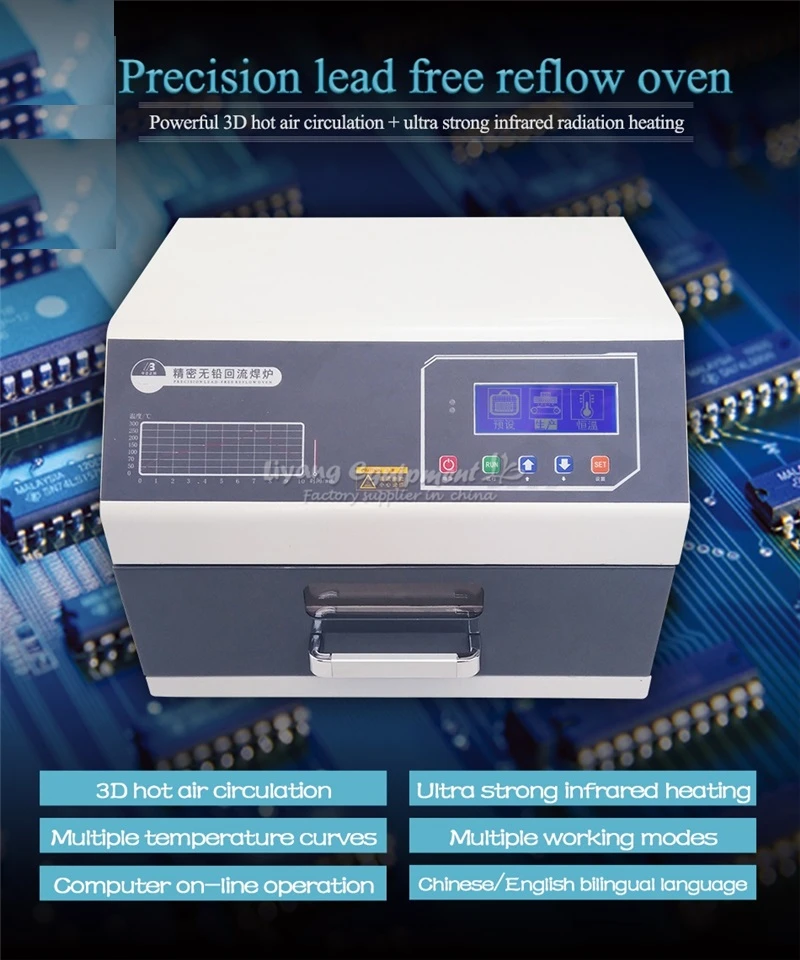

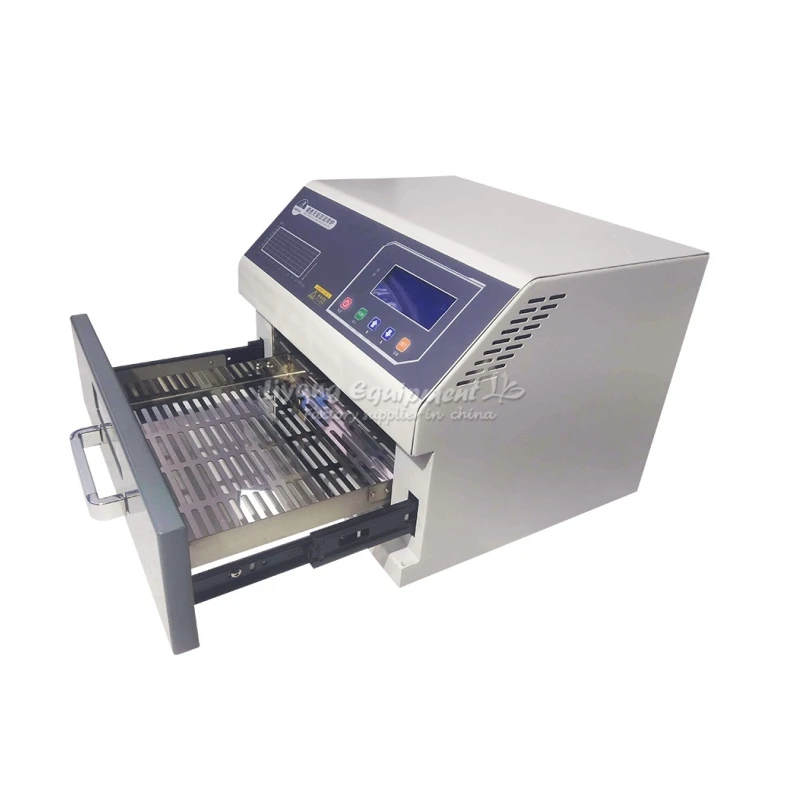

LY 962C Digital display with programmable reflow welding machine / programmable reflow oven 2600W 220V

The machine temperature control circuit adopts the domestic leading the PID algorithm, PID self-tuning and piecewise function of output power limit, has no overshoot and no owe excellent control characteristic.In a single temperature zone, by as much as 45 segment programmable infrared radiation heating and circulation heat wind, realized the temperature range of more large reflow soldering welding effect, especially suitable for the laboratory small batch patch welding components.This machine 160 * 160 dot matrix large size liquid crystal display, intuitive and convenient.Random configuration has a curve record software at the same time, can easily through the links to the PC host R232 serial download any mass temperature curve.And in real time on the computer with the graphical display curve, intuitive and easy to use.

Second, the advantage of products:
For 0 * 160 dot matrix large size liquid crystal display
2: through R232 serial ports are connected to the computer, on the computer set curve data, running monitoring curves.
3: the large memory capacity, can store up to 50 article 45 of temperature curve.
4: Shi Yingfa heat pipe heat treatment in advance, oxidation resistance, long service life.
5: the largest heating area of the same specification product, welding more PCB.

Three, technical parameters:
The effective weld area: 40 x 40 cm
Product appearance size: 47.7 x 52.7 x21.5 cm
Product packaging size: 65.6 x 56.2 x33.7 cm
Rated power: 2600 w
The process cycle: 1 ~ 8 min
The power supply voltage: AC220V / 50 hz
Net weight: 20 kg
The product gross weight: 30 Kg

Three, working environment requirement:
1) high temperature at the bottom of the temperature of reflow welding machine, desktop cannot be placed flammable items.
2) the high outlet temperature of reflow welding machine, can't have near flammable items.
3) ventilation of interior space, pay attention to the emissions of welding, to prevent harm to people.
4) machine around 20 cm no flammable and explosive substances.
5) work the ac power must have qualified ground.
