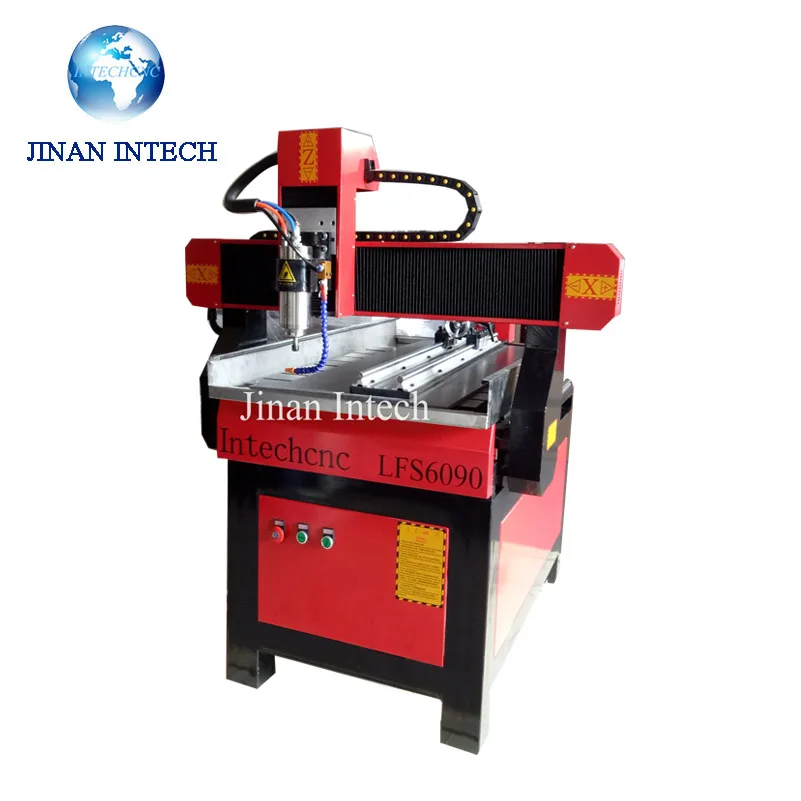

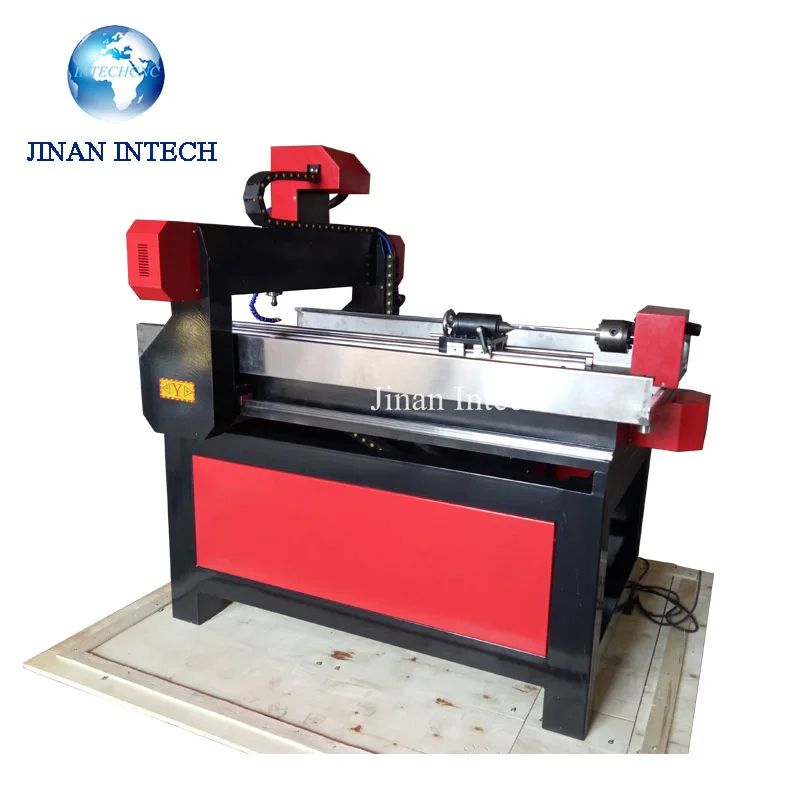

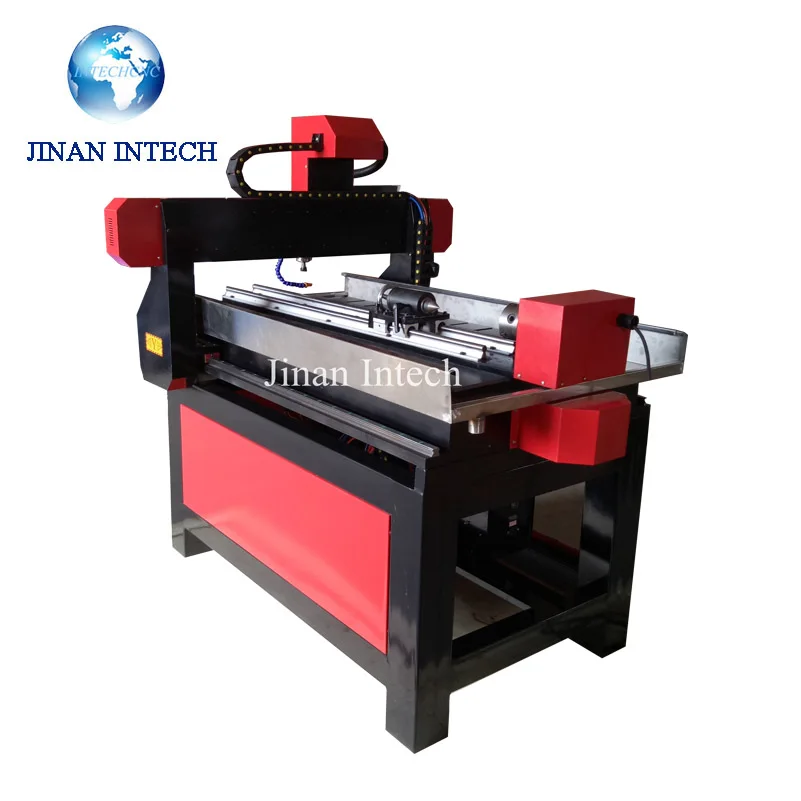

Stone/metal/mould/wood making cnc router machine 6090 | Инструменты

Model

LFS6090

Working Area

600×900×100mm

Spindle Motor

1.5KW water cooling spindle ( 2.2KW spindle is optional)

Working Mode

 Leadshine drivers

Control System

NC-studio(Mach3,NK 105 DSP controlling system is optional)

Drive Mechanism

x,y axis ,z axis Taiwan TBI ball screw

Table Surface

Vaccum /T-slot extrusions

Frame

wholly steel structure

Motion Positioning Accuracy

± 0.03/300mm

Repositioning Accuracy

± 0.05mm

Max Motion Speed

6000mm/min

Max Engraving Speed

4500mm/min

Rotating Speed of Spindle

2,4000rpm

Z-axis setting

Auto Z origin tool sensor

Dictate Format

G code, *.u00, *.mmg, *.plt

Operating Voltage

3phase 380v/220v

Software

Original Artcut software

Packing Size

3210*2130*1760MM

Lubrication System

Oil lubrication system

Net weight/ Gross Weight

300kg/350kg

1

Please inform us more information about your work, such as:

what is the materials you want to process,

the work is engrave or cut or others

The max size of the materials: Length*wideth*thickness

1.2

Quotation:

According to your requirement, we will suggest the most suitable machines, and quoted the most competitive price with best quality.

1.3

Deep communication:

Then we talk about the details, such as specification, accessories configuration included, parameters, cooperation terms, shipping things etc. Fix everything and avoid any misunderstanding.

1.4

Placing order:

If there is not any problem and we agree with each other, then we send to you the PI(proforma invoice)with all the details of machine, both sides sign contract. Then customer make prepayment and send to us the bank receipt pictures.

1.5

Strat to produce:

As soon as received your prepayment, we will strat to produce, and inform the news of prodution always,such as pictures, producing videos,testing work etc.

Owning professional testing department, testing precision, real cutting engraving work and every cable connection again, painting etc. before delivery.

1.6

Delivery:

After machine finished, we will send detailed pictures and videos to you for confirm, if no problem, will delivery it out and clear Chinese custom

1.7

Documents:

After delivery out, we could prepare all the docusments and send to you, for clear your country custom when machine arrive, such as Bill of Lading, invoice, packing list etc.
