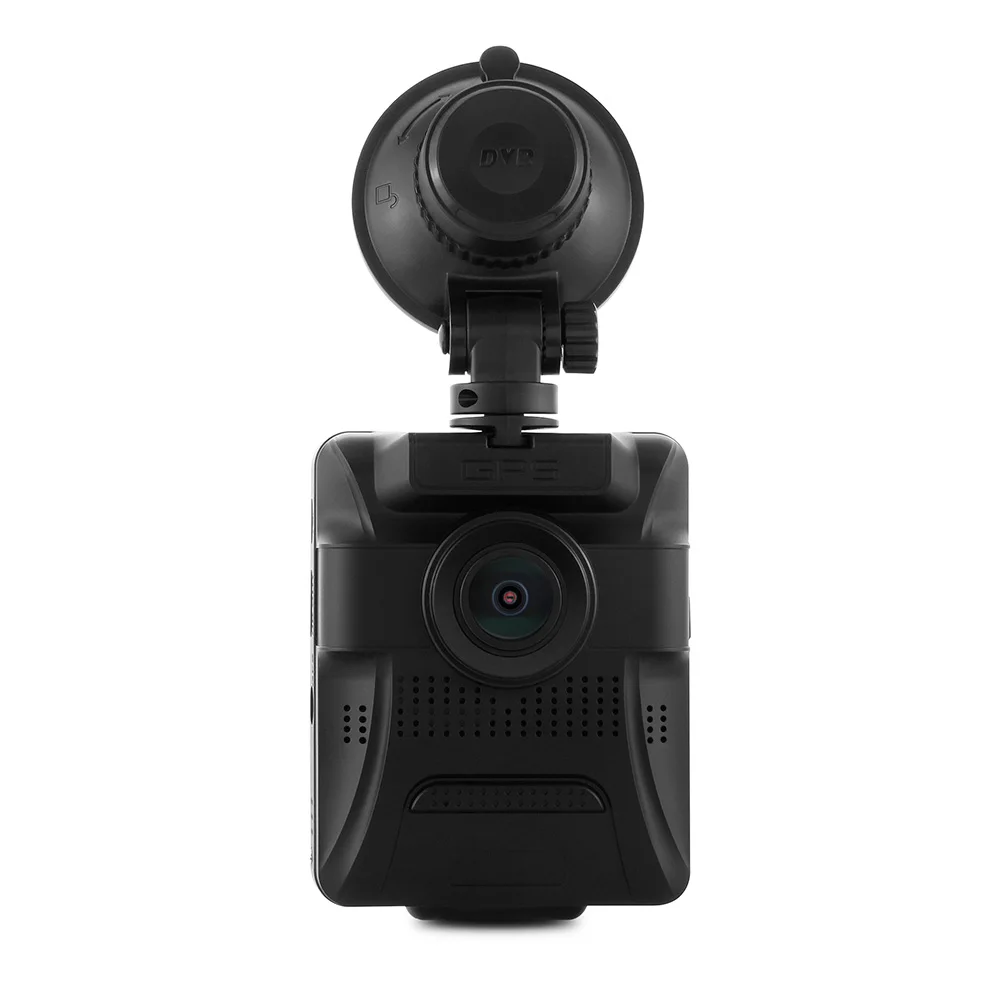

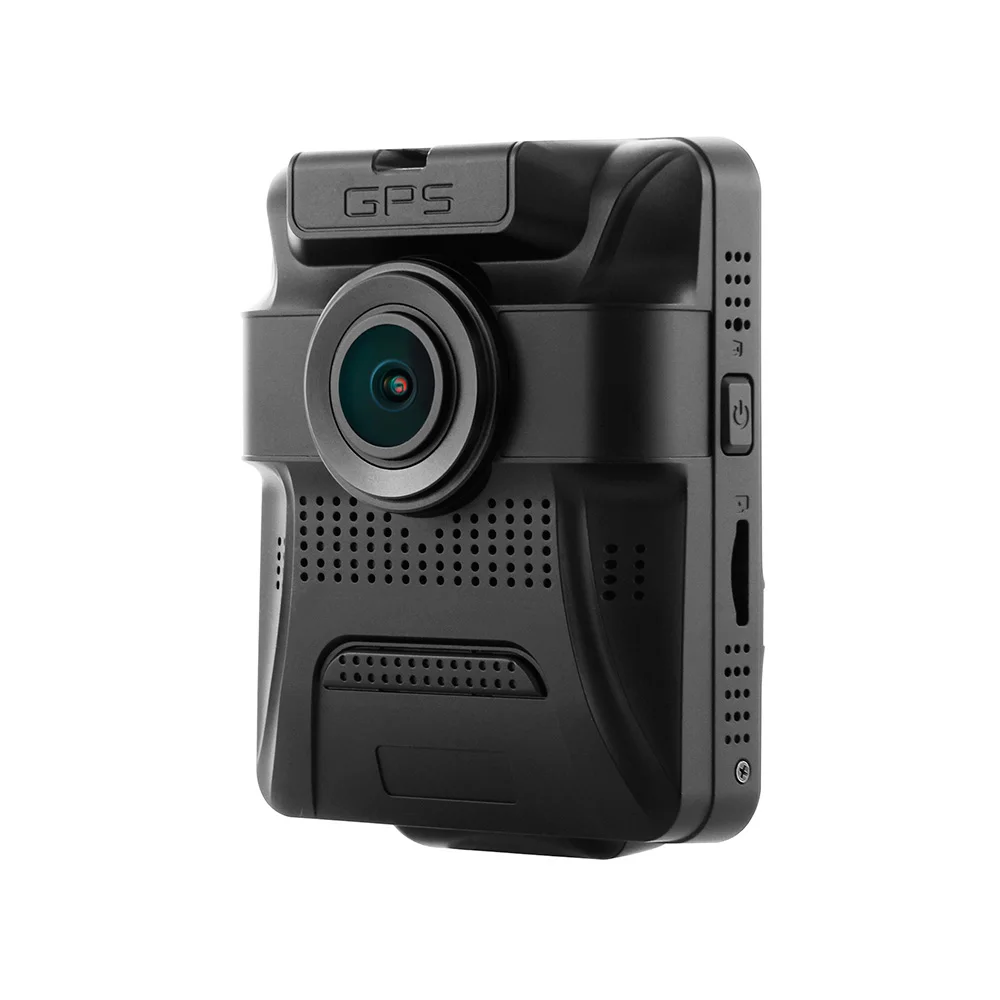

Olysine Novatek 96655 Mini Car DVR GPS Tracker Auto Recorder Video Dashcam Sony IMX323 Full HD 1080P Night Vision Registrar | Автомобили и

---

dianxiaobao_1

dianxiaobao_2

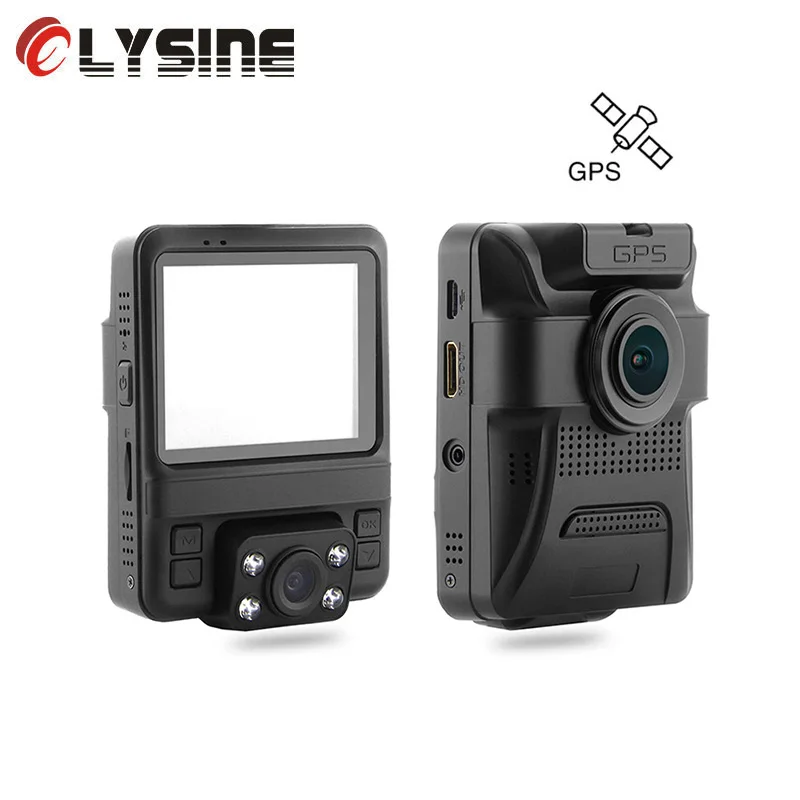

GS65H Original Mini Dual Lens GPS Car DVRs 2.4" Novatek 96655 Car Camera 1920x1080P Full HD Dash Cam Night Vision G-sensor



Specifications

  - Solution: Novatek 96655 / 2.4 inch screen / front lens sensor IMX 323+rear lens sensor NT99141, front 1080P FHD+Rear 720P+Built in GPS - Processor: Novatek NT96655 - Image sensor:  front IMX323 1/3 inch CMOS & rear NT99141 1/4 inch CMOS      - Aperture: F1.8         - Diagonal angle: Front 150 degree wide angle /rear 130 degree wide angle         - Max. video resolution: Front 1440*1080 30fps / Rear NT99141 720P          - Encoding type: H.264@1080P 30fps  /  H.264@720P 30fps          - Video coding format: H.264, MOV         - Pixels: 300W         - Photo format: JPEG         - G-sensor: Three axis acceleration sensor(DA380)         - Record mode:  Loop recording, No leaking seconds         - Storage: Micro SD card（Class 10 above，max. support 32G，computer format FAT32 can support 64G）         - Screen: 2.4 inch 240*RGB*320  TFT-LCD       - Video output: NTSC/PAL         - Starting time: 2s        - Working voltage: DC 5V 1.5A             - Quiescent current: 3mA below         - Storage temperature: （-20 degree -70 degree）         - Operating temperature: （-20 degree - 60 degree）         - Operating humidity: 15%-60%RH         - Battery: aggregation :450mAh/3.7V         - High definition interface:    Support HDMI         - Spearker: 1810 thickness 4.0MM   1W(voice is enough loud)         - GPS: Built in GPS (Open places 90 seconds cold boot fixed position，complex environment within 3 minutes)         - TV OUT: Support         - USB: MICRO 5 Pin        - Rear camera: Support IR lights (It will work automatically when the light is dark)





GPS Tracker Logger   GPS function is to record the driving route location. we can see the speed and driving route on Google maps.



    150 degree super wide angle lens   our 150 degree lens is make up of 6 piece of glass, supports a wide angle than  the common 140 degree lens, and it has a wider range of vision

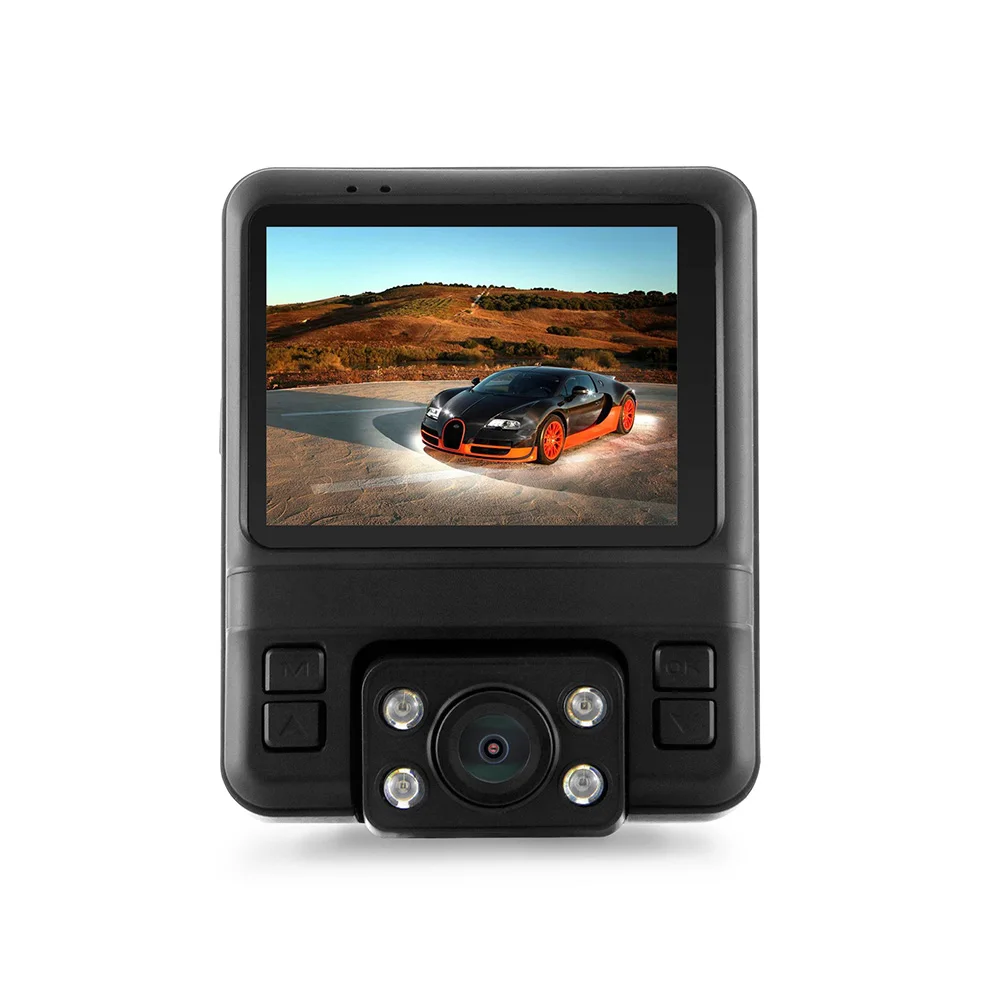

    2.4 inch LCD screen   2.4 inch display screen, play back on the real scene of the accident, no need to convert to computer to watch.



G-sensor

  The car encountered a collision, it will lock the current video, automatically save the video, restore the scene of the accident, to avoid misuse to delete or overwrite.







Loop recording   Automatically open the video, no need to set, automatically overwrite the original unlock video



      Parking Monitoring   When the vehicle encounters a preset vibration, the Drive Recorder starts from Deep Sleep Record the video for 1 minute, then go to sleep again











  FAQ on DVR     Q: Why my dvr camera indicate “SD card Full”?   A: 1) Please check if your memory card is original brand high speed Class 10 memory card, if you use some copy card like Class 4 or Class 6, it will indicate SD card full because it is not compatible. (note please: DVR max support only 32GB card)   2) Please check your dvr MENU settings if you have open on Loop Recording this function already ? You must open Loop Recording this function the previous video can be overwrite.   3) Please check your dvr MENU settings if you have turn off G-Sensor this function already at the same time? If G-Sensor is on, the file will be protected that can not be overwrite, so the SD card will be full.   4) You must format to clear up your memory card file by hand at least 2~3 times within a month because the memory card inside will have some locked file that happen while driving at some emergency time, but this locked files can not be overwrite automatically. You must delete them by hand.   Q: Why my dvr camera record only around 10 seconds ?   A: Please check if you have turn on Motion Detect this function already ? If Motion detect is on in video mode, once no movement in front, dvr will pause recording after 10s. Once any movement in front dvr again, this function can make dvr detect this motion then continue recording again.   Q: How dose my dvr camera can recording at night ?   A: When you receive your dvr camera, please check at first if your dvr camera have night vision IR light or LED fill light, if have please open on this light then can make night vision recording more well. If can turn on car light to recording that will be more better. If your dvr camera dose not have any IR or LED fill light, you have to open your car light while do recording at night, unless it can not do recording at night well.   Q: Why my dvr camera have squeak or some other sound problem?   A: Normally if your dvr camera have squeak sound that should be the inside electricity current not fitable, please check if you use usb cable connect computer or some home charger adapter do recharging on this dvr, it is not ok, because this dvr camera can only be recharged with car charger, usb cable can not transfer enough electricity current. Please use our original car charger inside your car to do recharge. If with car charger still have sound problem, that should be the car charger do not compatible with your car current, please contact our service line do charger replace for you.   Q: Why my dvr camera auto on & off continuously?   A: Please check first if your dvr camera MENU settings open on Parking Monitor and G-Sensor this 2 function already? Normally if Parking Monitor is on the dvr will go to Parking Monitor mode, in this mode status, dvr will auto on once detect any touch or shake, then if will auto off if while no touch. So it will auto on & off continuously. G-Sensor this function also will lock this status video file to avoid no overwrite then it can keep as Parking evidence. Please turn off this 2 function in MENU settings then try again. At the same time, please turn off Motion Detect this function in MENU settings also, because if Motion Detect is on, it will auto go to recording once have any movement in front.   Q: Why my dvr camera card can not be read ?   A: Please check if your memory card is original brand high speed Class 10 memory card, if you use some copy card like Class 4 or Class 6, it will indicate SD card full because it is not compatible.   Please check if your memory card is 8GB,16GB or 32GB, this DVR max support only 32GB card, it can not read 64GB card.   Q: Why my dvr always freeze while recording?   A: Please check if your memory card is original brand high speed Class 10 memory card, if you use some copy card like Class 4 or Class 6, it will indicate SD card full because it is not compatible will happen freeze while recording.   Q: Why my dvr can last working maybe only around 2~3 minutes ?   A: Because this dvr is use for car, when it is be designed, inside only have a very small space put for battery, most car dvr inside battery very very small size, then you can know the battery capacity very small, normally you have to recharge the DVR with your car charger to make it working properly. If no recharging, it can only last working around 2~3 minutes. Please note that you must use the original car charger in the product package, If you use other charger causing the product stop work, we do not bear any responsibility, please understand.
