MiraBox Wireless Display Car Wifi Mirrorlink Box Support 5G+2.4G IOS Andriod PC With CVBS+HDMI AllShare Cast Screen Mirroring |

---



MiraBox Wireless Display Car Wifi Mirrorlink Box Support 5G+2.4G IOS Andriod PC With

    CVBS+HDMI AllShare Cast Screen Mirroring





Production

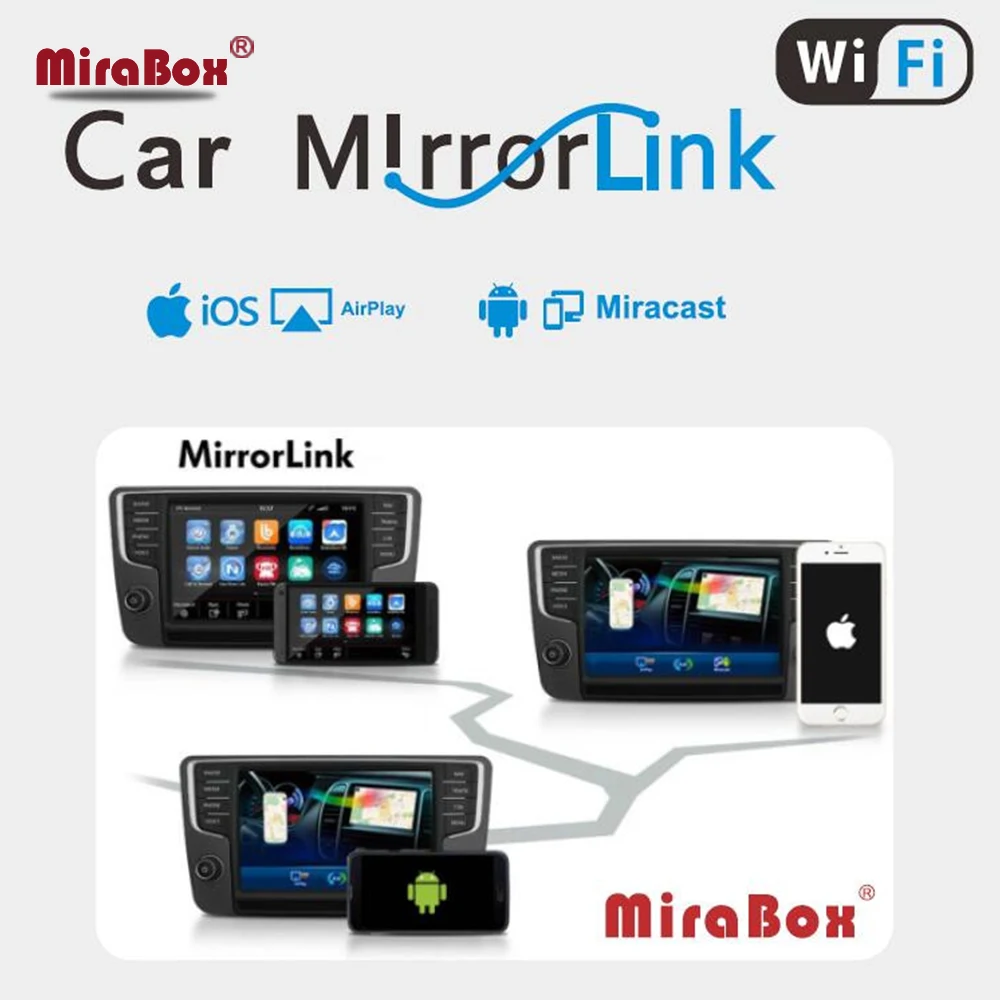

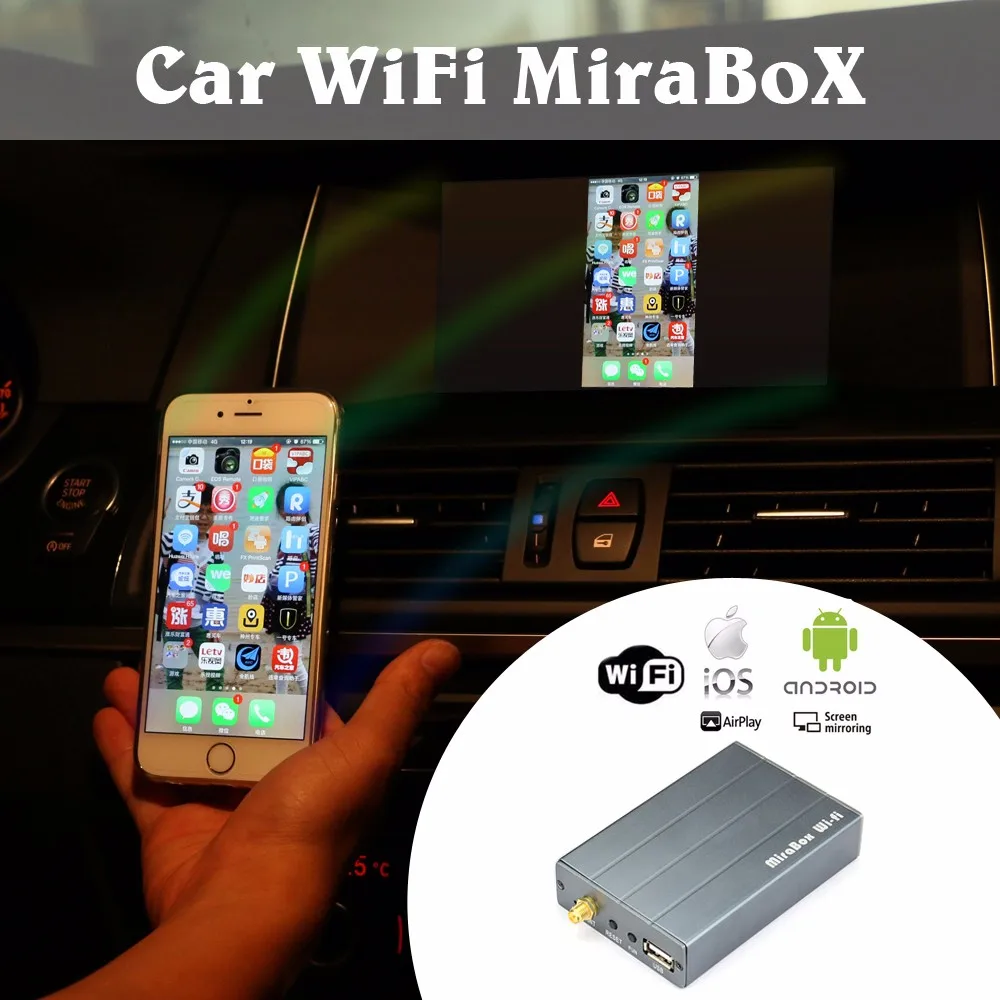

  The mirror link box -- Mirabox S AV , car standard Wi-Fi A/V mirror converter of Smart Phone to Car Audio which   transfers the audio and video of smart phone or pad (live screen) to Car Audio player. With this device, user can enjoy all   applications & contents of smart phone in car: - On line navigation (advanced function: TMC, location share, free map upgrade)
- Music listening and video watching
- Internet surf (movies-watching, news-browsing, twitter, Google talking)
- Games playing (Doesn’t require a network:  The mirror link box uses a Wi-Fi direct connection and doesn’t require a network connection from yo  u   player or phone to Car Audio.)   WIFI Mirror Coverter Supported Device:   ISO Device(IOS mode, to use AirPlay Mirroring, you need the following): - For iPhone 4s/5/5C/5S/6/6Plus/6S/6S Plus/7/7 Plus or later - For iPad 2/3/4/Air/Air2/Pro or later - For iPad mini/miniAir or later - For iPod touch (5th generation) -Other IOS device with AirPlay Mirroring function, Normally require IOS 6,7,8,9&10 device

  Android Device(Android mode, to use Miracast / Allshare cast / Screen Mirroing,you need the following): -For Samsung Note2, Note3, Note 10.1, S3, S4,S5. -For LG F180L, F200L, LS970, F180S, F180K, F200S, F200K, GL-01E, G E975T -For HTC OneX, OneS, ButterFly S -For Google Nexus 4 -Other Android device with Miracast function, Normally require Android system 4.2 or later



Feature

  Hot selling mirror link box, it is designed especially for car environment and featured with: 1. Universal: Compatible with all Car Audio AV-IN (CVBS). Q: What kind of car mode does mirabox suit for? A: Whatever the car mode, if it has RCA female plug. Q:What is RCA female plug ? A:Please see the follow picture:

2. Easy installation: Plug and playing, no need any software driver or APP. 3. Compatible: IOS device and android device. 4. Wireless user experience: No need any cable or adapter from phone to converter box. 5.Navigation-online, movies-watching, news-browsing, twitter, Google talking, Games playing 6.With this device, user can enjoy all applications & contents of smart phone in car: .On line navigation (advanced function: TMC, location share, free map upgrade) . Music listening and video watching, Games playing .Internet surf (movies-watching, news-browsing, twitter, Google talking)

Specification

Advantage: wifi direct connection, does NOT require a network connection from your phone to Car Audio.   Operating system:  Linux SDRAM:   DDR3 2G NOR Flash:   2G Frequency:   MIPS 500MHz Transmission distance:   Up to 20M to playback music, photo and pdf files, Up to 15M to playback video files. Network:   WiFi 802.11 b/g/n Power Input:   DC 12V Power consumption: Idle Status: 12V~200mA  Without any WiFi connection Working Status: 12V~500mA  With WiFi connection  Charging Status: 12V~1A  With USB port Charging Device Wi-Fi Standard:   Wi-Fi 802.1 b/g/n Input:   WiFi AirPlay & Miracast/Allsharecast/Screen Mirroring/DLNA Humidity:   0~90% A/V Output:   Car Audio AUX /CVBS  Temperature Range:   –20°C~ 70°C

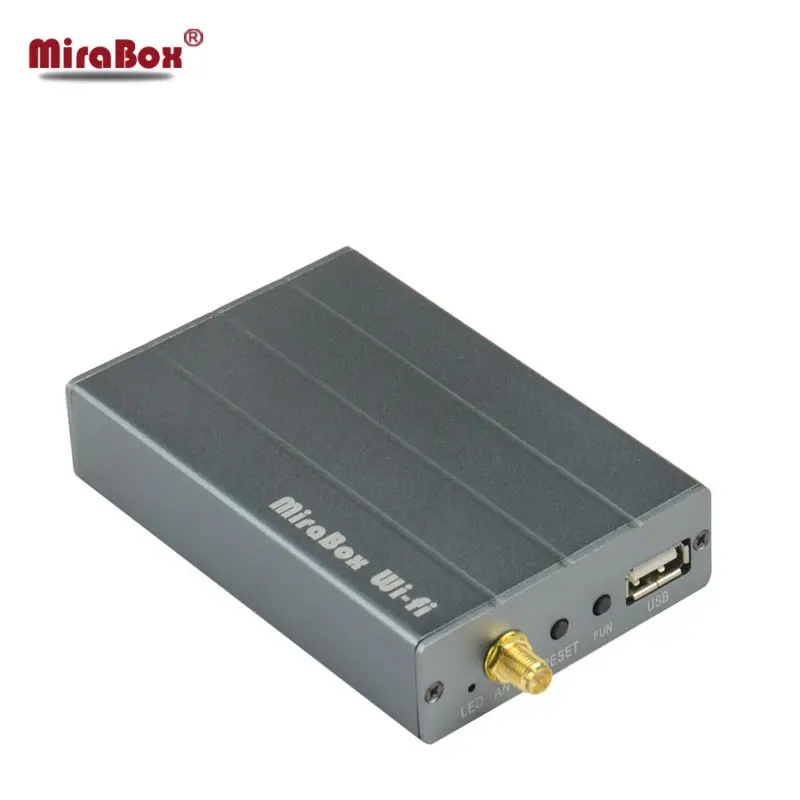

Product Pictures
