MCT200 Non-destructive Paper Coating Thickness Gauge with 0.1um Resolution Paint Width Measuring Instrument | Инструменты

---

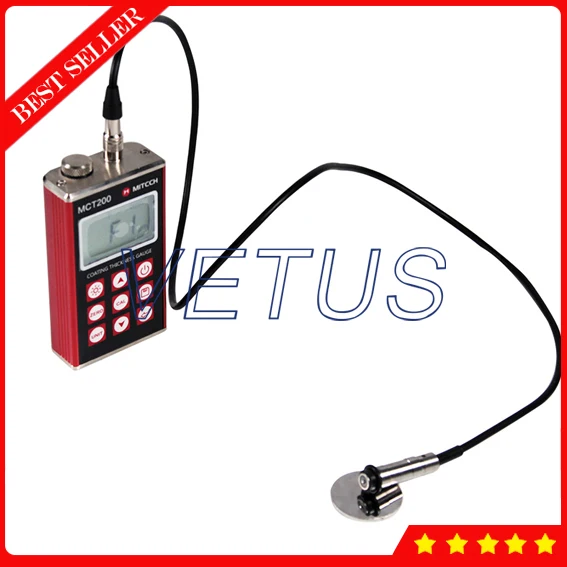

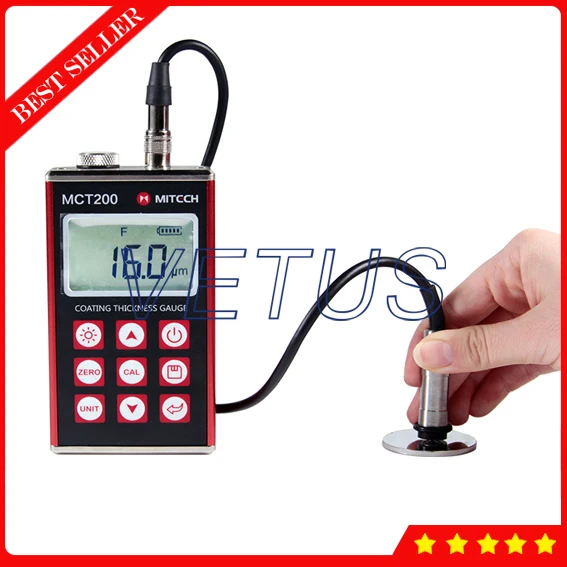

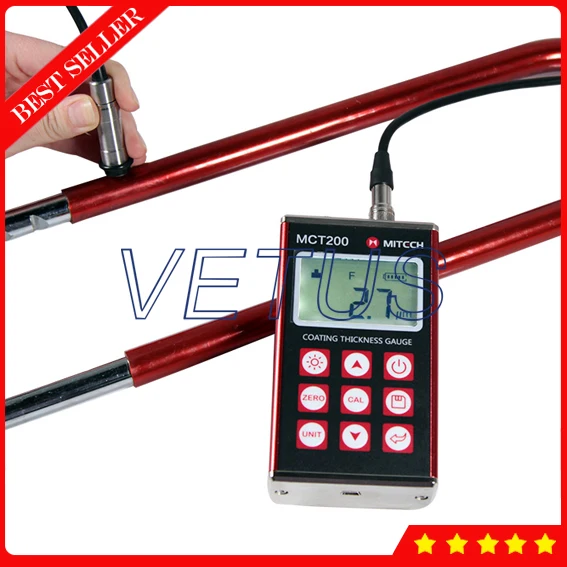

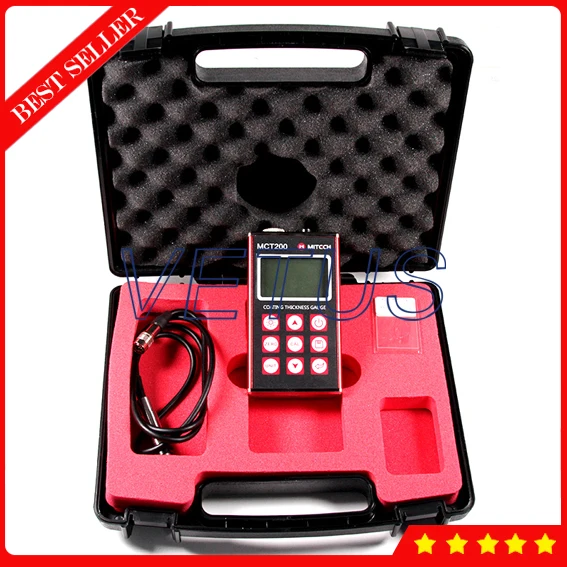

MCT200 Non-destructive Paper Coating Thickness Gauge with 0.1um Resolution Paint Width Measuring Instrument

1.Product Overview   MCT200 Coating Thickness Gauge is designed for non-destructive, fast and precise coating thickness measurement and also can measure the film thickness. It is widely used in manufacturing,metal processing industry, chemical industry.commodities inspection and other testing areas. Measuring range from 0 to 10 mm, can meet the different industries in view of the workpiece surface coating thickness testing requirements. It is the necessary professional precision instrument to improve the production efficiency and the qualified rate, saving the cost of production.   2.Function & application Five types of probes are available for different application,probe contact parts with the hard chrome or red ruby materials, very durable. With different external probes,the gauge can be applied to measuring thickness of non-magnetic coating on magnetic metal substrate,as well as non-conductive coating on non-magnetic metal substrate.  Two calibration methods can be applied to the gauge and the system error of the probe can be corrected with the basic probe calibration method.  Two measuring modes: single or continuous, changeable. Measuring status indicator shows the measuring status.  EL display back light ensures easy reading of screen data in low light conditions.  Battery information indicates the rest capacity of the battery. Auto sleep and auto power off function to conserve battery life. USB1.1 communication port. Optional software to process the memory data on the PC. Compact aluminum case, suitable for use under poor working conditions.   3.Instrument Features Five types of probes(F400,F1, F10,N1,CN02) are available for different applications, F10 probe measures up to 10mm. With different external probes, the gauge can be applied to measuring thickness of non-magnetic coating on magnetic metal substrate, as well as non-conductive coating on non-magnetic metal substrate. Two calibration methods can be applied to the gauge.The system error of the probe can be corrected with the basic probe calibration method. Two measuring modes: single or continuous, changeable. Measuring status indicator shows the measuring status.  Measured values and user information are shown on a large, easy-to-read LCD.The display back light ensures easy reading of screen data in low light conditions. Battery information indicates the rest capacity of the battery.  Auto sleep and auto power off function to conserve battery life.  USB1.1 communication port, optional software to process the memory data on the PC. The gauge equips with data-pro software, can do measurement results transmission, automatic storage management, measurement data analysis, measurement reports print etc. Compact aluminum case, suitable for use under poor working conditions.   4.Working Principle Measuring principle: Magnetic induction & Eddy current. With different external probes, the gauge can be applied to measuring thickness of non-magnetic coating on magnetic Metal substrate,as well as non-conductive coating on non-magnetic metal substrate.   Working Conditions Working temperature: -10℃～＋50℃. Storage temperature: -30℃～＋60℃. Relative humidity: ≤90％. The surrounding environment should avoid of vibration, strong magnetic field, corrosive medium and heavy dust.

Measuring range	(0～1250) μm, depends on probes. maximum 10mm for the probe F10.
Resolution	0.1μm
Accuracy	±(3%H+1) μm;
Display	4 digital LCD with EL backlight
Storage	Memory for up to 20 files (up to 50 values for each file) of stored values.
Unit	Metric (μm)、Imperial (mil)
Working voltage	Two “AA” size, 1.5 Volt alkaline batteries.(NOT INCLUDED)
Working hous	200 hours typical operating time (EL backlight off).
Communication port	USB1.1
Dimensions	125mm×67mm×31 mm
Net weight	340g
Working temperature	-10℃～＋50℃
Relative humidity	≤90％

Shipping Detail We Ship to Worldide, except APO/FPO  Items are shipped from China using Airmail, reach most of the countries within 15 to 25 business days  Delivery time depends on destination and other factors, it may takes up to 30 business day    Payment  We accpet Alipay and Paypal, Credit Card, Money Booker, T/T, Western Union,here  All major credit cards are accepted through secure payment processor ESCROW.    Warranty and Guarantee 12 Months Warranty . Buy with confidence  If you are not satisfied when you receive your item,please return it within 14 days for a replacement or money bac, Please contact us before you return it.  If item is defective in 3 month, we will send you a relacement without extra charge, Or offer refund after we receive the defective item.  If item is defective after 3 months, you can still send it back to us.  We will send you a new one after receiving the defective item. But you have to pay the extra shipping fee.      Feedback We depend on customers' satisfaction to succeed, your positive feedback of 5 stars is very important to us, if you are satisfied with our product, please leave us a positive feedback ( 5 stars )  Please do not leave us a negative feedback before contacting with us, we will try our best to solve the problem, please help us to improve      Other Policies We are not responsible for any custom duty or import tax.  All emails will be answered within 1 business day,  If you do not receive our reply, please kindly re-send your email and we will reply to you as soon as possible.  Serious Buyer Only! Please place bid only if you agree with all the items      FAQ Q: Is there any Tracking Number for my item?  A: If you want the parcel to be tracked , please choose the China post air mail, Singapore post, or Express Q: Does this product come with retail package?  A: We have declared the packing detail on the description of each product, please check it, Thank you ! Q: I am a reseller, I would like to buy many pieces of your item, what's the wholesale price?  A: If you would like to buy large quantity, please send email to us, we will give you the best price, thanks!
