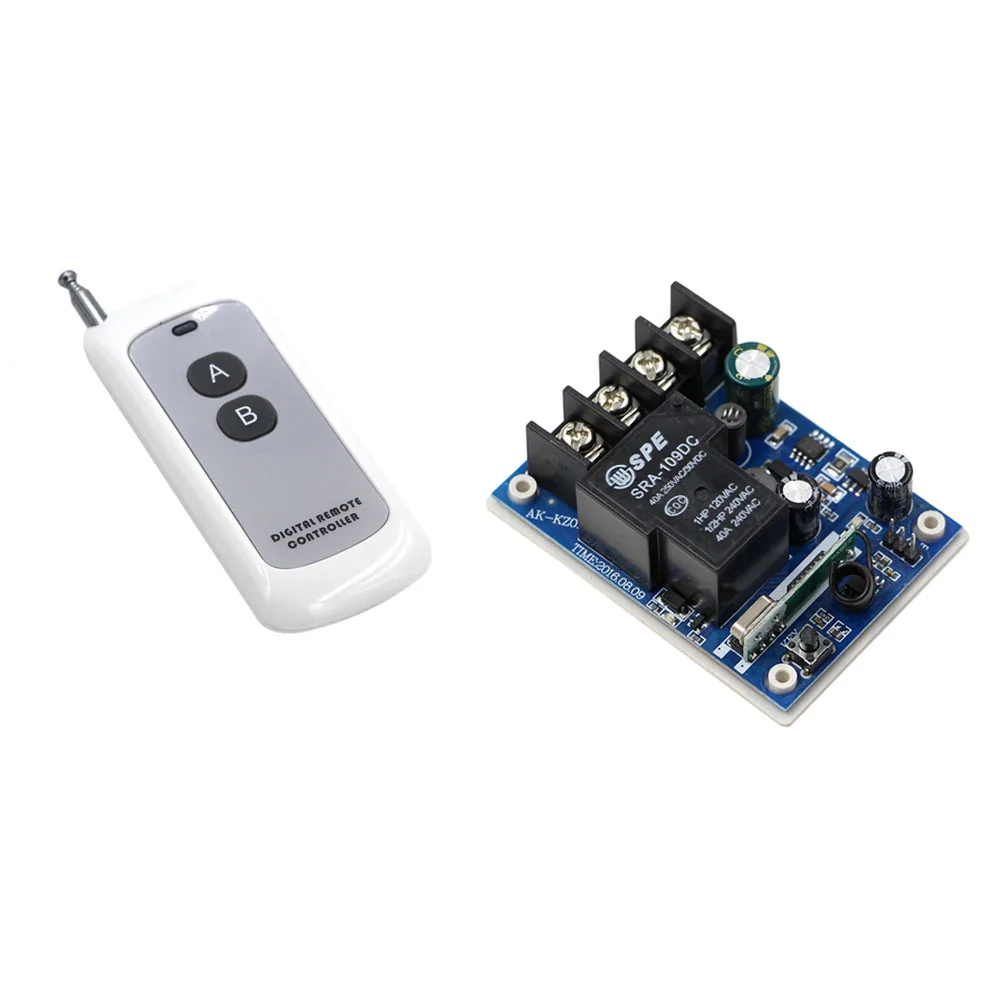

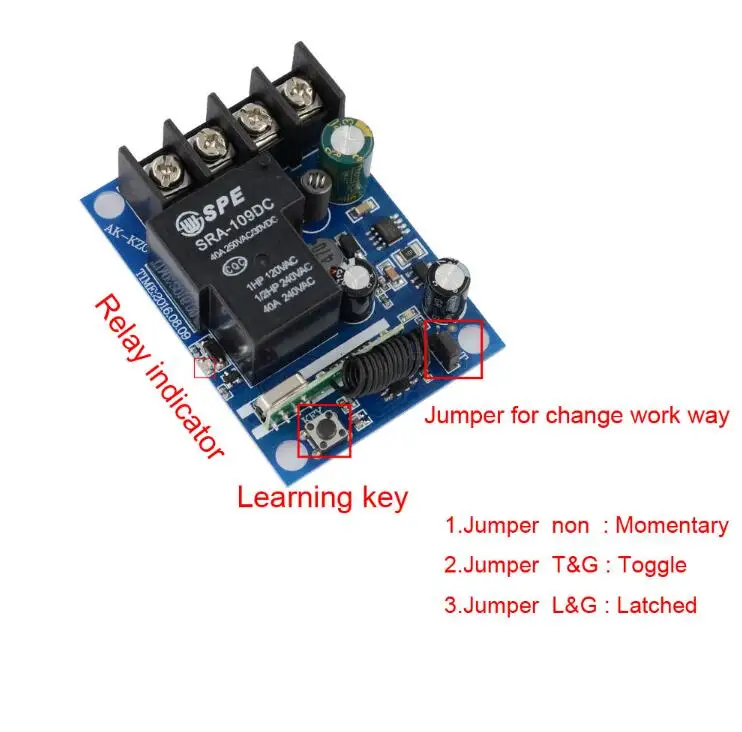

DC12-48V RF Wireless Remote Control Switch Radio Control Switch 1CH Relay Receiver Transmitter Learning Code PT2262 EV1527   Specification: 1.Transmitter   Operating Frequency: 315 MHz/433MHZ  Frequency Distance: 20-200m (please notice that is the ideal distance without any block and signal interfere , it would rise and fall about 10%-50% with the block and signal interference ). Encode: learning code  Maximum load: ≤ 40A   2.Receiver   Operating Voltage: DC12V-48V Channel: 1CH Output Current: 30A Receiver Sensitivity: -100dBm Working temperature :  -20\'C - +60\'C Work way: jog, self-locking, inter-lock  ​PCB Sizes:70*51*21mm       Output working way:   1)Self-locking: Connect the jumper on T. ( Self-locking control mode :Press the switch is on the load, press the same switch again is to disconnect the load .Need one channel switch and a one-button remote controller.)   2)Jog---The cutting out cap is not occupied, jumper  do not connect either. Press the switch is on the load ,loosen is to disconnect the load. Also need one channel switch and a one-button remote controller.)   3)Inter-lock------- Connect the jumper on L (Press one switch is on the load , press another switch is to disconnect the load . (Need one channel switch and 2-button remote controller.)   Learning and removing method: 1 .There is a learning button on the control panel of touch switch, the button is used to learn and remove the code. 2 .Press and hold the learning button for three seconds. When the indicator light flashes, we enter the learning state. Press any key on the remote controller to emit signal, the light flashes two times and off .It means you learn it successfully. 3 .It can learn more than 12 PCS 2262 or 1527 chip with the different code wireless remote controller. 4. Delete remote control method: hold down the learning button for about 8 seconds, the indicator light turns on to off, then the code you learned before will be deleted.   Packing list: 1 x Receiver (with cover) 1 x Transmitter  (Battery not include)   ​
