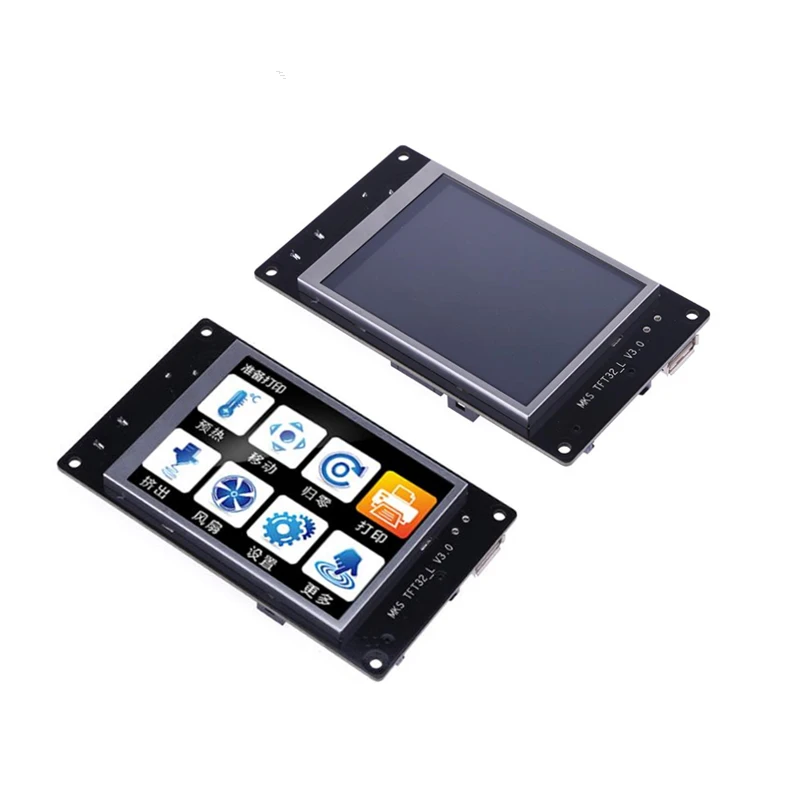

                     3D Printer Parts MKS TFT32 V4.0 Touch Screen Smart Controller Display



Package includs :

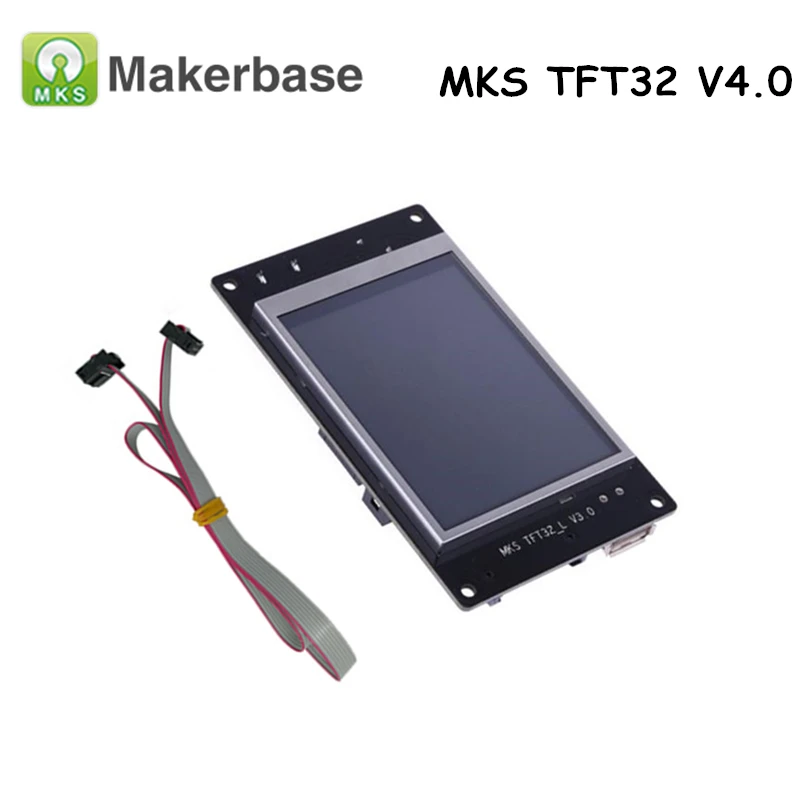

  MKS TFT32  V4.0 Display           X             1   Cable          X          1   The popular 3D Printer Parts:     ​ We provide one-stop 3D printer boards & parts purchasing.

Help you to realize your 3D Printing dream easily and conveniently.

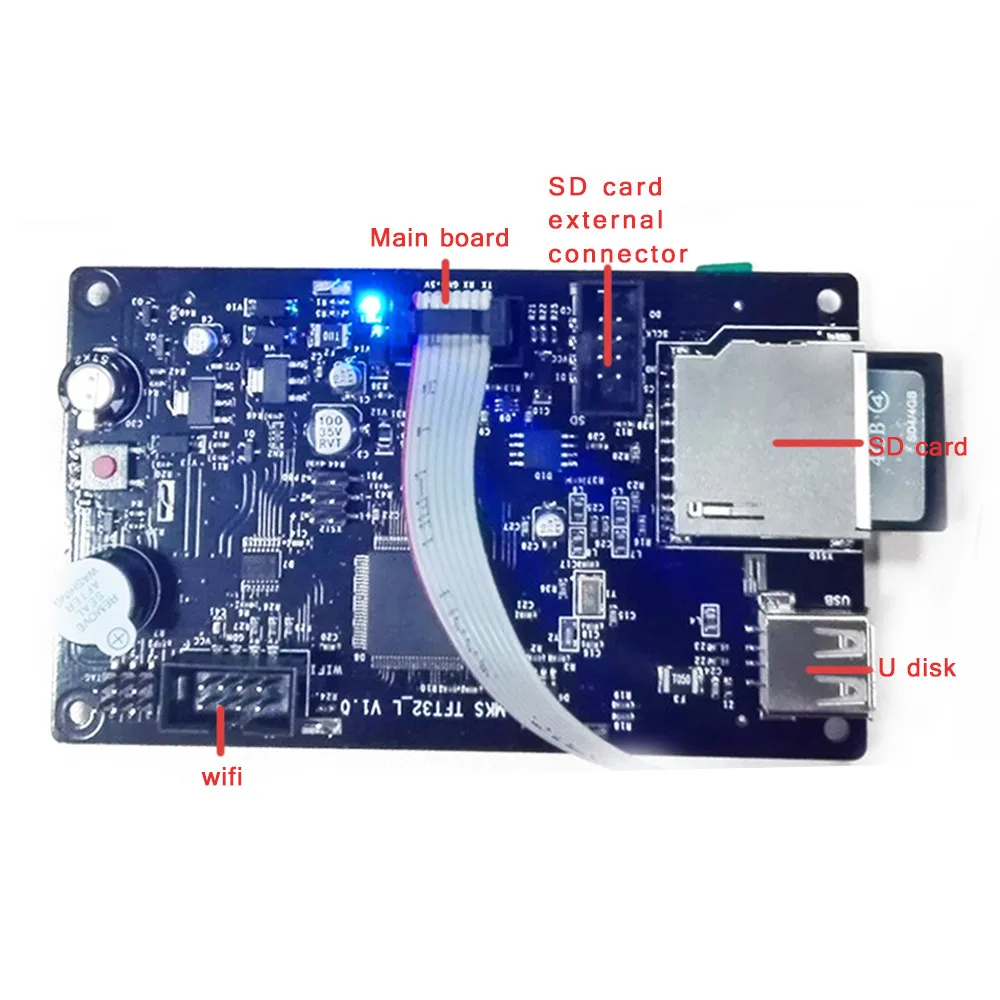

Please click the link below:         https:/store/group/3D-Printer-Parts-Accessories/3214014_512129089.html             MKS TFT32 3.2'' LCD Display:   1.3.2 inch colorful touch screen, support U disk and SD card.   2.Support continual and easy software update.   3.Support MKS Wifi module.   4.No need to adjust firmware, support Marlin, Smoothieware and Repetier.   5.Support keeping printing and saving of outage. Also exhausted material detection.   6.Support logo and button customization .   7.Support user define function.     MKS-TFT32 is a colorful touch screen LCD, it is suitable for many main board, such as MKS BASE, MKS GEN, MKS MINI, MKS SBASE, etc.   Don't like MKS TFT28, MKS TFT32 do not support external power supply, can’t work with Ramps1.4.   Connect to MKS BASE,MKS MINI   Boot Setting   Step1: turn on MKS TFT32 at first time, then enter –> setting –> connection, select baud rate that the firmware use.   Step2: enter –> setting –>model, choose printer type, only Delta and other two options   Others: enter –> setting –> touch screen correction, improving accuracy.   Firmware Update   Copy the latest update firmware to SD card root directory, including:   1. mkstft32.bin.   2. mks_config.txt.   3. mks_pic.   Please do not adjust the file name. Insert SD card, it will update automatically after restarts.   WIFI Connection   1. MKS TFT can support MKS WIFI module.   2. After MKS TFT works with MKS WIFI module, can use Printrun, Repetier-Host to proceed remote connect and control. But it may make some functions unavailable. mks_config.txt basic configuration   1. Configuration on single and double nozzle : change the value after the colon of “cfg_sprayer_counter” into the nozzle you need.(“1”is single nozzle; “2” is double nozzle )   2. Heated bed configuration: change value after the colon of “cfg_custom_bed_flag” into custom requirements you need.(“1” is with heated bed; “0” is without heat bed)   Appendix1  mks_config.tx Configuration   mks_config.txt basic configuration   1. Configuration on single and double nozzle : change the value after the colon of “cfg_sprayer_counter” into the nozzle you need.(“1”is single nozzle; “2” is double nozzle )   2. Heated bed configuration: change value after the colon of “ cfg_custom_bed_flag” into custom requirements you need.(“1” is with heated bed; “0” is without heat bed)   mks_config.txt  WIFI configuration   1. The WIFI mode selection : ​ Change the value after the colon of "cfg_wifi_mode" into the Wifi network   you need (“1” is AP mode, “0” is client mode) .   2. The WIFI configuration of client mode      A. WIFI name: change the WIFI name after the colon of the field "cfg_wifi_ap_name" into the name of your wireless network   B. WIFI password: change the WIFI password after the colon of  the field "cfg_wifi_key_code" into your wireless network’ password   C. Dynamic accessing IP address: set the value after the colon of the field "cfg_ip_dhcp_flag" into what you need (“0” indicates static IP address, “1” indicates dynamic IP address);   D. IP address: change the IP address after the colon of the field "cfg_ip_address" into what you need;   E. IP address mask: change the IP address mask after the colon of the field "cfg_ip_mask" into what you need;   F. Gateway IP address: change the gateway after the colon of the field "cfg_ip_gate" to what you need;     WIFI configuration instruction on AP module   A. WIFI name: change the WIFI name after the colon of the field “cfg_wifi_ap_name” into the hot name you need .   B. WIFI password: change the WIFI password after the colon of the field “cfg_wifi_key_code” into password of WIFI hotspot, and save it. mks_config.txt photo configuration   Reference: MKS TFT Pic_custom.pdf
