Описание товара

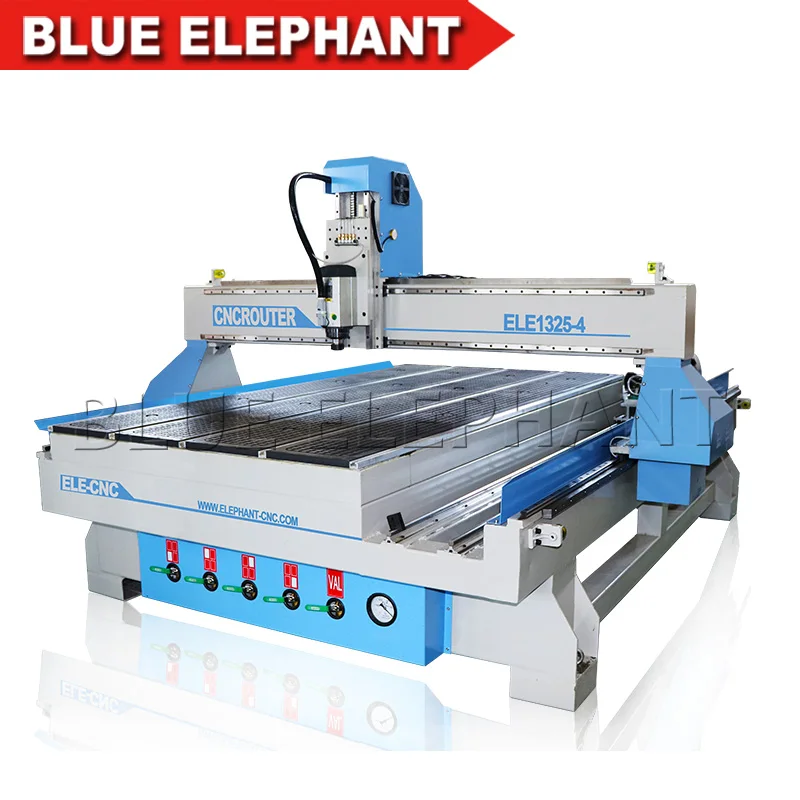

Blue Elephant Cnc Router Woodworking Cnc Router Machinery For Kitchen Cabinet Making Machines
Features of 4 axis cnc router 1325:
- With chinese leadshine easy motor and driver, bigger power.
- 4.5kw Original Italy HSD air cooing spindle, The most famous brand, have after-sales service all over the world.
- 300mm rotary device on the side, for processing cylinders such as sofa legs, table legs etc.
Parameters of 4 axis cnc router 1325:
| Description | Parameter |
| model | ELE1325-4 |
| Working area(X*Y*Z) | 1300*2500*200mm |
| Cutting accuracy | ±0.01/300mm |
| Repositioning Accuracy | ±0.01mm |
| Table Surface | Vacuum&T-slot Table |
| Frame | Welded Steel Square Tube Structure |
| X, Y Structure | Rack and Pinion Drive, Sweden ABBA #20 Rail Linear Bearings |
| Z Structure | Sweden ABBA #20 Rail Linear Bearings and Ball Screw |
| Spindle Power | 4.5kw HSD air cooling spindle |
| Spindle Speed | 0-18000 rpm |

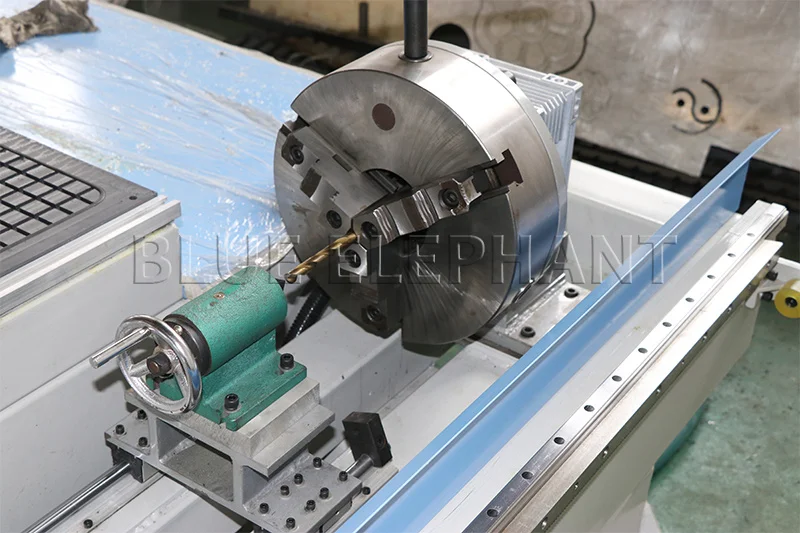

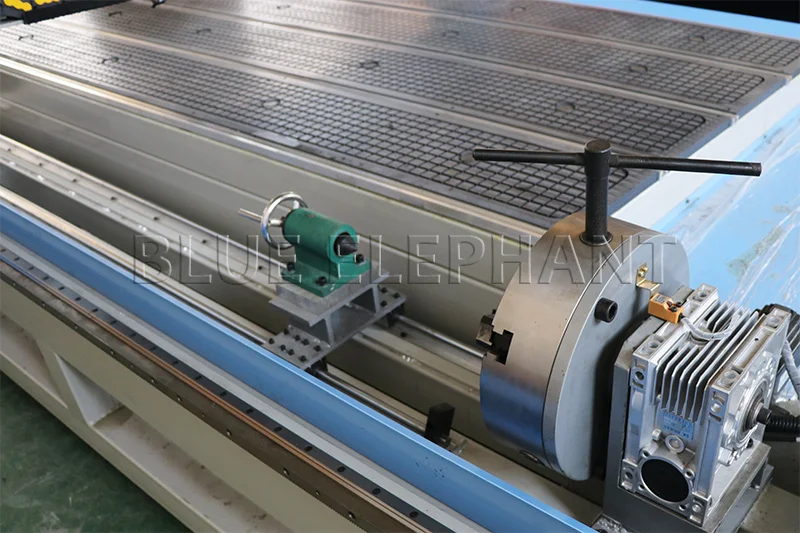

| Rotary device | Diameter:300mm, Effective processing length: 2500mm |
| Inveter | 5.5kw Taiwan DELTA inverter |

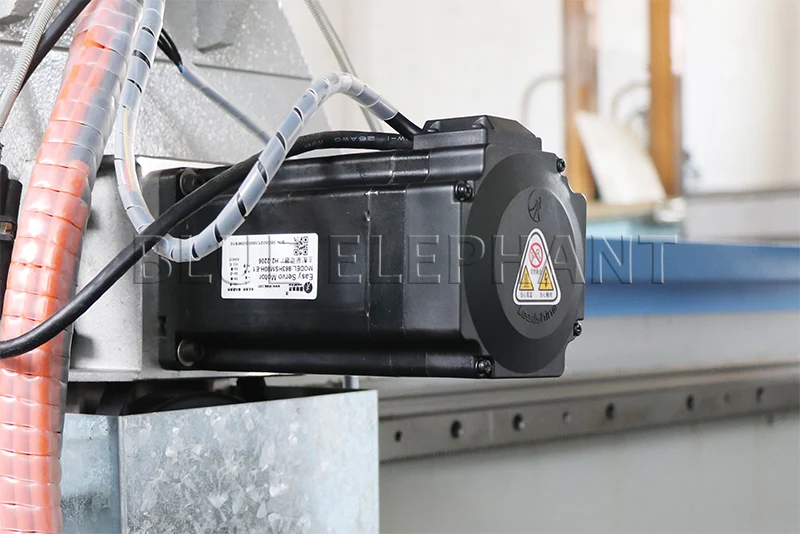

| Drive Motors | Leadshine H2-2206 Hybrid Servo Motors and Drivers for all axis |
| Working Voltage | AC380V, 50Hz, 3PH (Option: 220V) |
| Command Language | G Code |
| Operating System | Mach3 4axis control System |
| Control box | Place the computer's big control box |
| Collet | ER32 |
| Software Compatibility | ARTCAM Software |

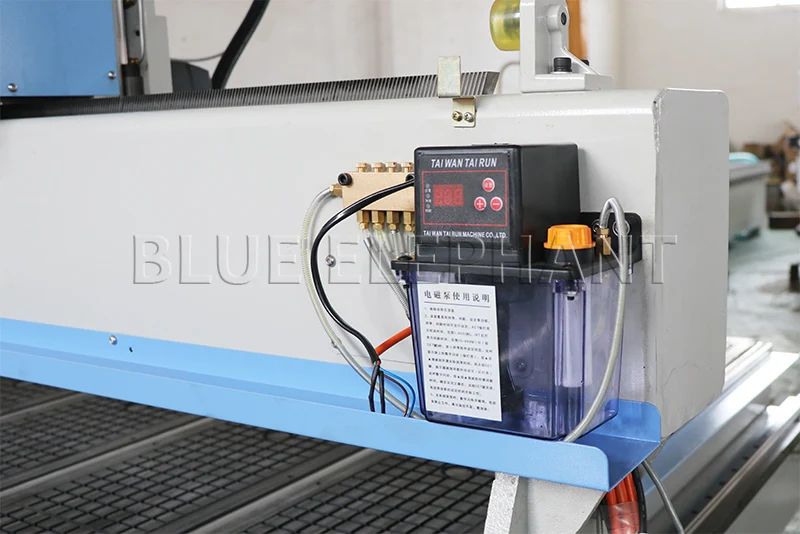

| Lubrication system | Automatic lubrication system |
| Tool Sensor | Manual tool sensor calibration |
| Vacuum pump | 5.5kw water circulation vacuum pump |
PS:All the working area and specifications can be customized according to your requests.
Product Details of 4 axis cnc router 1325:
Features of 4 axis cnc router 1325:
- X, Y, Z working area ....1300 x 2500 x 200 mm
- Rotary axis diameter ....300 mm
- Rotary axis length ..... 2500 mm
- Spindle ..... 4.5 kW Italy HSD air cooling
- Inverter ..... 5.5 kW Taiwan Delta Inverter
- Spindle speed ..... 0 - 18000 RPM
- X, Y, Z traveling positioning accuracy ..... 0.02/300 mm
- Maximum rapid travel rate ..... 55000 mm/min
- Maximum working speed ..... 40000 mm/min
- Table Surface ...... Combined T-slot and vacuum working table
- Frame ...... 10m-12mm Heavy duty Body
- X, Y , Z rail ..... SKF ABBA Square Rail on X, Y axis
- X, Y, Z trasmission .... Helical rack on X, Y axis and High precision Taiwan TBI Ball Screw on Z axis
- Drive motors ..... Leadshine servo motors and drivers on all axis
- Lubrication ..... Automatic lubrication system
- Control system ..... March3 4 axis control system
- Command language and formats ..... G Code (*.uoo,*.mmg,*.plt)
- Interface .....USB
- Software compatibility ..... Artcam, Type3
- Working voltage ....380V, 3 phase, 50Hz
- Vacuum pump ..... Water circulation vacuum pump 5.5kW
Applications:
-
Wood furnitur industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
-
Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
-
Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.
-
Relief sculpture and 3D engraving.
-
Cylindrical object.
Samples of 4 axis cnc router 1325:
Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
Guarantee and After-sale service:
12 months for the whole machine .
1, Technical support by phone , email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
Welcome to our factory:
---10 years factory experience
---Professional CNC machinery manufacturer
---very professionally produce 3 axis,4 axis, 5 axis, ATC cnc router,laser cutting machine
---The price will be 20% off in 2017
Looking forward for the agents from all over the world! Welcome to contact us!
