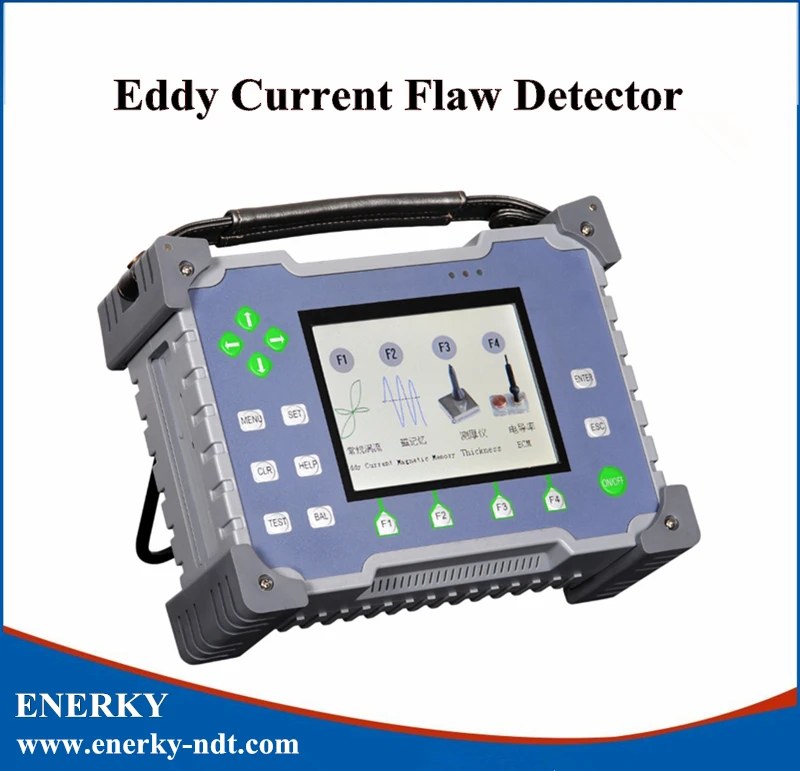

MSUN-2DSG Eddy Current Flaw Detector Portable Eddy Current Flaw Detector

MSUN-2DSG is electromagnetic products family of practical models, the use of the world's most advanced DSP and FPGA fusion technology, greatly improve the signal processing speed and detection speed, accuracy is similar to 10 times the product.
For almost all of the eddy current testing applications, but also effectively suppress the interference signals, it not only has the conventional digital "dual frequency eddy current testing", also has a "coating thickness measurement function, wide application of military product defect assessment (blades, hub, landing gear and other aircraft. The surface of a test piece); to detect the hole plane rivet hole or bolt hole without dismantling or removing fasteners under the condition of the inner surface of the crack detection of aircraft multilayer structure, aluminum skin and the fuselage wing joint of the metal structure of the stress concentration in advance of powerful diagnostic function.
MSUN-2DSG can achieve "fool" operation, operators do not need special training for a long time, that is, posts can be carried out work.
Special instructions: 2 kinds of function configuration need certain sensor support.

For aerospace, aviation, special inspection, university education, metal parts, pipes, structures, welding, metal parts and other testing,

Eddy current inspection technical index:
The large screen, high brightness 5.7 inch color TFT-LCD, to solve the shortcomings of traditional screen display
The independent testing frequency number: 2
The frequency range: 10 Hz to 10 MHz, the excellent performance of frequency adjustment
The gain: 0 dB ~ 99 dB, wide gain adjustment
The phase: 0 ~ 359 degrees, flexible phase rotation
The intelligent mixing unit number: 1
The lift off height: 1--3mm, no need to cover up the surface layer
The rapid digital electronic balance
The phase / amplitude, non block and fan frame, alarm mode to meet your testing needs
The probe drive: 1 to 8, to meet the different structure of the multifunctional probe, the true meaning of the
X and Y gain adjustment - independent
The digital filter: high frequency (0Hz ~ 2000Hz), low frequency (0Hz ~ 2000Hz)
The USB 2 (Host) the ability to connect the output
The playback, eddy current signal analysis, save, print function
The center coordinates: X, Y adjustable
The operating system: Linux 2.6, Chinese, English language:
Auto calendar time display, battery capacity
The charging power supply: 110V ~ 220V, built-in rechargeable lithium battery 8000MAH
The online graphics and text help hotkey
The environment temperature: -20 degrees to 60 degrees C
The polar coordinates, Cartesian coordinates,
The instrument size: 250 MM x 200 MM x 85 MM, the weight of the instrument: 2.0KG
The display mode: waveform, numerical, let you at a glance;
It adopts DSP digital filter, high pass, low pass frequency (0Hz ~ 2000Hz) standard
The fast digital electronic balance - host: one
The effect of probe auto removal of "magnetic field": planar probe, through the probe, thickness measuring probe
The alarm settings: each channel independent as a probe - size setting connection: one
The alarm sounds: on / off - a charger
The 100 group testing parameter - a storage battery
The 10000 graphics memory, graphics can be saved as to the U disk block: optional
The instructions for use: one copy
The warranty card: a
Product list: one copy
