Характеристики

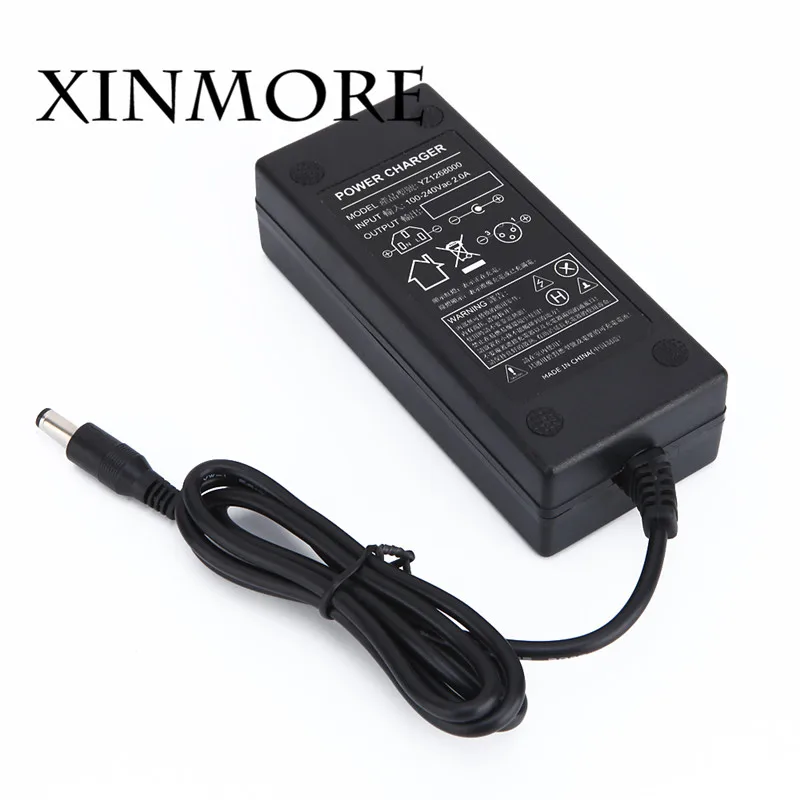

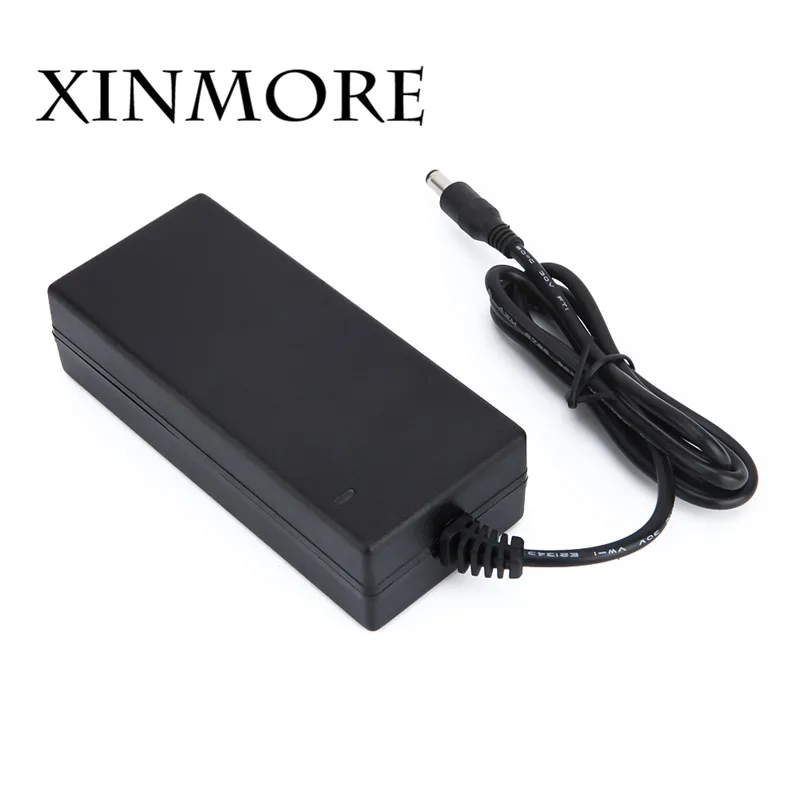

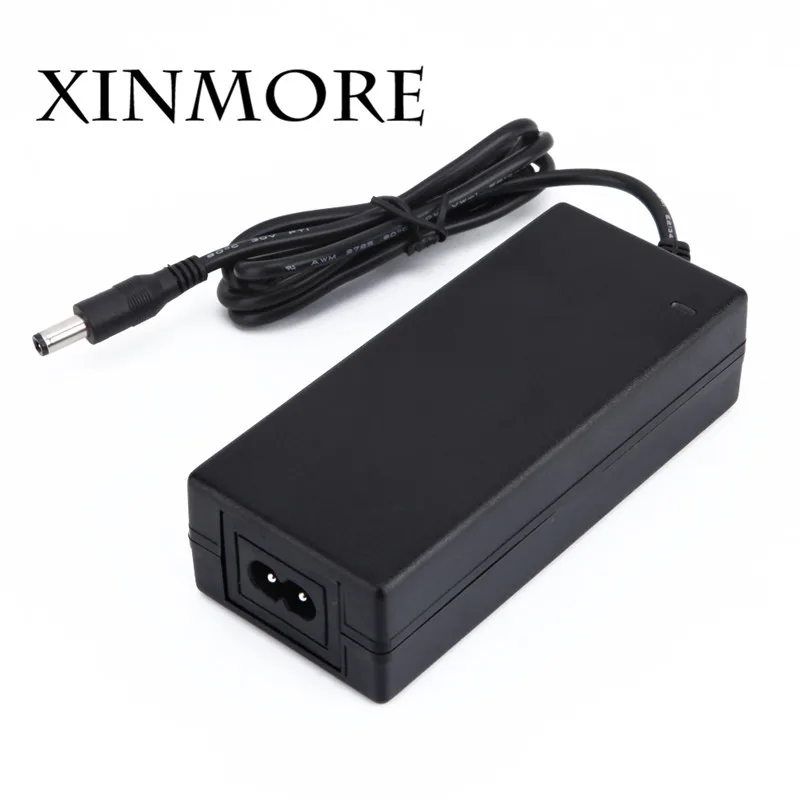

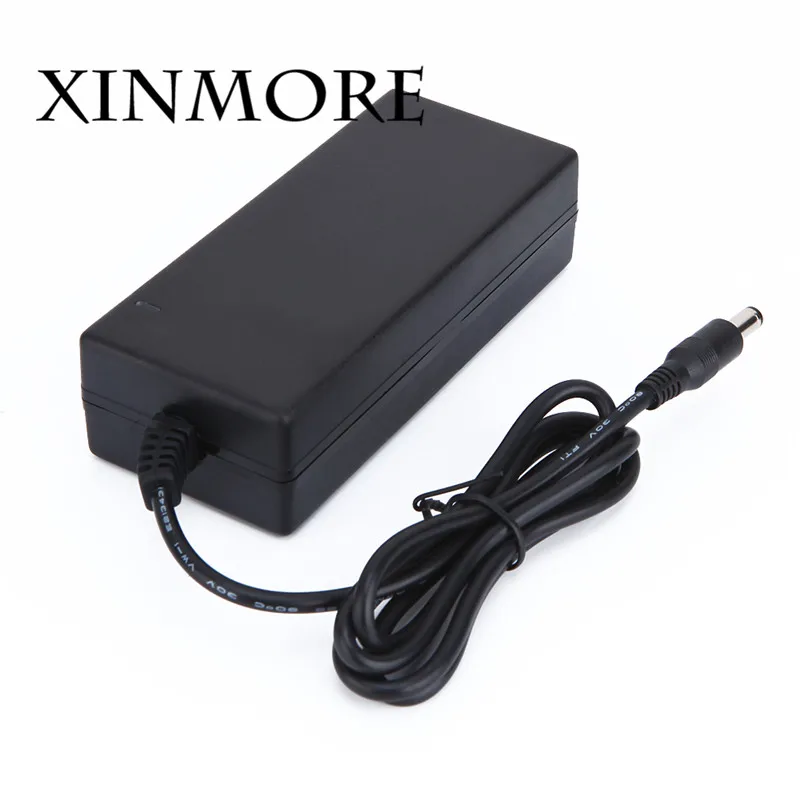

XINMORE 29.4V Power Supply 2A 1A Lithium Battery Charger For 24V Electric Scooter Intelligent Bike Tool | Электроника
История изменения цены
*Текущая стоимость 1 473,35 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Aug-19-2025 | 1871.84 руб. | 1908.33 руб. | 1889.5 руб. |
| Jul-19-2025 | 1517.21 руб. | 1547.37 руб. | 1532 руб. |
| Jun-19-2025 | 1841.8 руб. | 1878.30 руб. | 1859.5 руб. |
| May-19-2025 | 1827.85 руб. | 1864.36 руб. | 1845.5 руб. |
| Apr-19-2025 | 1458.81 руб. | 1487.30 руб. | 1472.5 руб. |
| Mar-19-2025 | 1797.74 руб. | 1833.0 руб. | 1815 руб. |
| Feb-19-2025 | 1782.51 руб. | 1818.99 руб. | 1800 руб. |
| Jan-19-2025 | 1768.3 руб. | 1803.29 руб. | 1785.5 руб. |
Описание товара
| |
Specification | |
| Input Voltage : |
110-240Vac | |
| Frequency/current: |
47-63Hz / 3.5A | |
| Charge voltage: | 29.4 V | |
| Charge current: | 2 A | |
| Charge method: | CC/CV | |
| Working Temperature: | 0°C to 45°C | |
| Storage Temperature: | -20°C to 50°C | |
| Charging voltage rated : | 29.4 ± 0.3 V | |
| Charging Current rated : | 2 ± 0.5 A | |
| Input pulg/Output pulg : | Refer to the following plug pictures |
|
******Charge Voltage and Current can be customized by Customers requirement.
If you cannot find what you need,Please Leave Words of Input AC Plug And Output DC Plug,
Like: 'AC:Number 5,DC:G',Thank You!!!
Input plug
Output plug
FOR Nominal Voltage 24V, Rated Capicaty:10Ah- 35Ah battery pack, 24V electric bike
UPS powers (7 series lithium Battery pack), Rechargeable Battery,lithium Battery,Electric Tools,
Garden Power Tools,Cleaning machine,Ebike,Golf cart ,Electric Scooter,ntelligent Balance Car Folding Bicycle ,UPS Power Supply etc.
YZPOWER
● Stable MTBF:> 30000 H,
● Excellent reliability,Dual current sharing scheme employed, the way in which when damaged,
only half the charging current, can continue to use.
● Small Size: 120 * 53 * 32mm
● Light Weight: 0.3 kg
● Material:Metal Aluminium Case
● After-sales service: 36months Warranty
● Protection function: Over voltage / Over temperature / Over current / Short circuit and Polarity
● The indicator of LED: Red is charging, green is charge finished or prepare charging
● Light, Small, Stable, High-Efficiency, Safe, etc.Precise limit of voltage & current, qualified fully charged
and avoid over charge
FIG charging curve
ZPOWER
|
|
Main Parts 1) Input and output filter electrolytic capacitor use withstand temperatures -40 to +105℃,with Low Impedance ,High reliability,Long useful life, Highrip-ple capability,etc features. 2) Input Bridge KBP406 rectifiers Can withstand average Forward Rectified Current 4A,peak forward surge current 130A,Bl-ocking Voltage 600VDC |
| 3) The main power transformer adopts EC40 core, PC40 material,High efficiency, low iron loss,Enough power capacity,Have sufficient power margin. 4) Using aluminum heat sink,Good thermal design, can better cool the power device, Consistent with the principle of hot air flow,extend the service life.
|
|
 |
PCB Parts Using SMD components,automated mass production by machine,Reduce manual errors, improveproduct quality.Voltage conversion parts, With Cycle-by-Cycle Current Limiting, soft start function,with ESD Protection.Charge control circuit,Using precision voltage comparator,Precise control of the charging voltage and current,With overcharge protection, over current protection,as well as output short circuit protection. |
YZPOWER
| |
|
| Pre-Sales Service Tell us about your battery type, features, Professional sales manager for you Offer, transport, delivery period and other issues. the right charger for you. |
After-Sales Service
Products provide three-year warranty. Professional engineers, unlimited number of technical advice. |
