Характеристики
Free shipping 100 piece RPSMA female straight pcb edge mount sma jack pallet rf coaxial connector | Строительство и ремонт
История изменения цены
*Текущая стоимость US $56.27 / lot уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-16-2025 | 67.79 руб. | 70.66 руб. | 68.5 руб. |
| Aug-16-2025 | 66.42 руб. | 69.51 руб. | 67.5 руб. |
| Jul-16-2025 | 55.56 руб. | 58.16 руб. | 56.5 руб. |
| Jun-16-2025 | 65.86 руб. | 68.92 руб. | 66.5 руб. |
| May-16-2025 | 57.68 руб. | 60.34 руб. | 58.5 руб. |
| Apr-16-2025 | 64.10 руб. | 67.74 руб. | 65.5 руб. |
| Mar-16-2025 | 63.61 руб. | 66.64 руб. | 64.5 руб. |
| Feb-16-2025 | 63.25 руб. | 66.86 руб. | 64.5 руб. |
| Jan-16-2025 | 62.73 руб. | 65.88 руб. | 63.5 руб. |
Описание товара

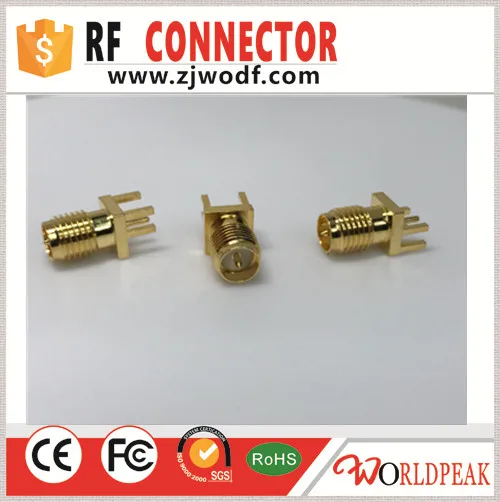

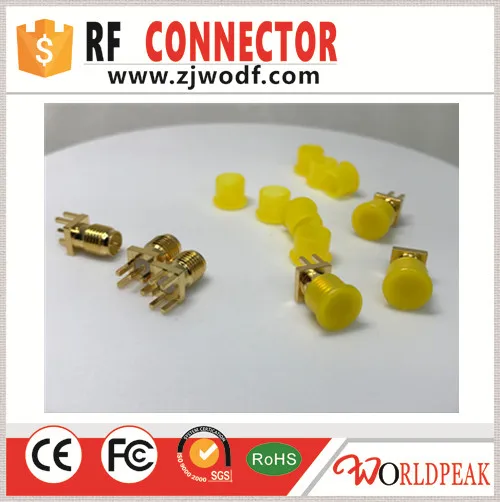

Free shipping 100 piece RPSMA female straight pcb edge mount sma jack pcb pallet rf coaxial connector
Product Description
Electrical
| Impedance | 50Ω |
| Frequency range | 0~12.4GHz |
| Working Voltage | 335V max |
| Withstand Voltage | 1000V rms |
| VSWR | |
| Straight | ≤ 1.1 |
| Rigth Angle | ≤ 1.2 |
| Contact resistance | |
| -center contact | ≤3mΩ |
| -outer contact | ≤2mΩ |
| Insulation resistance | ≥5000MΩ |
Mechanical
Temperature range -55°C~+155°C
Durability(matings) >500 cycles
Material and plating
| Piece part | Material | plating |
| Body | Brass | Gold or nickel plated |
| Center conductor | Brass or Phosphor Bronze | Gold plated |
| Crimping suite | Copper alloy | Nickel plated |
| O-ring sealing | 6146 silastic |
|
| Insulator | PTFE |
|
Environmental
IEC 60169-16/MIL-C-39012/CECC22210
SMA series rf connector has small volume, wide frequency band, excellent mechanical properties, high reliability and so on. It is one of the most popular used RF coaxial connectors.
What the difference between SMA and RP SMA ?
Look this picture :
Our company
Zhenjiang WORLDPEAK electronic products co.,ltd is located Jingkou Road,zhenjiang City jiangsu Province China.
Specializing in the design,research,production and sales of a variety of RF coaxial connectors and rf coaxial cable,our company has advanced technique,perfect and full testing means and 100-bed CNC maching equipment.
The company passed ISO9001:2000 quality management system certification in 2001,and started to use the software of ERP management to organize the production control since 2006.
The main products are RF coaxial connectors,cable assemblies,totally more than 20 series , about 2000 varieties,N,BNC,TNC,SMA,SMB,L9,MCX,7/16DIN, CC4,MMCX/FME/QMA and so on.
Our production process is in accordance with international standards,the products meet the IEC and MIL technical standards throngh performance testing of authorities,widely used in the field of communications.
Our tenet is “Qualtiy is the first,customer is king",we export our goods to many countries and enjoy a high reputation both at home and abroad.
Our products have been exporting to East Europ, Weatern Europ ,Mid east, Africa, Southeast Asia.
Packing & Delivery
Delivery
Our cooperation and professional international logistics company, quick safe, cheap, let the customer trust.
Our Service
We can do it:
• Low loss Superflexible Cable Assembly With Connector factory sell directly
• Long-term,strong and steady supplying ability
• Delivery time: 1-2 working days
• Do as your requirements on package,brand or other designs
• Strong sales promotion policy
• Ex-factory price and competitive price
• We can provide you a good survice
• Replying you asap.(will reply you 10-20 mins on the basis of getting your require.)
Customization advantages Reliable performance Perfect production management system (ISO9001,ISO14001) we have experience about RF components more than 20 years Experienced R&D staff. All Goods will be tested before shipping OEM/ODM service available.
FAQ
Q:what's your company MOQ?
A: In generally, if use customer brand, we will ask at least 500~800pcs, this we can negotiate.
Q: What's your delivery time?
A: This please ask our stock in first, products can send out once receive your deposit.If use customer brands, we will take a 3-5days to prepare materials and mass production.
Q: Can your company accept customize?
A: Welcome OEM & ODM.
Q: How do you solve after sale service?
A: This please ask us for technical support if you have workers know how to repair.If do not have engineers, please send back the items, we can repair the items for you.
Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order.
Free shipping 100 piece RPSMA female straight pcb edge mount sma jack pcb pallet rf coaxial connector
