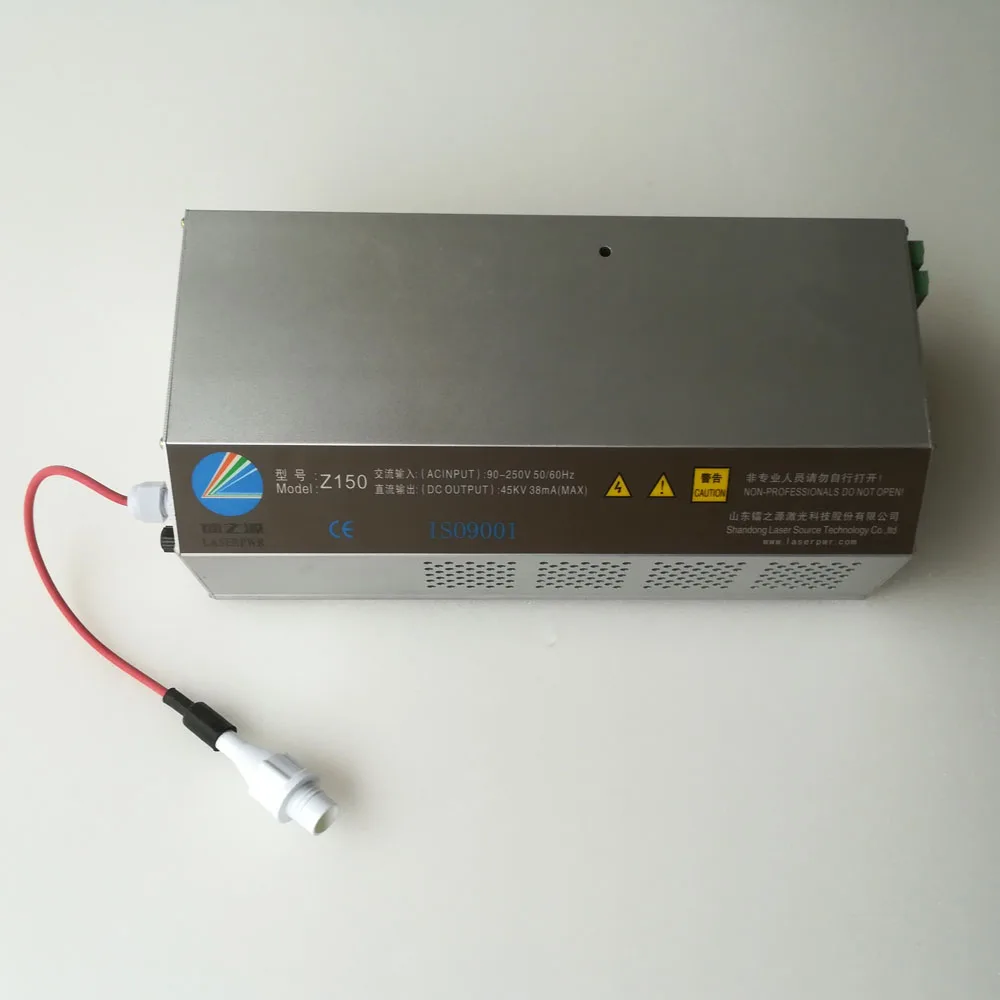

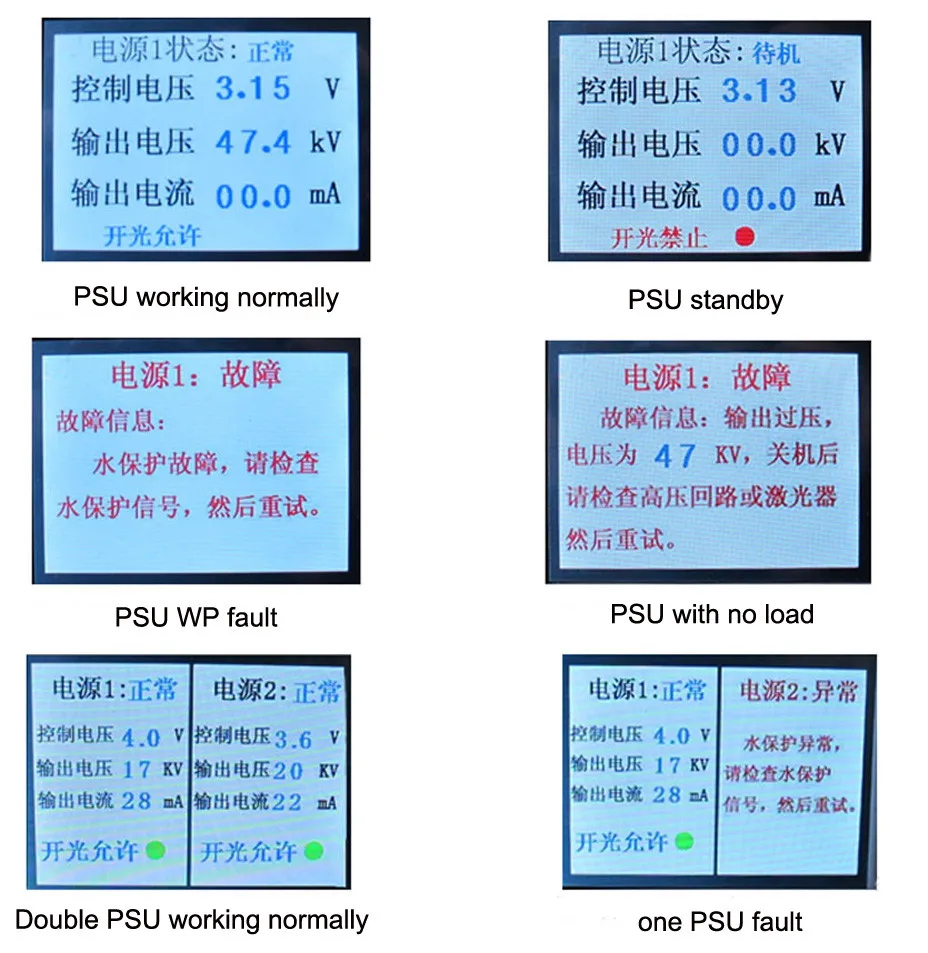

China made 150W laser power supply Z150 with display card for co2 tube | Инструменты

Model

Z80

Z100

Z150

Input Voltage

AC110V~AC220V

AC Frequency

47-440Hz

Max Input Power

600W

650W

700W

Max Input Current

3A

3.5A

4A

Max Output Voltage

DC 40KV

DC 45KV

DC 55KV

Max Output Current

DC 28mA

DC 32mA

DC 38mA

Efficiency

≥90% (full-load)

MTBF(Mean time between failures)

≥10000 hours

Response Speed

≤1mS(from switching signal to the output current achieve

 to 90% of Pre-set current)

Voltage-resisting

Input-output, input-machine shell; AC1500V 10mA 60s

Working Environment

Work temperature: (-10-40)℃ Relative humidity: ≤90%

Cooling Type

Forced air cooling

Size L*W*H(mm)

235*144*104

278*144*104

330*144*104

Shell Color

Silvery

1

2

3

4

5

6

TH

TL

WP

G

IN

5V

TH

Input Signal

The control of laser: TH≥3V, emitting laser; TL≤0.3V, no laser.

TL

Input Signal

The control of laser: TH≥3V, no laser; TL≤0.3V, emitting laser.

WP*1

Input Signal

The control of laser: TH≥3V, no laser; TL≤0.3V, emitting laser.

G

GND

This foot must be connected well with the shell of laser machine

and the ground of control board.

IN*2

Input Signal

The control of laser power: Both 0-5V analog signal

and PWM signal can control the laser power.

5V

Output Power

Output 5V, the maximum output current is 20mA.
