10ml Medical Analysis Micro Injection Syringe Pump Price Fast Delivery | Обустройство дома
История изменения цены
*Текущая стоимость 45 983,60 - 58 261,53 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Aug-18-2025 | 58398.27 руб. | 59566.37 руб. | 58982 руб. |
| Jul-18-2025 | 47362.8 руб. | 48309.13 руб. | 47835.5 руб. |
| Jun-18-2025 | 57479.70 руб. | 58629.68 руб. | 58054 руб. |
| May-18-2025 | 57019.39 руб. | 58159.64 руб. | 57589 руб. |
| Apr-18-2025 | 45523.64 руб. | 46433.14 руб. | 45978 руб. |
| Mar-18-2025 | 56099.53 руб. | 57221.4 руб. | 56660 руб. |
| Feb-18-2025 | 55639.91 руб. | 56752.76 руб. | 56195.5 руб. |
| Jan-18-2025 | 55180.45 руб. | 56284.9 руб. | 55732 руб. |
Описание товара
C1-10ml with drive = single channel 10ml syringe pump with drive
C2-10ml with drive = double channel 10ml syringe pump with drive
C1-10ml no drive = single channel 10ml syringe pump without drive
C2-10ml no drive = double channel 10ml syringe paump without drive
Technical Parameter
Model No. | MiNi SY-04 | ||
Accuracy | ≤1%@100% stroke | ||
Repeat accuracy | 3‰ - 7‰ | ||
Pressure | 0-1.0Mpa (air) | 0-1.2Mpa (water) | |
Service life | 3 million times no leakage (media: water) | ||
Detection | Photosensor check original piston position for accurate location | ||
Rated stroke (control steps) | 5ml | 10ml | 20ml |
30mm (12000 steps) | 24.08mm (9632 steps) | 24.88 (9952 steps) | |
Linear speed | 0.017mm/s – 5mm/s | ||
Time range (rated stroke) | 6s – 1765s | 4.8s – 1416s | 5s – 1464s |
Accuracy resolution | 0.0025mm/0.4154μL | 0.0025mm/1.0381μL | 0.0025mm/2.0096μL |
Actuator | KSS Ball screw (lead 1mm) | ||
Max piston drive | ≥ 100N | ||
Sub piston drive | ≥ 45 N | ||
Cylinder ID | 5ml | 10ml | 20ml |
14.55mm | 23mm | 32mm | |
Fluid path | Borosilicate cylinder, PTFE piston | ||
Max pressure | Positive air pressure 0-1.0Mpa / Negative air pressure 0-0.05Mpa | ||
Connector | 1/4-28UNF Female | ||
Communication | RS232/RS485/CAN | ||
Baud rate | 9600dps, 19200dps, 38400dps, 57600dps, 115200dps | ||
Device add. & Parameter setting | Serial Pont | ||
Dimension (L*W*H) | 42*42*210mm | ||
Power supply | DC24V/1.5A | ||
Working temperature | 5 – 55℃ | ||
Working humidity | < 80% | ||
Net Weight | 0.72kg | ||
Main Function
Minebea Motor Parameter
Minebea Motor Wireline
Note:
We usually stock 0.9° step motor MiNi SY-04 syringe pump, if you need 1.8° MiNi SY-04 syringe pump, please contact customer service.
Driver Port Direction
Port Name | Description | Port Name | Description |
+ | DC24V positive | A- | step motor A- |
- | DC24V negative | B+ | step motor B+ |
TX | RS232 TX | B- | step motor B- |
RX | RS232 RX | O1 | IO1 |
GND | RS232 Land | O2 | IO2 |
H | CAN - H | O3 | IO3 |
L | CAN - L | V1 | V1 |
A | RS485 - A | V2 | V2 |
B | RS485 - B | V3 | V3 |
A+ | step motor A+ | GND | earth wire |
Accessories
When you ordered MiNi SY-04 syringe pump with our driver, please order below accessories from our store.
These accessories will help you connnect the syringe pump into computer to work out how to control it by our communication protocol.

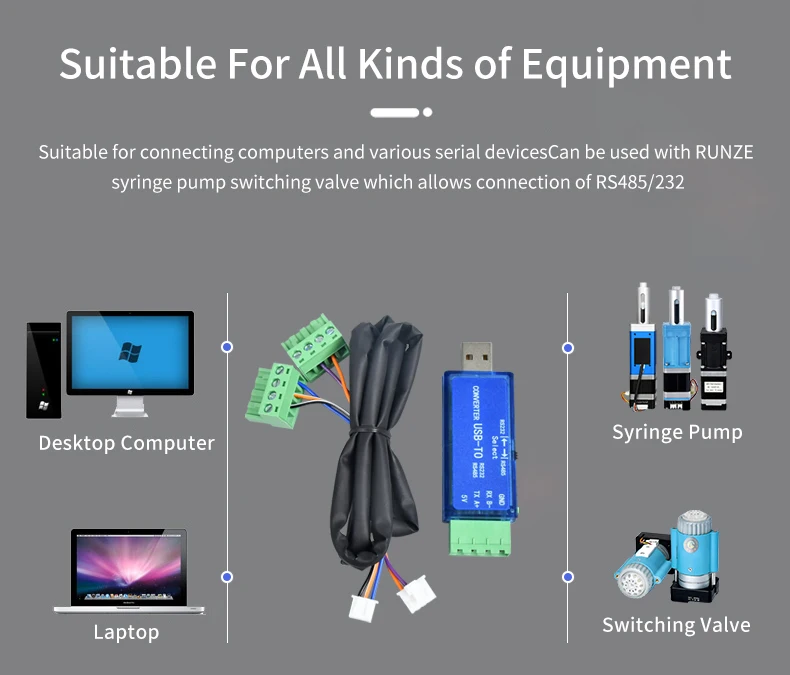

RS232/RS485 Adapter Voltage Adapter U disk with software
Liquid Flow Process
When suction liquid, pumping liquid from box A into cavity of injection pump through inlet-only check valve; when discharging liquid, discharging liquid into box B through outlet-only check valve; single liquid process finish.
When suction liquid, connect "Normally Open" port with the public port of solenoid valve,suction the liquid from box A into cavity of injection pump; when discharging liquid, power on the solenoid valve, the long-on port of solenoid valve closed at the moment, long-off port opened and connected with the public port to discharge the liquid from cavity of injection pump into box B; the whole working process finished.
12. 20ml syringe pump is not in stock, please contact customer service to confirm delivery time. 20ml syringe pump is just out of stock
Tips:
If you buy it for the first time ,we will give the USB Converter to you for free.
Urgent Contact
Julie Zhu 0086 13851455069 (whatsapp/wechat/line)
