Fanless Barebone Mini PC Core i7 5550U i5 4200U Windows 10 Rugged ITX Case Embedded Industrial Computer 2 LAN HDMI 6 COM Nettop |

---

Mini Industrial PC, Desktop Computer



Intel Core i3/i5/i7 Dual Core Processor, 3MB/4MB Cache

2*HDMI, 2*RJ45, 6*RS232 COM Port, 4*USB3.0, 4*USB2.0

Intel HD Graphics 4400, WiFi, Fanless, Metal Case, No Noise





Kindly Reminded:

  1, This computer only works with RAM at lower voltage 1.35V instead of normal 1.5V RAM. 2, Warranty is 3 years for Barebone PC, 1 Year for RAM and Storage. 3, The RAM and SSD/HDD are from famouse brand, the RAM is normally Sam'sung, Elp'ida, Hynix; The SSD is normally from Tosh'iba, Sam'sung, ADATA, Intel, Lite-on etc. they will be shipped out at random for stock. 4, The Operating System is just for testing, copied and activated but not licensed, please install the licensed one by yourself if you prefer. 5,  Please carefully read the SHOPPING GUIDELINES    on the bottom of this page. It is regarded as you have agreed all listed when you place an order. We won't take responsibility for any problems might caused except the quality problem of the product.   Thank you !   Windows 10 Desktop:

Wireless Mini Keyboard on sale for this mini computer:









Branded Spare Parts, Boyscott Fake Parts!!

Top Quality, 3 Year Warranty, Rest Assured!!





1,Quality Approval:



2, Features & Benefits:



CPU: Intel® Core™ i3-4010U Processor (3M Cache, 1.70 GHz) Intel®  Core™ i5-4200U Processor (3M Cache, 1.6GHz, Max Turbo Frequency 2.6 GHz) Intel®  Core™ i7-4500U Processor (4M Cache, 1.8GHz, Max Turbo Frequency 3.0 GHz) Graphics: Intel HD Graphcis 4400, support 4K HD      RAM: Support DDR3L 1600MHz, max expanded to 8GB DDR3L-1333/1600MHz SODIMM Notebook memory;      Storage: max expanded to 1*mSATA3 SSD and 1*2.5 inch laptop SSD/HDD SATA3, no limited on storage capacity;   Operating System: Default: Windows 10 Pro; Optional: Windows 7, Windows 8.1 & Linux Ubuntu   Language: Multi Language available; USB port: 4*USB 3.0, 4*USB 2.0; Serial Port: 6* RS232 COM;
Parallel Port: no, support external USB to Parallel Port adapter; Feature: Fanless Wireless: 300MB WiFi with 2 Antennas HD Out put: 2*HDMI port, maximal support Blu-ray 1080P resolution; LAN port: 2 Gigabit RJ45 port;                     3, Specifications:

Processor	Core i7-5500U/i7-5550U	Core i5-4200U/i5-4210U	Core i3-4010U/i3-4030U
Speed	2.0~3.0GHz, 4MB Cache	1.6~2.6GHz, 3MB Cache	1.7GHz, 3MB Cache
Processor number	2 core / 4 threads
Technique	22nm
Graphic Cards	Intel HD Graphics 4400/6000
Graphics Base Frequency	300MHz	350MHz	200MHz
Max Dynamic Frequency	1.1GHz	1GHz	1GHz
Resolution (MAX)	3200x2000@60Hz	3280x2000@60Hz	3200x2000@60Hz;
Operating System	Default: Windows 10; Optional: Windows 8.1/ Windows 7/ Linux Ubuntu
Storage	32GB/64GB/128GB/256GB SSD; 500GB/1TB HDD available
RAM	DDR3L 1333/1600; 1*DDR3 Slot; 2gb/4gb/8gb optional
Audio Cards	ALC662 sound chip, 6-channel
Network card	RTL8111DL PCI-E Gigabit Ethernet NIC
Ethernet	10/100/1000mbps BaseT LAN
WIFI	dual antenna, 802.11.b/g/n 300M
Display port	2* HDMI
USB port	4 * USB 3.0, 4 * USB2.0
Ethernet port	2* RJ45 10/100/1000Mbps Adaptive
Industrial Port	6* RS232 COM Port
Power input port	1 inner diameter 2.5mm, external diameter 5.5mm
Audio	Standard 3.5 Audio input and output
Power Input	DC100-240V AC/50-60Hz
Power Output	DC 12V/6A
Power Type	External power adapter mode
Consumption	15-25W
Noise	Fanless System
Temperature	0-95 Centigrade
Humidity	10%-90%
Size	235*150*50mm
Case Thickness	2.9MM
Package Box	Neutral Color Export Box / Plain Box
Content	Mini Computer, Power Adapter, Power Cable, screws, WiFi Antennas

  4, What can this mini computer do?   1. Office work: Office, skype, yahoo, outlook and all other office requirement support and runs perfect; 2. Design work: Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others 3. Game playing: support most online games and PC games, like Warcraft, Counter-Strike (CS), support 3D games but this is integrated graphic not independent cards, so don't play very high grade 3D games. 4. Entertainment: support blue ray 1080P video play, XBMC and others.

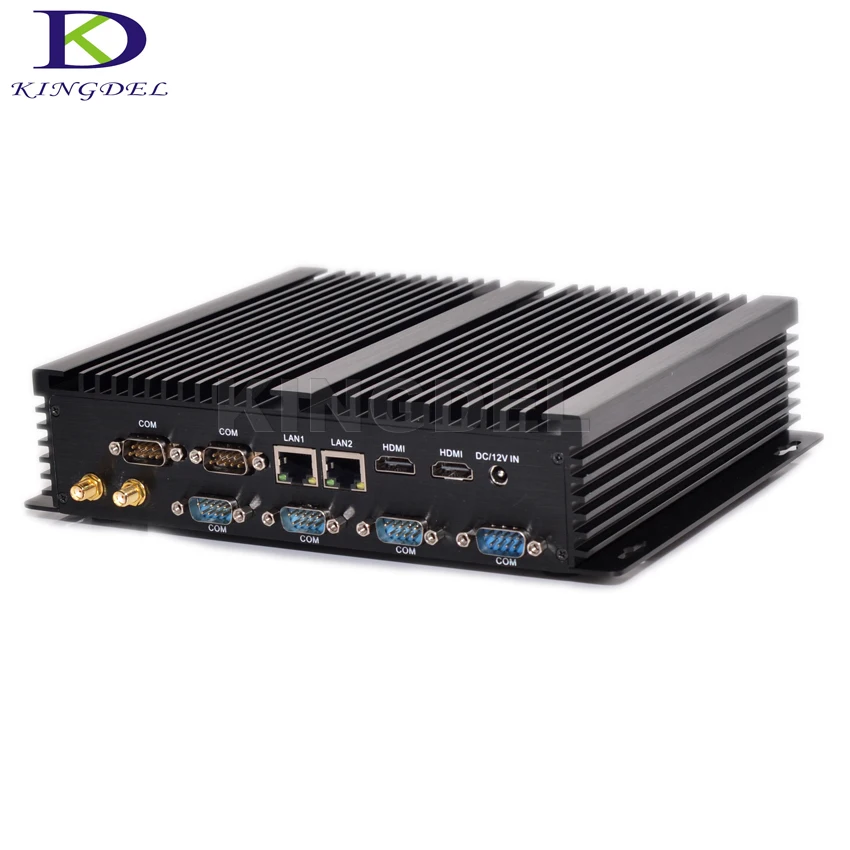

5, Product Photos:
