Описание товара
|
|
|

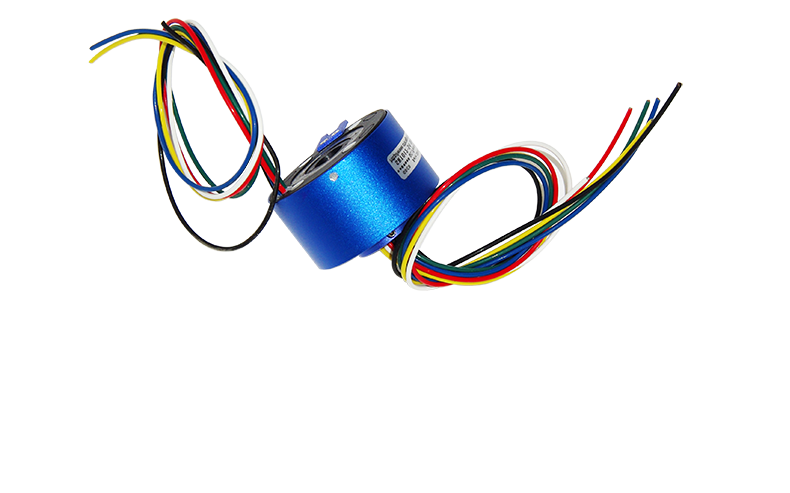

Conductive slip ring hole 12.7mm |

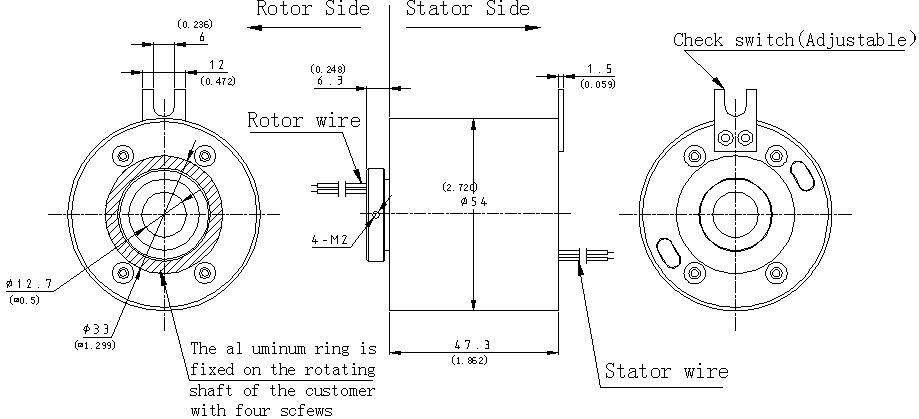

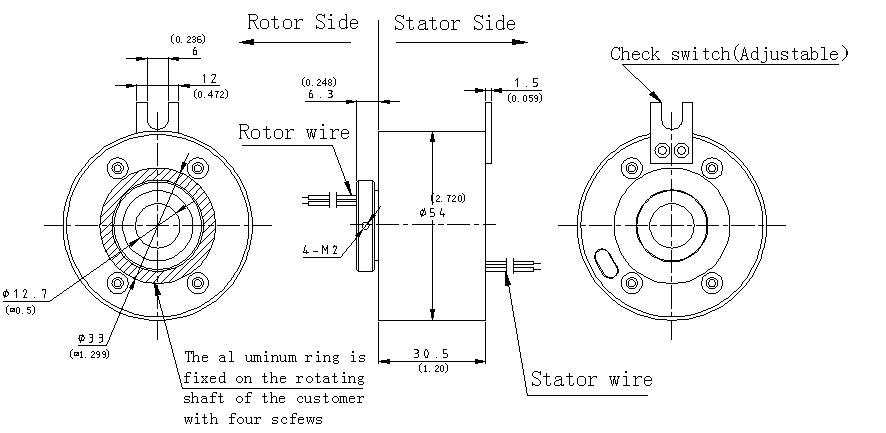

The SRT012-54-0X10 is a cap type slip ring, standard diameter 54mm, length 6-12, see drawings, Lu * 10A (signal)
The military uses high level standard surface treatment of domestic leading technology, the internal structure is more precise and compact
The Au - AU contacts, to ensure the stability and service life, mainly for civil and commercial fields
It has the advantages of compact structure, smooth operation, low torque, compatible data bus protocol
The use of the stator and the rotor wire color line corresponding, make simple circuit connection
The conductive ring with 90 degree angle V slot design, with smooth rotation, low torque and low electrical noise
*Product integral structure, advanced fiber brush technology, support power, signal mixed transmission
Some application areas
| * head | * electrical test equipment |
| This rotary table | * medical equipment |
| CCTV security monitoring equipment. | The robot. |
| Exhibition / display device. | Manufacturing and processing control equipment. |
| Very small wind turbines |

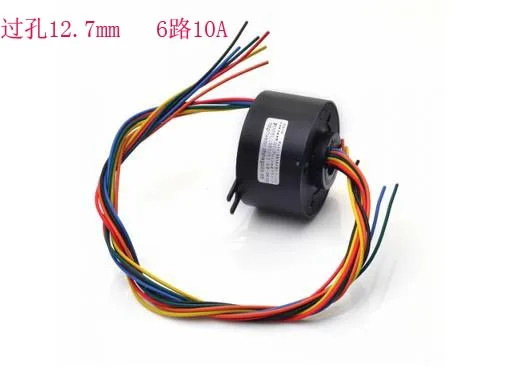

6 circuit

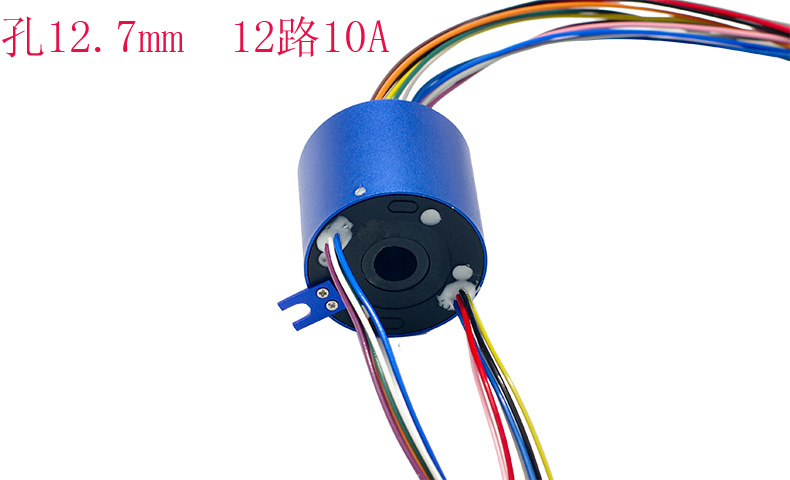

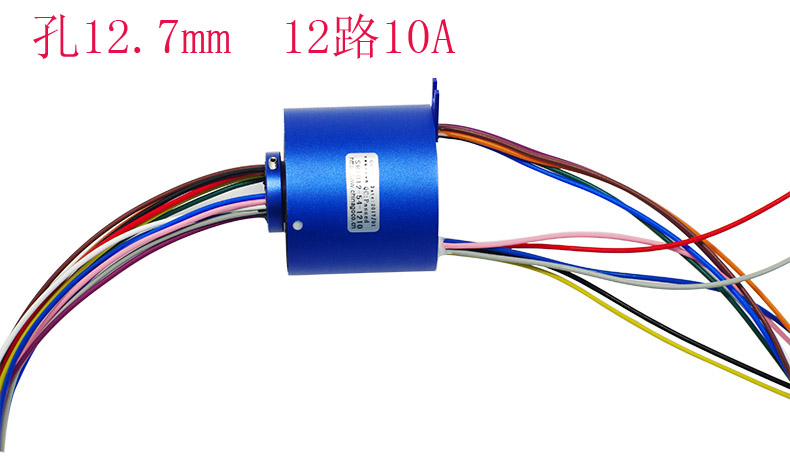

12 circuit
technical parameter
|
Path number |
6 circuit -12 Road |
speed |
300 revolutions per minute |
|
Rated current |
10A/ Road |
Protection grade |
IP54 |
|
Rated voltage |
220V |
Contact material |
Noble metal |
|
insulation resistance |
500M @500VDC |
Shell material |
Engineering material |
|
Electrical noise |
10m @ 6VDC, 50mA, 5Rpm |
torque |
0.01N.M |
|
working life |
Greater than 5 million rpm |
Bearing type |
6704ZZ bearing steel |
|
working temperature |
-40 DEG C to +80 DEG C |
Wire specification |
AWG#17 Teflon wire UL |
|
relative humidity |
60% |
Conductor length |
300mm |
|
Mechanical vibration |
MIL-SID-810E |
Environmental certification |
RoHS authentication |
|
Bore diameter |
12.7mm* 54mm |
CE authentication |
YES |
Attention:
1) product life and speed and temperature, humidity and other parameters are closely related
2) wire specifications: 1.5A/ - > 5A - > AWG30 signal, AWG22, 10A, Awg17, 15A, Awg14, color coded identification.
3 electrical noise and working speed, current, voltage precision
Wire color code table
| Ring code | #1 | #2 | #3 | #4 | #5 | #6 |
| Colour codes | black | red | yellow | green | blue | white |
