Only mainboard, no panel, no cables, no software

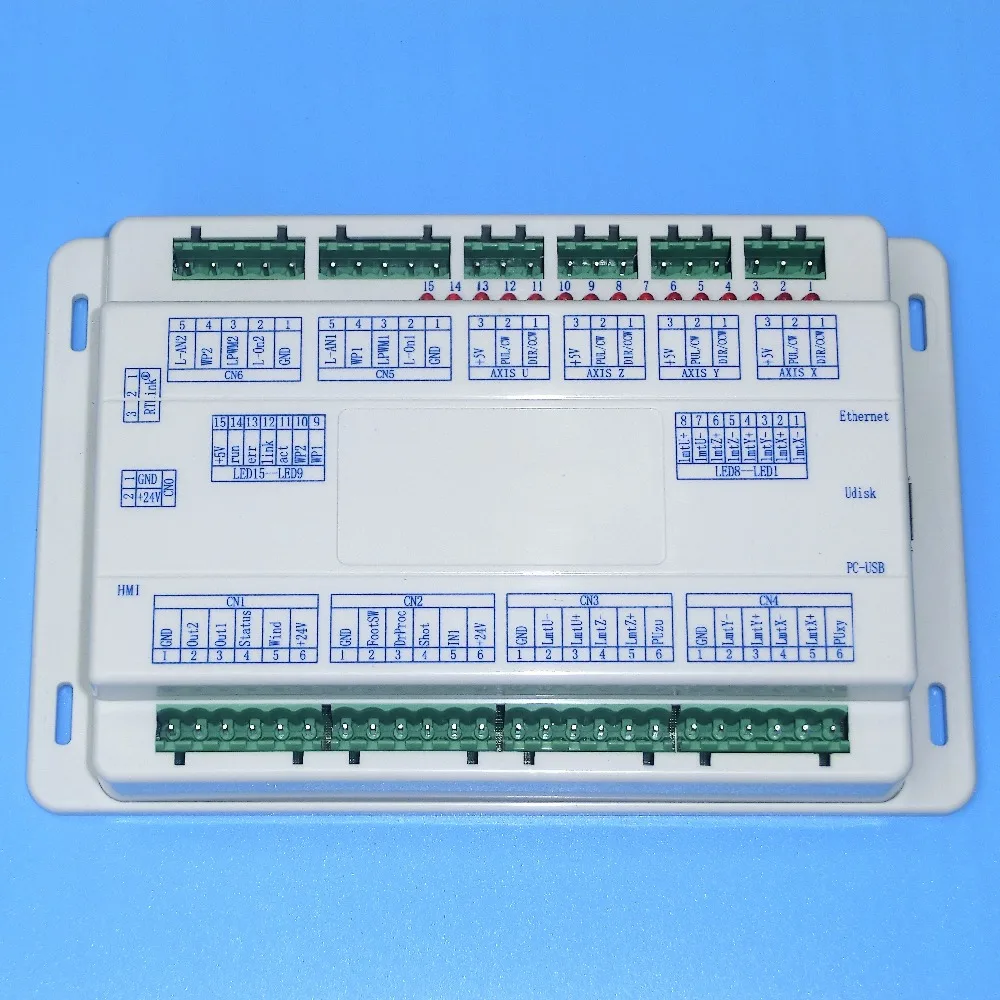

Ruida RDC6442G CO2 laser controller, laser cutting and engraving system, Control Card, DSP controller

ADVANTAGES

1.Ethernet (10/100M) and USB2.0 transmission, controller automatic query as communication mode;

2.With true color TFT screen, the board can display the true colors of machine image, and also show the actual coordinates of the laser head.

3.The status bar can indicate the frame size of the current file, and the status of network connection, etc.

4.Preview of the file drawing saved in the memory is available. The refresh speed is incomparable in China.

5.Display the machining track and coordinates dynamically.

6.Dynamically display the machining process bar of the whole image.

7.Be able to correct the machining parameters of each layer on the operational board (e.g. speed, power, etc), and be able to save the modified layer parameters automatically for future use (unavailable in the similar products from other Chinese manufacturers. ).

8.Support continuous engraving after power-down and work-hour preview (Accurate to the millisecond, and the preview values are exactly same as the real work timing, which is incomparable in China).

9.Support feed, up-and-down, rotary engraving, left-and-right moving, etc.

10.RDC644XG is the latest generation of laser engraving / cutting control system, with hardware stability, resistance to high pressure, and resistance to electrostatic interference.
11.This controller adopts enhanced motion control algorithm, the machining speed and efficiency of which are unmatched at rivals.

DESCRIPTIONS

RDC644XG Core Technology Development System is the latest generation of laser engraving / cutting control system , the control system has better hardware stability, better resistance to high pressure, static interference characteristics. 3.5-inch color screen based HMI operating system has a more friendly user interface and more powerful . The controller includes better and more superior motion control functions , large file storage , compatibility stronger dual independently adjustable laser power control interface , compatibility stronger U disk driver , multiple generic / private IO control , communication with PC supports Ethernet communications and automatic optional USB communication and so on.

SPECIFICATIONS

6: The sixth generation controller

4: Controller version number

4: 4 axis card

X: Display Type (1: TTF character screen ; 2:3.5 inch color screen ; 3:5.7 inch color screen ; 4:7 -inch touch screen. )

G: Standard functions

Comparison of Controller Performance

APPLICATIONS

Laser cutting (dual-head automatic composing and offcut function, support feed by line)

Laser engraving

Laser welding
