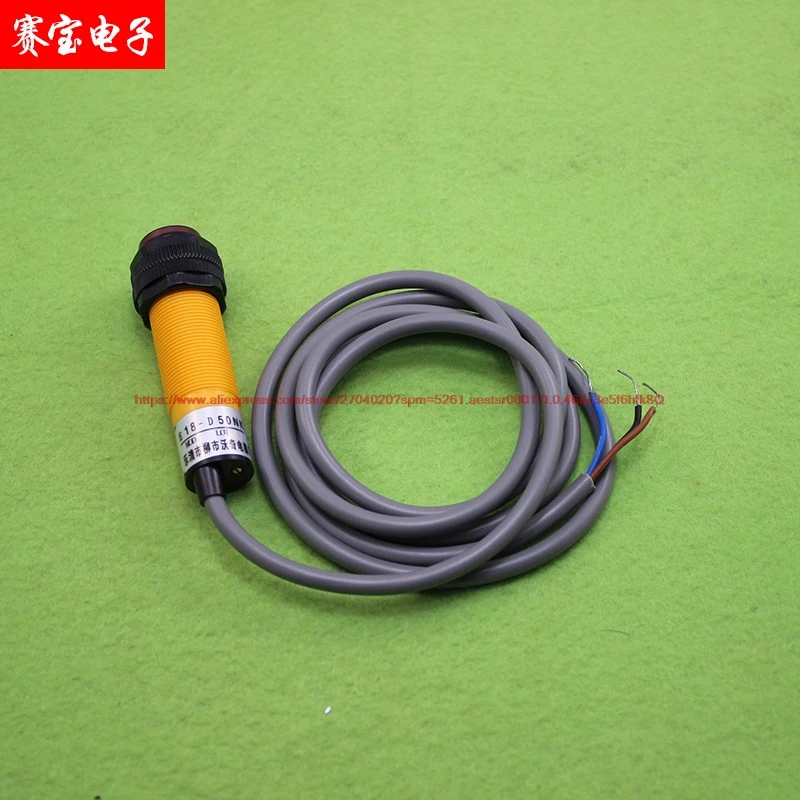

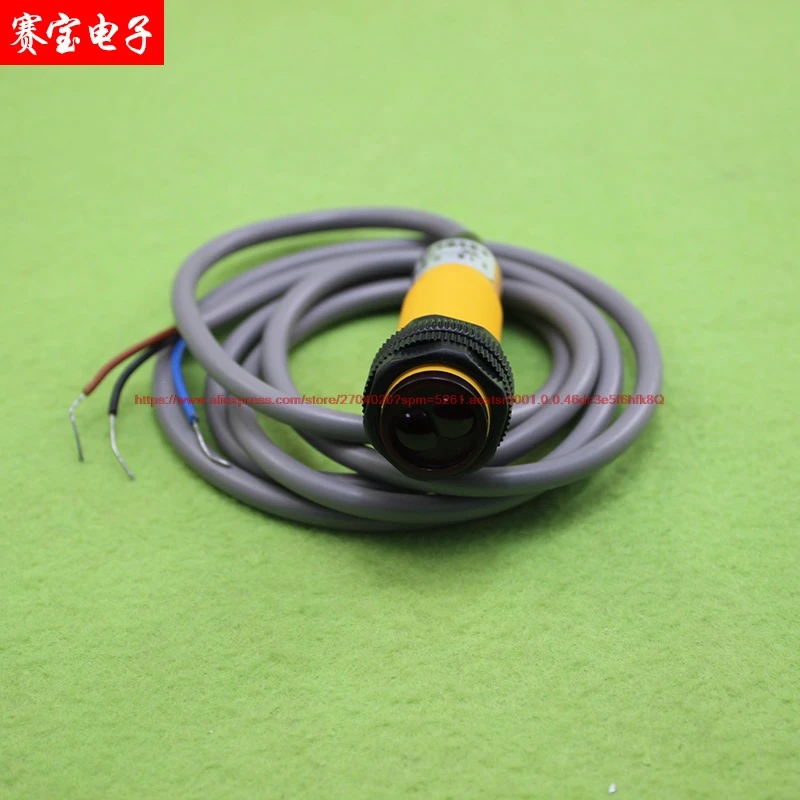

Model: E18-D50NK diameter 18MM length 1.2M This is a kind of photoelectric sensor, which combines transmitting and receiving. Detection range can be adjusted according to the requirements 1. The sensor has long detection distance, visible light interference is small, cheap, easy assembly and convenient use, can be widely used in robot obstacle avoidance, line piece and other occasions. Electrical characteristics: U:5VDC I:100mA Sn:3-50CM Induction type: diffuse reflection; Induction distance: 0-50cm adjustable; Operating voltage: 6-36V can be; Brown positive, blue negative data Working environment: temperature +70 to -40 degrees celsius; Protection level: IP61-IP67; The corresponding time: the functional reset time is below 2.5MS; Detection of objects: transparent, opaque body; Differential distance: the detection distance is below 20%; Insulation resistance: greater than or equal to 20M ohm; Matters needing attention: 1 switch on the power supply should first check the wiring is correct, check whether the voltage parameters for the rated value; 2 switch load can not be short circuit, the power of the load should not exceed the maximum output current;
