Описание товара

3D CNC Router 3040 Wood Carving Machine 1500W 4 Axis USB Metal Milling | Инструменты3D CNC Router 3040 Wood Carving Machine 1500W 4 Axis USB Metal Milling | Инструменты3D CNC Router 3040 Wood Carving Machine 1500W 4 Axis USB Metal Milling | Инструменты3D CNC Router 3040 Wood Carving Machine 1500W 4 Axis USB Metal Milling | Инструменты3D CNC Router 3040 Wood Carving Machine 1500W 4 Axis USB Metal Milling | Инструменты3D CNC Router 3040 Wood Carving Machine 1500W 4 Axis USB Metal Milling | Инструменты3D CNC Router 3040 Wood Carving Machine 1500W 4 Axis USB Metal Milling | Инструменты

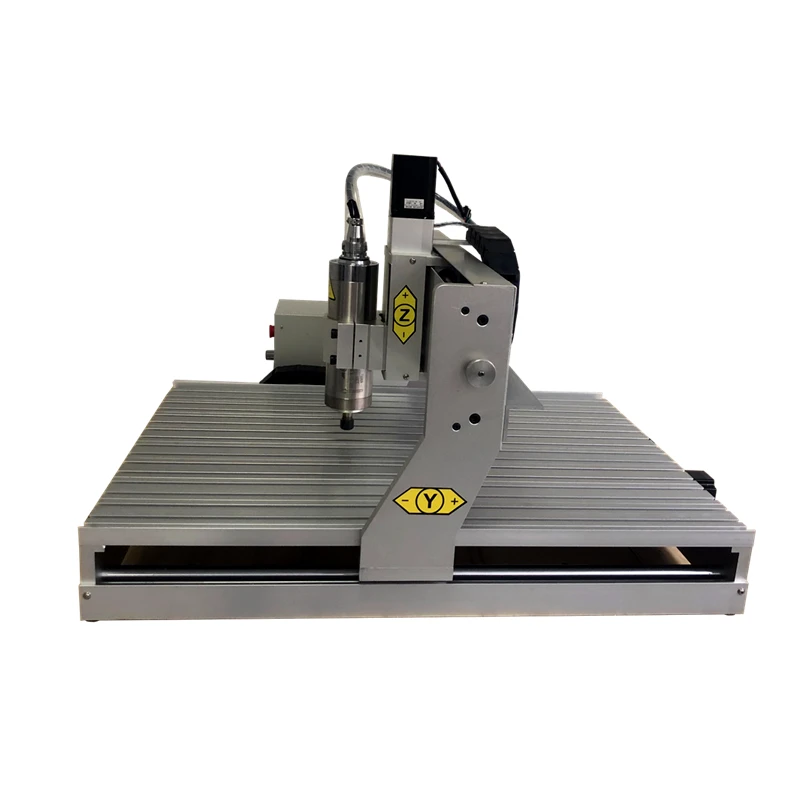

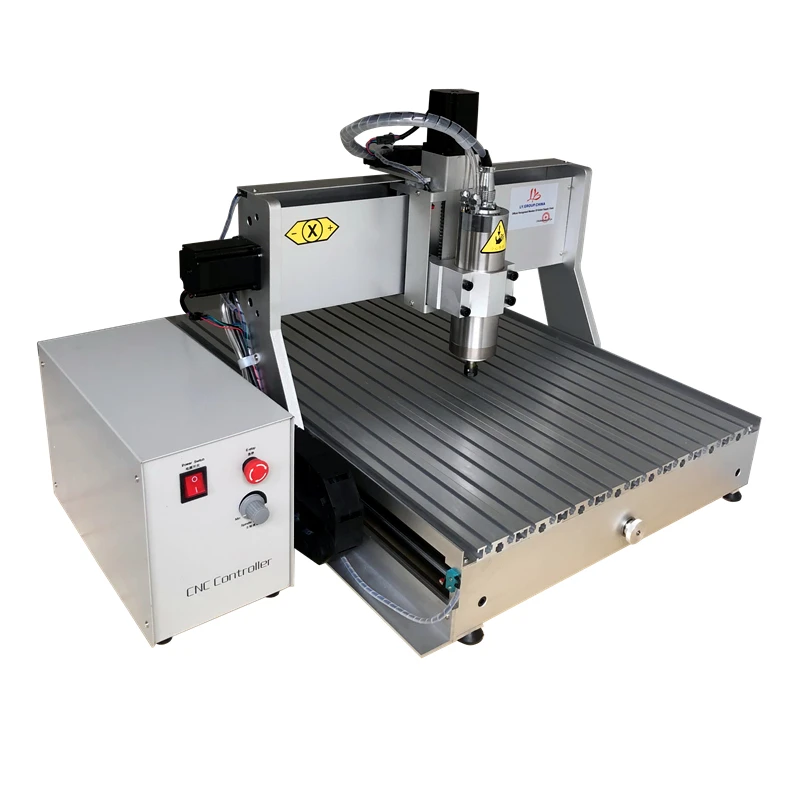

3D CNC Router 3040 Wood Carving Machine 1500W 4 Axis USB CNC Milling Machine​

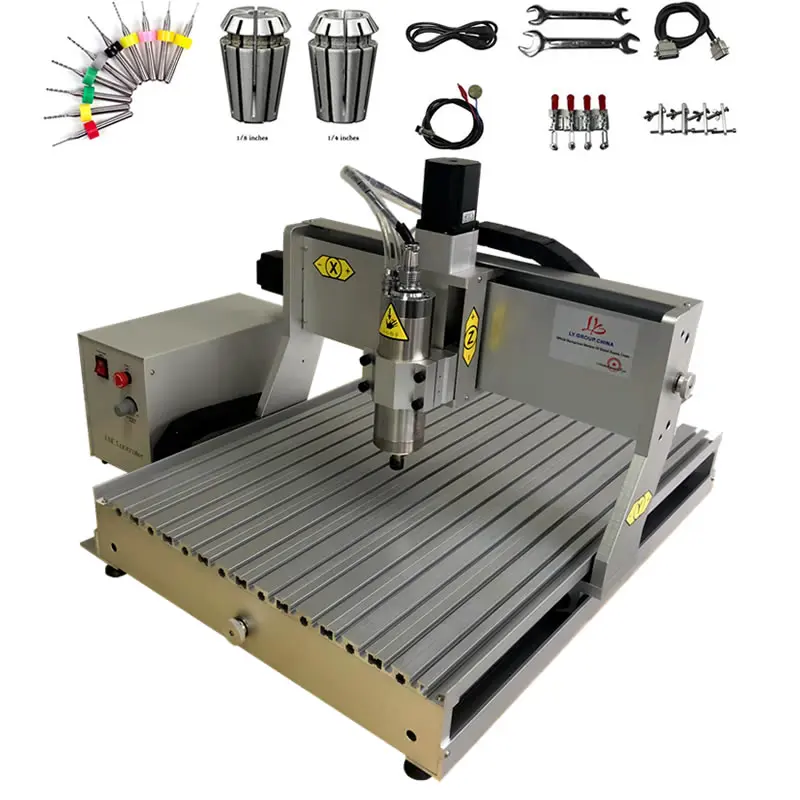

Free Gift

10 pcs 3.175mm drill bits

2 pcs ER11 Collect chuck (send randonly)

4 pcs cnc clamp

Introduction

The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

CNC 3040 1.5KW 4 axis

More Precise Stepping Motor.

The engraving process is visible as controlled by computer.

Simple operation and installation.

Technical Parameters

LYCNC3040Z-VFD1500W 4 axis engraving machine parameters:

Machine Dimensions

600X510X480mm

Rack material

6061 and 6063 Hard aluminum alloy
(The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)

Engraving area

400X300mm

Z-Axis Stroke

80mm, Engraving depth depends on the length of the tool edge

Acceptable material thickness

≤80mm

Rail type

Chromeplate shaft + Linear Bearings, Surface hardening 61HRC

Type of screw

Ball screw 1605, Pitch 4mm

Spindle motor

 1.5KW VFD water cooling spindle , 0-24000r/min

Collet type

ER11,1/8"(3.175mm) Collet

Stepper motor and drive

two-phase hybrid stepping motor 57BYGH56-4011YD, 8 segments drive.

Maximum operating speed

4000mm/min (Engraving speed :300-3000mm/min)

Repeat positioning Accuracy

0.03mm

Communication interface

Parallel port / USB port for Optional



Software Compatability

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)

Command code

G code/.nc/.ncc/.tab/.txt

Machine weight

58kg

Rotation Axis (4th Axis)  Description:   Chuck Size: 80mm self-centering chuck Center height: H = 49mm Clamping diameter: 80mm or less Deceleration mode: synchronous wheel / belt Deceleration ratio: 3:1 Stepper motor: 57 type / 2A  two phase 4 line Positioning accuracy: 0.075 °

 The machine already assembled & tested well,

can directly use after take them out from package

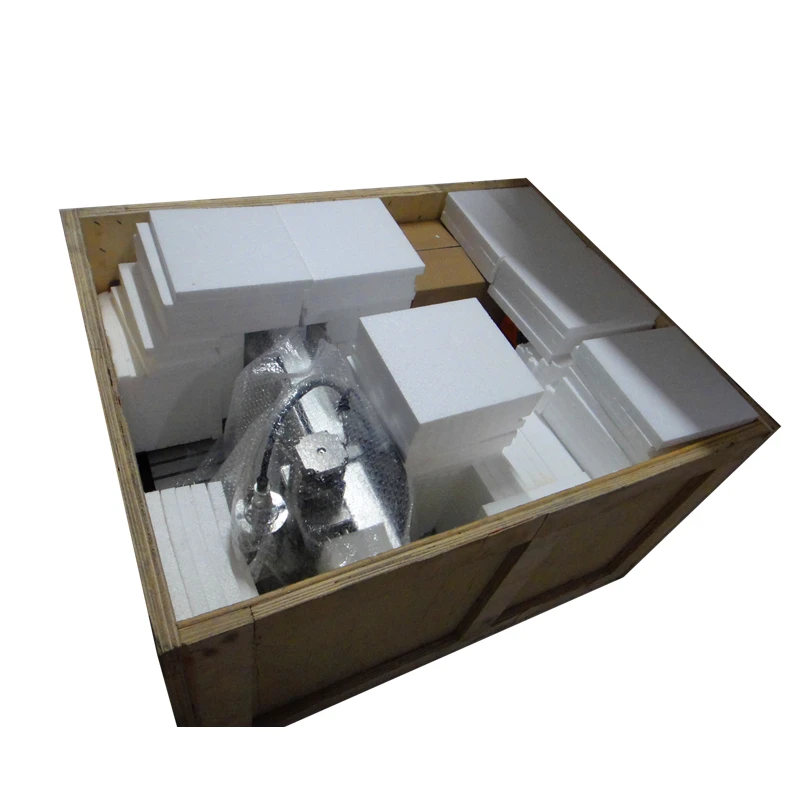

Packing list

1× Engraving machine 1× Control box 1× Power cable  1× control line  1× Parallel port cable 25pin ( USB port cable if buyer buy USB version machine) 1x Rotation axis 1× Tool package (include tools 5 pcs, wrench 2pcs, clamp 4pcs) 1× tool auto-checking instrument 1x water pump 1× CD of manual and software MACH3 (if not get, may be lost in customs, please contact us)

Item pictures

3040Z CNC 新图 (1)3040Z CNC 新图 (2)3040Z CNC 新图 (4)cnc 3040 engraving machine (5) cnc 3040 engraving machine (6) cnc 3040 engraving machine (7) cnc 3040 engraving machine (8) cnc 3040 engraving machine (9) cnc 3040 engraving machine (10)
