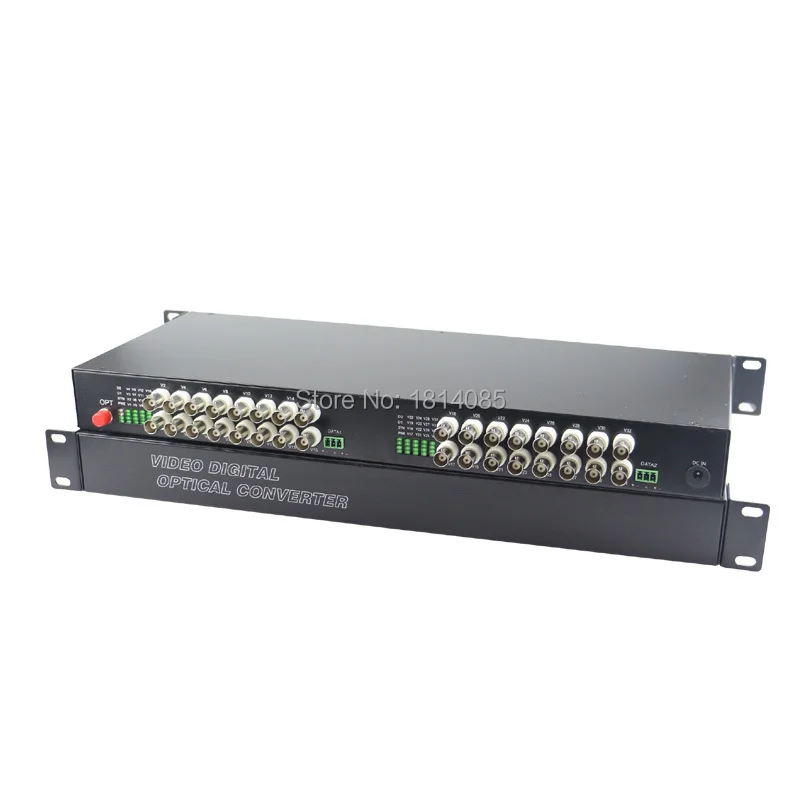

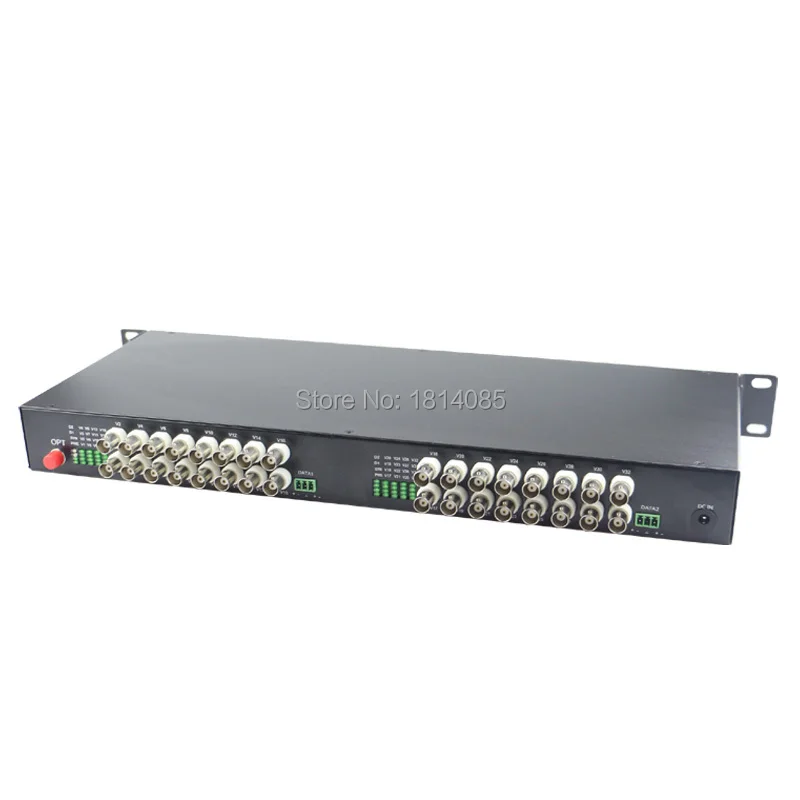

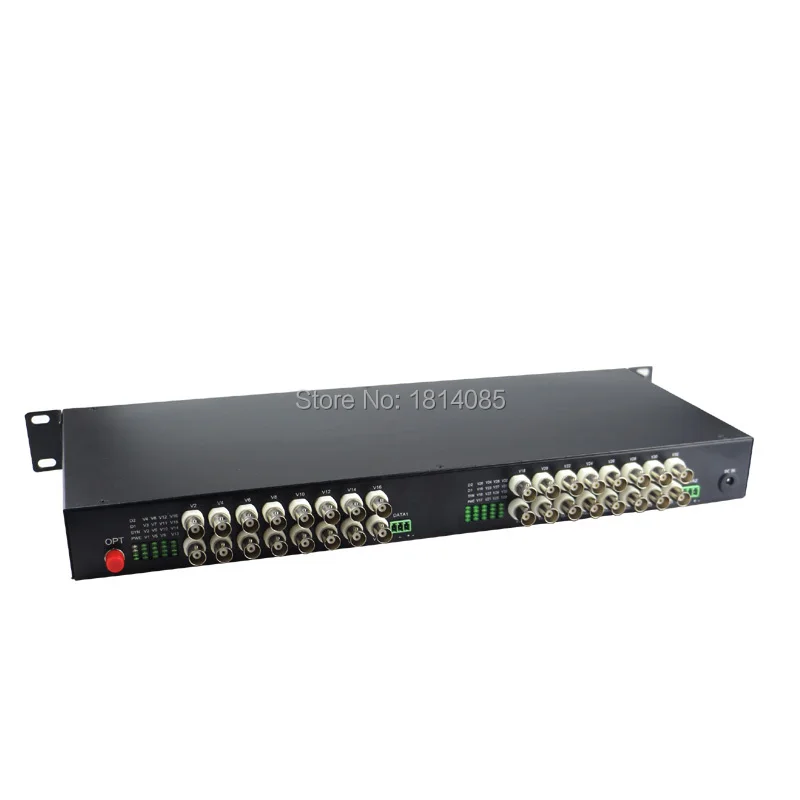

Product Overview

    This product is a non-compressed video digital optical transmitter and receiver, compatible with multiple formats, such as PAL, SECAM  and NTSC, etc., and a mono-mode optical transceiver that can be used to transmit videos and data in an optical fiber. On the front panel

there is power light or status indicator lamp, and it is a high-reliability and high-cost-performance long-haul hybrid transmission system for

videos, data and audios. This series product is widely used for broadcast and television transmission, video surveillance, railway/expressway

surveillance, security, video conference, automation and intelligence community.

Video Indicators

*Video channels: 32

*Video Input/output Impedance: 75Ω (non-equilibrium)

*Video Bandwidth 8MHz

*Compatible with such Video Formats as PAL, NTSC and SECAM;

*Video Voltage 1VP-P;

*Video SNR≥70dB

*Differential Gain ≤0.7%

*Differential Phase ≤0.7°

*Adoption of 8-digit Linear PCM Coding

*15MHZ Fast Sampling

*Video Interface BNC

Optical Indicators

*Optical Interface: FC

*Wavelength: Mono-mode 1310 (9/125μm)+1550

*Transmission Range: Ordinary Type of Mono-mode Fiber: 0-20KM

General Indicators

*Mean Time Between Failures (MTBF) is more than 100 Thousand Hours

*Operating Humidity: 0-95% Non-condensing

*Weight (Standalone Emitter and Receiver): 1 KG

*Product Size: 9.5(cm)*9.2(cm)*2.6(cm)

*Package Size: 30(cm)*20(cm)*8(cm)

*Power Supply (DC): 12V1A

About Payment

1. We can accept payment via Escrow, Western Union and T/T. The best way is direct online payment,you can choose yourself. If you want to use other payment terms, please let us know before when you order.

2. Full payment must be made within 7 days after placing your order, or the order will be invalid or canceled by the system.

3. Make sure that you have completed all the detailed information like contact person, address, post code and telephone number when filling in your buyer's information.

About Shipment

1. We will send the goods within 5 business days after the full payment has been confirmed.

2. We can provide the international shipping services as follows:

China Post Air Mail, HK Post Air Mail, EMS, TNT, DHL, UPS, Fedex. The default way is by China post air mail and HK post air mail.

3. The buyer is responsible for insurrance, problems and damage which caused by shipping service such as accidents, delays or other issues. Besides, we are not responsible for any custom duty or import tax, these charges are not included in the item price and shipping cost.

 The Following is estimated time for different shipping methods

WARRANTY&GUARANTEE

1. All the goods are inspected and tested before shipment. if you are not satisfied with the goods, you can exchange the items within 7 days and you must contact us within 24 hours after the receipt of the items.

2. The shipping and handling charge is not refundable and customer should be responsible for all the charges of returning and reshipping.

3. All return items must be in its original conditions, including box and accessories. Man-made defects are not guaranteed, such as broken, scratched and so on.

4. For any items, please use EMS or your local post when send back
