DIYSECUR Door Bell Button RFID 125KHz Reader Access Control System Security Kit + Electric Strike Lock Power Supply K2000 | Безопасность

DIYSECUR Door Bell Button RFID 125KHz Reader Access Control System Security Kit + Electric Strike Lock Power Supply K2000 | Безопасность

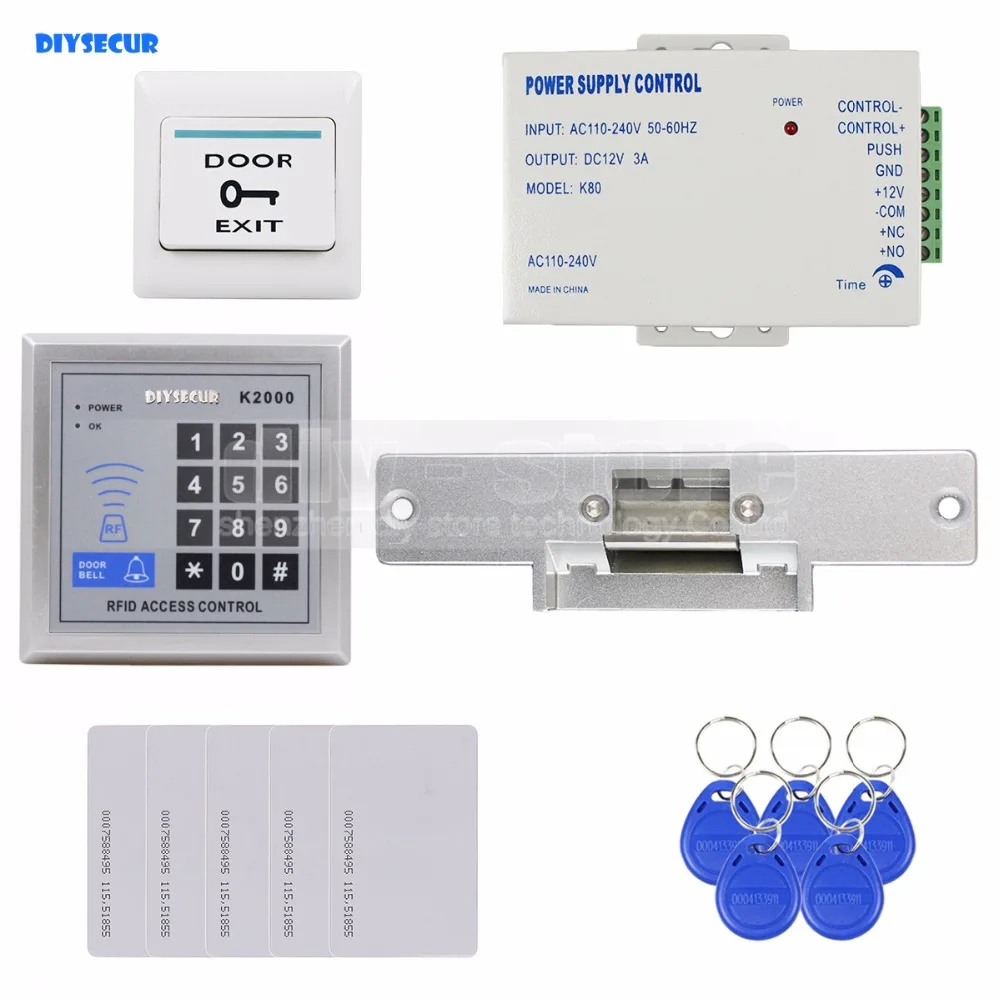

DIY Complete Kit RFID Access Control System for Home/Office Use

Access Controller + Power Supply + Strike Lock + 5 ID Cards +5 Keyfob + Exit Button

Full Kit Set ! Save More, Enjoy More !!

Why use access control ?

Access control enables you to control who has access to your building. Locks and keys also allow you to secure your building, but when keys are lost or stolen, the inconvenience and expense of changing locks and re-issuing keys can be considerable. Keys may also be copied, creating even more security risks.

Access Controller :

This is a NEW Access Control RFID ID Reader Keypad, which can update the safety of your home and office. It is perfect for Homes, Office, Factory and many other fields!

• Contactless RFID transponder technology
• Full programming from the keypad
• Support Card, PIN, Card + PIN
• Connection for external release button(Exit button)
• Build in RFID reader
• User capacity: 500users (each card only can add one password)
• Does not need to connect on the computer, it can work alone.

Specification:

• Operating Voltage:12VDC+10%;Current 1.2
• Lock Relay:12VDC/2A
• 4-digits public PIN Capacity:1
• Proximity Reader Frequency:125KHz
• Compatible Cards:EM or EM compatible cards
• Card Reading Distance: 5-15CM
• Dimension: 88mm×88mm×18mm

Power Supply:

This AC110V--240V Power supply controller is a transformer which provides stable output voltage for access controller, lock, and exit button.

• Can reduce the load of access controller, save wiring to reduce the hidden trouble
• Set NC / NO outputs, can control various types of electric locks
• Based delay control circuit, lock time can be in 0-15 seconds
• The circuit board has remote control port.

Specification:

• Input Voltage: AC 1 10~220V 50~60Hz
• Output Voltage: DC 12V 3A
• Outer Dimensions: 103 x 68 x 33mm

Strike Lock:

This electric strike is perfect choice to entry a building with card, biometric, code, or any other remote controlled open/close.

• NC Mode -(Locked while supplied with power) Unlock Safe Mode.
• Made of Stainless Steel.
• Performance Testing: 1000000 times aging test.
• Opening Mode: 90 degree swinging door.
• Authority Certification: CE & MA Approved.

Specifications:

• Voltage: 12VDC
• Current: 200mA - 450mA.
• Safety function: Built-out voltage spike suppressor.
• Opening Mode: 90 degree swinging door.
• Dimension (Face Plate): 149 (L) x 27 (W) x 34 (H) mm

125KHz RFID Cards / Keyfobs :

These are 5pcs 125KHz RFID Proximity Keyfobs and 5pcs ID cards, they can work with the product which has 125Khz RFID card reader.

• Water resistant
• Detecting distance: 3-10cm
• Operation frequency: 125Khz
• Each comes with Key ring included
• Compatible with all RFID card reader to gain access
• Each token pre-programmed with unique ID which is printed on it

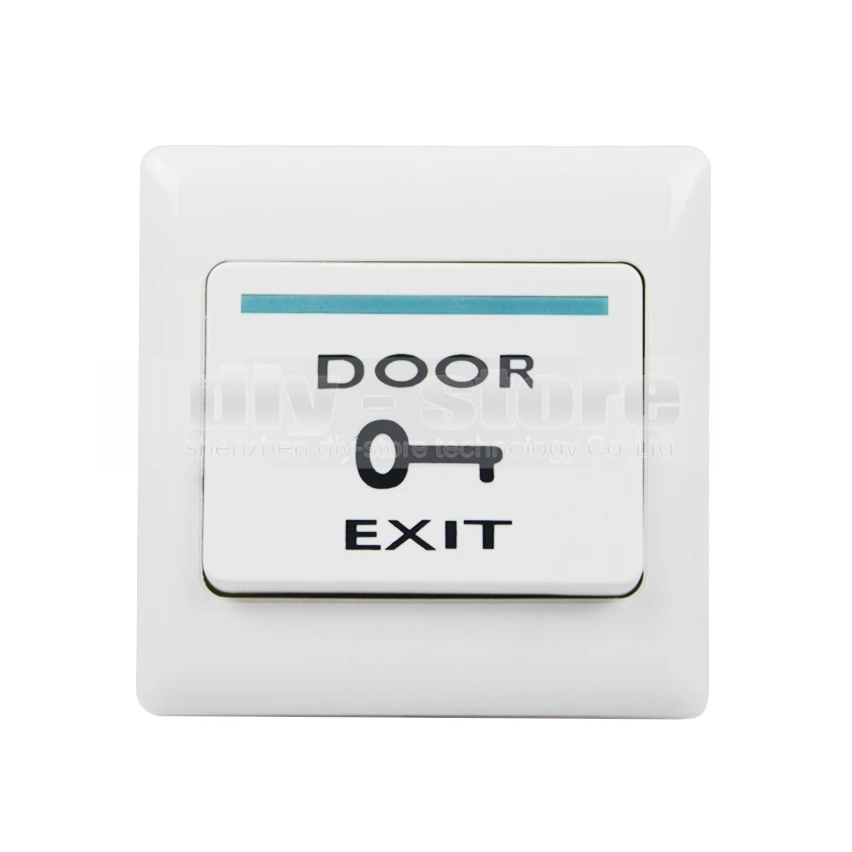

Exit Button :

This exit button widely used in the door access control system.When you want to go out, you just need to press this Exit Button, then you can go out:

• Maximun Power Rating: 36 VDC 3A-5A output Support both NC Mode (Fail Safe Mode) & NO Mode (Fail Secure Mode)
• Performance Testing: 1000000 times aging test
• Suitable For: Wooden Door, Metal Door, Glass Door, Fireproof Door, etc

Optional: if you need this doorbell please buy from this link!

http:/store/product/High-Quality-DC12V-Electronic-Door-Bell-For-Door-Access-Control-System-Kit-White-Free-Shipping/1953629_32505991937.html

Doorbell:

This is a dedicated wired doorbell for access control system, sound clear loud, soft, simple and convenient to installation, do not need to install batteries, directly connect the 12V power supply, When guests visit as long as press the door doorbell button and it will ring.
