Top Rated VD300 FGTech V54 FG Tech Galletto 4 Master FGTECH BDM-Tri Core-OBD Function Free DHL shipping | Автомобили и мотоциклы

Top Rated VD300 FGTech V54 FG Tech Galletto 4 Master FGTECH BDM-Tri Core-OBD Function Free DHL shipping | Автомобили и мотоциклы

FG Tech Galletto 2-Master V54 BDM-Tri-Core-OBD is a famous chip tuning tool for all cars, trucks, motorcycles, Marine, BDM MPCxx, BDM Boot Mode Tri-core, checksum. This item cannot

only work as FGTech Galletto 2-Master, but can also work for BDM-Tri-Core-OBD.

V54 FGTech Software Language:Italiano, English, Deutsch, Francais, Espanol, Portugues, Czech, Turkish

FG Tech Galletto 2-Master v54 Features:

1.Support windows xp , vista, win7, more friendly than Fgtech v53 , much easier to operate

2.Unlock version, can use directly, no need to activate by us

3. FGTECG V54 PCB board

FG Tech Galletto 2-Master v54 Description:

FGTech Galletto 2-Master this new system developed with high-speed USB2 technology is the fastest and most secure product on the market, it is easy to install and use by anyone. Our system comes furnished

complete with all Car, Truck, Motorbyke, Marine, BDM MPCxx , BDM Boot Mode Tri-core, checksum.

Boot Mode System Tri-Core:

Infine-on Tri-core Sak TC1766

Infine-on Tri-core Sak TC1767

Infine-on Tri-core Sak TC1792

Infine-on Tri-core Sak TC1796

Infine-on Tri-core Sak TC1797

NEW JTAG - BDM - for MOTOROLA - FREESCALE - INF-INE-ON

Freescale MPC 5553/5554/5565/5566 NEXSUS PORT New IAW MJD 8F2 - Mair 8G-MF

New Delphy DCM3.5xx DCM3.7xx TRW

for Motoro-la Freescale MPC 555/556/561/562/563/564/565

for Motoro-la MC 68332 - MC YQQCU - MC 68377 Trionic 5/7/8 G-M-0-PEL-SA-AB

for Motoro-la MC 68376 Campi 01 Lam-borg-hini - L0tus

for Motoro-la MC 68336 MEMS D5 R0VER

for Motoro-la ZC 439615 - ZC 439507 IAW F-I-AT - VAG

New Line OBD protocols VPM G-M - Hum-mer-Cor-vette-Mun-stang-Bla-zer-Ca-di-lac

New Line OBD protocols Tx-Rx - Su-baru - Mitsu-bisc-hi - Hitac-hi - Dens0 ecu

All EDC17 MED17 is good always modify with Boot Mode tri-core.

Automatic Checksum:

All old protocols included for B0sch MExx / EDCxx / Mar-elli / Siem-ens / Delpy / Luc-as / Dens0

Boot Mode C167x / ST10, Boot Mode Infine-on Tri-core With password for B0sch , Si-emens

for Motoro-la MC68332 - MCYQQCU - MC68377 , MC68376 , MC68336, ZC439615 ,ZC439507

for Motoro-la Freescale MPC 555/556/561/562/563/564/565

Freescale MPC 5553/5554/5565/5566

BDM Tri-core.

5-30V Car / Industrial Vehicles, L line / K line KWP, CAN

Can Bus V2.0 50Kb > 1000Kb

J1850 VPW PWM G-M -F0-RD

Rx Tx RS232,

RS 485,

Automatic setup Pull up K-L line 250, 500, 1000 ohm,

Automatic setup termination Can bus 0, 60,120 ohm,

Master Version:

Recovery Mode Completa

Funzione scan tool per eliminare i DTC

Function scan tool for erase the DTC

Controllo tensione di batteria auto in tempo reale

Check tension of battery car in real time

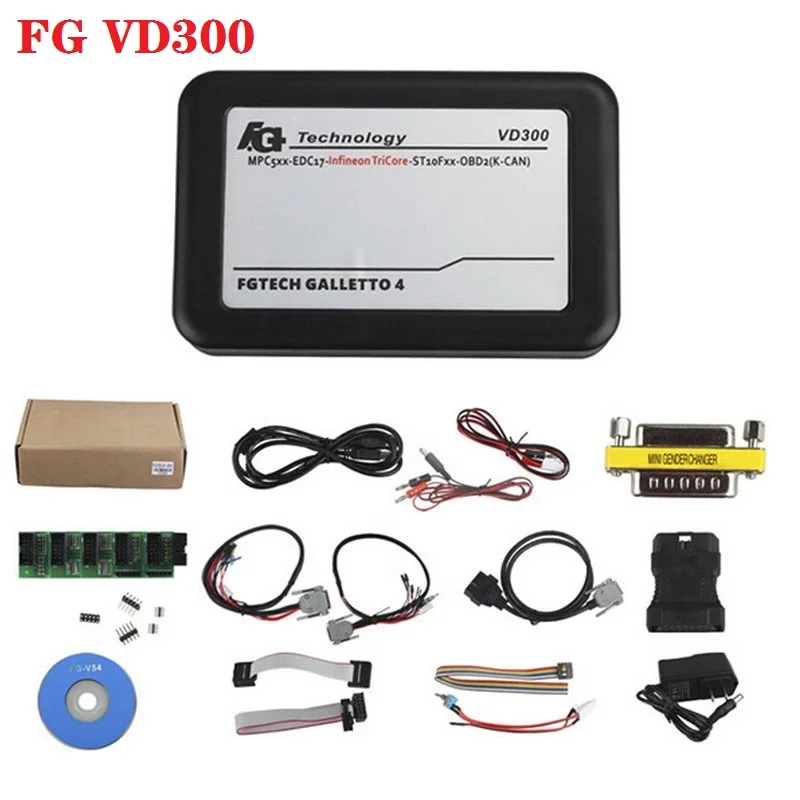

PACKAGE LIST:

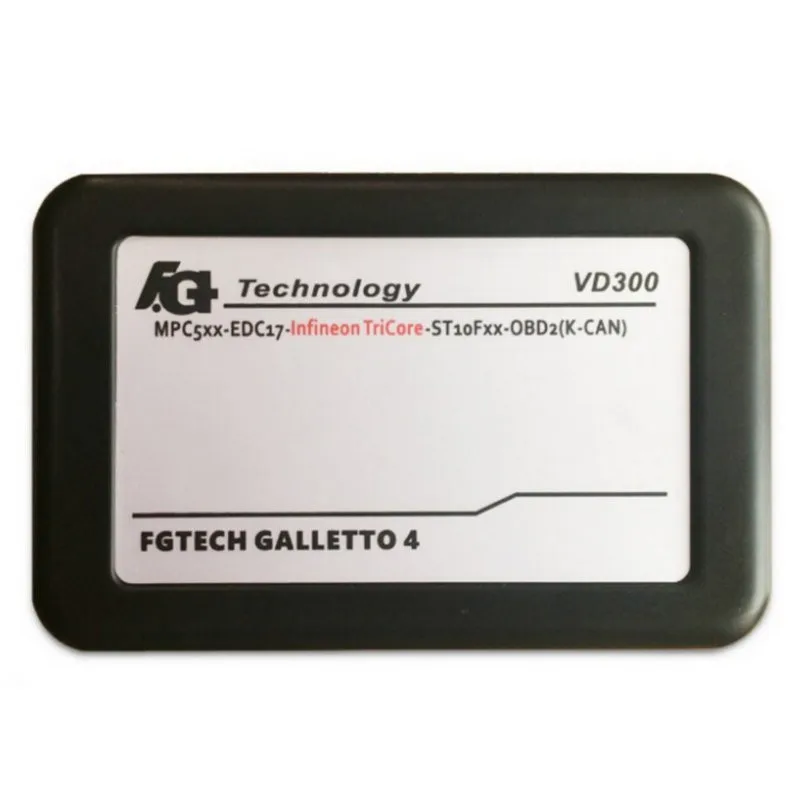

1pc x New version main interface

1pc x ECU cable for Tri-Core boot

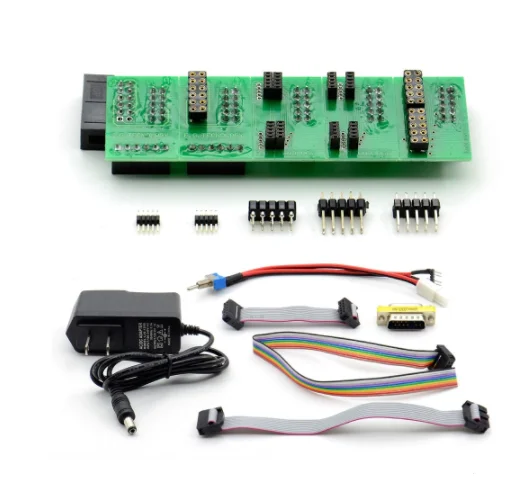

1pc x Adapter for BDM to CMD with bdm cables

3pcs x BDM adapters

6pcs x BDM connectors

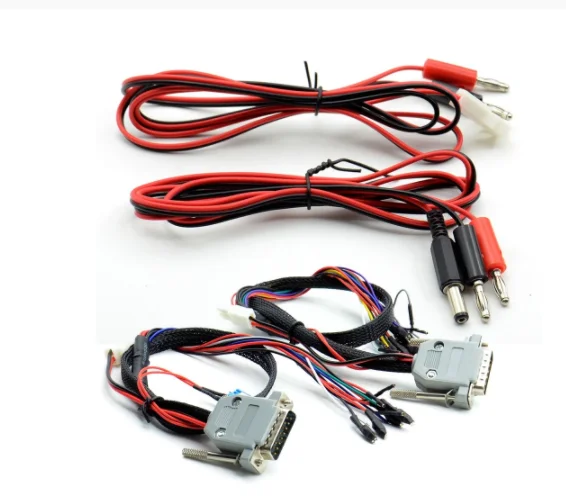

2pcs x Power cable

1pc x USB cable (1.5meter)

1pc x CD (2012 version SW -MASTER, documents pdf, pictures, etc.)
