Описание товара

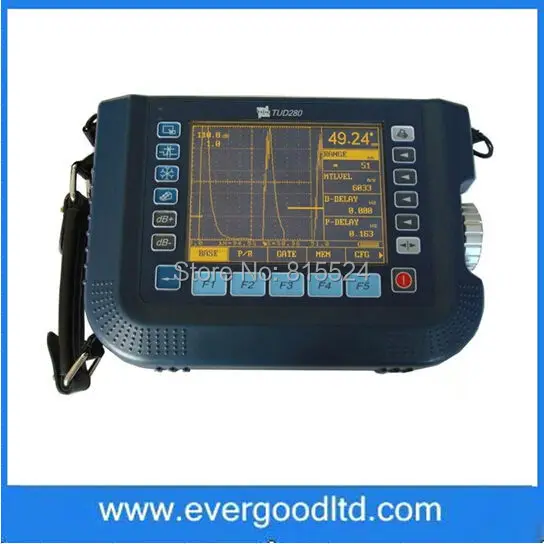

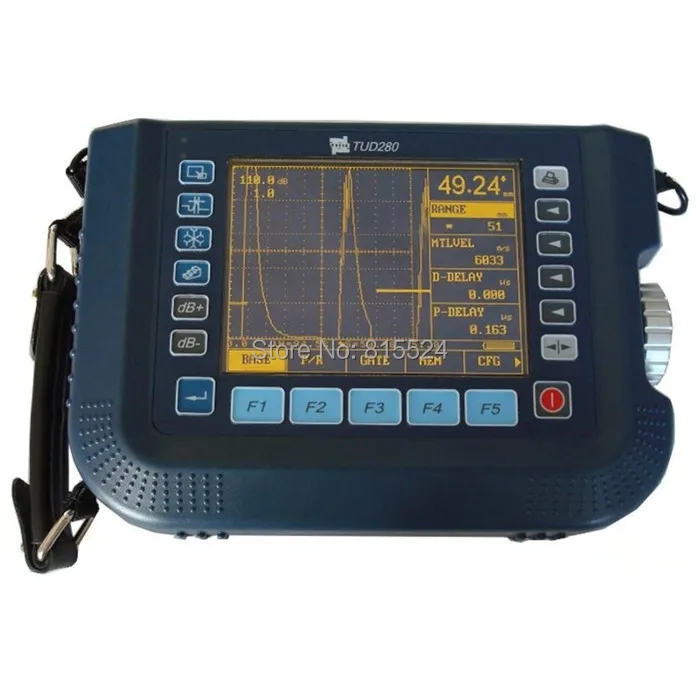

Scanning Range 2.5 mm ~9000 mm Sound Speed 1000 m/s~9999m/s TUD-280 Ultrasonic Flaw Detector
Features: EL matrix dot LCD display With independent dual gate setting and gate alarming Two measuring modes: continue/single Equipped with gate setting and alarming function Auto-calibration of probe and auto-gain Two measuring calibration modes Two measurement displaying mode: A scan and B scan Freeze/defreeze waveform and detection parameters Communicating with PC for transferring the measuring data and system parameters 10 detecting channels are available with separated detecting parameters and DAC curve in every channel Provided with linear reject function, the highest range is 80% of the screen height Technical Specification| Items | Description |
| Scanning Range | 2.5 mm ~9000 mm |
| Scanning Resolution | 0.1mm (2.5mm ~100mm) 1mm (100 mm ~5000mm) |
| Gain Range | 0dB ~110 dB |
| D-Delay | -20µs~+3400µs |
| P-Delay | 0µs~99.99µs,resolution 0.0125µs |
| Sound speed | 1000 m/s~9999m/s |
| Bandwidth | 0MHz~15MHz continuous adjustable |
| Vertical linearity error | ≤3% |
| Horizontal linearity error | ≤0.2% |
| Dynamic range | ≥32dB |
| Rectification | Positive half wave, negative wave, full wave, and RF |
| Sensitivity leavings | ≥60dB |
| Test mode | Pulse-echo, dual and through transmission |
| Pulser | Spike excitation pulser |
| Damping | 50ohms, 150ohms and 400ohms |
| Reject | Linear, 0-80% of full screen, variable in steps of 1% |
| Unit | Metric/inch |
| Interface | USB |
| Printer | EPSON ink-jet printers |
| AC requirements | 85-264V AC/1.0A,47-63Hz |
| Temperature | -10°C~40°C |
| Humidity | 20%~90%RH |
| Power supply | Li battery 4×3.6V 4000mAh |
| Charging time | 4~5hours |
| Weight | 1.5kg |
| Overall dimension | 243mm×173 mm×85 mm |
