DIY CNC Kit  5 Axis Breakout Board
+ 3 Pieces TB6600HG Stepper Driver Board Controller

4037-main4



Descriptions

The latest upgraded salable 5 axis breakout board is specially designed for the CNC single axis stepper driver controller, such as TB6600HG, M542, M542H, MA560, MA860H, 2M542, 2M982 etc single axis stepper driver controller. With this 5 axis breakout board, any 1-5 single axis stepper driver controllers can be directly controlled by the PC via the MACH3, EMC2, KCAM4, etc.

The TB1H is a high performance microstepping driver based on the latest original TOSHIBA high-efficiency TB6600HG IC. The TB6600HG adopts single-chip PWM bipolar sinusoidal chopper to ensure the low vibration and high efficiency. Moreover, the brand new design with BiCD0.13 (45V) process technology on the chipset also ensures maximum 5.0A output current and 45V output withstand voltage. Consequently, as long as the current range of the stepper motor is within 0.2-5 amps, all the 2 Phase or 4 Phase of Nema17, Nema23, Nema24 and Small-sized Nema34 stepper motors will work perfectly with this new-type TB6600HG Stepper Driver.



Features

I.  5 Axis Breakout Board

  • High performance, cost-effective.
  • Maximum support 5-axis stepper motor driver controller.
  • Two types of ways to get power, 5V DC power supply or USB port to directly get power from PC .
  • Two-stage signal processing, smooth signal transmission, powerful anti-jamming .
  • 5-input interface to define the Limit, Emergence-Stop, Midpoint-Alignment, Cutter-Alignment, etc.
  • Relay output control interface, accessed by the spindle motor or the air pump, water pump, etc.
  • 5-axis work LED display, visually display the working condition of the stepper driver controller

II. TB6600HG Stepper Driver Board Controller

  • High performance, cost-effective
  • Automatic idle-current reduction.
  • Supply voltage up to 45V DC.
  • Output current up to 5.0A.
  • Suitable for 2-phase and 4-phase motors.
  • High speed optoelectronic isolation signal input.
  • Single-chip PWM bipolar sinusoidal chopper ensures low vibration and high efficiency.
  • 1, 2, 4 (New Mode), 8, 16 adjustable microstep control, motors run more precisely and smoothly.
  • Equipped with the 3rd generation of breakout board, display panel and control pad to control the motor manually.
  • Cooling Aluminium Box Design for Cooling, and protect the driver board from being damaged by dirt, dust or other liquids.
  • Overload, overcurrent, overheat, overvoltage and undervoltage protection to avoid damaging your computer and devices.

Applications

  • Suitable for a variety of small sized automation equipment and instruments, such as: engraving machine, marking machine, cutting machine, laser typesetting, plotters, CNC machine tools, handling the devices.
  • Suitable for a wide range of stepping motors, from NEMA size 16/17/23.

Power Supply Selection

Voltage Selection
  • 12-24V DC power supply for Nema 16/17 stepper motors.
  • 24-30V DC power supply for Nema 23 stepper motors.

(High (≥ 30V) voltage will burn out the chips or stepper motors!!! Please be careful in choosing power supply.)

Current Selection

Output current of the power supply can be calculated by the following formula
Output current = Rated current of your stepper motors x quantity + 2A

Please SHUT DOWN the power before you plug or unplug the connectors to avoid burning up the board.




Details

bob2tb6600hg-1tb6600hg-2tb6600hg-3





Specifications

Electrical Specifications of Breakout board
Input Voltage 5V DC via power adapter or directly get power from PC via USB port
Drive type Pulse + Direction + Enable Signal Control
Suitable Microstep Driver 2 Phase, 3 Phase, 4 Phase Microstep Driver (M542/M542H/MA860H/3MA2290 etc.)
Net weight Approx 80g/300g
Dimensions 90 * 82 * 15mm (L*W*H)
Electrical Specifications Of TB6600HG Stepper Driver
Input Voltage 12V ~ 45V(Peak) DC
Output Current 0.2A ~ 5.0A (Peak)
Drive Type Pulse + Direction + Enable Signal Control (Single-Chip PWM Bipolar Sine Chopper)
Suitable Motor Nema17, Nema23, Nema24, Small-sized Nema34 (Rated current: 0.2A-5.0A)
Net Weight 250g
Dimensions 105*85*35mm
Operationg Environment & Other Specifications Of TB6600HG Stepper Driver
Cooling Natural Cooling or Fan Forced cooling
Operating Environment
Environment Avoid dust, oil fog, corrosive gas
Ambient Temperature 0  ~ 50 (centigrade)
Humidity 40%RH ~ 90%RH
Operating Temperature 70 (centigrade) Max
Storage Temperature -20  ~ 65 (centigrade)
Total Weight Approx. 300g



Package

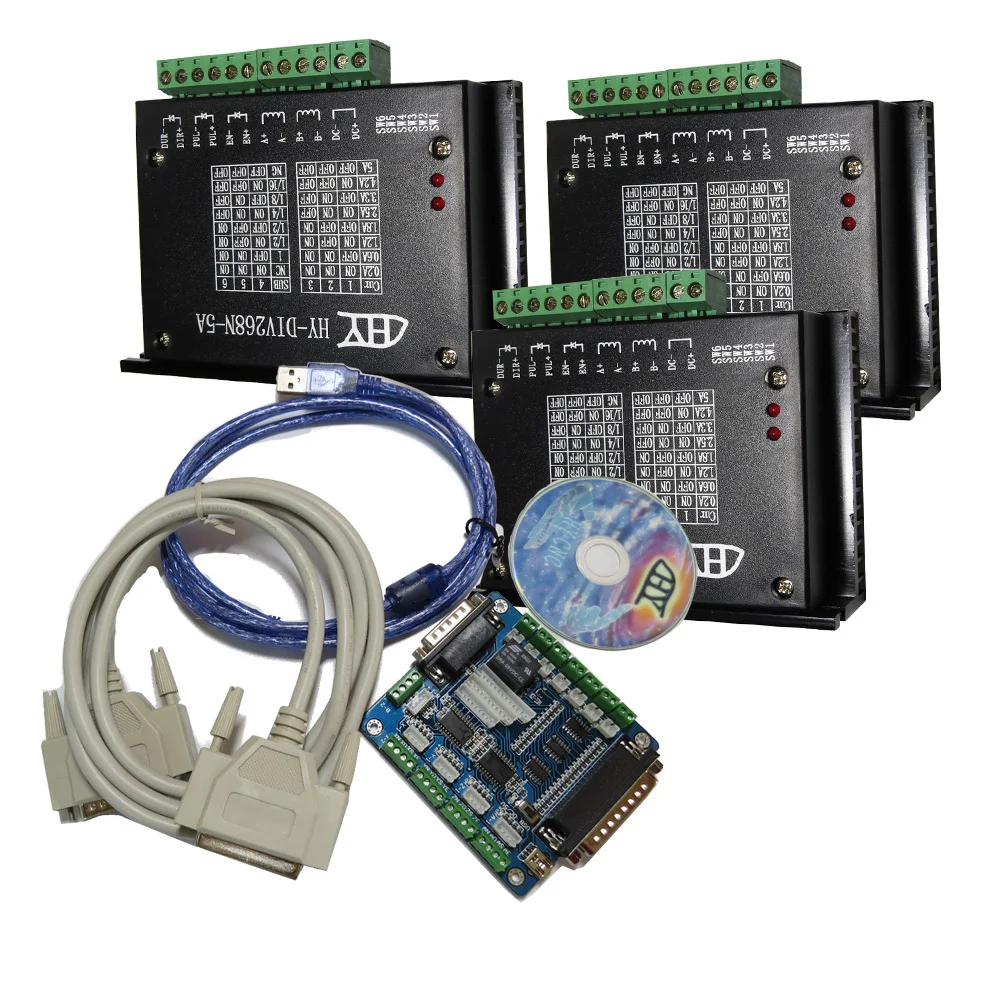

3 x TB6600HG Microstep Driver Board

1 x 5 Axis Breakout Board

1 x DB25 LPT Parallel Cable

1 x USB Power Cable

1 x CD Driver
