3D Принтер Детали A4988 DRV8825 Драйвер Шагового Двигателя с Теплоотводом для Платы SKR V1.3 1.4 GTR V1.0 RAMPS 1.6 MKS GEN V1.4
История изменения цены
*Текущая стоимость 90.59 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-15-2025 | 107.66 руб. | 112.94 руб. | 109.5 руб. |
| Aug-15-2025 | 106.33 руб. | 111.0 руб. | 108.5 руб. |
| Jul-15-2025 | 89.79 руб. | 93.5 руб. | 91 руб. |
| Jun-15-2025 | 104.10 руб. | 109.74 руб. | 106.5 руб. |
| May-15-2025 | 91.37 руб. | 96.18 руб. | 93.5 руб. |
| Apr-15-2025 | 103.80 руб. | 108.38 руб. | 105.5 руб. |
| Mar-15-2025 | 102.81 руб. | 107.93 руб. | 104.5 руб. |
| Feb-15-2025 | 101.9 руб. | 106.0 руб. | 103.5 руб. |
| Jan-15-2025 | 100.22 руб. | 105.97 руб. | 102.5 руб. |
Описание товара
Description
--Welcome to our Store
--
* Item Description

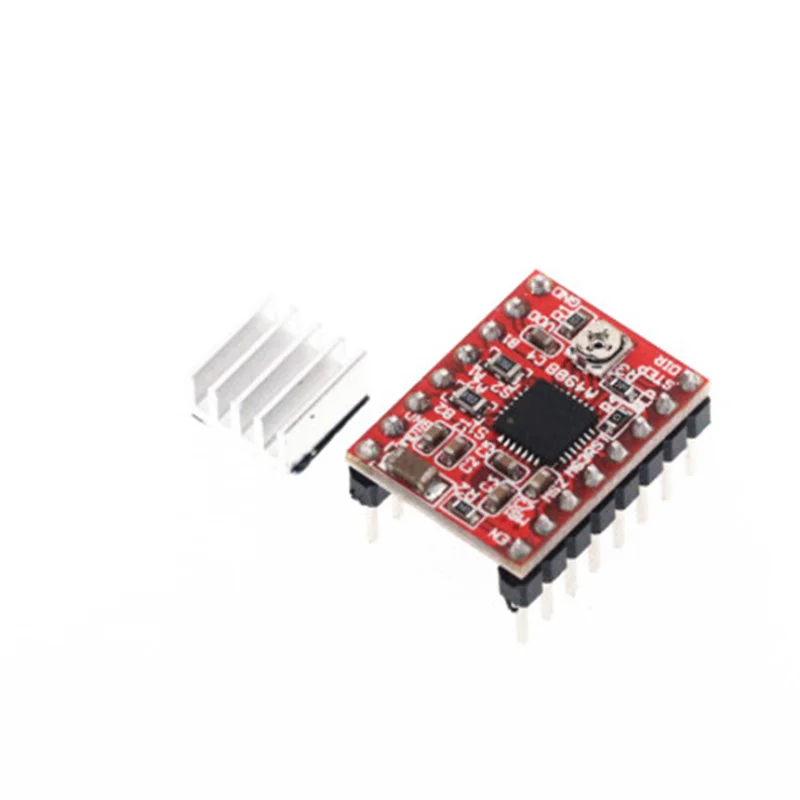

A4988 Stepper Driver + heat sink Heatsink for 3d printer
Brief introductionA4988 is a complete microstepping motor driver with built-in translator for easy operation. This product is available in full, half, 1/4, 1/8 and 1/16 step modes operate bipolar stepper motors, output drive capacity of up to 35 V and ± 2 A. A4988 includes a fixed off-time current regulator, the regulator in slow or mixed decay modes. A4988 converter is the key to the easy implementation. As long as the "step" input inputting one pulse drives the motor one microstep. There are no phase sequence tables, high frequency control lines, or complex interfaces to program. A4988 interface is very suitable for complex microprocessor is unavailable or is overburdened.
In the micro-step operation, A4988 chopping control inside automatically selects the current decay mode (Slow or Mixed). In mixed decay mode, the device is initially set to a fixed downtime in some fast decay, then the rest of the slow decay downtime. Mixed decay current control scheme results in reduced audible motor noise, increased step accuracy, and reduced power consumption. Internal synchronous rectification control circuitry is provided to improve the pulse-width modulation (PWM) operation power consumption. Internal circuit protection includes: thermal shutdown with hysteresis, undervoltage lockout (UVLO), and crossover-current protection. Special power sequencing.
A4988 surface mount QFN package (ES), a size of 5 mm × 5 mm, nominal overall package height of 0.90 mm, with an exposed pad for enhanced thermal dissipation. This package is Pb (suffix-T), with 100% matte tin leadframe plating.
Features and Benefits
- Low RDS (On) Output
- Automatic current decay mode detection / selection
- Mix with slow current decay modes
- Synchronous rectification for low power dissipation
- Internal UVLO
- Cross-current protection
- 3.3 and 5 V compatible logic supply
- Thermal shutdown circuitry
- Ground fault protection
- Load short-circuit protection
- Optional step five modes: full, 1/2, 1/4, 1/8 and 1/1
About Drv8825
Introduction:
The DRV8825 stepper motor driver carrier is a breakout board for TI’s DRV8825 microstepping bipolar stepper motor driver.
The module has a pinout and interface that are nearly identical to those of our A4988 stepper motor driver carriers, so it can be used as a higher-performance drop-in replacement for those boards in many applications.
The DRV8825 features adjustable current limiting, overcurrent and overtemperature protection, and six microstep resolutions (down to 1/32-step). It operates from 8.2 – 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling).
Features:
- Simple step and direction control interface
- Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
- Can interface directly with 3.3 V and 5 V systems
- Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
- Short-to-ground and shorted-load protection
- 4-layer, 2 oz copper PCB for improved heat dissipation
- Exposed solderable ground pad below the driver IC on the bottom of the PCB
- Module size, pinout, and interface match those of our A4988 stepper motor driver carriers in most respects (see the bottom of this page for more information)
- Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates
- Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)
- 45 V maximum supply voltage
- Built-in regulator (no external logic voltage supply needed)
