Kindly Take Note:  By the 2.4 GHz Wireless Module, no necessary to run the Video Cable inside the Car, less labor work, Simple to install !!!

WIRELESS SONY CCD CAR REAR VIEW CAMERA FOR  Hyundai Tucson Accent Elantra Terracan Veracruz Sonata



PLS kindly Take Note as below :

To be safe, please pay attention to dimension picture before buying. Please contact us if you are not sure.


Please kindly make sure that our product's size is same with your car' s license plate light, because there may have a little difference even for the same style car but in different country.
This camera will replace one of the license plate lights.









For Camera :



Technique Parameter:   Image sensors: 1/4" color sony CCD Chip   TV System: NTSC   Minimum illumination. <0.1   AGC: Auto   BLC: Auto   White Balance: Auto   Video Color: Colorful   Effective Pixels : 728x512   Resolution : 520TV lines (Normal CMOS/CCD/CMD camera is 420 TV Lines)   Video Output: 1.0Vp-p,75?   Electronic Shutter: 1/60(NTSC)-1/10000S, 1/50(PAL)-1/10000S   S/N ratio: Better Than 48db   Lens Angle: 170 Degree   Waterproof Class:Ip 68   Operation Temperature: -20°C+80°C RH95%   Storage Temperature: -30°C+80°C   Working Power (DCV): 12   Current consumption: 90mA Max







Main Features :
1,SONY CCD camera is higher clear, better quality than the Colorful CMOS and CMD and Sharp CCD.
2,170 degree view angle, very small, and easy for installing
3,Low illumination and fill light automatic, waterproof

4,Special Designed For

   Hyundai Tucson Accent Elantra Terracan Veracruz Sonata

,easy to install and run

5,Designed according to the license light hole install.
6,All you need is a screen and video input port

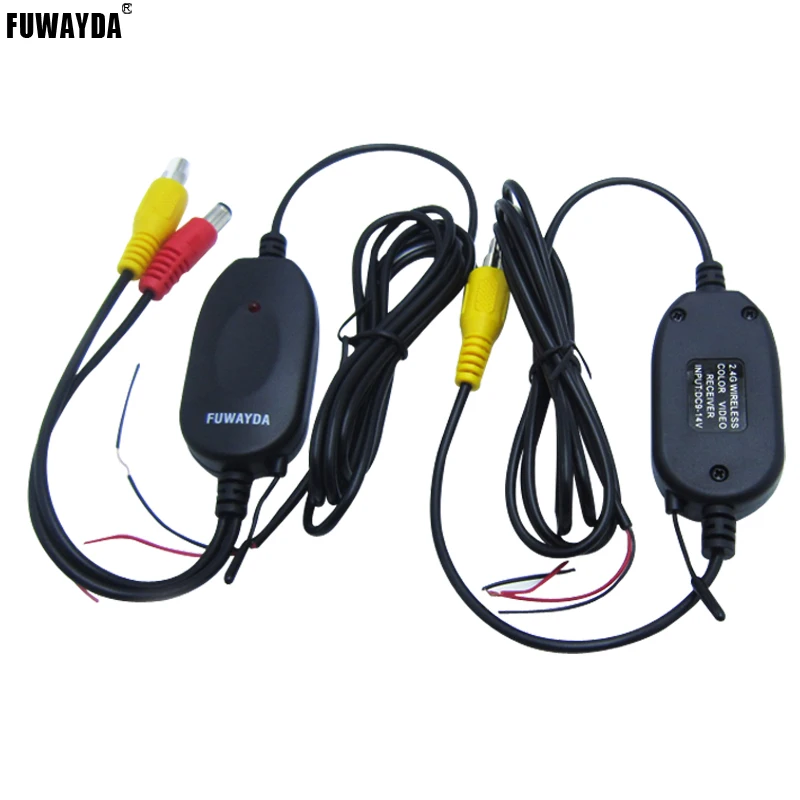

For Wireless  Color Video Transmitter & Receiver


*100% brand new,High quality

*Easy installation

*Take one minute get your camera become a wireless camera

*Wireless 2.4GHz transmitter/receiver set (12-Volt for vehicle installation)

*Work Range:Up to about 50m(Hollowness)

*Connects to rear-view camera and front video screen

*Fit all RCA composite video connections

*Power: DC 12V

*Transmitter/Receiver Cable Length:100CM


Convert any reversing camera with a standard phono/RCA connector into a wireless camera with this universal transmitter and receiver kit.

Eliminates the need to run a cable the length of the vehicle, just connect the transmitter at the camera end and the receiver at the monitor end.

The transmitter also includes a handy pass through for the power so you can connect it inline with your camera.



Wireless transmitter with male phono plug and male 3.5mm power plug for supplying power to the camera.

Wireless receiver with male phono plug for connection to monitor.











How to Install a Camera with the Wireless Module: => Take out your stock license plate light at the back of your car.   => Fix the camera to where the stock license plate light was.   => Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power   => Connect the wireless module (transmitter) to your camera via the two cables - yellow plug for AV output and black plug for power   => Connect the wireless module (transmitter) to the reverse light of your car to get the power - red wire for positive and black wire for negative   => Connect the wireless module (receiver) to your car monitor - yellow plug for AV input.   => Connect the wireless module (receiver) to your car battery or cigarette lighter to get the power - red wire for positive and black wire for negative   => You will see the images when your car is in reverse shift.







Package:



1 x Waterproof Car RearView Backup SONY CCD Camera

1 x 2.4 Ghz Transmitter 1 X 2.4 Receiver         Returns: We do our best to serve our each customer the best that we can. We will refund you for items returned within 7 days of you receiving them, for any reason. A full refund will be given if items are returned in their original condition. Merchandise which is damaged or missing components is not refundable. Buyers are responsible for return shipping with proper packaging. On receiving items, we will refund you immediately. Warranty &Maintenance: We provide 1 month replacement and 12 months maintenance warranties. Items can be replaced during the first month or maintained for the first year. ***** Buyers are only responsible for the return shipping fees for warranty items.(In most cases, buyer will only have to return the problem components rather than the entire package.). Before returning items, please make sure you get our (the seller’s) return address, and write “gift” on the delivery detail sheet. Please use regular postal service and send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.     Feedback: Please kindly leave us a good feedback with 5 stars if item received in good condition; For Buyers that is not satisfactory with your shopping Experience, you can always contact us first before you left outcome feedback;every problem could be worked out via good communication between both sides.
