Характеристики
ФАКТКАВА популярный набор для привода переменного тока 220 В станков с ЧПУ сервомотором 80 мм 5 А 750 Вт 3000 об/мин.
История изменения цены
*Текущая стоимость 38036.75 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-18-2025 | 45263.91 руб. | 47526.92 руб. | 46394.5 руб. |
| Aug-18-2025 | 44882.28 руб. | 47126.71 руб. | 46004 руб. |
| Jul-18-2025 | 37656.65 руб. | 39539.16 руб. | 38597.5 руб. |
| Jun-18-2025 | 44122.45 руб. | 46328.39 руб. | 45225 руб. |
| May-18-2025 | 38416.71 руб. | 40337.60 руб. | 39376.5 руб. |
| Apr-18-2025 | 43361.47 руб. | 45529.13 руб. | 44445 руб. |
| Mar-18-2025 | 42981.10 руб. | 45130.88 руб. | 44055.5 руб. |
| Feb-18-2025 | 42600.84 руб. | 44730.47 руб. | 43665 руб. |
| Jan-18-2025 | 42220.49 руб. | 44331.30 руб. | 43275.5 руб. |
Описание товара
Description
A=EC-F2X20BN+EC-F3CC075V-M2XM*AB=EC-F2X20BN+EC-F3CC075V-M2XN*L

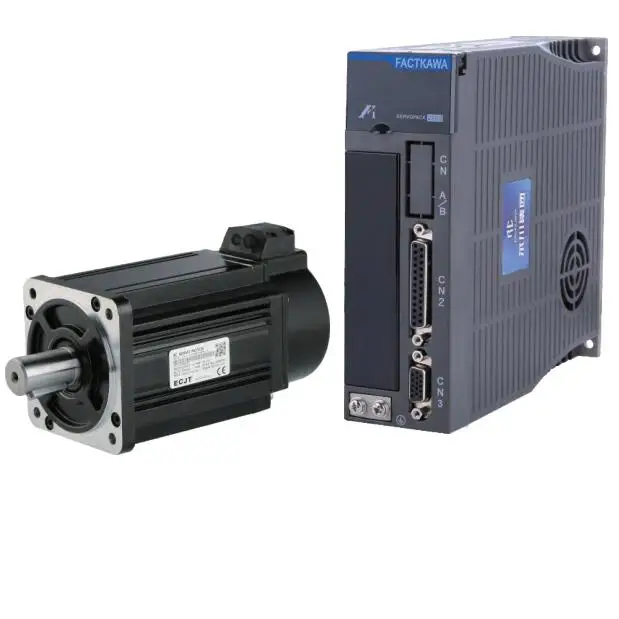

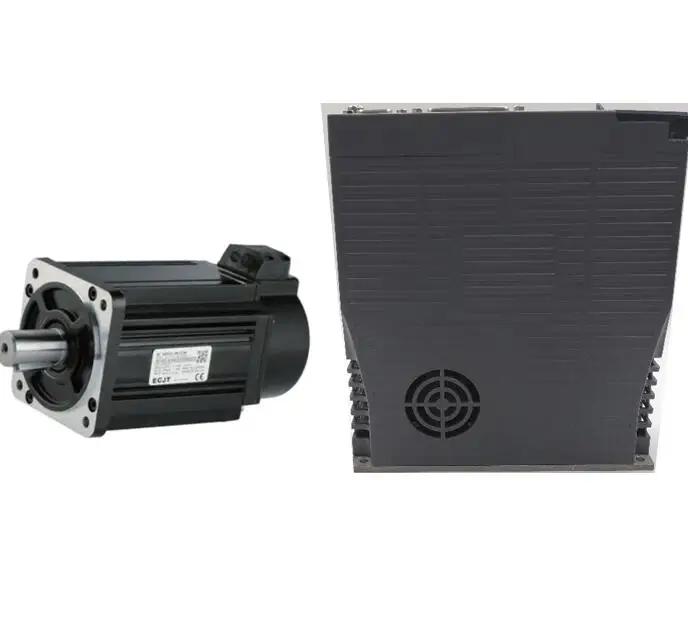

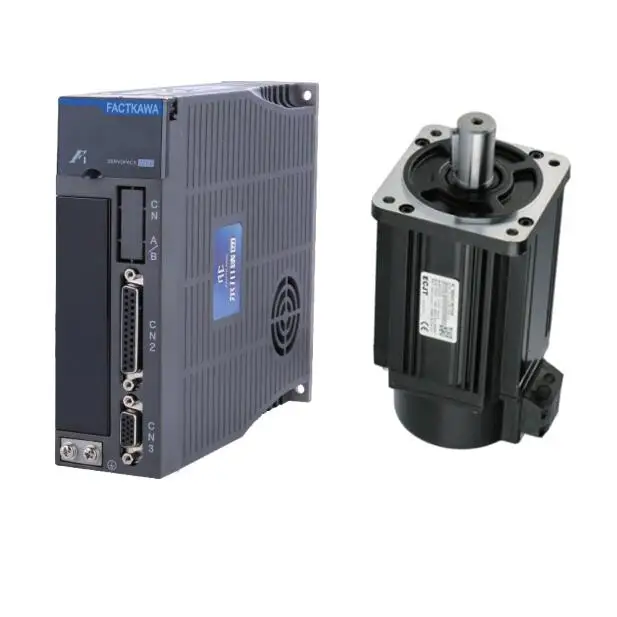

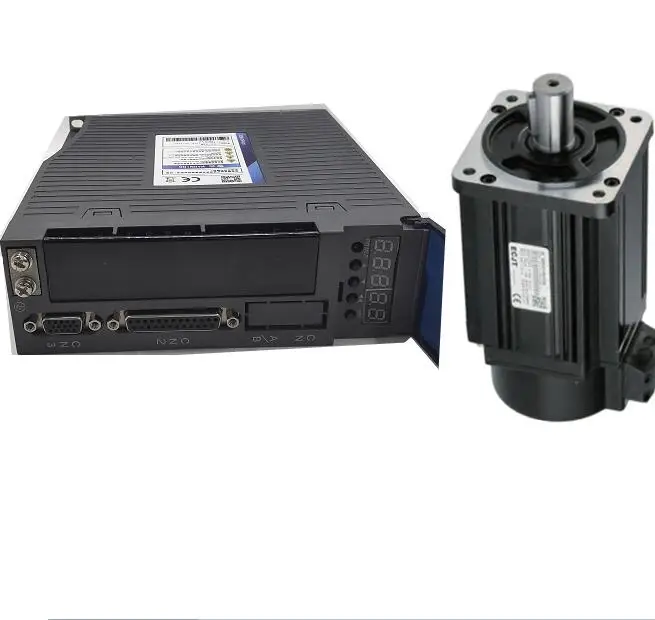

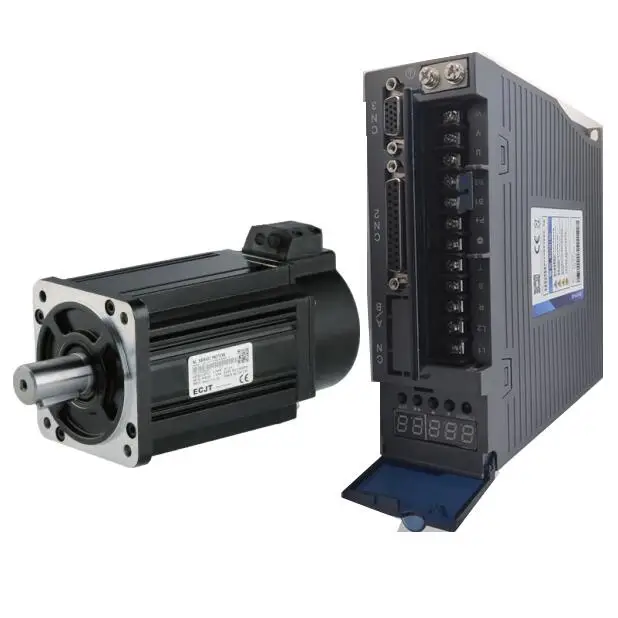

FACTKAWA popular factory sale 80mm 5.5a servo motor 750W 3000rpm 220v ac servo motor drive set for CNC machines
| Brand | MOONS |
| Model | EC-F2X20BN+EC-F3CC075V-M2XMA |
| Driver Size | 160mm*190mm*50mm |
| Certification | CE RoHS |
Products detail
Drive Specifications
220VAC 50/60Hz,Continuous Current 5.5A AC Servo DriveSupply Voltage: 220 VAC
Output Current, Continuous: 5.5A
Motor Output: 200~1000W
Rated torque:0.64-4.0N.m
Encoder:2500lines
Weight:1.05kg
80mm 750W Servo Motor:
Frame Size:80mm
Rated Voltage:220 VAC
Rated Current: 3.0A
Peak Current:10.5A
Rated Output Power: 750W
Rated Speed:3000rpm
Max. Mechanical Speed:3500rpm
Rated Torque:2.4N.m
Peak Torque:7.2N.m
Winding Resistance:2.45ohm
Winding Inductance:11.3mH
Rotor Inertia:1.73 x 10-4gcm²
Front Shaft Length:35mm
Front Shaft Diameter:19mm
Connect:Leads
Encoder Type:2500lines
Motor Length: 124mm
Weight:2.8kg
AC Servo Motor
M2AC Servo Motor Numbering Information
Speifications:Motor
Dimension(Unit :mm)
Servo Motor:
Servo Drive:
Torque Curves:
Packaging and Shipping
Company Informtion
FAQ
1.Factory or Agent?
We are Agent, but have professional R&D team as introduced in company information.
2. How about the delivery?
- Sample: 1-3 days.
- Bulk order: 5-20 days.
3. What is your after-sales services?
1. Free maintenance within 12 months guarantee, lifetime consultant.
2. Professional solutions in installation and maintence.
4. Why choose us?
1. Accept customize & 24/7 after-sale services.
2. From mold customization to material processing and welding, from fine components to finished assembly,strict aging, finished product inspection.
5. Do you get the relevant certification?
All products are made according to ISO9001, CE &RoHS requirements.
