2.5Г GPON/EPON XPON SFP Стик DDM 2.5Г медиа-конвертер ONU Оптический приемопередатчик WEB ID/SN Совместимый ODI Mikrotik NOKIA на.

---

Description

    Product Features
XPON Stick= GPON  Stick + EPON Stick
*3.3V power supply
*The longest transmission distance is 20KM
*Support data encryption
*Compatible with SFP MSA
*Support VLAN function configuration

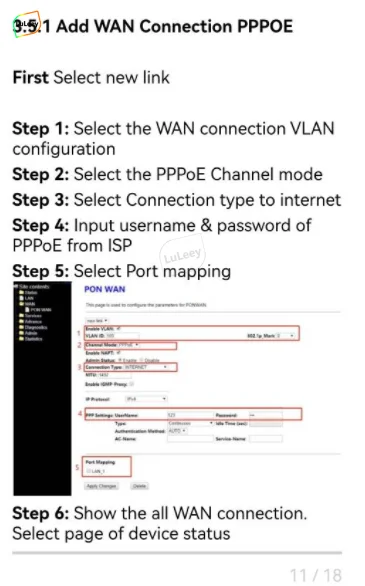

* Support to create a routed WAN connection
*Compatible with RoHS
*Support fault alarm
*Support dynamic bandwidth allocation
*Support loop detection
*Support LAN side DHCP server
*Support transparent transmission multicast


TYPE	RATE	WAVELENGHT	COMPONENT	INTERFACE	MODE	DDM
XPON STICK ONU	GPON:1.25Gbps/2.5Gbps EPON:1.25Gbps/1.25Gbps	Tx1310/RX1490	DFB/APD	SC	GPON/EPON	support

*Support WEB managment.
*Module belongs to bridge mode

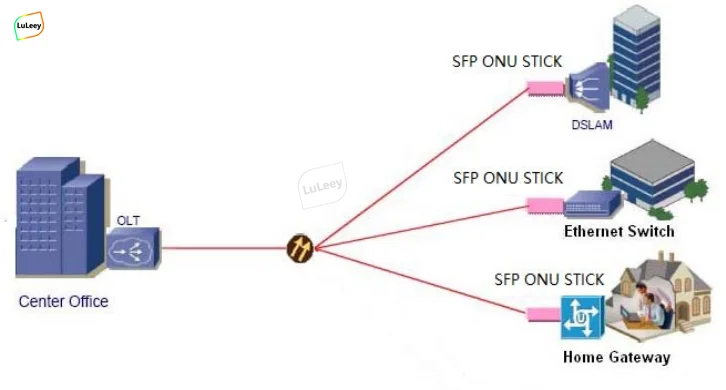

*XPON STICK is an ONU with SFP interface, small and exquisite, plug and play, with good heat dissipation and shielding effects.  Hot-swappable to work in the SFP slots of switches, cameras and other equipment, the whole machine can be used as an ONT or even an MDU, so that the whole machine can be directly connected to the GPON or EPON optical network, which can replace the external ONU and improve system integration  Spend.  It supports asymmetric upstream and downstream GPON and symmetrical upstream and downstream EPON rates, and works with OLT central office equipment to provide users with Ethernet services and integrated IP services with good QOS guarantees and flexible bandwidth allocation.
*PON STICK is fully compatible with SFP's multi-source protocol MSA and SFF8472 standards. For more information, please refer to SFP MSA.
*Fully meet the G.984 standard defined by ITU-T, and meet the technical requirements of many domestic operators for GPON and EPON equipment. 2.5G optical fiber transceiver
2.5G optical fiber transceiver is a kind of photoelectric converter switching between Ethernet electrical signals and
photoelectric signals. Users can choose different models of optical modules according to their needs, which can realize the
seamless connection between the optical signals of 100 / 1000M / 2.05 G Ethernet and electrical signals.It not only extends the
transmission distance, but also has the advantages of isolation protection, good data confidentiality, stable work, easy
maintenance and so on.

Main Features:
* Support the interconversion between 100M / 1G/2.5G Base-T and 2.5G Base-SX / LX;
* One full-duplex 2.5Gbps light port, one 100M / 1G / 2.5G adaptive electric port;
* 100M / 1G/2.5G rate adaptation, MDI / MDI-X adaptation, full / half-duplex adaptation;
* Optical links and electrical links have a complete connection / active status indicator light;
* Optical port supports single mode / multimode, single fiber, double fiber
* Support QoS to ensure data packet transmission;
* Support for broadcast storm suppression;
* Support IEEE802.3x flow control, back pressure flow control;
* Support for 12V DC input;
* Support for up to 4KV of port lightning protection;
* Support for low-latency transmission, but also has the isolation and protection function;
* Using low power consumption chip, low heat rate, can work stably for a long time.
