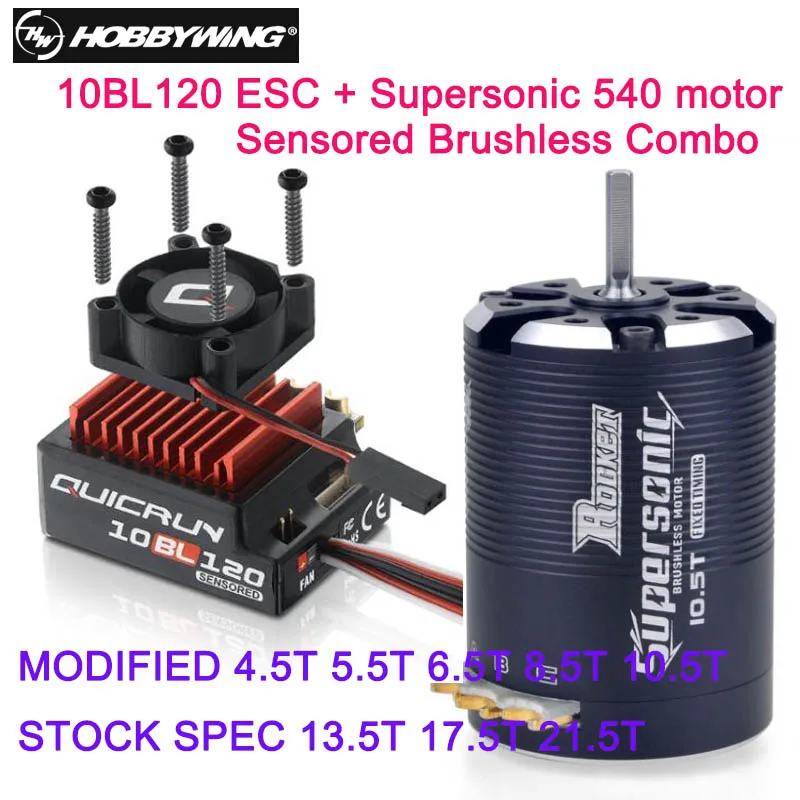

Hobbywing 10BL120 ESC Rocket Supersonic 540 8.5T 10.5T 13.5T Sensored Brushless Motor for Modified Spec Stock 1/10 RC Car |

Hobbywing 10BL120 ESC Rocket Supersonic 540 8.5T 10.5T 13.5T Sensored Brushless Motor for Modified Spec Stock 1/10 RC Car |

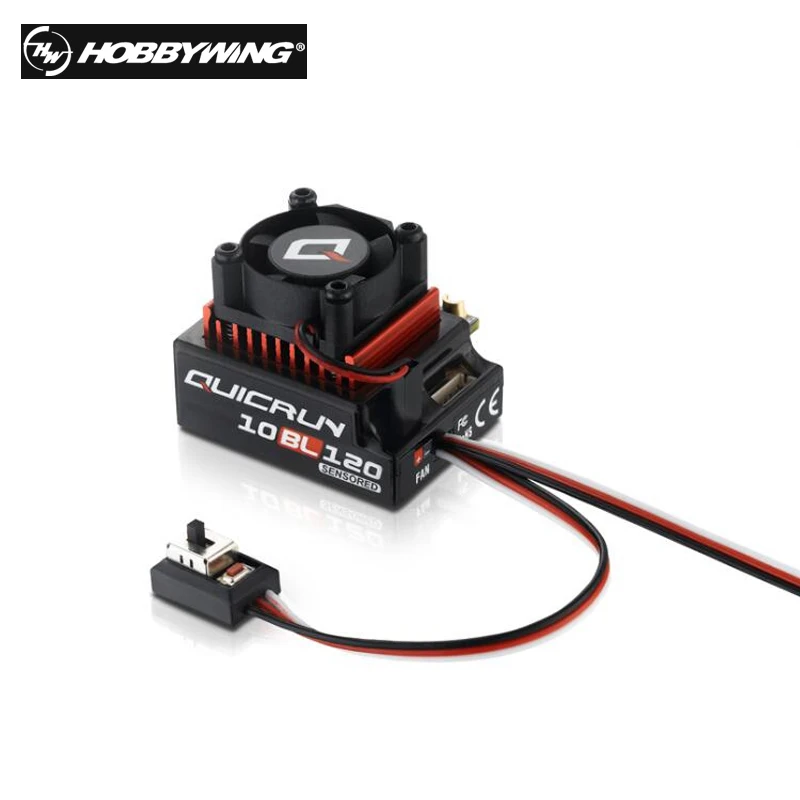

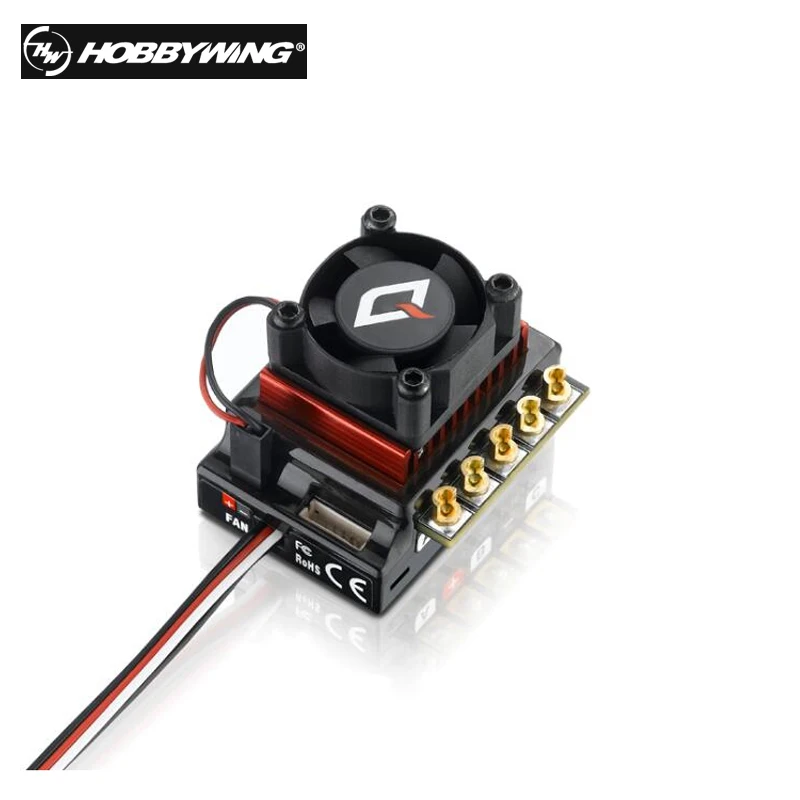

Hobbywing QincRun 10120BL Sensored ESC Features:
High performance, reliable,race-ready ESC.The compact size is suitable forvarious car chassis.
The built-in auto identification system recognizes sensored or sensorless brushless motors.
Core competition program forexcellent control feel & multiple programmable items.
8 steps of timingadjustments 4 steps of maximum brake force adjustments 8 steps of dragbrake force adjustments 4 steps of initial brake force adjustments 9 steps ofacceleration (punch) adjustment, from "soft" to "very aggressive" to fit fordifferent kinds of cars, tires and tracks.
Multiple protections include: Lowvoltage cut-off protection for Lipo or NiMH battery Over-heat protection Throttlesignal loss protection Motor Lock-up protection. Throttle out of control protection, overload protection for escort escort, reliability and durability have been greatly improved.
One-button to set the ESC,and easy to reset all parameters to the factory default settings.
Compatiblewith optional device - the portable Digital LED Program Card which is especially convenient for outdoor use.
Motor Limits: 4-6 cells NiMH / 2S LiPo:3.5T(1/10 On-road),4.5T (1/10 Off-road) 8-9 cells NiMH / 3S LiPo:8.5T (1/10On-road),10.5T (1/10 Off-road)

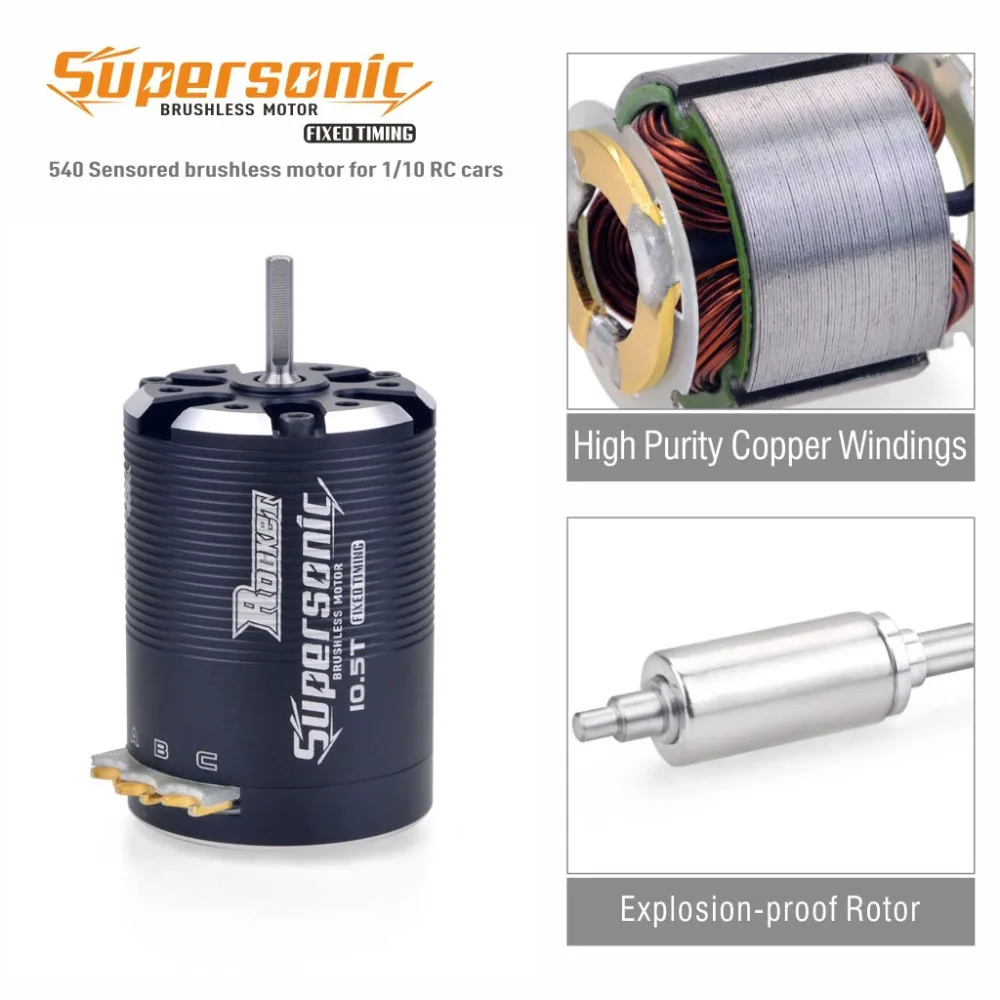

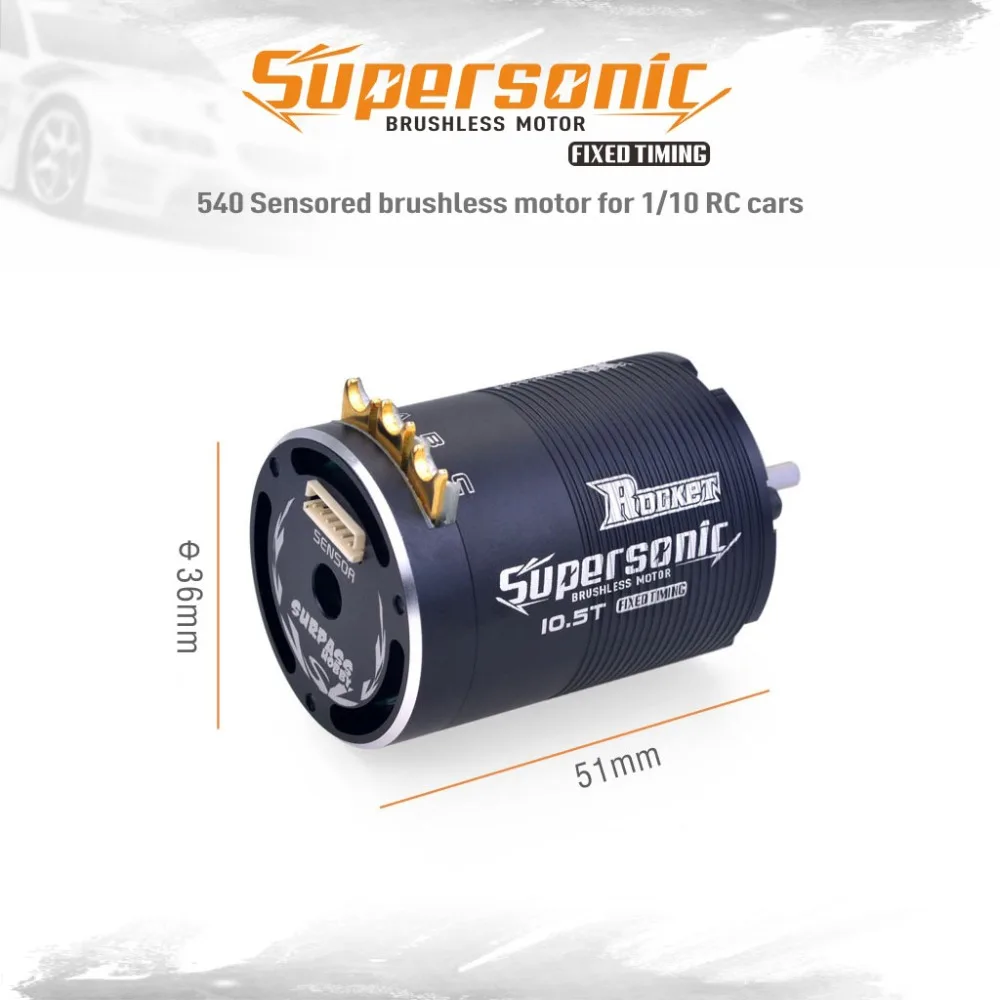

    Rocket Supersonic 540 Features:
    Hight RPM precision bearings
    Unadjustable timing
    Compatible with any Sensored/SensorlessESCCNC Machined Billet T6 Aluminum Heatsink Can
    Hight purity copper windings Maxinizes condectivityHight power solder tabs

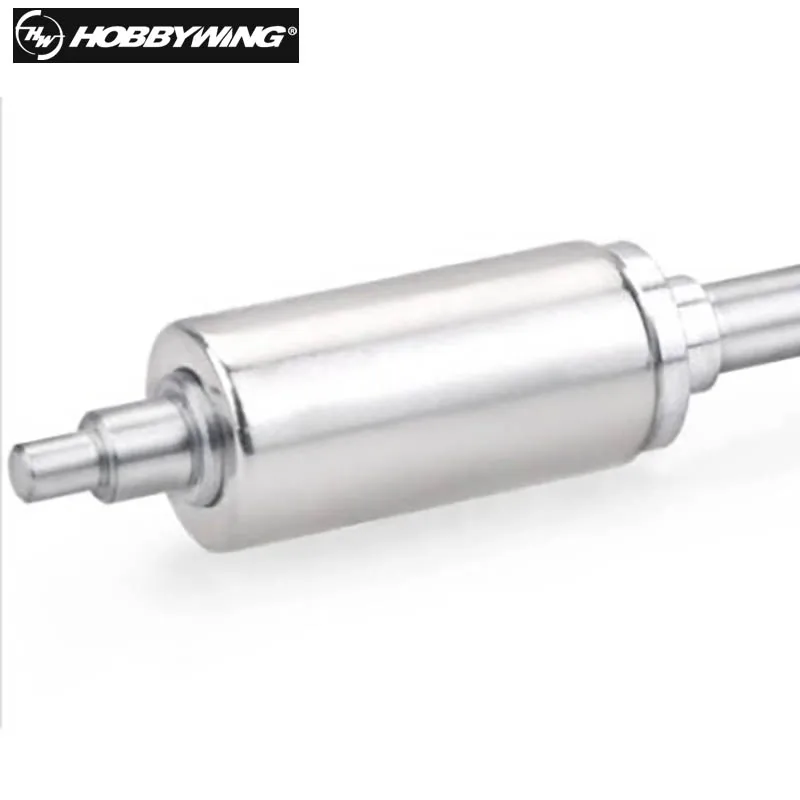

    Removable/Replaceable Rotor
    Powerful sintered Neodymium magndet
    Precisionengineered for maximum
    Meet ifmar/roar rules

    540 8.5T Specifications:
    Brand: Rocket
    Size: 540
    Design: Sensored
    Type: Modified
    KV(RPM/Volt): 4200KV
    Watts: 250w
    Voltage: 1-3S lipo
    Max Amps: 80A
    Rotor Poles: 2
    IO(7.4V): 2.8A
    Resistance(mΩ): 9.2
    Turns: 8.5T
    Rotor: φ12.3xφ5x24.5
    Weight(g): 170
    Shaft(mm): φ3.175

    540 10.5T Specifications:
    Brand: Rocket
    Size: 540
    Design: Sensored
    Type: Modified
    KV(RPM/Volt): 3500KV
    Watts: 250w
    Voltage: 1-3S lipo
    Max Amps: 63A
    Rotor Poles: 2
    IO(7.4V): 4.0A
    Resistance(mΩ): 15.84
    Turns: 10.5T
    Rotor: φ12.3xφ5x24.5
    Weight(g): 170
    Shaft(mm): φ3.175

    540 13.5T Specifications:
    Brand: Rocket
    Size: 540
    Design: Sensored
    Type: Spec
    KV(RPM/Volt): 3500KV
    Watts: 250w
    Voltage: 1-3S lipo
    Max Amps: 49A
    Rotor Poles: 2
    IO(7.4V): 2.7A
    Resistance(mΩ): 24.4
    Turns: 13.5T
    Rotor: φ12.5xφ7.2x24.5
    Weight(g): 170
    Shaft(mm): φ3.175
