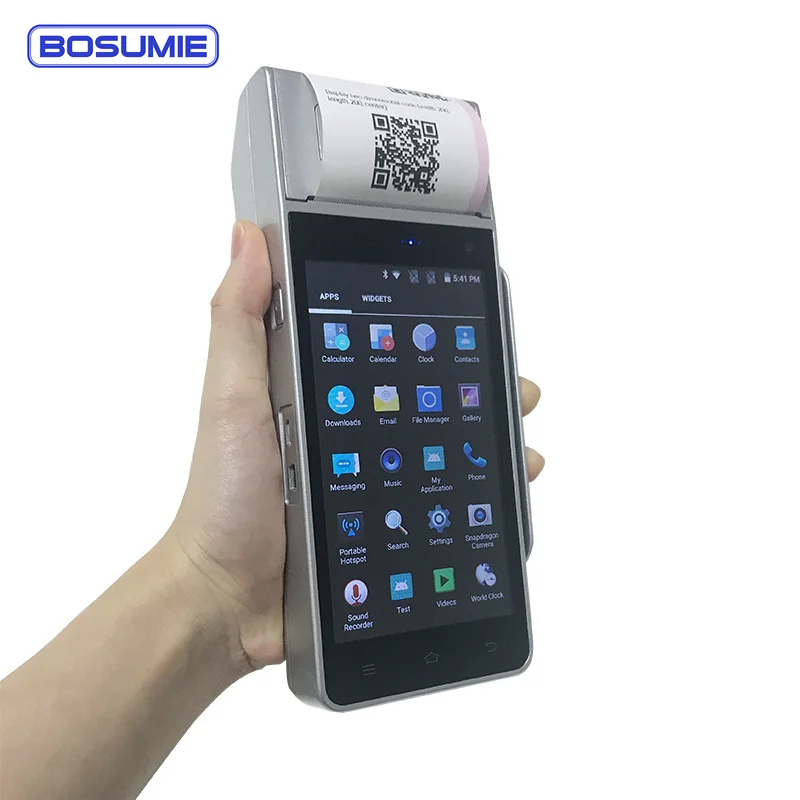

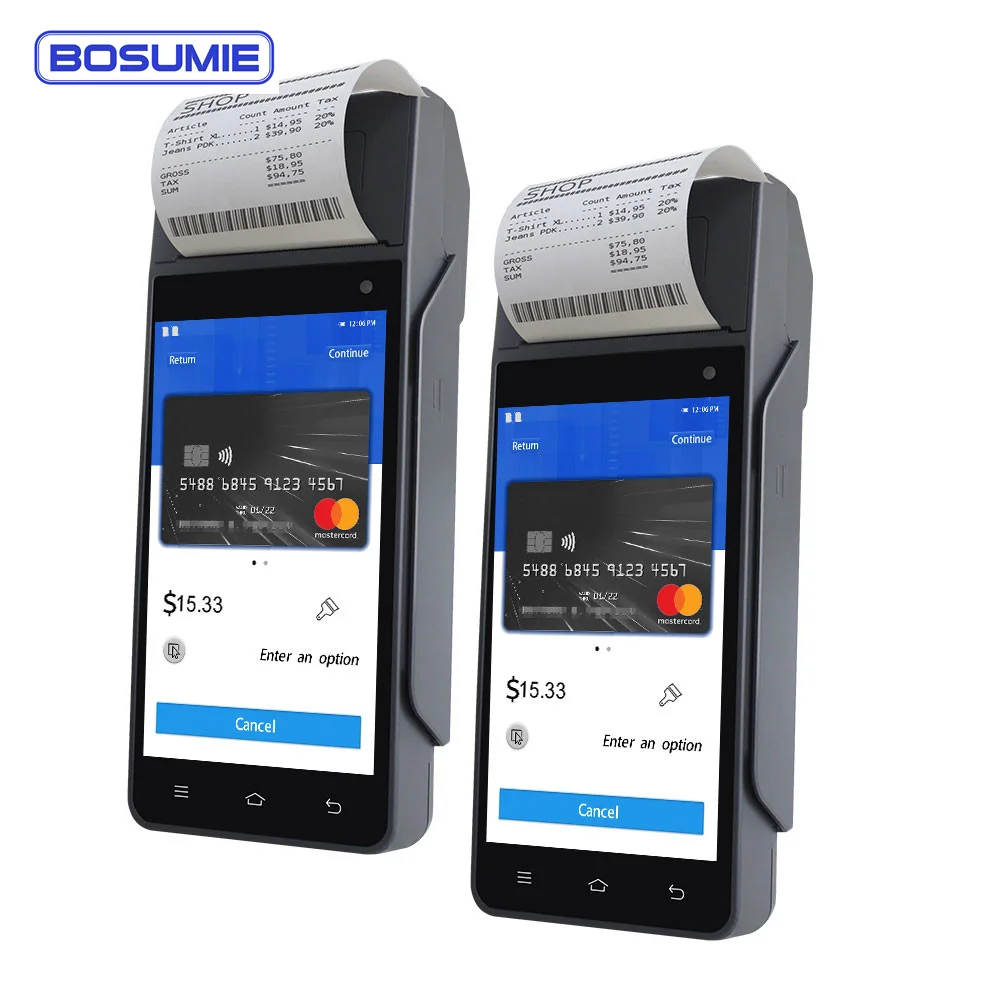

Портативный терминал для ставок Z90 4G/3G/2G ручной крипто-платеж POS-терминал с чеком

Z90

Operating system

Android 7.1

CPU

Quad-Core Processor, 1.1GHz

RAM

RAM:1GB, EMMC:8GB

LCD Screen

5.0 inch

Display Resolution

720*1280

Fingerprint collection

module(optional)

Spatial resolution :508 DPI

Active sensor area :12.8mm*18.0mm

(In compliance with FBI)

Communication

4G/3G/2G/Hot spot/Bluetooth/WiFi

GPS

Built-in GPS

USB

Type CUSB(OTG),Mini USB serial port

Camera

5 MP rearcamera with LED flashlight

0.3 MP front camera

Support 1D / 2D scanning

Card Slot

SIM ×1;SAM×2;SD×1

Touch screen

Capacitive touch screen, support the electronic signature

Printer

Built-in high speed thermal printer

58mm print paper

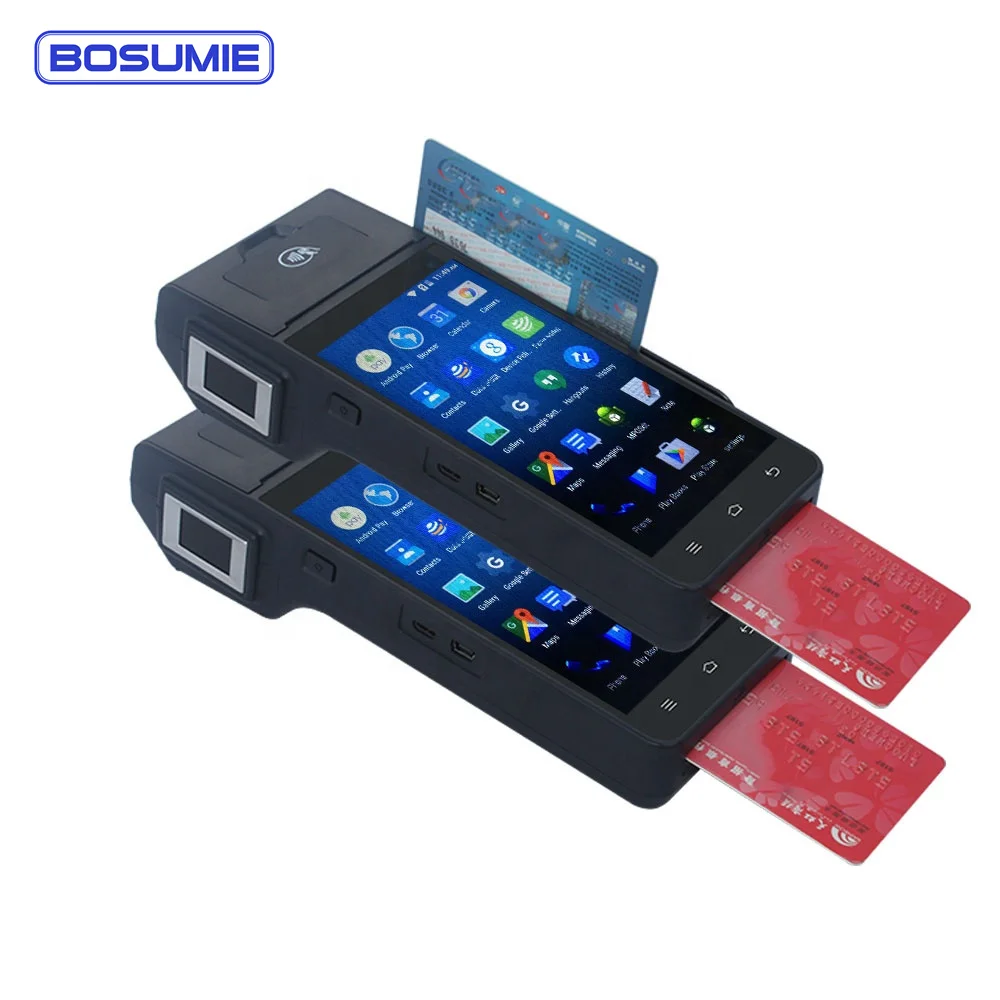

Magnetic card reader

Support 1/2/3 track,Bi-directional swiping

IC card read-write

Support type A(5.0V),type B(3.0V) or type C(1.8V)

(In compliance with EMV and PBOC)

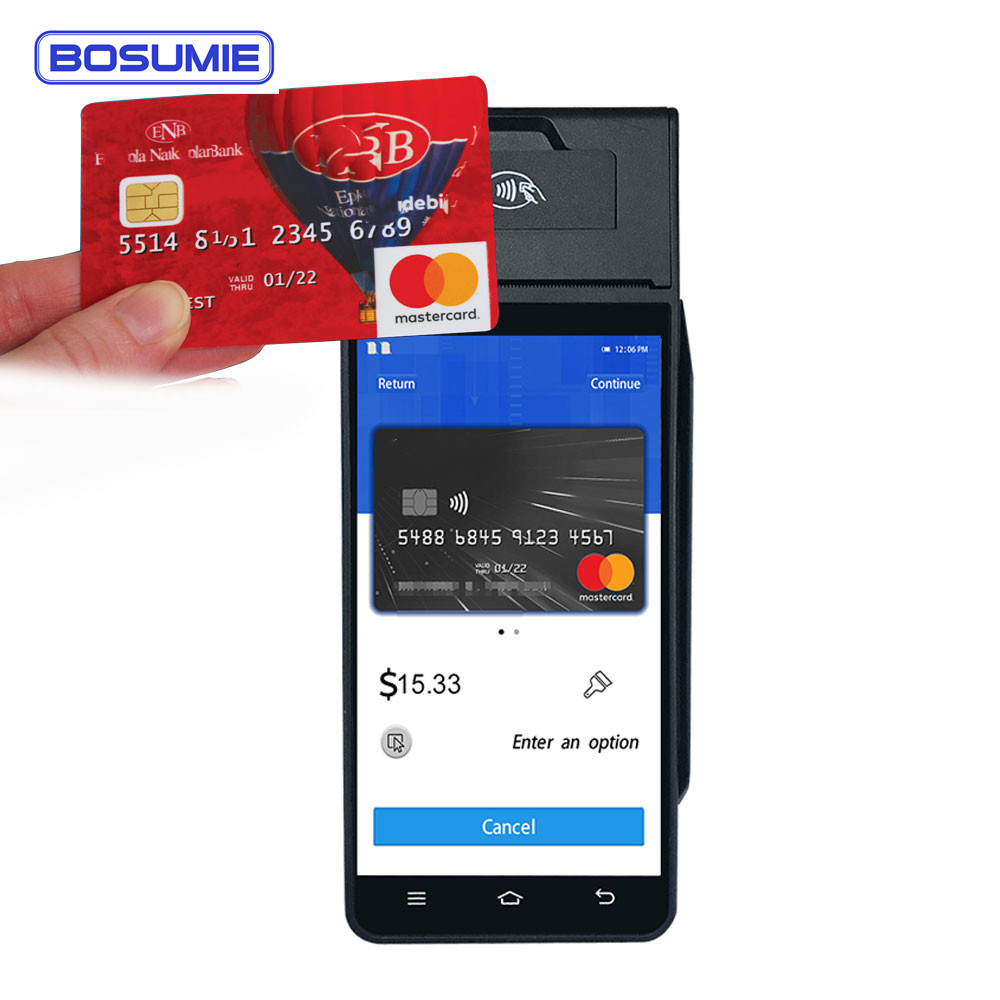

NFC card

Support ISO/IEC14443 Type A&B, Mifare1

(In compliance with EMV and PBOC,with card reading indicator)

GPS

Built-in GPS

Multimedia

Support for recording, voice broadcast

Support video play back/recording

Password keyboard

Built-in password keyboard (virtual);

Support DES, 3 DES, RSA, SHA - 256 and AES;algorithm

Battery

Lithium battery, 2800 mAh/7.4V

power adapter

Input:110V to 240V AC/50 ~ 60Hz

Output: 5VDC / 2 A

General Type CUSB interface

Dimension and weight

191.6mm×80.2mm×46mm,

424g

Standard Accessories

1pc power adaptor,

1pc Type C USB cable,

1pc User Manual,

1pc Warranty card,

1 roll 58mm thermal paper,

1pc leathercase(optional)

Temperature

Storage temperature: -10℃-60℃

Working Temperature: 0℃-50℃

Certificate

PCIPTS 5.x

EMV Contact Terminal L1&L2

EMV Contactless Terminal L1

PayWave & PayPass

TQM

UnionPay

FCC,CE, CCC

FBI&STQC(Fingerprint module)

Charging Base/Dock

WiFi

2.4GHz

Scanner

Support barcode/QR code scanner

Port

1*RJ45 WAN Port

1*RJ45 LAN Port

1*TypeC，high speed USB2.0，5V 2A input

1*USB-A，5V 200mA output

2*POGO PIN，for Z90 charging
