WS-601SS2 Пульс или RS485 Нержавеющая сталь 0.2 мм датчик дождя-корыто для мониторинга погодных условий в окружающей среде.

WS-601SS2 Пульс или RS485 Нержавеющая сталь 0.2 мм датчик дождя-корыто для мониторинга погодных условий в окружающей среде.

Brand NameNoneOriginMainland ChinaTypeHand Tool PartsMeasurement unitpiece/piecesSold insell_by_pieceEach pack1Package weight3.800Package size - length (cm)32Package size - width (cm)32Package size - height (cm)47

Unavailable in Russian Federation

Description

如果您有任何问题,请联系我们whatsapp+8615580828555 请注意       _{BGT科技(北京)有限公司为您提供: **一站式应急解决方案供应商**} 1.厂家直销价.
2. 质量不错.
3. 欢迎小订单.
4.在线支付.
5. 质量不好退款.
6. 提供样品,但您需要付款.
7. 1 年免费维修质量保修. 产品描述

WS-601SS2 不锈钢翻斗雨量计

Tipping Bucket Rain Gauge is a durable weather instrument for monitoring rain rate and total rainfall. It has been updated and improved with the addition of an inner funnel to even the flow of the rainfall into the gauge, providing better accuracy at higher rainfall rates. With minimal care it will provide many years of service. The rain gauge is constructed of high impact UV-protected plastic/ stainless steel to provide reliable, low-cost tipping bucket rainfall monitoring. The tipping bucket sensor mechanism activates a sealed reed switch that produces a contact closure for each 0.1mm, 0.2 mm or 0.5mm of rainfall. The rain gauge sensor can be pole mounted or bolted to a level plate.

Features

WMO standard bucket's top diameter (200mm/8")

High Accuracy

Good stability

Low resistance

Mesh in the funnel preventing debris

Highly polished stainless steel construction

Horizontal Bubble in bottom

Application

Environmental monitoring

Water supply system

Hydrological monitoring

Natural disaster monitoring

Climate research

Weather monitoring stations

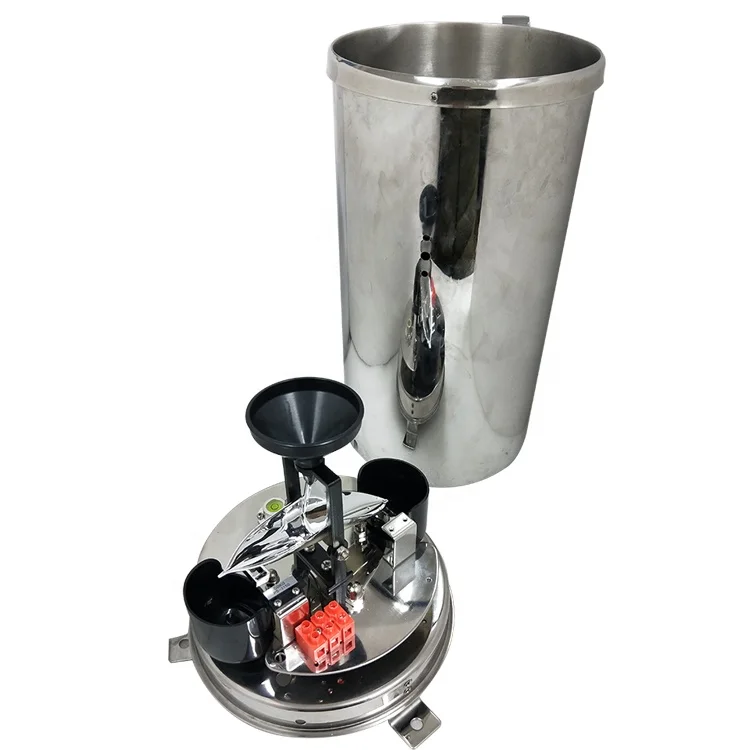

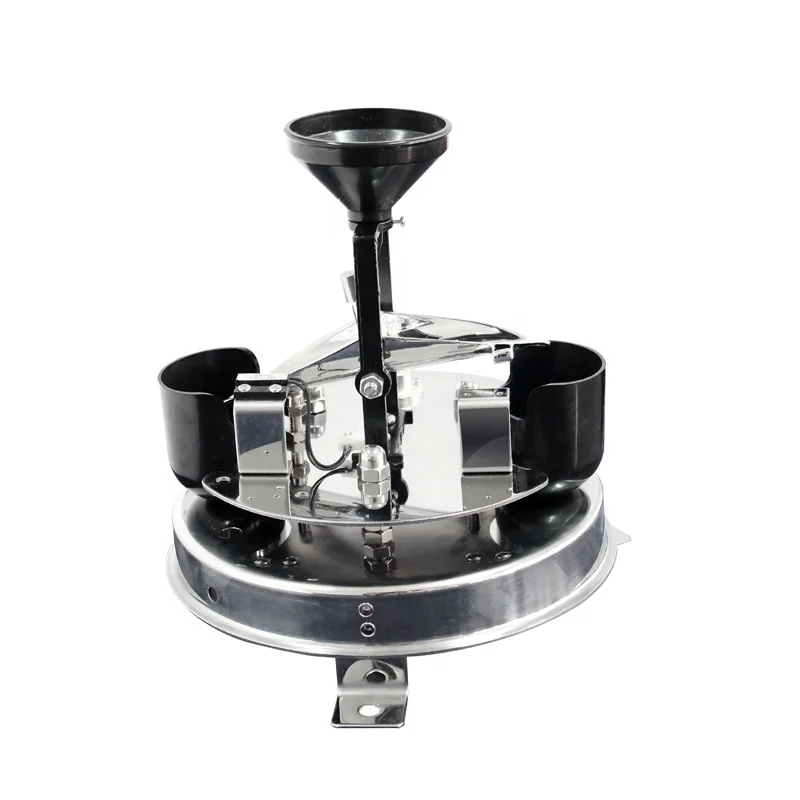

Smart Agriculture 1.Stainless Steel Enclosure assembly (Body)

2.Stainless Steel Funnel

3.Aluminum Bracket

4.Stainless Steel Tips

5.Reed switch. Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes. Data Sheet

Type	WS-601SS2
Material	Stainless Steel ( Body, Base)
Tips	ABS UV Stabilished plastic bucket
Rainfall capacity	≤ 4mm/min
Accuracy	±≤ 2%(≤ 0.4mm/min); ±≤ 4% (≤4mm/min);
Resolution	0.2mm
Collector diameter	200mm ±0.3%
Collector area	314cm²
Height	402.2mm
Acute angle of cutting edge	40~45°
Output	Standard Pulse(Reed switch, 5pulse/mm); RS485 optional
Power supply	Pulse : MaxDC24V,100mA ;  RS485: DC5V or DC 7-24V
Switch	Rugged Magnetic Proximity
Leveling	Bulls eye level adhered, leveling screw adjust
Debris protection filter	Steel stainless Mesh is provided inside the collector
Mounting holes	Three mountings
Discharge control	Straight through flow mechanism
Working temperature	-20～80℃
Working humidity	0%~95%RH

Note: The price is for standard pulse output. If you need RS485 output, please ask us for updating the price. Installation 1. Use M6 expansion screws fixed on the ground or plate; 2. Adjust leveling according bull-eye level. Application Hydrology Environment Monitoring Agriculture Order process

--In order to send you the specific quotation, please feel free to tell us the following information:

1. The power supply you required -- We have Pulse : MaxDC24V,100mA ; RS485: DC5V or DC 7-24V for your choices. 2. The output method you required -- We have pulse or RS485 for your choices.
3. The cable length you required -- The standard doesn't include cable. If you need cable, please ask us 4. The quantity you want to order--Sample is also welcome. 5. Price--EXW price or FOB price or DAP price.
6. Your complete company name,address (including post code), email address, contact person, phone number,etc. BGT Product Good Feedback More than 30 good feedback from Alibaba Trade Assurance Order since 2018. Company Profile As a wholly owned subsidiary of Beijing Guoxinhuayuan Technology Co., Ltd , BGT Technology (Beijing) Co., Ltd. specialized in the import & export business, which is a one-stop emergency solution supplier with production, research and development, sales of emergency supplies, road rescue, fire supplies, flood prevention supplies, Relief supplies, chemical accident emergency treatment, natural disaster monitoring and early warning solutions and other industrial products. Our products have been sold to more than 70
countries. Meanwhile, we have software and hardware R&D department and a team of experts to support customers' program planning and customized services, owned more than 50 patents and 60 software copy rights. We cooperate with disaster prevention experts at home and abroad to plan and implement a number of comprehensive hazards prevention monitoring and early warning projects, and set up a national demonstration base in Changping district, Beijing, China. In line with the professional, innovative, integrity,
persistent concept, committed to customers' demands, to provide customers with a full set of solutions, as well as efficient, timely after-sales service! We would like to become an IoT enterprise serving the field of global disaster prevention and reduction. Our Factory FAQ Q1: Are you trading company or manufacturer?
A: BGT Technology (Beijing) Co., Ltd. is a trading company 100% holding by Beijing Guoxinhuayuan Technology Co., Ltd. Beijing Guoxinhuayuan Technology Co., Ltd is manufacturer for emergency solutions and producs.
Q2. Can I have a free sample for testing ?
A: Sample order is acceptable, but need you to pay for the product cost and freight .
Q3. What about the lead time?
A: Sample needs 4-5 working days after receiving your payment, mass production needs extra 4-5 working days.
Q4: Is it OK to print my logo on the products? A: Yes, we support OEM/ODM service. Q5: Do you offer guarantee for the products? A:Yes, we offer 1 year warranty to our products. Q6: Can I visit your company? A: Yes, warmly welcome to visit our company.
问题 7.你有证书吗?
A: 是的,我们有 ISO9001,ISO 14001,OHSAS18001,CE 等.
Q8:你们的商品质量如何? A: 我们承诺为客户提供外观好,质量好的产品.如果对产品有任何疑问,我们有售后团队为您服务.我们提供 1 年保修

---
