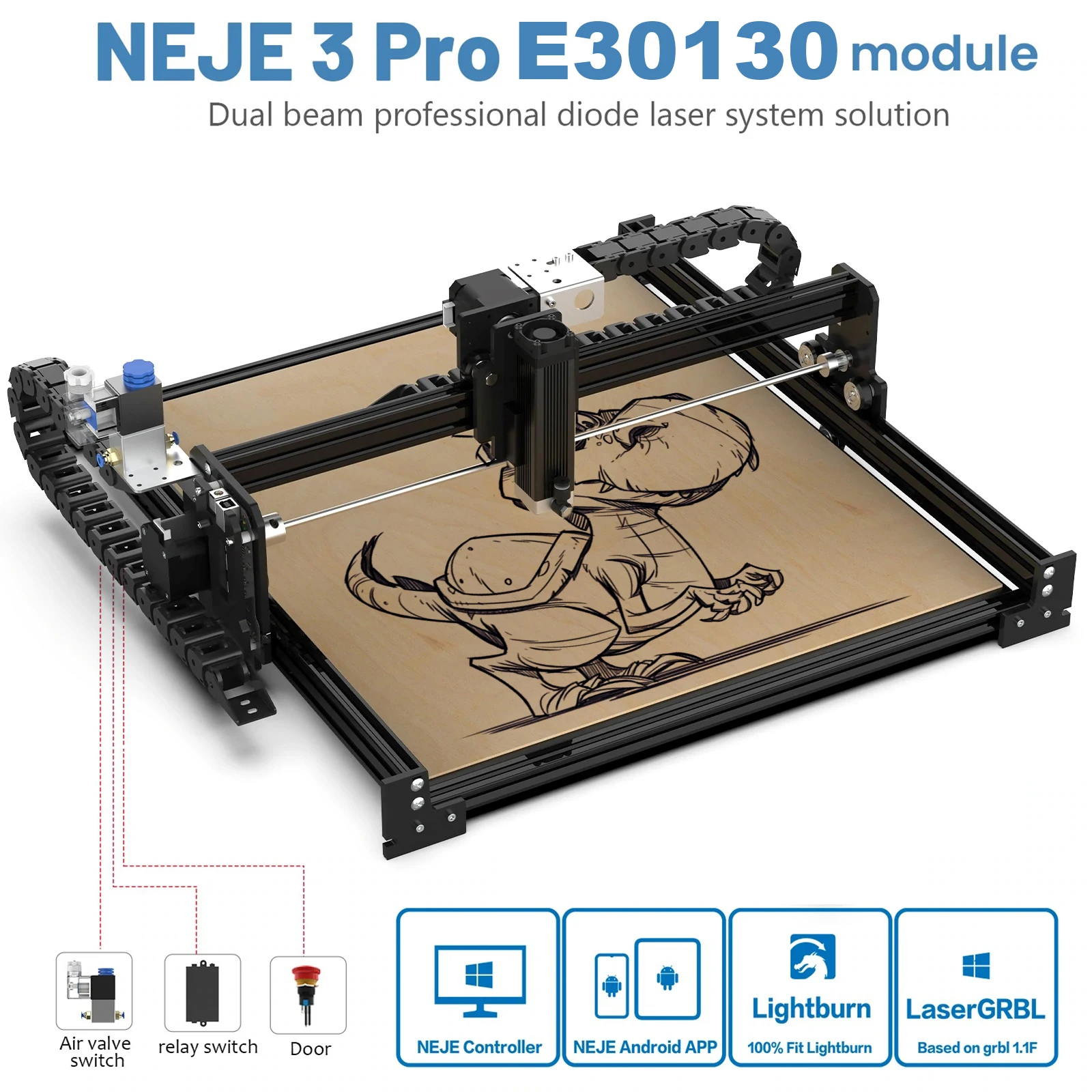

Лазерный гравер и фрезерный станок NEJE 3 Pro E30130 410*400 мм для металла и дерева, управляемый через приложение Cutter Printer on.

Лазерный гравер и фрезерный станок NEJE 3 Pro E30130 410*400 мм для металла дерева управляемый через приложение Cutter Printer on.

Choose [ Ships From China ]
We will ship from [EU Warehouse ]
VAT Tax is inclusive

Free shipping ,Fast Delivery in 3~5 days

M7 relay expansion accessories, can be used to control AC or DC power supply smoke exhaust system, can also be used to control other circuits, used as M8, there are safety risks when operating high-voltage circuits, requiring professional operation; M8 valve expansion accessories, can be used To control the air compressor switch;

E30130 Can Engrave：MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/acrylie/ABS Board/PVC Sheet/PPR/PCBA/Bakelite/Carbon fiber/paint metal/Anodized Aluminum/brushed Stainless Steel/brushed glass/cobblestone/brushed ceramic

E30130 Can cut: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Non-woven/cotton/linen/velvet/canvas/acrylie/ABS Board/PVC Sheet/EPE/KT board

Specification:

Frame size (L - W -H): 550 x 540 x 200mm

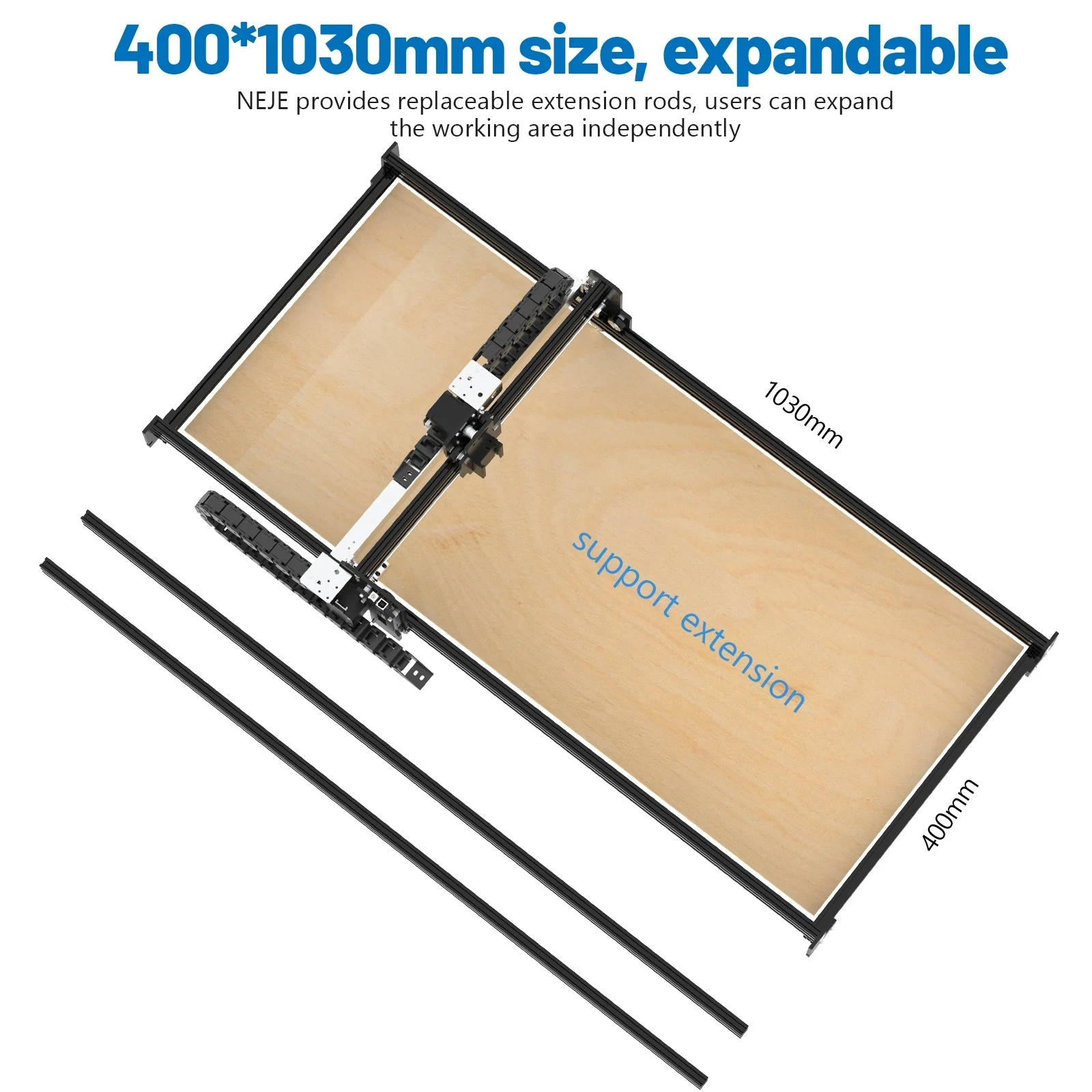

Working area( X - Y): 400 x 410mm, Extends to 400x1040mm
Dot Pitch: 0.075mm, 338dpi
Pixel: 5333 x 5466 px
Drive accuracy: 0.01mm
Max Move Speed: X:1000mm/s(with module 204g), Y:750mm/s
Frame Material: High precision All-aluminum alloy and PC material hybrid frame
Structure Technology: Y-axis fit adjustable design, X-axis stress fit assembly
Structure Feature: Fit, High precision, stablize, smooth, no oil, easy maintenance, long life
Vertical Carving: Yes (45°)
Motor Size: Y: 42 x 42 x 40mm, X: 42 x 42 x 34mm
Motor Drive Current: 0.9A
Module Height Adjuster：Yes
Home: Front Left
Origin: Front Left

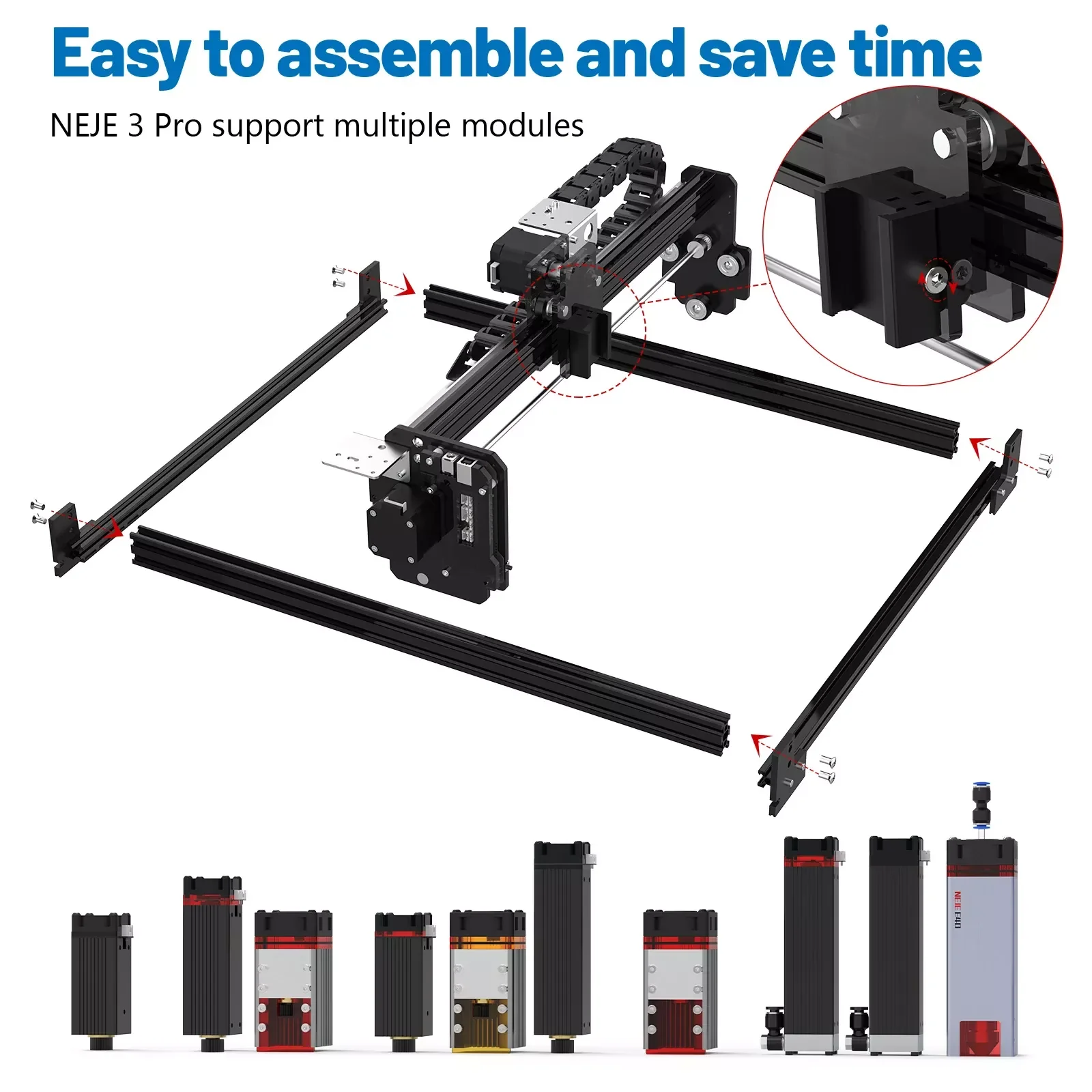

Compatible Modules: B30635, N30820, N40630, N30610, A40630, A30130, A40640, F30130, E30130, E40.
Rotary jig: supports all stepper motor driven jigs

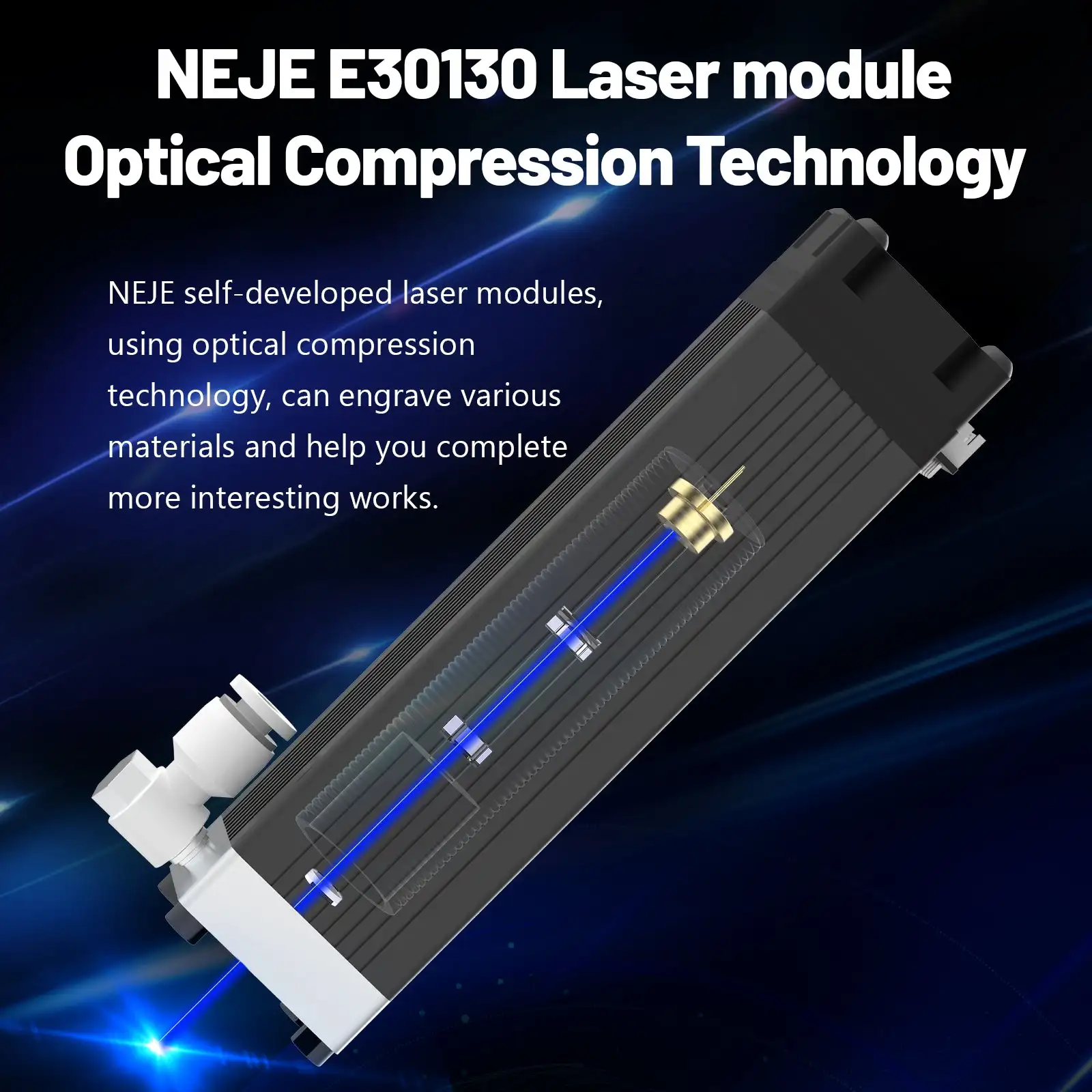

NEJE E30130 Laser Module
Radiator Size: 40 x 50 x 60 mm
Drive Design: Built-in
Input: 12V 4A +
Optical Power: 5.5W +
Wavelength: 450nm
Number of Diodes:1

support Off-Line Working
Software : NEJE APP for Android, IOS,NEJE software for windows, MAC LaserGRBL with firmware GRBL1.1f. LightBurn Software with firmware GRBL1.1f.LightBurn ( paid software from the official website of Lightburn.) supports Windows.

Packing list:

NEJE 3 Pro Machine x 1
E30130 Laser Module
Air Assist Kits x 1
12V 5A standard certified power adapter x 1
USB Cable + Manual + Quality Card x 1
Goggles x 1
Crawler x 1
FREE 12V Valve Control Kit (less than 1.5mpa) x 1
FREE 12V Relay Expansion Control Kit (Extra AD or DC power Max 2500W) x 1
FREE Door Control Kit x 1
Screw Nut Wrench Screwdriver Belt Installation Package x 1
Test Material Package x 1
