Характеристики
2022 г. LXSHOW высокоскоростной станок для волоконной лазерной резки с ЧПУ 3015
История изменения цены
*Текущая стоимость 795294 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-16-2025 | 946400.72 руб. | 993720.83 руб. | 970060 руб. |
| Aug-16-2025 | 938447.97 руб. | 985369.23 руб. | 961908 руб. |
| Jul-16-2025 | 787341.52 руб. | 826708.23 руб. | 807024.5 руб. |
| Jun-16-2025 | 922541.77 руб. | 968668.91 руб. | 945604.5 руб. |
| May-16-2025 | 803247.57 руб. | 843409.58 руб. | 823328 руб. |
| Apr-16-2025 | 906635.58 руб. | 951967.0 руб. | 929301 руб. |
| Mar-16-2025 | 898682.66 руб. | 943616.3 руб. | 921149 руб. |
| Feb-16-2025 | 890729.56 руб. | 935265.54 руб. | 912997 руб. |
| Jan-16-2025 | 882776.22 руб. | 926915.79 руб. | 904845.5 руб. |
Описание товара
2022 LXSHOW FIBER LASER CUTTING MACHINE LX3015F
LX3015F 1000W-20000W

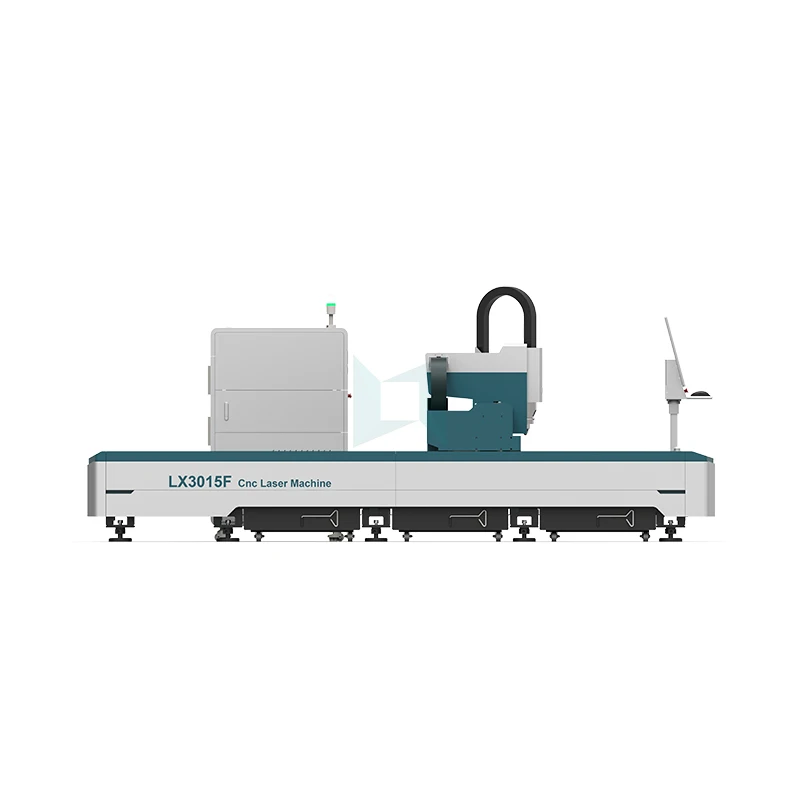

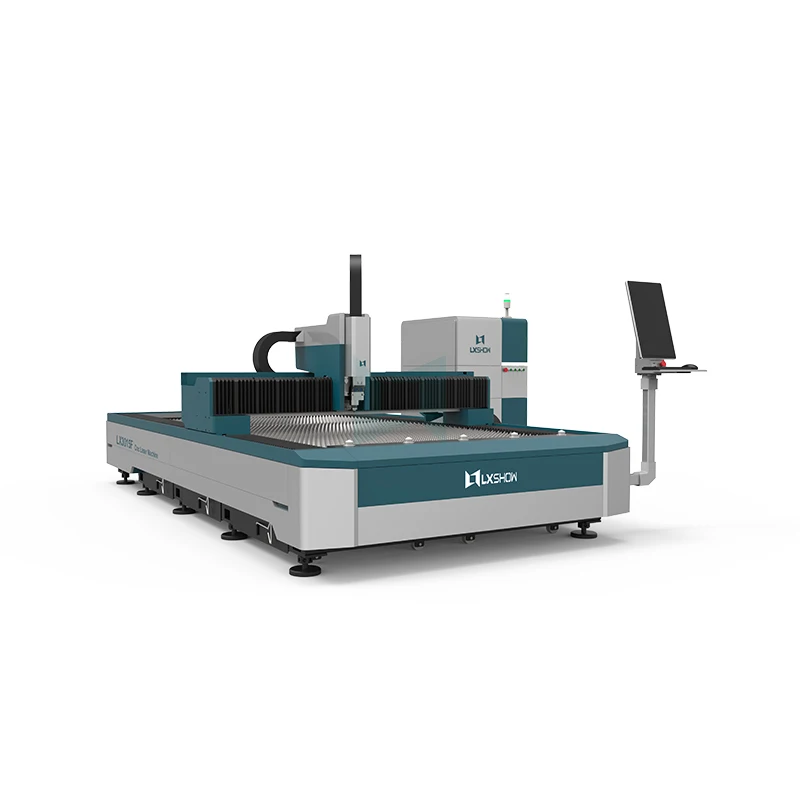

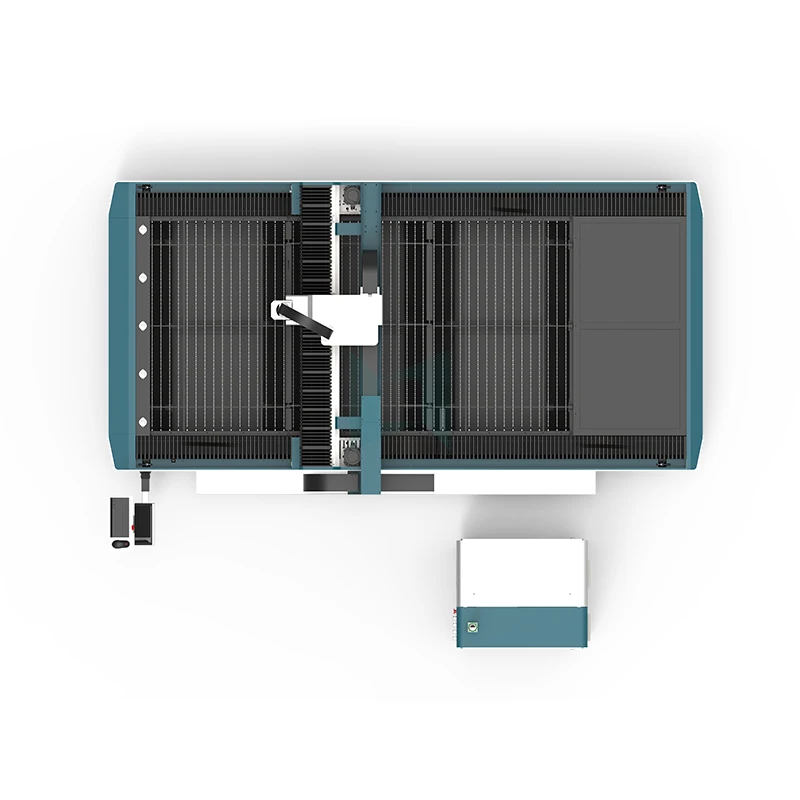

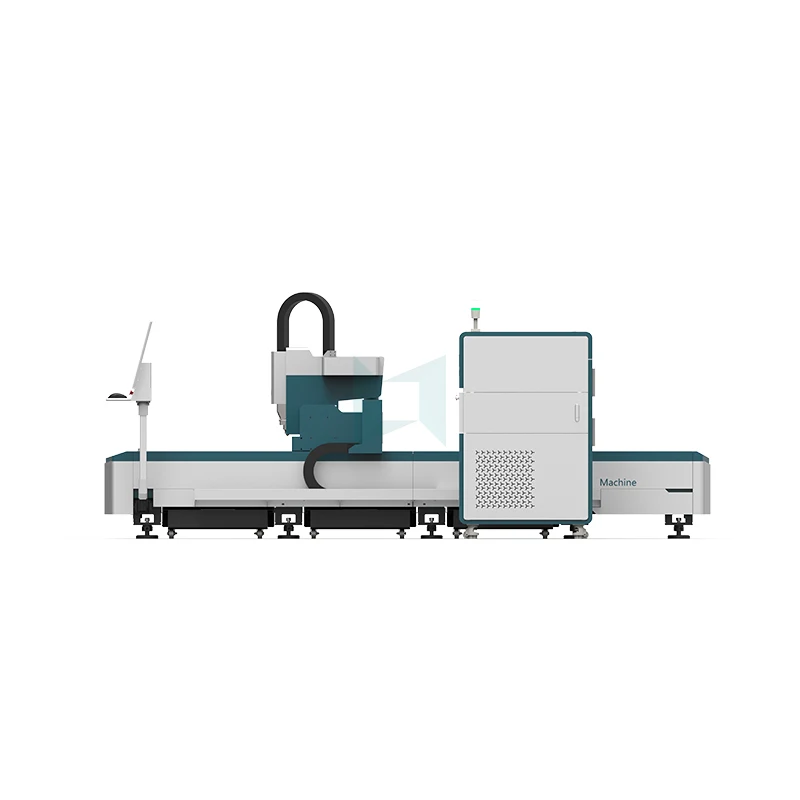

Machine Photoes
Parameters
TAKE 2000W AS EXAMPLE:
Model | LX3015F Fiber laser cutting machine |
Working Area | 1500*3000mm |
Laser Power | 2000W( Optional Power :2000W,4000W,6000W,8000W,12000W) |
Laser Generator | JPT/Raycus |
Laser Wave Length | 1064nm |
Working Table | Swatooth |
Maximum Idle Running Speed | 120m/min |
Maximum acceleration | 1.0G |
Position Accuracy | ±0.02mm/m |
Repeat Positional Accuracy | ± 0.01mm |
Control System | PC control with CYPCUT |
Position Type | red dot |
Power Consumption | ≤17KW |
Working Voltage | 380V ±10 % 50/60Hz |
Auxiliary Gas | oxygen,nitrogen,air |
Working life of fiber module | More than 100000 hours |
Fiber laser cutting head | Raytools BM111 with auto focus function |
Cooling System | S&A industrial water chiller |
Work Environment | 0-45°C, Moisture 45-85% |
Delivery time | 15-25 workdays (According to actual season) |
Machine Parts
Aviation Aluminum Gantry
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging
treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum
has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low
density, and greatly increase the processing speed.
Steel Plate Weld Machine Frame
It is welded by heavy steel plate, the current mainstream bed structure, high stability;
Effect force annealing treatment, high mechanical strength, not easy to deform;
Reinforcing ribs are arranged inside the bed to increase the strength and tensile resistance of the bed, and
effectively avoid deformation of the bed;
The weight of the bed, the small vibration of the machine, and the good shock resistance ensure the
improvement of cutting accuracy.
Intelligent Autofocus
The high efficiency cooling:
Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time,
the effective protection of nozzle, the ceramic body, prolonged work time.
Chase the light aperture:
Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality
and service life.
Automatic focus:
Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.
High speed cutting:
25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.
Independent Control Cabinet
Dust-proof
•All electrical components and laser source are built-in to the independent control cabinet with a dust-proof
design to prolong the lifespan of the electrical components.
Automatic Thermostat
•The control cabinet is equipped with air conditioner for automatic constant temperature.This can prevent
excessive temperature damage to components in summer.
Transmission And Precision
LXSHOW fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and
Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration
is 1.5G. The working life is up to more than 15 years.
Machine Cutting Data
Take 1000w as an example:
Machine Application
Application Materials:
Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, If you equipped with the rotary axis, Metal Plate, Tubes and Pipes, all ok.
Application Industries:
LXSHOW CNC Fiber Laser Cutting Machines are widely used in manufacture Billboard, Signs,
Advertising, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal
Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal
crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic
Parts, Nameplates, etc..
Company Profile
* 15 yearsfactory production experience
* 3 years machine warranty* 156 exported country experience
* 32000 square meters fiber laser cutting machine factory
* About Jinan Lxshow Laser Manufacture Co., Ltd.Jinan Lxshow Laser Manufacture Co., Ltd. is established in July 2004, owns more than 500 square meters of researching and office space, more than 32000 square meters factory.All machines , passed the European Union CE authentication, American certificate. Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 150 countries and areas,and supply OEM service for more than 30 manufactures.If you have a plan to visit our factory, please tell us your schedule, we will book a hotel for you and arrange a driver.
* About Laser Cutting Machine After Sale Group - Support Door to DoorWe have a professional and experienced after-sales team. We support door-to-door after-sales service. In order to effectively solve customer problems and help customers use the machine better, we will conduct skill assessments on our after-sales team every year.
Improve their skills more comprehensively, to serve customers wholeheartedly.
PLEASE CONTACT US IF YOU ARE INTERESTED
Sales manager : Hannah
Jinan LXSHOW Laser Manufacture CO.,LTD
Mob/whatsapp/wechat:+86-13361032316
E-mail:export22@lxshow.net/ lxshowexport22@gmail.com
Skype:export20@linkcnc.com
WEB: WWW.lxshowfiberlaser.com
www.laserlx.com
www.lxshowlaser.com
Professionally produce Fiber laser cutting /marking /welding
/cleaning machine ,plasma cutting machinesince 2004
