High Speed USB3.0 Industrial Digital Camera 5.0MP Monochrome Scroll Shutter With SDK,Support Halcon OpenCV LabVIEW Matlab Demo

Automation, robotization, industry 4.0, integration of quality control in the running production or at the end of the production line, increasingly faster cycle and throughput times with a growing number of product variants, zero-error tolerance, digital networking, artificial intelligence, deep learning systems - these are some of the developments that are increasingly determining the industrial working environment.

1)This series all comes with hardware cache, which is very suitable for one computer to connect multiple cameras. It only needs one ordinary USB3.0 HUB to realize four 5MP cameras to 15FPS frame rate at the same time, effectively reducing system cost!

2)Support PC linux system, can be integrated in the embedded device.

3)Supports external trigger flash sync.

4)A computer connected to a number of cameras can work stably, do not drop the line for a long time, do not lose frame.

5)The camera comes with an editable IO.

6)Dimensions: SUB Series 29X29X51mm

7)SUB full range support U3VISION agreement, can seamlessly support HALCON, Labview and other visual software.

Standard Equipment:

1) Camera, CS / C adapter, trigger line.

2) WDM drivers, Directshow, TWAIN, Halcn, OCX, Labview components.

3) Camera presentation software, measurement software for 32 / 64WINDOWS XP, WIN7, WIN8 and Linux systems, embedded Linux system.

4) SDK package, including VC / C ++, C ++ builder, VB6, VB.NET, Delphi, C # development routines.

5) Offline RAW to RGB program.

6) Measurement software, permanently free to use.

Feature Product:

1) Support multi-camera work at the same time, stable and reliable, and GIGE camera SDK is fully compatible, can be replacedseamlessly.

2) Camera parameters are saved in file form, easy to mass production release, development is simple, cross-platform compatible.Support 8bit, 24bit, 32bit image data format output.

3) Support for small resolution high frame rate preview, large resolution capture function, seamless switching.

4) Support for resolution customization. View cutting (ROI), BIN, SKIP pumping point, zoom function can be freely combined set,match the different aspect ratio and field requirements.

5) The body comes with up to 16K bytes of user data storage space.

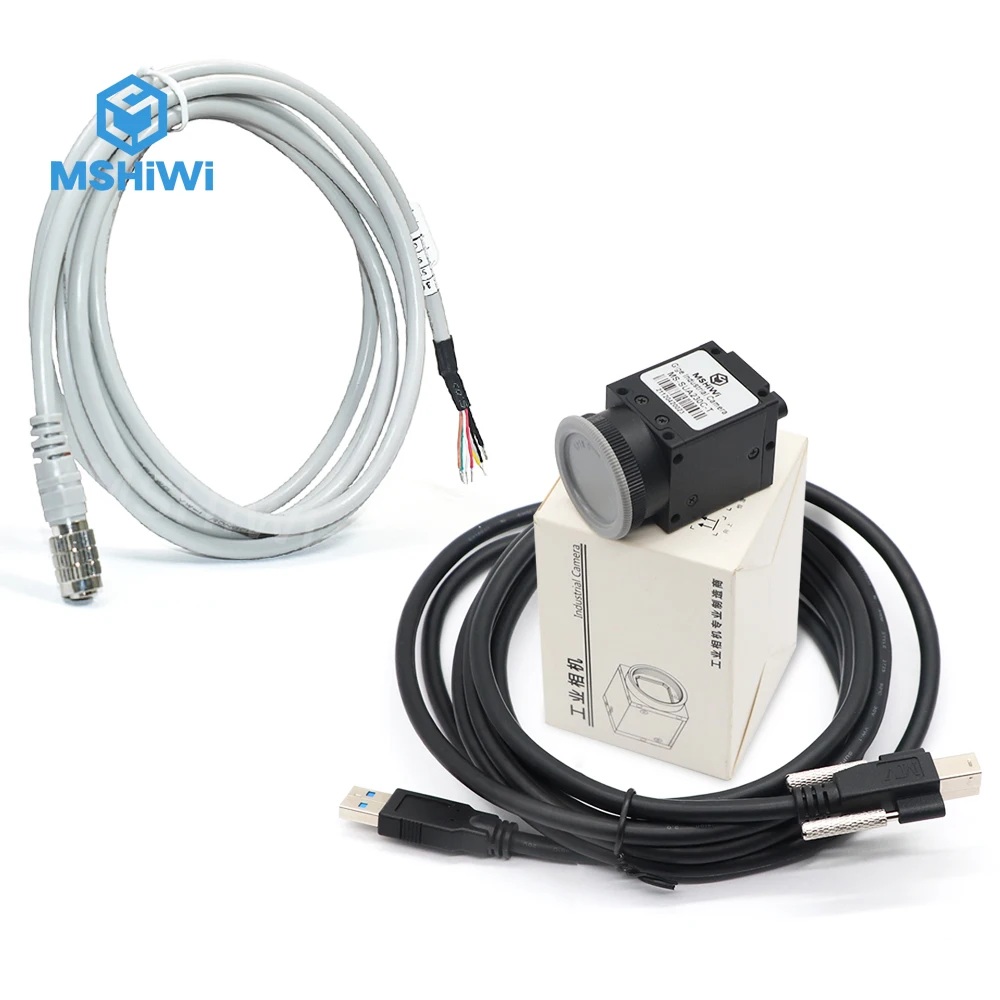

Package include:

1 x Industrial Camera(No include lens)

1 x 3 Meters  Cable

1 x Trigger line

Industrial Camera Parameters:

Machine Vision Software:

Support Halcon, OpenCV, LabView, Matlab, Python, etc.
