MUQZI Bottom Bracket Thread Tapping Tool MTB Road Bike BC 1.37 English Repair Tap Bicycle Screw |

MUQZI Bottom Bracket Thread Tapping Tool MTB Road Bike BC 1.37 English Repair Tap Bicycle Screw |

MUQZI Bottom Bracket Tapping Tool

Material: Aluminum Alloy + Stainless Steel
Tap Model: Bc1.37*24

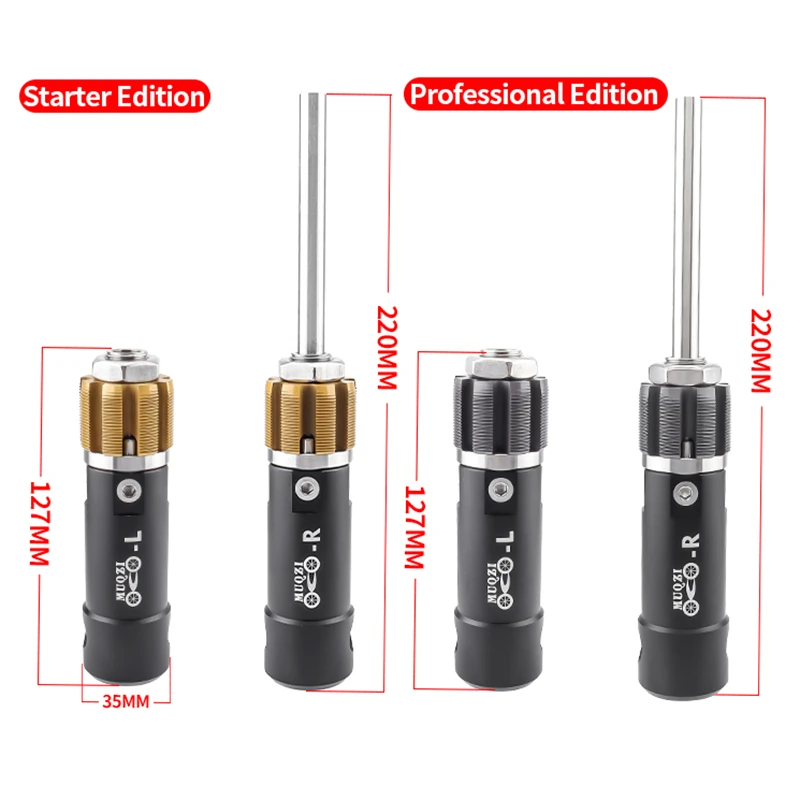

Size: 220x127×35MM
Handle Size: 240x14MM
Weight: 1.087Kg

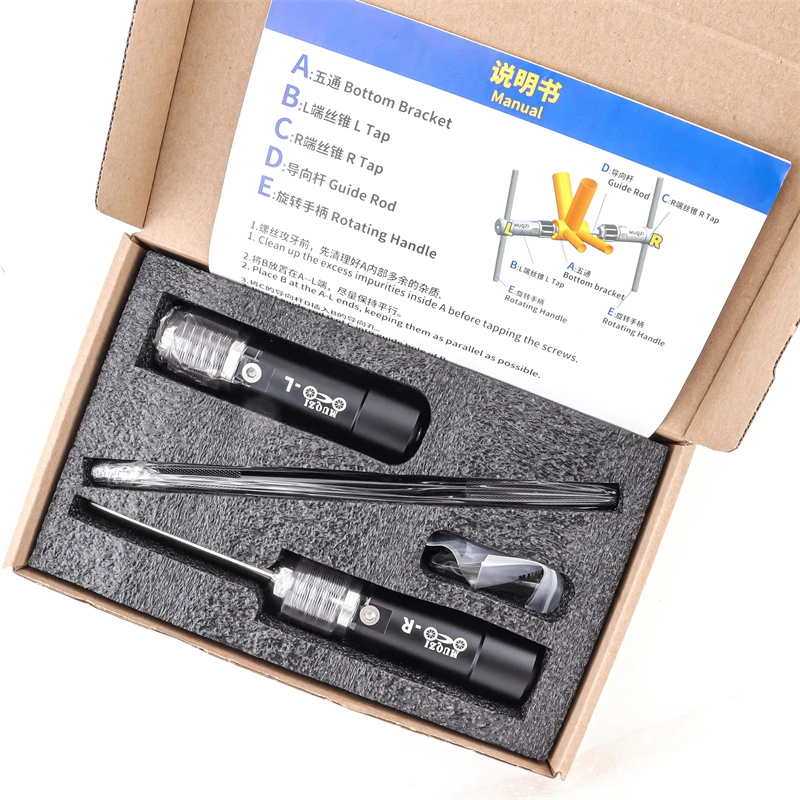

Delivery List: L/R End Tap Each One / 2 Rotary Handles / 1 Wrench

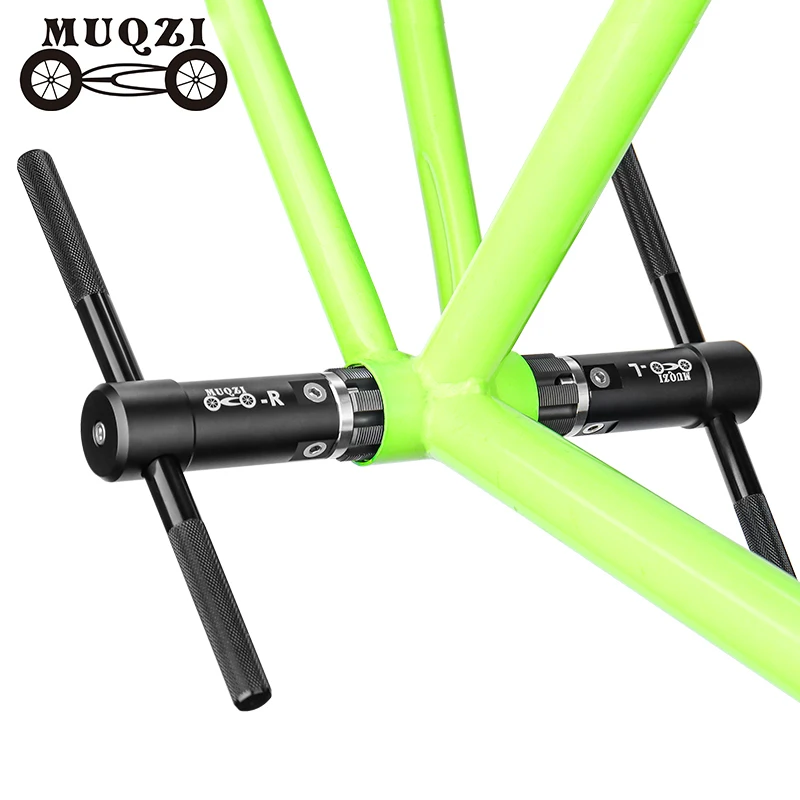

Please Distinguish The Left And Right Of The Bottom Bracket Tapping Tool, The Left Is The Crank Arm Direction, And The Right Is The Chainring Direction

Starter Edition: The Tap Is Made Of High-Speed Steel Titanium-Plated, Suitable For Tapping The Aluminum Alloy Shell Thread
Professional Edition: The Tap Is Made Of High-Speed Steel Titanium-Coated With Cobalt, Suitable For Tapping Aluminum, Iron, Stainless Steel Five-Way Threads

Features:

1. For Making New Threads Or Reworking Damaged Or Jammed Threads.
2. It Is Made Of High-Speed Steel With Titanium Plating, Which Greatly Improves The Cutting Performance Of The Drill Bit, Is More Wear-Resistant And Prolongs The Service Life. It Ensures Sharp, Fast Execution While Maintaining Strength And Efficiency.
3. All Cutting Teeth Are Precision Cnc Machined And Precisely Heat Treated For Optimum Thread Performance.

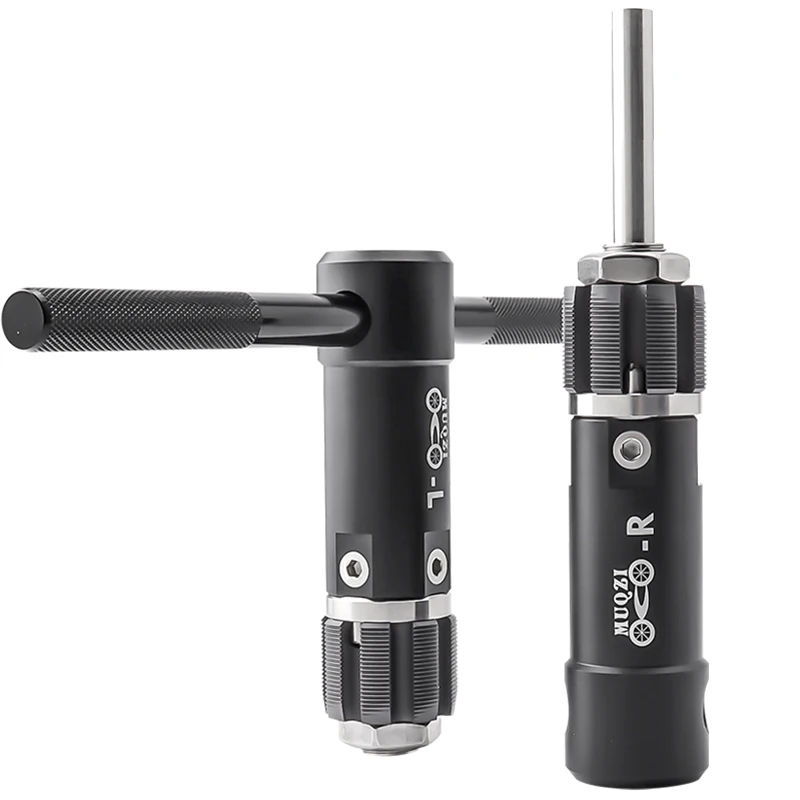

4. Detachable Handle, With The Adjustable T-Handle, You Can Slide The Metal Rod Left And Right To Increase Leverage In Tight Places.

Operation Skills:
Apply Special Tapping Oil To The Tap Surface And Bottom Bracket Inner Diameter Before Operation,
Make Sure That The Tool And The Bottom Bracket Are On The Same Horizontal Wire Before Tapping,
During The Tapping Process, If The Resistance Is Too Large, Please Retreat a Few Laps,
To Achieve The Purpose Of Chip Removal And Then Tap.

Professional Version: Taps Are Made Of High-Speed Steel + Titanium-Plated + Cobalt, Suitable For Tapping Aluminum, Iron, Stainless Steel Bottom Bracket Threads

Entry Version: Taps Are Made Of High-Speed Steel + Titanium-Plated, Suitable For Tapping Aluminum Alloy Bottom Bracket Threads

The Main Body ls Made Of 7045 Aviation Aluminum Stronger Metal lncreased Stiffness While Reducing Weight

Deeper Chip Removal Design

Prevent Chip BuildupEffectively Prevent When TappingAluminum Shavings Block The Wire

Sharp And Burr-Free Deep Thread

Eight-Slot Chip Removal, Small Resistance, Large Chip Space, Firm And Durable

Replaceable Taps，Longer Life

Non-slip surface design, not easy to slip, even force

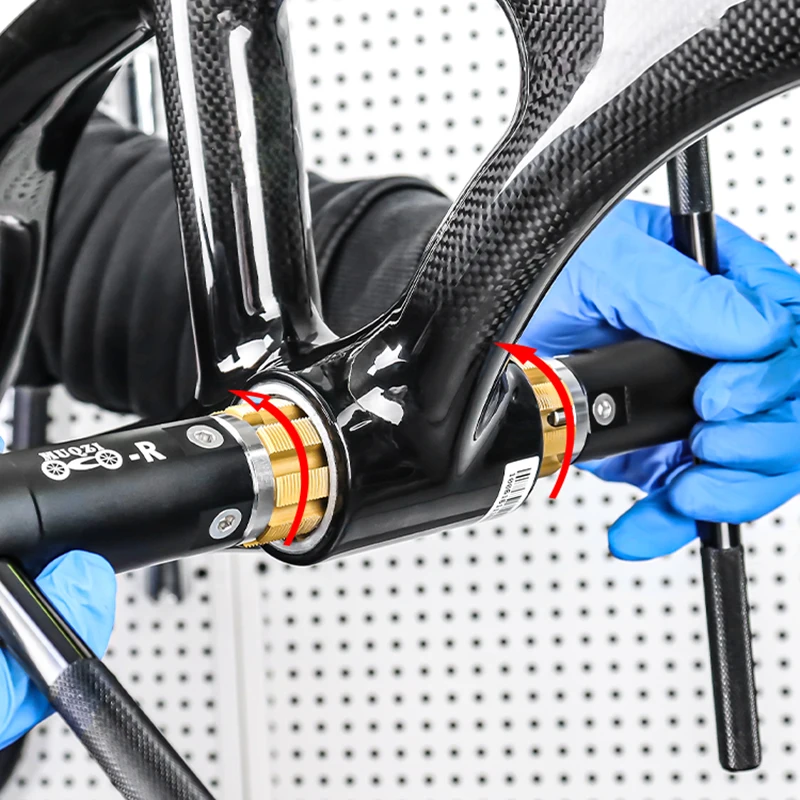

Tapping In The Direction Shown ln The Figure

1. Clean up excess impurities inside the five-way
2. Add lubricating oil inside the five-way
3. Add lubricating oil to the tap

4. Put the bottom bracket in R right/left L direction
2. Use one advance and one retreat for tapping
6. Tapping is completed, clean up excess impurities

On the left is the tapping effect of stainless steel material on the machine tool
On the right is the tapping effect of aluminum alloy material on the machine tool
