40Mmx40mmx11mm Heatsink Cooling Cooler Fin For CPU & 40X40mm Simple Module Thermoelectric Generator Semiconductor |

---

40Mmx40mmx11mm Heatsink Cooling Cooler Fin For CPU & 40X40mm Simple Module Thermoelectric Generator Semiconductor

set2: 1 x Thermoelectric Power Generator + 1 x Cooling Fin

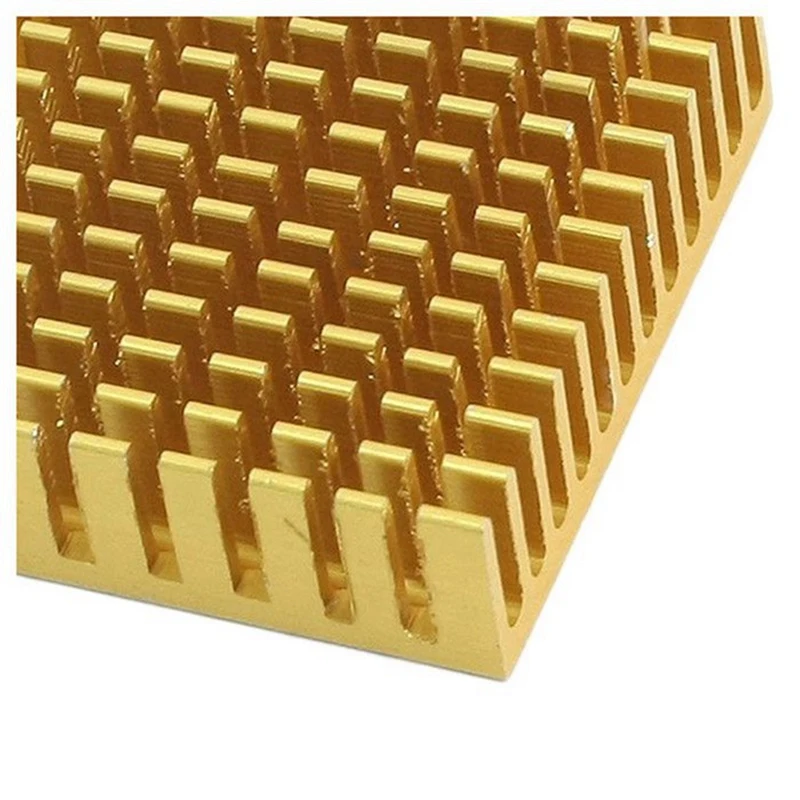

Aluminum heatsink cooling fin, generally used in heat treatment and the cooling IC and electronic component, for example: RAM, CPU Memory.
The fins increase the area of the board and thus provide for greater heat transfer.
100% brand new and high quality.
Heating side is empty. Red wire to positive, black wire to the negative, it generates electricity when the temperature difference happened

Small and lightweight, convenient for use.
Designed specifically for power generation. Sealed for moisture protection and contain thermal elements formulated for optimum Seebeck power generation.
High temperature 150°C, with NM static protection.
Product Name : Cooling Fin
Overall Size : 40 x 40x 11mm/ 1.6 x 1.6 x 0.43 inch (L x W x H)
Temperature electromotive force (a): 190x Greater than uV/ C
Optimum value (Z): 2.5 ~ 3x10-3W/ OC
Model: SP1848-27145
Working Environment: -60~125 degree
Lead Length: about 30cm
Thermal conductivity (K): 15~16x10-3-W/ C cm
Conductivity: 850~1250 Omega -1.cm-1
Product Name: Thermoelectric Power Generator
Product material:ceramics/Aluminum
Product color: white/ Gold Tone
Product size: 4cmx4cmx0.38cm

Package Contents:
1 x Thermoelectric Power Generator
1 x Cooling Fin

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
